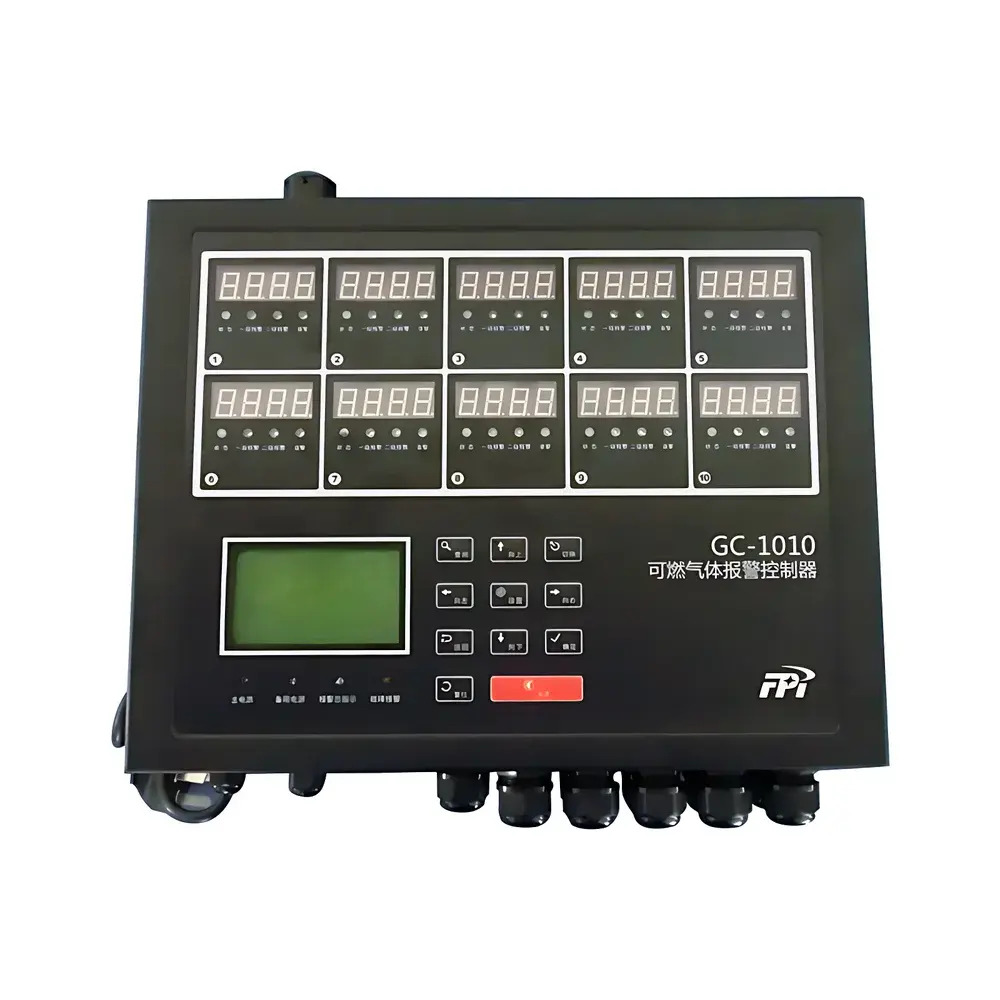

FPI GC-1010 Series Wall-Mounted Gas Detection Controller

Overview

The FPI GC-1010 Series Wall-Mounted Gas Detection Controller is an industrial-grade central monitoring unit engineered for real-time supervision of distributed gas detection systems. Designed in strict compliance with IEC 61508 (Functional Safety of Electrical/Electronic/Programmable Electronic Safety-related Systems) and aligned with the operational requirements of ISO 14001 environmental management frameworks, the GC-1010 serves as a field-deployable hub for power distribution, analog signal acquisition, alarm evaluation, and digital data transmission. It supports standardized 4–20 mA or 0–5 V DC input signals from two-wire and three-wire electrochemical, catalytic bead, infrared, and semiconductor-based toxic and combustible gas sensors. The controller operates on a deterministic sampling architecture—ensuring synchronized acquisition across all configured channels at sub-second intervals—enabling rapid fault detection and minimizing false alarm propagation in mission-critical environments such as chemical storage facilities, wastewater treatment plants, and refinery perimeter zones.

Key Features

• Modular channel architecture: Available in 10-channel (GC-1010) and 2-channel (GC-1010-C) configurations to match site-specific sensor density and scalability requirements.
• Integrated power management: Provides regulated 24 VDC active output (1 channel) to energize loop-powered transmitters—eliminating the need for external power supplies in most standard detector deployments.
• Dual-mode visual interface: Combines a monochrome LCD for parameter navigation, configuration logging, and event history review with high-intensity LED status indicators per channel (normal, alarm, fault, maintenance).
• Intelligent alarm voting logic: Implements configurable 2-out-of-3 or 3-out-of-4 sensor consensus algorithms to suppress spurious alarms caused by transient interference or single-point sensor drift—enhancing operational reliability under variable environmental conditions.
• Redundant communication pathways: Supports both RS-485 (Modbus RTU protocol) and Ethernet (TCP/IP stack with Modbus TCP support), enabling seamless integration into legacy DCS architectures or modern IIoT-enabled SCADA platforms.
• EMC-hardened design: Complies with IEC 61326-1 (industrial electromagnetic compatibility) and operates reliably in ambient temperatures ranging from −20 °C to +60 °C and relative humidity up to 95% non-condensing.

Sample Compatibility & Compliance

The GC-1010 is compatible with certified 2-wire and 3-wire gas detectors conforming to EN 45544-1 (toxic gases) and EN 50194-1 (combustible gases). It does not perform intrinsic safety barrier functions but is intended for use downstream of certified IS barriers or in non-hazardous (Zone 2/Class I Division 2) areas. All firmware revisions undergo traceable version control and are validated against GLP-aligned software development lifecycle protocols. Device configuration and alarm logs retain time-stamped audit trails compliant with ISO/IEC 17025 documentation integrity standards.

Software & Data Management

Configuration and diagnostics are performed via local keypad navigation or remote access using FPI’s proprietary PC-based configuration tool (v3.2+), which supports encrypted parameter backup, batch firmware updates, and export of CSV-formatted event logs. The Ethernet interface enables integration with enterprise-level asset management systems through OPC UA or MQTT brokers—supporting timestamped telemetry ingestion, remote calibration scheduling, and automated health reporting. Audit trails include user ID, timestamp, action type (e.g., threshold modification, reset), and pre-/post-change values—meeting minimum requirements for FDA 21 CFR Part 11 electronic record retention where applicable.

Applications

• Continuous perimeter monitoring of LNG terminals and compressed natural gas (CNG) refueling stations.
• Multi-point hydrogen sulfide (H₂S) and chlorine (Cl₂) surveillance in municipal water treatment basins and sludge dewatering facilities.
• Fixed-point ammonia (NH₃) leak detection in cold storage warehouses and food processing lines.
• Integration with fire alarm control panels (FACP) in industrial boiler rooms and HVAC mechanical spaces for联动 (interlocked) ventilation shutdown upon combustible gas threshold exceedance.
• Mobile deployment in emergency response vehicles for rapid setup of temporary detection grids during hazmat incidents.

FAQ

Does the GC-1010 provide intrinsic safety barriers for connected detectors?
No. The GC-1010 is not an intrinsically safe device and must be installed in non-hazardous locations. External Zener or galvanic barriers are required when interfacing with detectors installed in hazardous zones.
Can the voting logic be customized per channel?
Yes. Voting parameters—including sensor group assignment, threshold weighting, and consensus count—are programmable per logical zone via the configuration utility.
Is Modbus TCP the only supported Ethernet protocol?
Modbus TCP is natively supported; optional firmware modules enable MQTT v3.1.1 and HTTP RESTful API endpoints for cloud telemetry ingestion.
What is the maximum cable length supported for RS-485 communication?
Up to 1,200 meters at 9.6 kbps with proper twisted-pair cabling and termination—per TIA/EIA-485-A specifications.
Are firmware updates backward-compatible with older GC-1010 hardware revisions?
Firmware v2.8 and later maintain binary compatibility with all GC-1010 mainboard revisions released after Q3 2020; legacy units require hardware verification prior to upgrade.
