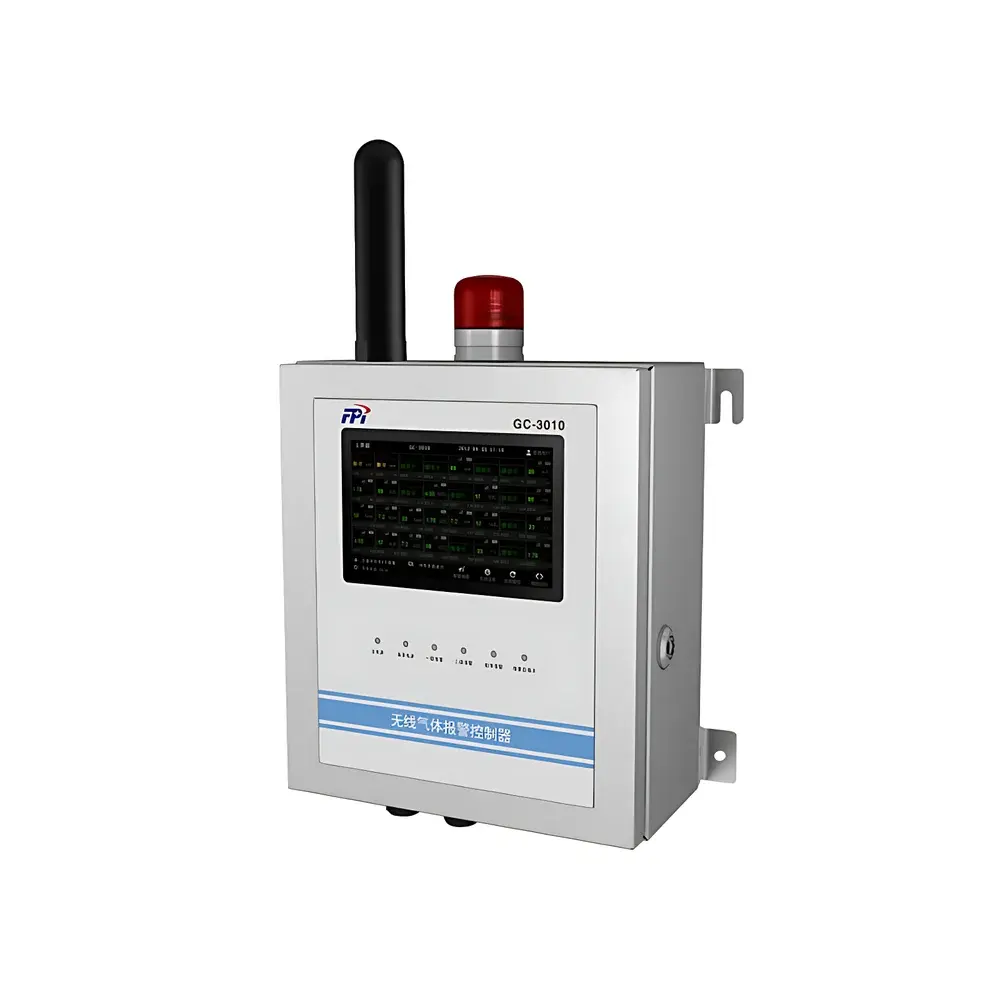

FPI GC-3010 Series Wireless Gas Monitoring Controller
| Brand | FPI |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | China |
| Model | GC-3010 |
| Pricing | Available Upon Request |
Overview
The FPI GC-3010 Series Wireless Gas Monitoring Controller is a wall-mounted, industrial-grade central control unit engineered for real-time supervision and management of distributed wireless gas detection networks in hazardous or remote environments. Designed around a robust embedded architecture, the GC-3010 operates as a field-deployable hub that aggregates, processes, and relays alarm status, concentration data, and device health metrics from up to 32 FPI GT-series wireless gas detectors—or alternatively, up to 30 wireless units plus two analog (4–20 mA) wired transmitters. Its operational principle relies on bidirectional RF communication (ISM band, 433 MHz or 868 MHz depending on regional certification), enabling reliable, low-latency telemetry without requiring dedicated cabling infrastructure. The controller complies with IEC 61508 SIL 2 functional safety requirements for gas detection system controllers and supports integration into larger plant-wide safety instrumented systems (SIS) via standardized protocols.
Key Features
- 7-inch high-brightness TFT resistive touchscreen with intuitive HMI interface—designed for gloved operation and optimized visibility under variable ambient lighting conditions
- Local data retention: minimum 12 months of continuous gas concentration logging (1-minute intervals), 2,000 alarm event records, and 1,000 fault logs—with timestamp, sensor ID, and severity classification
- Triple communication redundancy: RS485 (Modbus RTU), 10/100 Mbps Ethernet (Modbus TCP), and optional GPRS module for cellular backhaul—enabling both local SCADA integration and remote cloud-based monitoring
- Seamless interoperability with FPI GT-series wireless gas detectors—including support for both 2-wire and 3-wire 4–20 mA analog input modules, ensuring backward compatibility with legacy field devices
- Integrated rechargeable lithium-iron-phosphate (LiFePO₄) battery providing ≥8 hours of uninterrupted operation during AC mains failure—automatically engaged with seamless switchover and low-voltage warning
- IP65-rated enclosure with aluminum alloy housing, rated for operation between −20 °C and +60 °C and relative humidity up to 95% non-condensing
Sample Compatibility & Compliance
The GC-3010 is designed exclusively for use with FPI’s certified wireless gas detection ecosystem, including GT-3000, GT-5000, and GT-7000 series transmitters detecting combustible gases (LEL), toxic gases (e.g., H₂S, CO, Cl₂, NH₃), and oxygen deficiency/enrichment. It does not perform direct gas analysis but serves as a certified data aggregation and alarm coordination node within EN 45544-1:2018 and GB 50493–2019 compliant installations. All firmware and configuration files adhere to IEC 62443-3-3 security requirements for industrial control systems. Device-level certifications include CE (ATEX Category 3G, II 3G Ex nA IIC T4 Ga), RoHS, and China CCC mark.
Software & Data Management
The controller runs FPI’s proprietary embedded firmware v3.2.x, supporting over-the-air (OTA) firmware updates via secure HTTPS or local USB. Configuration is performed through the onboard web interface or FPI’s PC-based GasGuardian™ Engineering Tool (v5.4+), which enables role-based user access (admin/operator/auditor), audit trail generation per ISO 9001 and GLP requirements, and export of CSV/Excel reports. Alarm escalation logic supports configurable multi-stage notifications—including relay outputs, visual/audio alerts, and Modbus-triggered shutdown signals. Data integrity is ensured via cyclic redundancy check (CRC-32) on all transmitted packets and SHA-256 hashing for firmware image verification.
Applications
- Oil & gas facilities: perimeter leak monitoring at compressor stations, metering skids, and LNG transfer zones
- Chemical manufacturing plants: area surveillance near storage tanks, loading bays, and reactor vent stacks
- Municipal infrastructure: real-time methane and H₂S monitoring in wastewater treatment plants and sewer networks
- Emergency response vehicles: rapid-deployment mobile command units with integrated GPRS telemetry for incident scene mapping
- Pharmaceutical cleanrooms: supplemental O₂ and solvent vapor oversight where wired installation is prohibited by cleanroom class standards
FAQ
What wireless protocol does the GC-3010 use to communicate with GT-series detectors?
It employs a proprietary FHSS (Frequency-Hopping Spread Spectrum) RF protocol operating in the 433 MHz (China/Asia) or 868 MHz (EU) ISM bands, with AES-128 encryption and automatic channel selection.
Can the GC-3010 be integrated into a DCS or PLC system?
Yes—via Modbus RTU over RS485 or Modbus TCP over Ethernet; register maps and exception handling are documented in the FPI Integration Manual v3.1.
Is historical data export compliant with FDA 21 CFR Part 11?
While the GC-3010 itself is not Part 11-certified, when deployed with GasGuardian™ software configured with electronic signatures, audit trails, and role-based permissions, the full solution meets Part 11 requirements for electronic records and signatures.
Does the controller support redundant power inputs?
No—it accepts single-phase 220 VAC ±15%, 50 Hz, but includes automatic failover to internal LiFePO₄ backup battery with runtime monitoring and low-battery alert via relay and Modbus register.
How often does the system perform self-diagnostics?
Continuous hardware watchdog monitoring; communication link health checks every 10 seconds; battery capacity validation during each AC power cycle and daily at midnight UTC.
