FPI LGA-4100 In-Situ Laser Gas Analyzer
| Brand | FPI |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | China |
| Model | LGA-4100 |
| Pricing | Available upon Request |
Overview
The FPI LGA-4100 In-Situ Laser Gas Analyzer is an industrial-grade, tunable diode laser absorption spectroscopy (TDLAS)-based online gas analysis system engineered for real-time, non-intrusive measurement of target gas species in harsh process environments. Unlike conventional extractive analyzers requiring gas sampling, conditioning, and transport lines, the LGA-4100 employs true in-situ measurement—mounting directly across the stack or duct to perform optical path-based concentration analysis without physical gas extraction. This configuration eliminates sampling delays, condensation artifacts, catalytic surface losses, and calibration drift associated with sample handling systems. The analyzer operates on Beer–Lambert law principles, utilizing wavelength-modulated absorption spectroscopy (WMS) to isolate spectral signatures of target gases—including O₂, CO, CO₂, CH₄, NH₃, H₂S, HF, and HCl—with high selectivity and immunity to cross-interference from background matrix components. Its robust optical architecture supports continuous operation under ambient temperatures up to 80 °C and vibration levels typical of steel mill, refinery, and waste incineration facilities.
Key Features

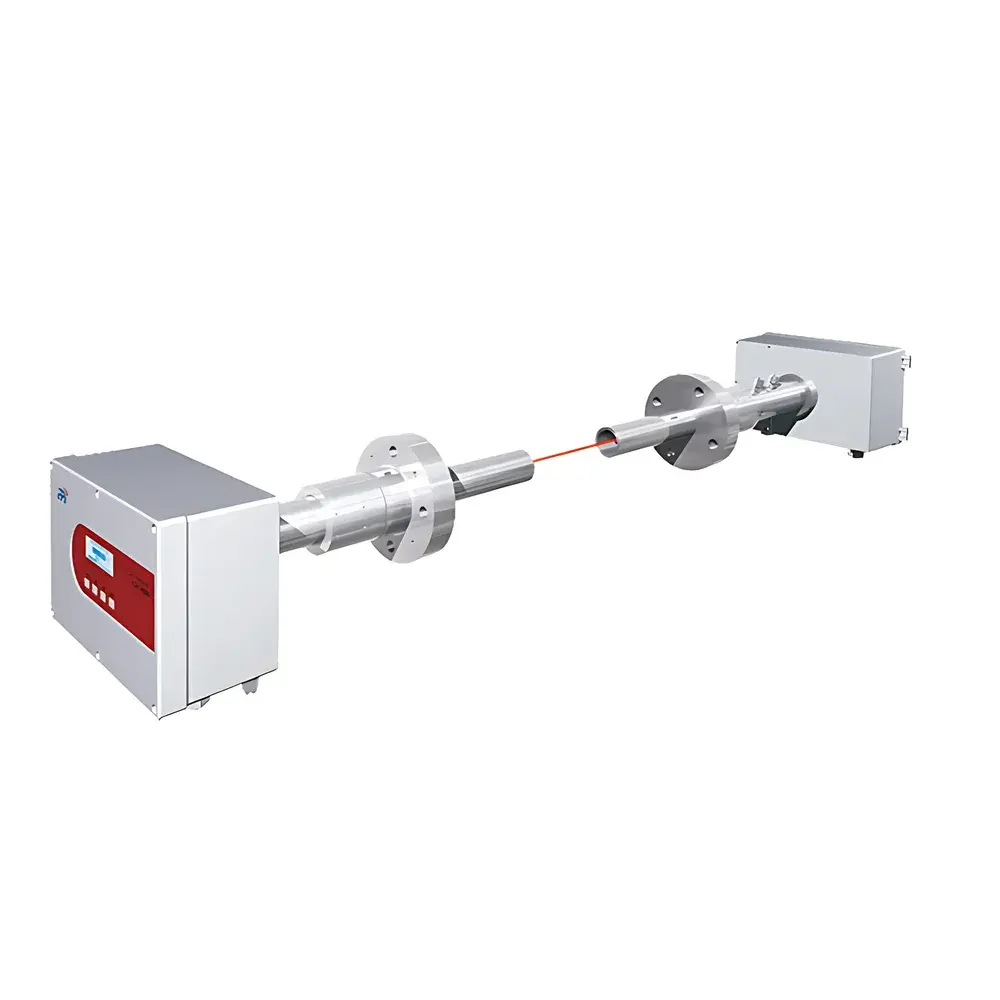

- True in-situ configuration: Dual-optic path design with transmitter and receiver mounted opposite each other across the process duct—no sample probe, pump, filter, or conditioning system required.
- High-reliability integrated optomechanical housing: Sealed, purge-compatible enclosure rated IP66, featuring positive-pressure nitrogen purging to protect optical windows and internal optics from dust, moisture, and corrosive aerosols.
- Field-proven thermal and mechanical stability: Patented optical alignment retention mechanism maintains beam collimation over thermal cycling (−20 °C to +60 °C ambient) and mechanical shock (IEC 60068-2-6 compliant).
- Intelligent self-diagnostic firmware: Real-time monitoring of laser current, photodetector response, signal-to-noise ratio (SNR), optical path integrity, and purge pressure—automated alerts for maintenance triggers via Modbus TCP or 4–20 mA analog output.
- Modular hardware architecture: Field-replaceable laser module, detector assembly, and control board enable rapid service turnaround without full unit replacement.
Sample Compatibility & Compliance
The LGA-4100 is validated for direct measurement in flue gas streams containing particulate loadings up to 50 g/Nm³, moisture content up to 30 vol%, and operating pressures from −5 to +5 kPa gauge. It meets EN 15267-3 (QAL1 certified per EN 14181 for CEMS applications) and is compatible with EPA Method 3A and ISO 12039 requirements for continuous emissions monitoring. While not intrinsically safe, optional ATEX/IECEx-certified versions (LGA-4100-EX) are available for Zone 1/21 hazardous areas. The system supports audit-ready data logging aligned with GLP/GMP principles, including time-stamped raw absorbance spectra, calibration history, and diagnostic event logs—facilitating regulatory review under EU Industrial Emissions Directive (IED) and China’s GB 13223–2011 emission standards.
Software & Data Management
The embedded Linux-based controller runs FPI’s proprietary GasView™ firmware, supporting local touchscreen operation and remote access via secure HTTPS or SSH. Configuration, zero/span calibration, and spectral fitting parameters are managed through a role-based web interface compliant with FDA 21 CFR Part 11 requirements—including electronic signatures, audit trail activation, and user permission tiers (Operator, Engineer, Administrator). Data export supports CSV, XML, and OPC UA (UA v1.04) protocols. Historical trend data (up to 12 months at 1-second resolution) is stored onboard and synchronizable to enterprise SCADA or DCS platforms using standard Modbus RTU/TCP or Profibus DP-V1 interfaces.
Applications
- Combustion optimization in coal-fired and biomass boilers—real-time O₂ and CO feedback for air/fuel ratio control.
- Ammonia slip monitoring downstream of SCR systems in power plants and cement kilns.
- CO and HCl quantification in municipal solid waste and hazardous waste incinerators for compliance reporting.
- Process gas purity verification in coke oven gas recovery, syngas cleaning, and hydrogen production units.
- Leak detection and fugitive emission screening in ethylene crackers and reformer furnaces using CH₄ or NH₃ as tracer gases.
FAQ
Does the LGA-4100 require periodic calibration with certified gas standards?
Yes—zero calibration is performed automatically using clean air or N₂ purge; span calibration requires traceable gas standards per EN 14181 QA/QC procedures, typically every 3–6 months depending on application severity.
Can the analyzer measure multiple gases simultaneously?
The standard LGA-4100 measures one primary gas per optical channel; multi-gas capability is achieved via dual-channel configurations (e.g., CO + O₂) or sequential wavelength scanning modules—subject to optical path length and interference constraints.
Is third-party certification available for emissions reporting?
Yes—QAL1 certification by accredited bodies (e.g., TÜV Rheinland, SGS) is supported; factory test reports include linearity, repeatability, and response time validation per EN 15267-3 Annex B.
What maintenance intervals are recommended for field operation?
Optical window inspection and purge gas filter replacement every 6 months; laser diode lifetime exceeds 30,000 hours; no consumables beyond purge gas and desiccant (if used in humid environments).
