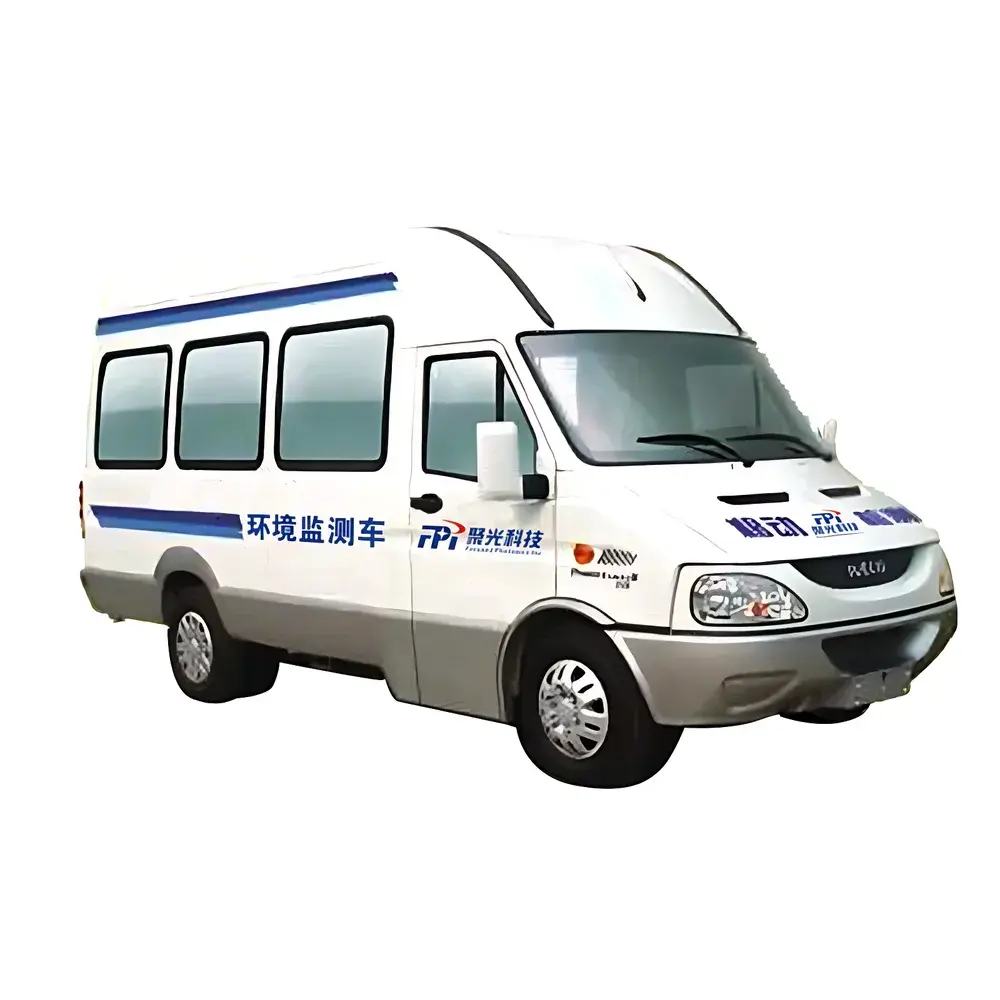

FPI Mobile Water Emergency Monitoring Vehicle

Overview

The FPI Mobile Water Emergency Monitoring Vehicle is a fully integrated, vehicle-mounted environmental laboratory engineered for rapid deployment and real-time water quality assessment during chemical spills, industrial accidents, natural disasters, or other time-critical contamination events. Built on a robust chassis with ISO-compliant mobile lab architecture, it implements a multi-sensor, multi-parameter analytical platform grounded in standardized wet-chemistry, electrochemical, optical absorption (e.g., UV-Vis spectrophotometry), bioluminescent toxicity testing, and physical parameter measurement principles. The system supports both field-deployable point-of-need analysis and sustained operational monitoring—enabling regulatory-grade data acquisition under variable environmental conditions, including off-grid locations and hazardous zones. Its design complies with national emergency response protocols for environmental incidents and aligns with functional requirements outlined in China’s “Technical Guidelines for Emergency Monitoring of Sudden Environmental Incidents” (HJ 589–2010), while maintaining compatibility with international frameworks such as ISO 5667 (water sampling) and ISO/IEC 17025 (testing laboratory competence).

Key Features

• Integrated mobile laboratory platform featuring climate-controlled cabin, positive-pressure ventilation system, and redundant power supply (including high-capacity UPS and auxiliary generator interface)
• Onboard independent freshwater storage and wastewater containment system with sealed drainage lines and anti-spill containment trays
• Front-mounted automatic winch rated for self-recovery on unpaved or low-traction terrain
• Dual-mode data acquisition: local laptop-based control with embedded software suite + optional GPRS/4G wireless telemetry for remote data transmission and cloud synchronization
• Modular instrument mounting architecture supporting rapid reconfiguration for mission-specific sensor payloads (e.g., heavy metal analyzers, toxicity biosensors, flow meters)
• Integrated safety infrastructure: combustible gas detection alarms, explosion-proof lighting, portable positive-pressure air-supplied respirators with compressor unit, and certified personal protective equipment (PPE) storage compartments

Sample Compatibility & Compliance

The vehicle accommodates liquid samples across diverse matrices—including surface water, groundwater, wastewater effluents, drinking water distribution systems, and contaminated runoff—with minimal pre-treatment requirements. Sample handling conforms to ASTM D3370 (sampling of water), ISO 5667-3 (preservation and handling), and GB/T 5750 (Chinese Standard Methods for Examination of Drinking Water). All onboard instrumentation meets applicable metrological traceability standards; critical analyzers (e.g., Cr(VI), Cu, Ni, formaldehyde, COD, BOD₅, DO, pH, turbidity, total phosphorus, ammonia nitrogen) are calibrated per manufacturer specifications and verified using NIST-traceable reference materials where available. The system supports GLP-aligned documentation practices, including electronic audit trails for calibration records, sample logs, and instrument usage history.

Software & Data Management

Data acquisition is managed through a Windows-based application that supports simultaneous input from up to 12 heterogeneous instruments via USB, RS-232, and analog/digital I/O interfaces. Software modules include automated QC flagging (e.g., drift correction, blank subtraction, replicate consistency checks), customizable report templates compliant with local environmental authority formats, and export options for CSV, PDF, and XML. Optional integration with GPS receivers and GIS mapping engines enables georeferenced spatial visualization of contaminant plumes. Remote access functionality allows supervisors to monitor live data streams, initiate instrument diagnostics, and push firmware updates over secure TLS-encrypted connections—supporting continuity of operations during extended deployments.

Applications

• Rapid response to accidental discharges of heavy metals, cyanide, phenolic compounds, or oxidizing agents into rivers or reservoirs
• Post-flood or post-earthquake drinking water safety verification in disaster-affected communities
• Real-time tracking of pollutant migration during industrial leak investigations
• Baseline and compliance monitoring for wastewater treatment plant outfalls under emergency permit conditions
• Field validation of fixed-site online water quality sensors during maintenance or calibration intervals
• Support for inter-agency joint exercises simulating multi-jurisdictional contamination scenarios

FAQ

Can the vehicle operate independently without external power for extended periods?

Yes—the integrated UPS system provides ≥4 hours of uninterrupted operation for core instrumentation and computing systems; optional diesel generator coupling extends runtime indefinitely.
Is the vehicle certified for use in potentially explosive atmospheres?

While not ATEX-certified, all installed electrical components meet IP65 ingress protection ratings, and the gas detection system triggers automatic shutdown of non-intrinsically safe devices upon LEL threshold exceedance.
How is data integrity ensured during wireless transmission?

All GPRS/4G transmissions employ AES-256 encryption and TLS 1.2 handshaking; locally stored raw data files are SHA-256 hashed and timestamped to prevent tampering.
What level of training is required for operators?

Personnel must hold valid certification in environmental field sampling (per GB/T 27025 or equivalent) and complete FPI’s 3-day vehicle-specific operational course covering instrument interfacing, emergency shutdown procedures, and chain-of-custody documentation.
Are spare parts and technical support available outside mainland China?

FPI maintains authorized service partners in Southeast Asia and the Middle East; critical consumables (e.g., biosensor vials, electrode kits, cuvettes) are stocked regionally and shipped via express courier within 72 hours of order confirmation.
