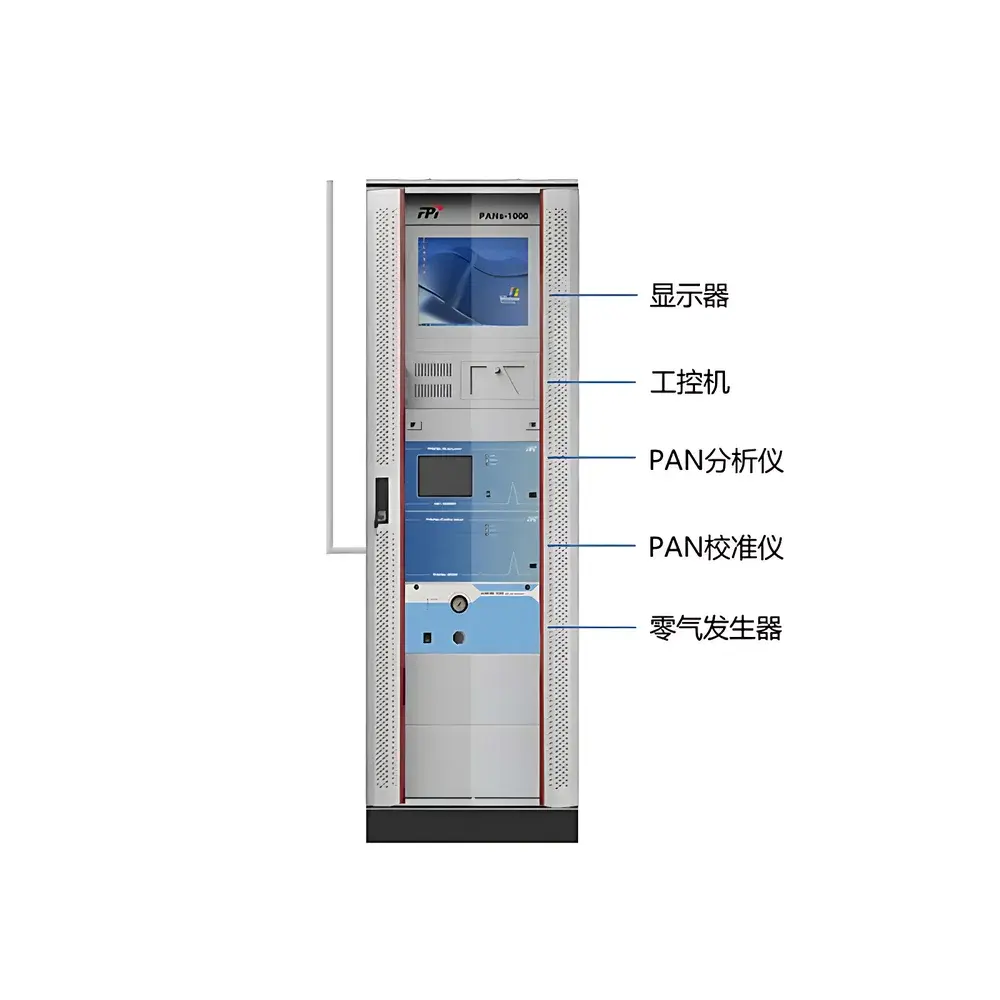

FPI PANs-1000 Atmospheric Peroxyacetyl Nitrate (PAN) Online Monitoring System

Overview

The FPI PANs-1000 Atmospheric Peroxyacetyl Nitrate (PAN) Online Monitoring System is a dedicated trace-gas analyzer engineered for continuous, real-time quantification of peroxyacetyl nitrate (CH₃C(O)OONO₂) in ambient air. PAN is a thermally labile, secondary photochemical pollutant formed exclusively through the oxidation of volatile organic compounds (VOCs) — particularly acetaldehyde — in the presence of nitrogen oxides (NO_x) under solar irradiation. Unlike ozone, PAN has no natural emission sources and exhibits high specificity to photochemical activity, making it a more robust and chemically selective indicator of tropospheric photochemical smog formation. The PANs-1000 system leverages gas chromatography coupled with electron capture detection (GC-ECD), a method widely validated for ultra-trace halogenated and nitro-compound analysis in atmospheric chemistry. Its design adheres to fundamental principles of atmospheric sampling integrity, thermal stabilization of PAN during transfer, and chromatographic resolution under field-deployable conditions.

Key Features

• Continuous, unattended online measurement of ambient PAN at part-per-quadrillion by volume (pptv) levels
• Detection limit of ≤50 pptv (3σ, 60-minute averaging), achieved via optimized GC column selection, cryogenic focusing, and low-noise ECD signal processing
• Integrated on-demand PAN calibration generator: synthesizes certified PAN standard gas from precursor reagents (acetaldehyde + NO₂) under controlled UV photolysis, eliminating reliance on compressed cylinder standards and enabling daily or hourly auto-calibration
• Fully automated operational sequence: programmable 3-way solenoid valve switching between ambient air and calibration gas, timed injection, temperature-programmed GC separation, and ECD signal integration
• Industrial-grade embedded controller with Windows-based analytical software featuring intuitive Chinese/English bilingual interface, remote access via secure VNC or web-based dashboard, and full audit trail logging compliant with GLP data integrity requirements
• Robust mechanical architecture designed for outdoor cabinet installation: IP54-rated enclosure, temperature-stabilized GC oven (±0.1 °C), and corrosion-resistant gas pathways compatible with long-term deployment at urban background, roadside, or regional monitoring stations

Sample Compatibility & Compliance

The PANs-1000 accepts ambient air samples drawn at 0.5–2.0 L/min through a heated stainless-steel inlet line (maintained at 40 °C to suppress wall adsorption and thermal decomposition). It accommodates variable humidity (10–90% RH non-condensing) and particulate loadings typical of urban and suburban environments when paired with a standard PM_2.5 denuder. The system conforms to key international methodologies including EPA TO-15 (for VOC precursors), ISO 16000-29 (indoor air — determination of PAN), and supports data reporting formats aligned with China’s HJ 654-2013 and EU Air Quality Directive (2008/50/EC) Annex IX requirements. All firmware and software operations are timestamped and support 21 CFR Part 11-compliant electronic signatures when configured for regulated QA/QC workflows.

Software & Data Management

The proprietary FPI AirTrace™ software provides end-to-end data lifecycle management: real-time chromatogram visualization, peak integration using adaptive baseline correction, multi-point calibration curve generation (linear or quadratic), and automatic interference flagging based on retention time deviation and ECD response ratio thresholds. Raw data files (.csv and .raw binary) are stored locally with SHA-256 checksum verification and can be synchronized to central databases via FTPS or MQTT protocols. Audit logs record every user action, method change, calibration event, and instrument fault — supporting traceability for environmental regulatory submissions and scientific publication. Data export modules comply with FAIR principles (Findable, Accessible, Interoperable, Reusable) and integrate seamlessly with national air quality monitoring platforms such as CNEMC’s AQS.

Applications

• Long-term trend analysis of PAN concentration in ambient air networks for source apportionment and ozone formation potential assessment
• Early-warning component in integrated photochemical smog forecasting systems, especially during high-temperature, high-sunlight episodes in megacities
• Field validation of regional chemical transport models (e.g., CMAQ, WRF-Chem) requiring speciated VOC/NO_x/PAN observational constraints
• Process studies in atmospheric simulation chambers (smog chambers) and mobile laboratory campaigns targeting VOC oxidation mechanisms
• Supporting health-related epidemiological research linking secondary oxidant exposure to respiratory morbidity indices

FAQ

What is the recommended maintenance interval for the GC column and ECD detector?
Column replacement is advised every 12–18 months under continuous operation; ECD radioactive foil (⁶³Ni) has a nominal half-life of 100 years, but sensitivity drift is monitored quarterly via calibration response checks.
Can the PANs-1000 measure other peroxyacyl nitrates (e.g., PPN, MPAN)?
With minor method adjustments (column temperature ramp and carrier gas flow optimization), the system can resolve and quantify propionyl (PPN) and methacryloyl (MPAN) nitrates, though factory calibration is specific to PAN.
Is external power conditioning required for stable operation?
Yes — a dedicated 2 kVA uninterruptible power supply (UPS) with sine-wave output is recommended to protect the GC oven temperature controller and ECD high-voltage circuitry from grid fluctuations.
How is data security ensured during remote access?
All remote sessions use TLS 1.2+ encrypted channels; user roles are defined per ISO/IEC 27001-aligned access control policies, and no data is stored on client devices.
Does the system meet CE or UL certification requirements for international deployment?
The PANs-1000 meets IEC 61326-1 (EMC) and IEC 61010-1 (safety) standards; CE marking is available upon request for EU-based installations subject to local notified body review.
