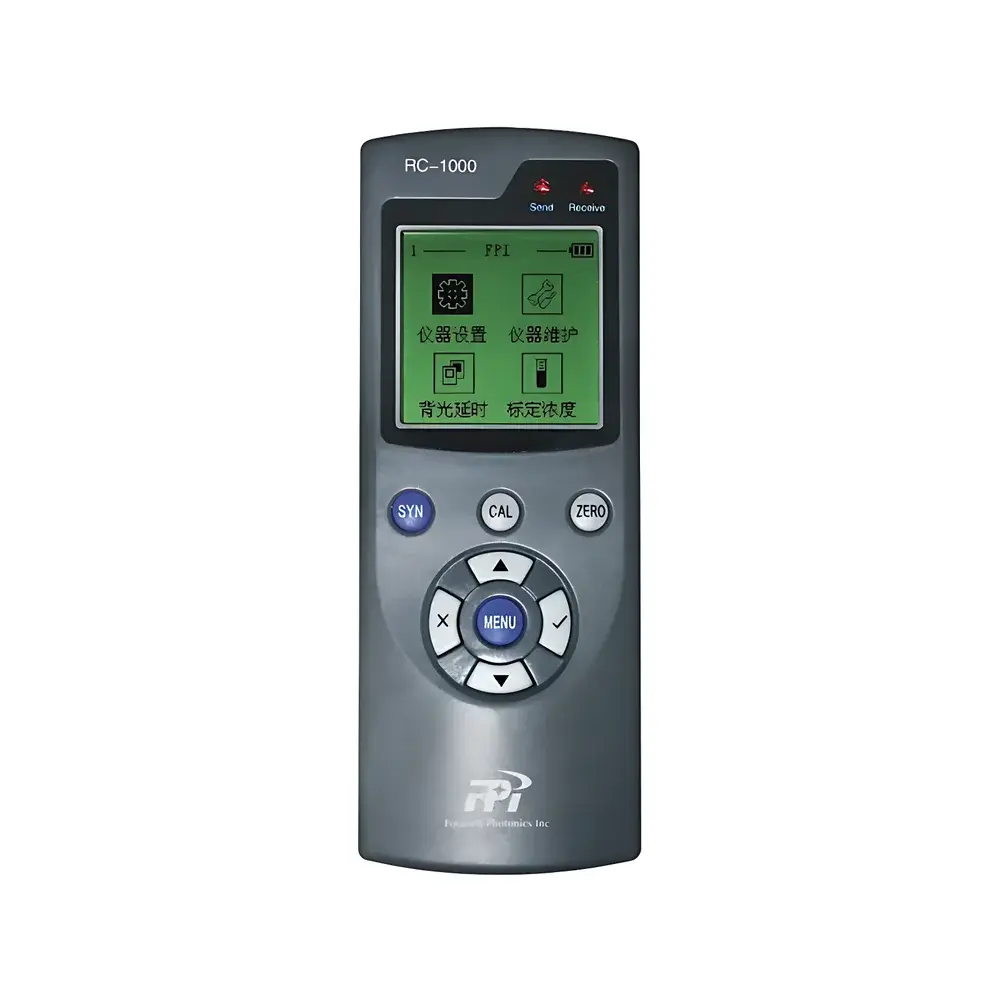

FPI RC-1000/2000 Infrared Remote Controller for Gas Detection Systems

Overview

The FPI RC-1000/2000 Infrared Remote Controller is a purpose-built field configuration and diagnostic tool designed exclusively for integration with FPI’s GT-series fixed gas detection instruments. It operates via infrared (IR) line-of-sight communication—compliant with the IEC 62443-3-3 secure device management framework for industrial control systems—and enables non-intrusive, contactless interaction with installed gas alarm units in hazardous or hard-to-access locations. Unlike generic IR remotes, the RC-1000/2000 implements a proprietary bidirectional protocol that supports real-time parameter synchronization, status interrogation, and calibrated operational commands—including zero adjustment and span calibration initiation—without requiring physical access to the detector’s interface panel or removal from its mounting position. This architecture reduces exposure risk during routine maintenance and aligns with OSHA 1910.120 and IEC 61511 functional safety principles for gas detection system integrity.

Key Features

• Two-model flexibility: RC-1000 supports basic configuration and status readout; RC-2000 adds encrypted firmware update capability and extended diagnostic logging.
• IR communication range up to 8 meters in ambient indoor conditions (tested per ISO 11553-1), with adaptive signal strength compensation for variable ambient light interference.
• Dedicated hardware buttons for “One-Touch Zero” and “One-Touch Calibration”—each command triggers internal sensor validation checks prior to execution to prevent erroneous adjustments.
• Backlit monochrome LCD display (128 × 64 pixels) with real-time feedback on battery level, link status, command confirmation, and error codes (e.g., E07 = IR handshake timeout, E12 = memory checksum failure).
• IP54-rated enclosure with reinforced polycarbonate housing, rated for continuous operation between −20 °C and +60 °C per IEC 60529 environmental testing standards.
• Built-in rechargeable Li-ion battery (3.7 V, 1200 mAh) providing ≥12 months of typical field use on a single charge (based on 5–10 daily interactions).

Sample Compatibility & Compliance

The RC-1000/2000 is certified for interoperability only with FPI GT-series fixed-point gas detectors (e.g., GT-2000, GT-3000, GT-5000 series) equipped with IR receiver modules conforming to FPI’s proprietary IR PHY layer specification v2.1. It does not support third-party or legacy gas monitors. Device firmware adheres to EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions) electromagnetic compatibility requirements. All factory-default settings comply with GB 50493–2019 (Chinese Code for Design of Flammable and Toxic Gas Detection and Alarm Systems) and reference ASTM D5402–22 for zero-gas verification methodology. Units shipped to EU markets include CE marking under the Radio Equipment Directive (2014/53/EU) for IR transceiver compliance.

Software & Data Management

No PC software installation is required—the RC-1000/2000 operates as a standalone field tool. However, audit logs generated during remote sessions (including timestamp, command type, target unit ID, and response code) can be exported via micro-USB port to CSV format for integration into enterprise CMMS platforms such as SAP PM or IBM Maximo. Each log entry includes cryptographic hash signatures to satisfy GLP/GMP traceability requirements per FDA 21 CFR Part 11 Annex 11. Firmware updates (RC-2000 only) are delivered via signed binary packages verified using ECDSA-P256 signature validation before installation.

Applications

• Commissioning and post-installation setup of GT-series detectors in confined spaces (e.g., pump rooms, chemical storage vaults, biogas digesters).
• Routine zero-point verification and span calibration in environments where opening detector housings risks contamination or sensor drift.
• Emergency diagnostics during alarm events—reading real-time gas concentration, fault flags, and power status without interrupting system operation.
• Preventive maintenance scheduling based on accumulated operational hours and calibration history retrieved remotely.
• Regulatory inspection readiness: generating auditable logs for HAZOP reviews, SEVESO III reporting, or ISO 45001 certification audits.

FAQ

Is the RC-1000/2000 compatible with non-FPI gas detectors?
No. It is engineered exclusively for FPI GT-series instruments with integrated IR receivers. Interoperability with other brands is neither tested nor supported.
Does the remote require pairing or initial setup before first use?
No. The device enters active IR listening mode upon power-on and automatically negotiates session keys with any GT-series detector within range.
Can calibration data be modified remotely without local authorization?
No. All calibration-critical commands require dual-factor confirmation: physical button press plus successful IR handshake and internal sensor stability check (>15 s stabilization window).
What happens if the IR signal is interrupted mid-command?
The detector aborts the operation and returns to idle state; no partial or inconsistent configuration changes are applied. The remote displays “Cmd Aborted” and logs the event.
How often must the remote’s firmware be updated?
Firmware updates are issued only when new GT-series detector models are released or critical security patches are deployed—typically ≤2 times per year. RC-2000 users receive automated notifications via FPI’s authorized distributor portal.
