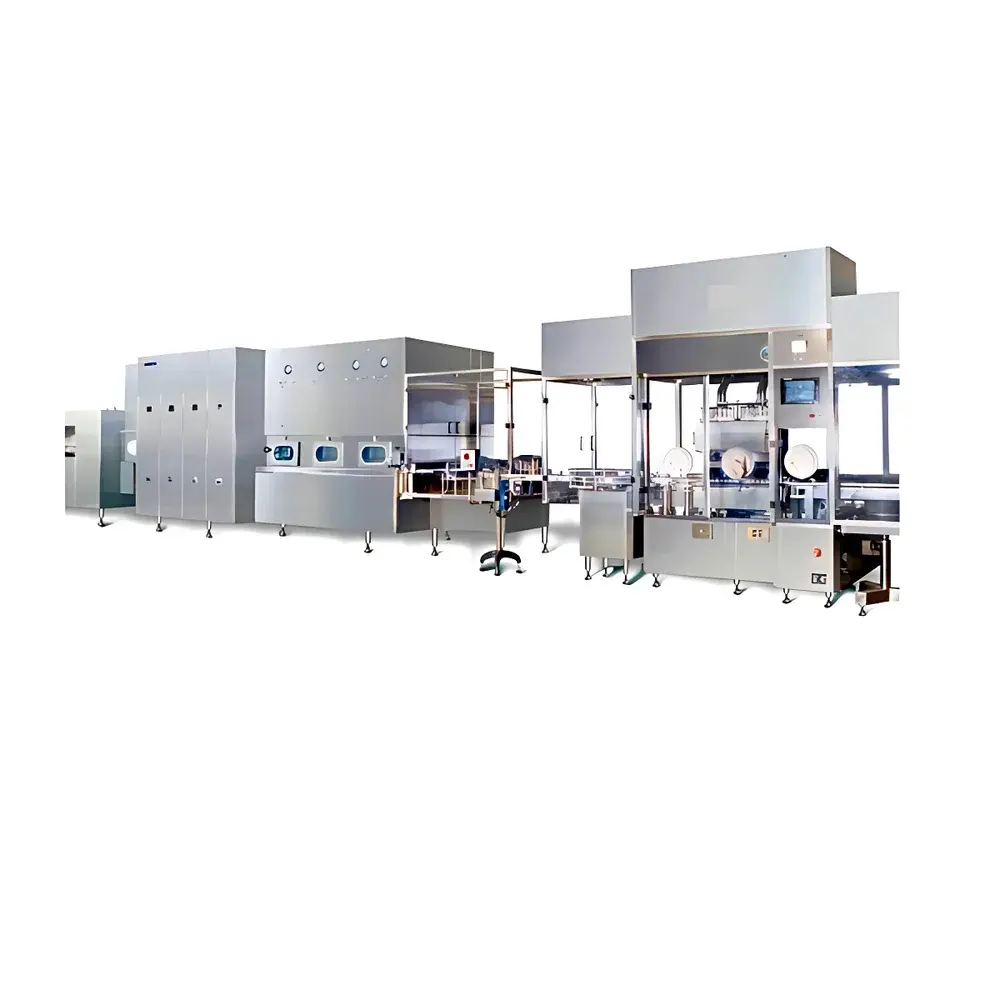

FSTAR FHJ-OF Oral Liquid Integrated Production Line for GMP-Compliant Pharmaceutical Education & Training

Overview

The FSTAR FHJ-OF Oral Liquid Integrated Production Line is a purpose-built, modular teaching and training system engineered to replicate core unit operations of a pharmaceutical oral liquid manufacturing facility under Good Manufacturing Practice (GMP) conditions. Designed specifically for university-level pharmaceutical engineering laboratories, quality control training centers, and regulatory-compliant academic GMP实训 bases (practical training bases), this line operates on fundamental pharmaceutical process principles—including bottle handling, ultrasonic and hydro-pneumatic cleaning, dry-heat depyrogenation, precision volumetric filling, capping, crimping, and labeling. Its architecture reflects ISO 14644-1 Class 8 (ISO Class 7 optional with laminar flow integration) cleanroom-compatible mechanical layout, enabling students and trainees to observe, operate, and validate real-world aseptic processing logic without compromising safety or regulatory fidelity. Unlike industrial-scale lines, the FHJ-OF prioritizes pedagogical transparency: all critical process zones feature polycarbonate viewing panels, calibrated pressure/temperature sensors with analog outputs, and manually accessible maintenance points aligned with FDA Guidance for Industry: Process Validation (2011) and EU Annex 15.

Key Features

• Modular station design with standardized quick-connect utilities (compressed air, purified water, WFI-compatible rinse ports, electrical I/O)
• Ultrasonic pre-wash + alternating high-pressure water/gas jet rinsing in the bottle washer—validated to achieve ≥3-log reduction in particulate load per USP & EP visual inspection standards
• Dry-heat tunnel with programmable temperature ramp (180–250°C) and dwell time control for depyrogenation—compliant with USP <1211> and EU GMP Annex 1 requirements for heat-stable container treatment
• Volumetric piston filler with ±0.5% accuracy at 5–100 mL range; stainless steel 316L wetted parts; integrated weight-check station with reject mechanism
• Aluminum cap applicator and electromagnetic induction sealer supporting both aluminum foil and plastic caps—fully traceable torque verification via digital torque sensor
• GMP-aligned HMI with password-protected user roles (Operator, Technician, QA Supervisor), audit trail logging, and electronic batch record (EBR) export capability

Sample Compatibility & Compliance

The FHJ-OF accommodates standard pharmaceutical glass and PET bottles ranging from 10 mL to 250 mL (diameter: 15–45 mm; height: 50–200 mm). It supports common oral liquid formulations including syrups, elixirs, suspensions, and herbal decoctions—provided viscosity remains ≤500 mPa·s at 25°C. All contact surfaces meet ASTM F800-21 biocompatibility criteria and are electropolished to Ra ≤0.4 µm. The system is fully compliant with Chinese GMP (2010 Revision), EU GMP Annex 15 (Qualification & Validation), and aligns with key elements of FDA 21 CFR Part 11 for electronic records/signatures when paired with validated software modules. Documentation packages include IQ/OQ protocols, risk assessments (per ISO 14971), and raw material traceability logs.

Software & Data Management

Control is managed via an embedded Windows-based SCADA platform with OPC UA connectivity. Real-time data acquisition includes fill volume deviation, cap torque, sterilization cycle parameters (F₀ calculation), and compressed air dew point. All process data are timestamped, digitally signed, and stored in encrypted SQLite databases with automatic backup to network drives. Audit trails meet ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and support GLP/GMP audit readiness. Optional integration with LIMS (e.g., Thermo Fisher SampleManager) or MES platforms is available through certified API gateways.

Applications

• Undergraduate and graduate coursework in pharmaceutical manufacturing technology, process engineering, and quality assurance
• GMP documentation training: SOP development, deviation reporting, change control, CAPA simulation
• Regulatory inspection preparedness drills for CFDA/NMPA, EU EMA, or WHO pre-approval audits
• Method transfer exercises between R&D lab-scale equipment and simulated production environments
• Validation protocol authoring workshops (DQ/IQ/OQ/PQ) using actual equipment datasets
• Research into formulation-container compatibility, sterilization kinetics, and filling accuracy under variable environmental conditions

FAQ

Is the FHJ-OF certified for use in accredited GMP training programs?
Yes—it is supplied with full validation documentation templates, calibration certificates for all critical instruments, and a GMP Readiness Assessment Report aligned with WHO TRS 986 Annex 6 and NMPA Guideline on GMP Inspection for Teaching Facilities.
Can the line be reconfigured for sterile vs. non-sterile oral liquid training?
Sterile operation requires optional isolator integration and steam-in-place (SIP) upgrade; non-sterile mode operates under Grade D cleanroom conditions per EU GMP Annex 1.
Does FSTAR provide faculty training and curriculum support?
Yes—comprehensive instructor certification programs, bilingual (EN/CN) lab manuals, and customizable case studies (e.g., root cause analysis of fill weight drift) are included in the educational package.
What level of after-sales technical support is offered internationally?
FSTAR provides remote diagnostics, annual preventive maintenance contracts, spare parts logistics via DHL Express, and on-site technician dispatch within 72 hours for Tier-1 support regions (EU, NA, APAC).
