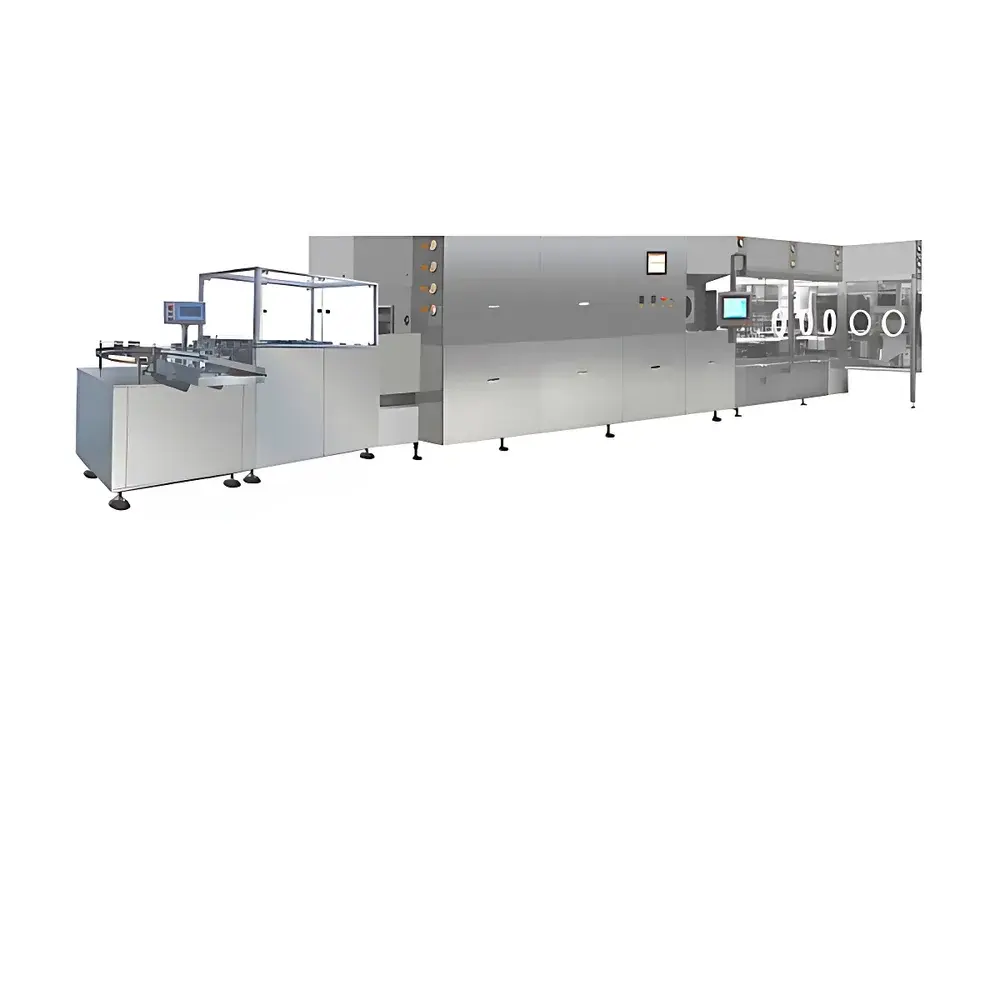

FSTAR FHJ-VF Integrated Lyophilization Vial Processing Line for GMP-Compliant Pharmaceutical Education and Pilot-Scale Manufacturing
| Brand | FSTAR |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | FHJ-VF |
| Price Range | USD 140,000 – 1,400,000 |
Overview
The FSTAR FHJ-VF Integrated Lyophilization Vial Processing Line is a modular, GMP-aligned training and pilot-scale pharmaceutical production system engineered for academic institutions, regulatory-compliant teaching laboratories, and early-phase biopharmaceutical development centers. Designed in accordance with core principles of aseptic processing and lyophilized drug manufacturing, the line implements sequential unit operations—including vial feeding, ultrasonic washing, dry-heat sterilization (depuration), sterile filling and stoppering under laminar airflow, crimping, and label application—within a compact, ISO Class 5 (Class 100) cleanroom-compatible footprint. Its architecture reflects the functional layout and operational logic of commercial-grade parenteral manufacturing lines, enabling students and trainees to gain hands-on experience with validated process steps, critical control points (CCPs), and documentation practices required under ICH Q5, Q7, and Annex 1 of the EU GMP Guidelines. The system supports both manual intervention modes for pedagogical demonstration and semi-automated execution for process reproducibility assessment.
Key Features
- Modular station design allows independent operation, maintenance, and reconfiguration—ideal for curriculum-driven lab exercises and process validation training.
- Integrated clean-in-place (CIP) and sterilize-in-place (SIP) capability on wash and fill modules, compliant with ASME BPE surface finish standards (Ra ≤ 0.8 µm).
- Programmable logic controller (PLC)-based HMI interface with audit trail logging, supporting ALCOA+ data integrity principles for educational GLP/GMP simulation.
- Real-time monitoring of critical parameters: chamber temperature (±0.3 °C), fill volume accuracy (±1.5% CV), stopper compression force (0.5–3.0 kN), and capping torque (1.2–2.8 N·m).
- GMP-oriented documentation package includes URS, DQ/IQ/OQ protocols, calibration records, and blank batch production records (BPRs) for student-led validation projects.
Sample Compatibility & Compliance
The FHJ-VF line accommodates standard pharmaceutical glass vials (10–50 mL, ISO 8362-1 compliant), including borosilicate Type I and molded glass formats. It supports liquid formulations typical of antibiotic, recombinant protein, monoclonal antibody, and plasma-derived therapeutics. All wetted parts are constructed from 316L stainless steel or USP Class VI-certified polymers. The system meets mechanical and electrical safety requirements per IEC 61000-6-2/6-4 and is designed to facilitate compliance with FDA 21 CFR Part 11 (electronic records/signatures), EU Annex 11 (computerized systems), and WHO TRS 986 Annex 5 (training facility standards). Optional IQ/OQ documentation support aligns with ASTM E2500-13 (verification of pharmaceutical equipment).
Software & Data Management
The embedded SCADA-level control software provides real-time visualization of process status, alarm history, and trended parameter graphs (e.g., fill weight distribution, sterilization cycle F0 values). Data export is available in CSV and PDF formats; raw logs retain full timestamping with operator ID and event annotation. Audit trails are immutable and password-protected, satisfying FDA 21 CFR Part 11 requirements for electronic signatures and record retention. For academic use, the system includes instructor-mode overrides, student-access-limited dashboards, and simulated deviation reporting workflows to reinforce quality risk management (ICH Q9) concepts.
Applications
- Undergraduate and graduate pharmaceutical engineering labs focusing on aseptic processing, lyophilization fundamentals, and GMP implementation.
- Regulatory affairs and quality assurance training—students perform mock investigations, CAPA documentation, and change control simulations using actual line-generated data.
- Pilot-scale formulation development for university-industry partnerships, particularly in biosimilar and novel excipient evaluation.
- Pre-qualification training for personnel entering commercial manufacturing roles—emphasizing SOP adherence, environmental monitoring integration, and media fill simulation protocols.
FAQ
Is the FHJ-VF line suitable for actual GMP production, or strictly for training?
It is certified for educational and pilot-scale R&D use under institutional GMP-equivalent conditions. While not intended for commercial batch release, its design, materials, and documentation rigor meet the technical baseline required for Phase I/II clinical trial material manufacturing when operated within an appropriately qualified environment.
Can the line be integrated with external environmental monitoring systems (EMS)?
Yes—the PLC supports Modbus TCP and OPC UA communication protocols, enabling seamless data exchange with third-party particulate counters, differential pressure sensors, and HVAC monitoring platforms.
What level of technical support does FSTAR provide for academic users?
FSTAR offers dedicated academic service packages including remote troubleshooting, annual calibration verification, on-site technician training, and customizable curriculum integration workshops aligned with Pharm.D. and M.Eng. program learning outcomes.
