FTT ABD0031 Smoke Density and Toxicity Test Apparatus

Overview

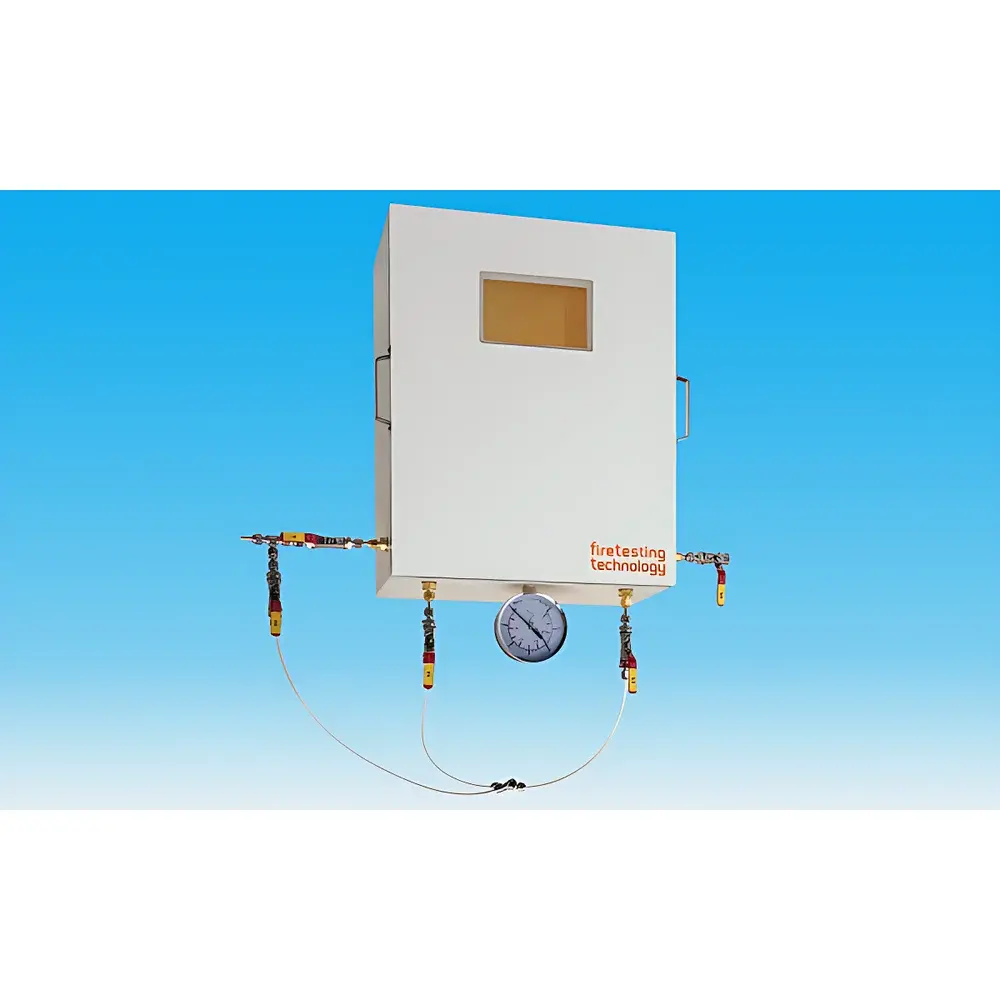

The FTT ABD0031 Smoke Density and Toxicity Test Apparatus is a purpose-built auxiliary system designed to operate in tandem with standard NBS-type smoke density chambers (e.g., FTT’s OSU or equivalent conical heater-based enclosures). It does not function as a standalone combustion test chamber but serves as a dedicated off-gas sampling and real-time toxic gas quantification platform. Its primary engineering objective is to support regulatory fire safety qualification of materials used in commercial aircraft cabin interiors—specifically addressing the tripartite hazard assessment framework of smoke obscuration, heat release, and acute toxicity under controlled flaming and non-flaming pyrolysis conditions. The apparatus implements a vacuum-driven, flow-controlled sampling architecture that extracts evolved gases directly from the upper plenum of the smoke chamber through a dedicated port, enabling time-resolved analysis of combustion effluents without disrupting chamber pressure or optical path integrity.

Key Features

• Vacuum chamber assembly engineered for stable negative-pressure operation during dynamic off-gas extraction, minimizing backpressure effects on the primary smoke density chamber’s optical measurement zone.
• Integrated vacuum pump with regulated output to maintain consistent volumetric flow rates across varying thermal load profiles, ensuring representative sample capture during transient combustion phases.
• Manual metering pump calibrated for precise delivery of reagent air or dilution gas into the analytical stream—critical for maintaining stoichiometric compatibility with detector tube chemistry and extending linear response range.
• Dedicated mounting interface compatible with standard NBS chamber roof ports (typically 1/2″ NPT or ISO-KF), facilitating rapid installation and alignment without modification to the base smoke chamber structure.
• Modular detector tube holder system supporting interchangeable gas-specific analysis cartridges—including CO, HCN, HCl, HF, NO_x, SO₂, and total aldehydes—per ASTM D2029 and ISO 19702 protocols.
• No electrical instrumentation or digital readouts; operation relies on validated colorimetric detection principles, ensuring intrinsic compliance with electromagnetic compatibility (EMC) requirements in aviation EMC-sensitive laboratories.

Sample Compatibility & Compliance

The ABD0031 is explicitly qualified for testing polymeric composites, seat foams, insulation blankets, wire harness coatings, ducting materials, and interior trim components intended for Airbus-certified aircraft platforms. Its operational protocol aligns with the Airbus ABD0031 specification, which mandates concurrent measurement of specific optical density (Ds), CO yield (g/g), HCN yield (mg/g), and halogen acid generation under defined radiant flux (25–50 kW/m²) and ventilation conditions (air exchange rate: 2.5 ± 0.2 ACH). Data generated are admissible in certification dossiers submitted to EASA Part 21G and FAA Technical Standard Order (TSO) evaluations. The system supports full traceability per ISO/IEC 17025:2017 laboratory accreditation requirements when paired with documented calibration records for detector tubes (NIST-traceable lot certifications), vacuum gauge verification, and pump flow validation using bubble flowmeters.

Software & Data Management

The ABD0031 operates entirely without embedded firmware or proprietary software. All quantitative outputs derive from manufacturer-supplied detector tube calibration curves (provided per batch with expiration dates and temperature correction factors). Users record raw tube readings manually and apply standardized calculation methods defined in ASTM E1354 Annex A5 and ISO 5659-2 Annex C. For laboratories operating under GLP or GMP frameworks, integration with LIMS is achieved via structured Excel templates or validated electronic lab notebooks (ELN) that enforce audit trails for tube lot numbers, operator IDs, environmental chamber logs, and raw absorbance values. While no 21 CFR Part 11-compliant software ships with the unit, its passive design inherently avoids electronic signature or data integrity concerns associated with automated analyzers.

Applications

• Qualification of seat cushioning materials per Airbus ABD0031 Rev. 6 and Boeing D6-17487.
• Development screening of low-smoke, low-toxicity thermoplastics for overhead bin liners and sidewall panels.
• Regulatory gap analysis for legacy materials undergoing re-qualification against updated EN 45545-2 R22/R23 toxicity thresholds.
• Root-cause investigation of elevated HCN yields in polyamide-based wiring insulation during post-ignition smoldering phases.
• Validation of fire-retardant additive efficacy by correlating smoke density (Ds) reduction with simultaneous suppression of CO/HCN molar ratios.

FAQ

Does the ABD0031 include an integrated gas analyzer or require external instrumentation?
No. It relies exclusively on colorimetric detector tubes—no spectrometers, electrochemical sensors, or chromatographic modules are included or required.
Can the ABD0031 be used with smoke chambers other than NBS-design units?
Only if the alternative chamber provides a sealed, pressure-stable top port with compatible thread specification and maintains optical path geometry consistent with ASTM E662 beam alignment tolerances.
What calibration documentation is supplied with each detector tube batch?
Each tube lot includes a certificate of analysis listing sensitivity (ppm·cm/mL), detection limit, shelf life, recommended sampling volume, and NIST-traceable calibration gas reference data.
Is operator training provided for ABD0031 protocol execution?
Yes—FTT offers certified instructor-led workshops covering tube selection logic, flow rate validation, interference mitigation (e.g., humidity compensation), and report generation per EASA AMC 20-22.
