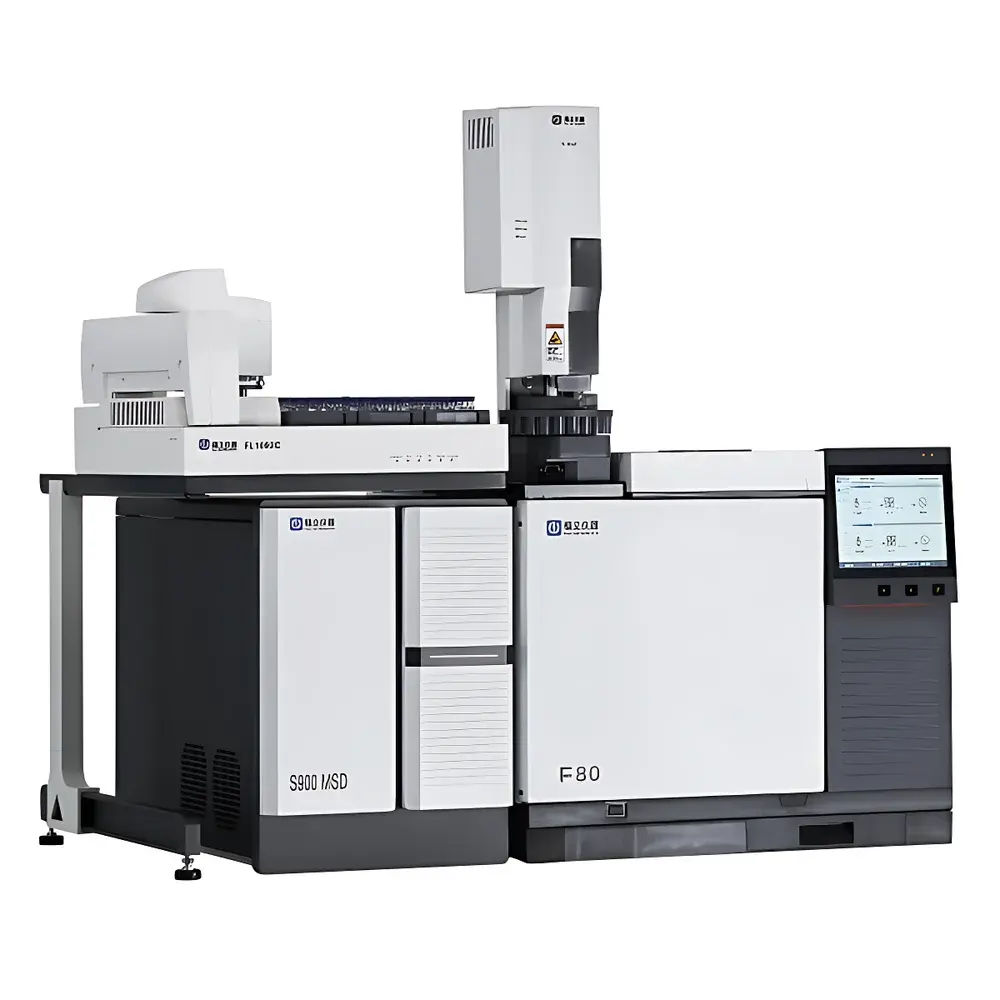

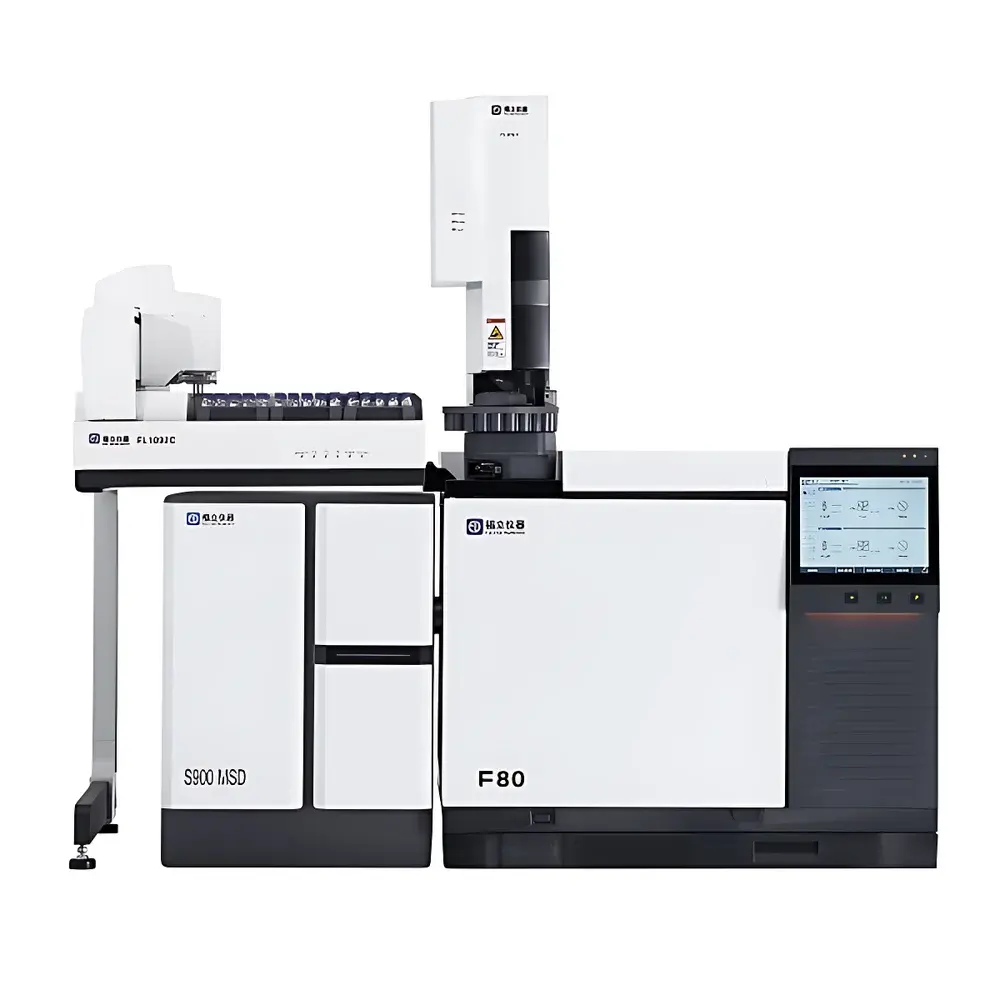

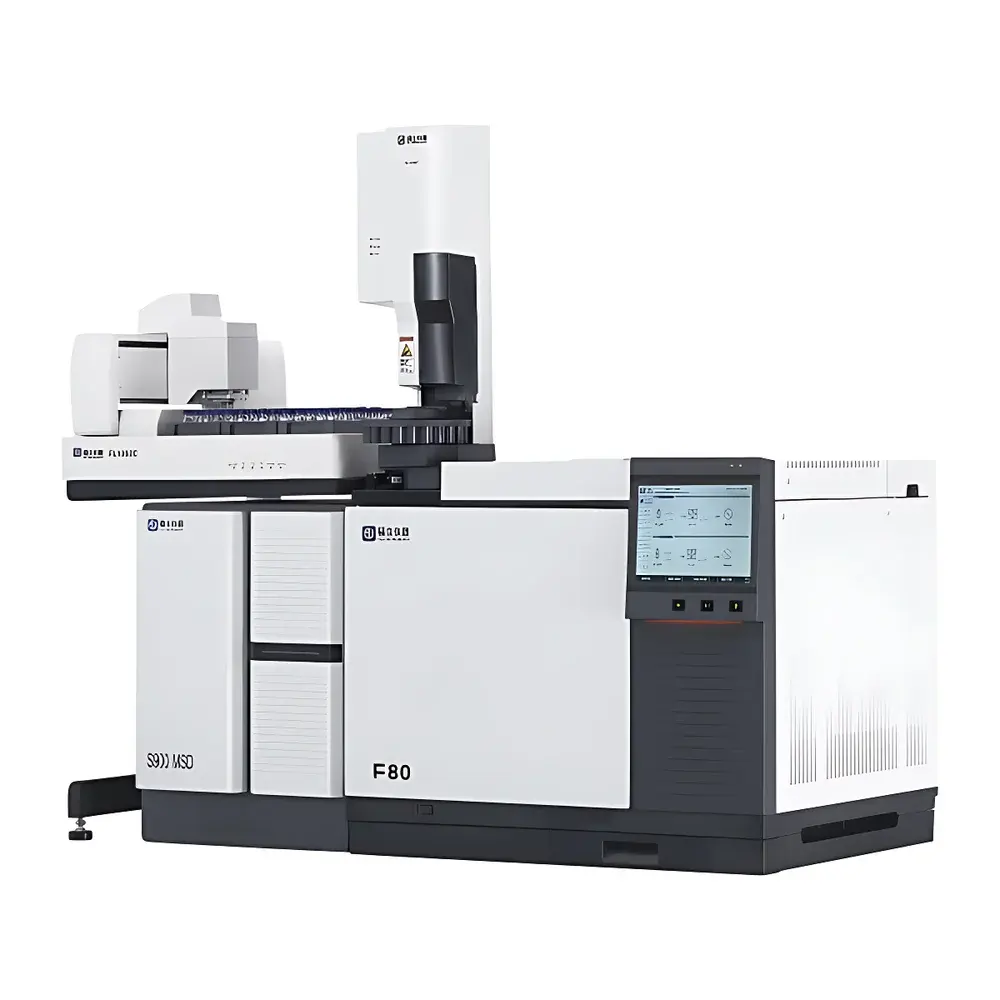

Fulit S900 GC-MSD Gas Chromatography Mass Spectrometry System

Overview

The Fulit S900 GC-MSD is a fully integrated gas chromatography mass spectrometry system engineered for high-performance qualitative and quantitative analysis of volatile and semi-volatile organic compounds. It couples a next-generation capillary gas chromatograph—Fulit F80—with a quadrupole mass selective detector (MSD), operating on electron ionization (EI) and optional chemical ionization (CI) modes. The system employs a robust dual-stage vacuum architecture with turbomolecular pumping, ensuring stable ion transmission and low background noise across extended acquisition periods. At its core lies the ADVIS (Advanced Vacuum Ion Source) patented ion source design, which features active thermal management and optimized ion optics to deliver enhanced sensitivity, reduced matrix-induced suppression, and improved resistance to contamination from complex sample matrices. The quadrupole mass filter operates with independent temperature control to minimize thermal drift and maintain mass calibration stability over multi-hour runs—a critical requirement for regulatory-compliant workflows in environmental monitoring, pharmaceutical impurity profiling, and food safety testing.

Key Features

• Fulit F80 Gas Chromatograph equipped with fourth-generation AFC (Advanced Flow Control) pneumatic system for precise, pulse-free carrier gas delivery and sub-millisecond pressure/flow regulation.
• ADVIS ion source with real-time temperature stabilization and self-cleaning capability, reducing downtime associated with routine source maintenance.
• Independently heated quadrupole assembly maintaining ±0.1 °C thermal uniformity, supporting long-term mass axis stability and reproducible retention time alignment.
• High-efficiency electron multiplier detector with dynamic range exceeding 5×10⁶, enabling simultaneous detection of trace analytes and major components without signal saturation.
• Modular inlet architecture supporting split/splitless injection, programmable temperature vaporizing (PTV), and direct coupling to auxiliary sample introduction devices including headspace samplers and thermal desorption units.
• Integrated remote diagnostics via secure TLS-encrypted web interface, allowing authorized service engineers to monitor instrument health, retrieve log files, and perform preliminary troubleshooting without on-site visits.

Sample Compatibility & Compliance

The S900 GC-MSD accommodates a broad spectrum of sample types—including aqueous extracts, organic solvent solutions, headspace vapors, and thermally desorbed volatiles—from matrices such as soil, wastewater, plasma, edible oils, polymer leachates, and ambient air. Its hardware and software architecture comply with fundamental requirements for data integrity under GLP and GMP environments. Audit trail functionality records all method modifications, acquisition events, and user actions with timestamped, non-erasable entries. Data export formats adhere to ASTM E1947 and ISO/IEC 17025–recommended structures, facilitating third-party validation and regulatory submission. While not pre-certified for FDA 21 CFR Part 11 out-of-the-box, the system supports configuration to meet electronic signature and record retention criteria when deployed with validated LIMS or ELN integration.

Software & Data Management

Operation and data processing are managed through Fulit GC-MS Navigator—a Windows-based platform built on .NET Framework with role-based access control (RBAC). The software provides full control over GC oven ramping, inlet parameters, MS scan modes (full scan, SIM, MRM), and spectral library searching against NIST, Wiley, and custom databases. Raw data files (.FUL) are stored in open binary format with embedded metadata (instrument configuration, calibration history, operator ID), ensuring traceability. Batch processing supports automated peak detection, integration, calibration curve generation, and report templating compliant with ISO 17025 reporting guidelines. Data backups can be scheduled to network drives or cloud storage endpoints with configurable encryption settings.

Applications

The S900 GC-MSD serves analytical laboratories requiring reliable, high-throughput identification and quantification across diverse sectors: residual solvent analysis per ICH Q3C in pharmaceutical manufacturing; pesticide multiresidue screening in fruits and vegetables according to EU SANTE/11312/2021; polycyclic aromatic hydrocarbon (PAH) profiling in soil and sediment per EPA Method 8270D; volatile organic compound (VOC) emissions testing in indoor air and building materials (ISO 16000-6); and flavor/aroma compound characterization in beverages and essential oils. Its compatibility with thermal desorption enables ultra-trace analysis of airborne carbonyls and benzene series compounds at sub-pptv levels.

FAQ

Is the S900 GC-MSD compatible with third-party GC columns and consumables?
Yes—it accepts standard 0.1–0.53 mm ID fused-silica capillary columns with universal ferrule interfaces and supports common septa, liners, and trap materials from leading global suppliers.
Does the system support method transfer from other GC-MS platforms?
Method parameters (oven program, carrier flow, ion source settings) can be imported and adapted using GC-MS Navigator’s cross-platform conversion utility, though retention time shifts may require re-optimization due to column and interface differences.
What level of technical support is available outside mainland China?
Fulit maintains distributor partnerships in Southeast Asia, the Middle East, and Latin America; remote diagnostics and application consulting are available globally via scheduled video sessions and encrypted file sharing.
Can the instrument be operated in a regulated laboratory under ISO/IEC 17025 accreditation?
Yes—when configured with enabled audit trails, electronic signatures, and documented IQ/OQ/PQ protocols, the S900 GC-MSD meets foundational instrumentation requirements for accredited testing laboratories.
