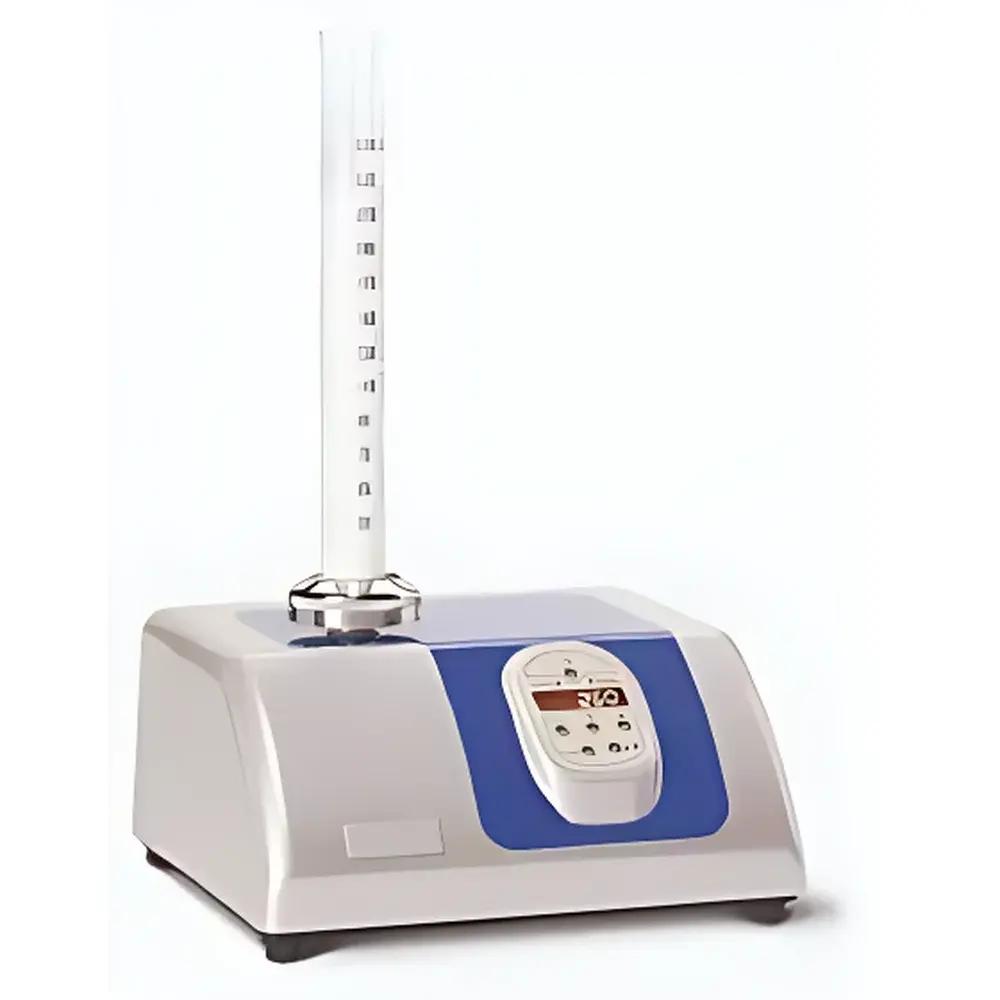

Funke STAV-II Powder Density Analyzer for Dairy Applications

Overview

The Funke STAV-II Powder Density Analyzer is a fully automated, standards-compliant instrument engineered for precise bulk density determination of powdered dairy products—primarily infant formula, skimmed milk powder, whey protein concentrates, and spray-dried dairy ingredients. It operates on the principle of tap density measurement, where a defined mass of powder is introduced into a calibrated 250 mL stainless steel cylinder and subjected to controlled mechanical tapping under standardized vibration conditions. This process eliminates interstitial air voids progressively, enabling reproducible compaction and yielding the tapped (or “振实”) bulk density—a critical physical parameter influencing flowability, compressibility, reconstitution behavior, and packaging efficiency in dairy powder manufacturing and quality control laboratories. Designed in accordance with ISO 4788 (Laboratory glassware — Graduated cylinders), the STAV-II implements a fixed tapping regimen: 250 taps per minute (±15) at a consistent 3 mm amplitude, replicating the mechanical consolidation specified in international dairy and food standards. Its robust electromechanical architecture ensures long-term stability across high-throughput environments typical of QC labs in dairy processing facilities and contract testing organizations.

Key Features

• Fully automatic operation with programmable tap count and real-time cycle monitoring via integrated 5-digit electronic preset counter
• ISO 4788-compliant 250 mL volumetric cylinder fabricated from corrosion-resistant stainless steel for long-term dimensional stability and hygiene compliance
• Precision-controlled tapping mechanism delivering stable 3 mm amplitude and 250 min⁻¹ frequency (±15), validated per DIN EN ISO 17892-6 for soil and powder densification protocols
• High throughput capability: up to 450 independent samples per hour—optimized for batch release testing and routine incoming raw material verification
• Repeatability <1% RSD and accuracy <1% against NIST-traceable density standards, verified using certified reference powders (e.g., lactose monohydrate, calcium carbonate)
• Minimal operator intervention: auto-reset cylinder lift, gravity-fed sample loading port, and non-contact level detection prevent cross-contamination and operator-induced variability

Sample Compatibility & Compliance

The STAV-II is validated for use with free-flowing and moderately cohesive dairy powders, including but not limited to non-fat dry milk (NFDM), whole milk powder (WMP), demineralized whey powder (DWP), and fortified infant formula blends. It accommodates particle size distributions typical of industrial spray-drying processes (d₅₀ ≈ 100–200 µm). The instrument meets requirements outlined in ISO 4788, ASTM D4781 (Standard Test Method for Determining Bulk Density of Powders), and Codex Alimentarius Standard CXS 206-1999 (Standards for Milk Powders). Its mechanical design supports GLP/GMP-aligned workflows, with audit-ready operational logs (when paired with optional external data capture systems) and compatibility with laboratory-wide calibration management procedures per ISO/IEC 17025.

Software & Data Management

While the STAV-II operates as a standalone hardware platform with embedded microcontroller logic, it supports seamless integration into LIMS and ELN ecosystems via RS-232 or optional USB-to-serial interface. All tap cycles, sample IDs (manually entered or barcode-scanned via peripheral), and timestamped results are exportable as CSV or TXT files. When deployed in regulated environments—including those subject to FDA 21 CFR Part 11—data integrity is maintained through user-access controls, electronic signature prompts, and immutable result logging when interfaced with compliant third-party software platforms. Instrument calibration certificates and performance verification records align with ISO/IEC 17025 clause 6.4.10 for measurement traceability.

Applications

• Batch-to-batch consistency evaluation of spray-dried dairy powders during production release
• Raw material acceptance testing for bulk density deviations indicative of moisture variation or agglomeration
• Stability monitoring of stored powders: changes in tapped density correlate with caking propensity and shelf-life degradation
• Formulation development support—quantifying density shifts following addition of anti-caking agents (e.g., silicon dioxide, tricalcium phosphate)
• Regulatory submission documentation for Codex, EFSA, or FDA premarket notifications requiring physical characterization data
• Method transfer between R&D, pilot plant, and commercial-scale manufacturing sites

FAQ

Does the STAV-II comply with ISO 4788 for volumetric cylinder specifications?
Yes—the supplied 250 mL cylinder is manufactured to ISO 4788 tolerance classes and individually certified for volume accuracy at 20 °C.
Can the tapping frequency be adjusted beyond 250 min⁻¹?
No—STAV-II is factory-configured to 250 min⁻¹ ±15 to ensure strict adherence to ISO 4788 and avoid method deviation in regulated testing.
Is the instrument suitable for hygroscopic or electrostatically charged powders?
It is recommended to precondition samples to standardized RH (e.g., 40–60%) and temperature (20 °C) prior to analysis; optional grounding kits are available upon request.
What maintenance intervals are recommended for long-term accuracy?
Daily visual inspection of cylinder seating and tap head alignment; biannual verification of tap frequency and amplitude using calibrated metrology tools per ISO 17025 internal audit schedule.
How is traceability ensured for calibration and performance checks?
Each unit ships with a manufacturer’s calibration certificate referencing PTB (Physikalisch-Technische Bundesanstalt) traceable standards; users are advised to perform quarterly system suitability tests using certified density reference materials.
