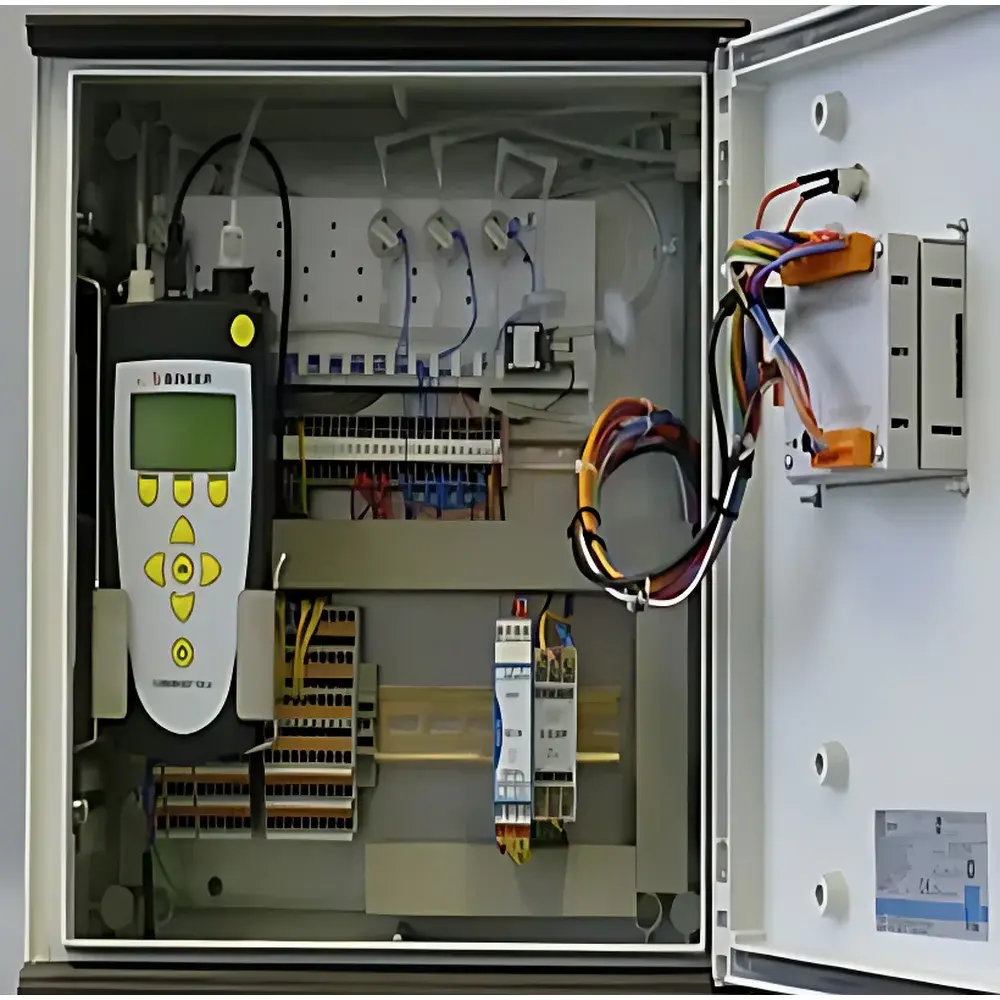

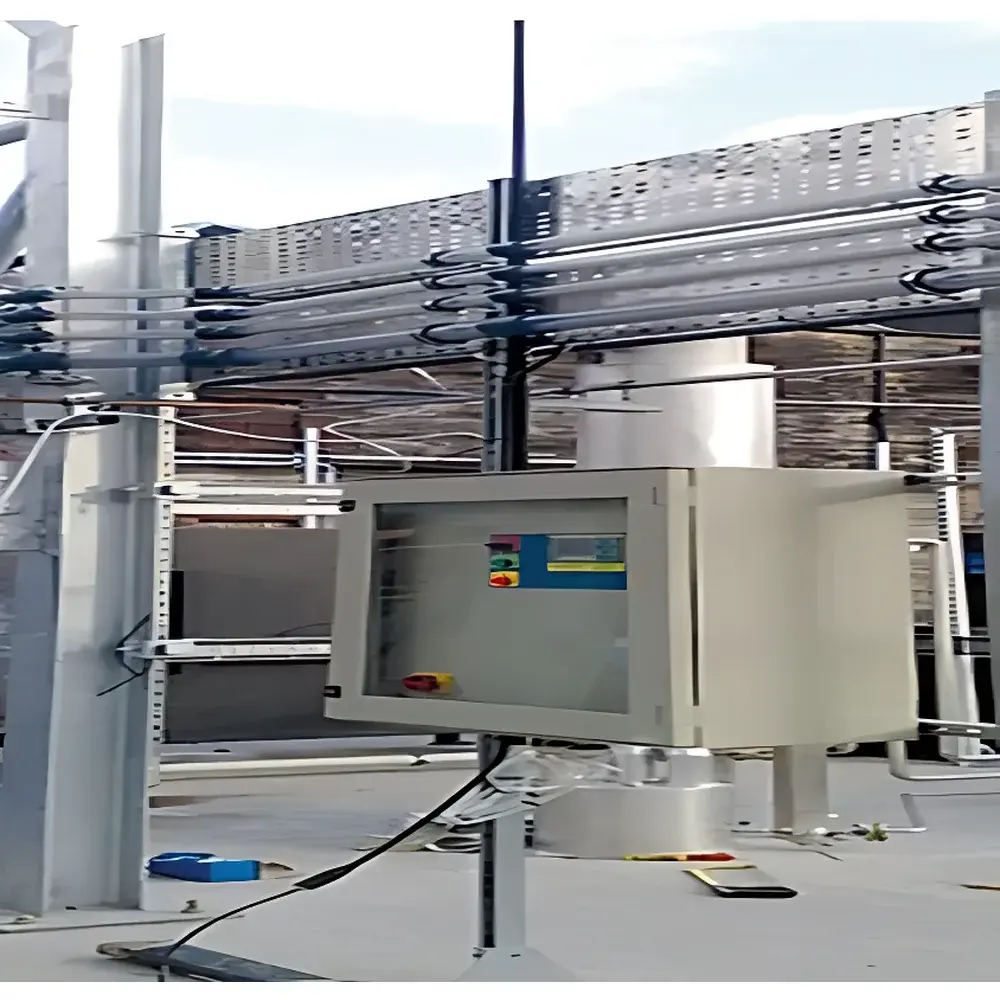

GA-S Online Biogas Analyzer

Overview

The GA-S Online Biogas Analyzer is a robust, field-deployable thermal conductivity and multi-sensor gas analysis system engineered for continuous, real-time monitoring of biogas composition in anaerobic digestion plants, landfill gas recovery systems, and wastewater treatment facilities. It operates on the principle of thermal conductivity differential measurement for H₂ and CH₄ (when configured with optional modules), complemented by non-dispersive infrared (NDIR) spectroscopy for CH₄ and CO₂, electrochemical sensing for O₂ and H₂S, and optional paramagnetic or NDIR-based CO/H₂ detection. Designed for integration into industrial process control loops, the GA-S delivers stable, trace-level quantification under variable ambient and process conditions—enabling precise feedstock optimization, digester health assessment, and compliance reporting per ISO 16593, EN 15439, and VDI 3850 standards.

Key Features

• Multi-gas simultaneous analysis: CH₄ (0–100% vol, NDIR), CO₂ (0–10,000 ppm / 0–10% / 0–100%, NDIR), O₂ (0–25% vol, electrochemical), H₂S (0–200 ppm to 0–10,000 ppm, electrochemical, configurable)
• Optional gas modules: H₂ (0–1,000 ppm), CO (0–1,000 ppm or 0–2,000 ppm), all using certified electrochemical or NDIR transducers
• Integrated flow, temperature, and static pressure compensation: Measures volumetric flow at standard conditions (0 °C, 1013.25 mbar) across 0.25–25.0 Nm/s velocity range; total flow capacity up to 12,000 Nm³/hr (DN ≤ 400)
• ATEX-certified intrinsic safety: EEx ib IIB T1 classification (Zone 1 & 2), enabling safe deployment in potentially explosive biogas environments
• Ruggedized enclosure: IP54-rated housing with operating ambient range of +5 °C to +40 °C and 10–90% RH; compact footprint (200 × 100 × 60 mm) and lightweight design (750 g, module-dependent)
• Onboard data logging: Stores up to 2,000 complete measurement sets—including timestamped gas concentrations, flow, temperature, and pressure—with user-defined sampling intervals

Sample Compatibility & Compliance

The GA-S is validated for direct sampling of raw, conditioned, or filtered biogas streams containing moisture, particulates, and condensables typical of anaerobic digesters and landfill wells. Its heated sample line interface (optional) prevents condensation-induced sensor drift. All gas sensors comply with EN 50104 (O₂), EN 45544-2 (H₂S), and EN 14625 (CO) performance requirements. The analyzer meets electromagnetic compatibility (EMC) per EN 61326-1 and carries CE marking for the European Economic Area. For regulated operations, it supports audit-ready calibration logs and adheres to GLP principles when paired with COMBIMASS® docking station (optional) for automated zero/span verification and firmware updates.

Software & Data Management

Data acquisition and configuration are managed via PC-based GA-S Control Software (Windows-compatible), delivered with USB interface cable. The software enables full parameter setup—including sensor ranges, alarm thresholds, flow compensation coefficients, and auto-calibration schedules—and exports time-stamped datasets directly to Excel (.xlsx) format for QA/QC review, regulatory submission (e.g., EPA GHG Reporting Program, EU ETS), or integration with SCADA/DCS platforms via Modbus RTU (optional add-on). Internal memory retains all logged entries during power loss; no cloud dependency ensures data sovereignty and cybersecurity compliance in critical infrastructure environments.

Applications

• Real-time optimization of hydraulic retention time (HRT) and organic loading rate (OLR) in mesophilic/thermophilic digesters
• Early detection of process upsets (e.g., acidosis, sulfate reduction) through CH₄/CO₂ ratio trending and H₂S spikes
• Landfill gas-to-energy (LFGTE) plant inlet monitoring for turbine protection and emission credit calculation
• Compliance verification against national biogas quality standards (e.g., DVGW G262, CEN/TS 16714-1) prior to grid injection or vehicle fuel upgrading
• Research-grade longitudinal studies on co-digestion efficiency, inoculum adaptation, and microbial community dynamics

FAQ

What calibration gases are required for routine maintenance?
Certified reference gases matching the configured measurement ranges—e.g., 50% CH₄/50% N₂, 2% CO₂/balance air, 100 ppm H₂S in N₂—are used for zero/span verification. Calibration frequency is recommended annually or semi-annually depending on operational intensity and regulatory requirements.
Can the GA-S operate continuously without external power?
Yes—the integrated rechargeable battery provides up to 10 hours of autonomous operation. Full recharge requires 2–4 hours via included AC adapter or USB-C port.
Is pressure and temperature compensation applied automatically during flow calculation?
Yes—integrated Pt100 temperature probe (–10 °C to +100 °C) and piezoresistive static pressure sensor (–400 to +400 mbar) feed real-time inputs to the onboard microprocessor, ensuring Nm³/hr output conforms to ISO 12181 standard conditions.
How is sensor cross-sensitivity mitigated in complex biogas matrices?
Sensor-specific interference filters, algorithmic compensation (e.g., H₂O vapor correction for IR cells), and hardware-level signal isolation minimize cross-talk. Factory calibration includes exposure to representative biogas simulants containing H₂, CO, and siloxanes.
Does the GA-S support remote diagnostics or firmware updates?
Firmware updates and diagnostic logs are performed locally via USB. Remote capability requires integration with third-party telemetry gateways; no embedded cellular/Wi-Fi module is included in the base unit.
