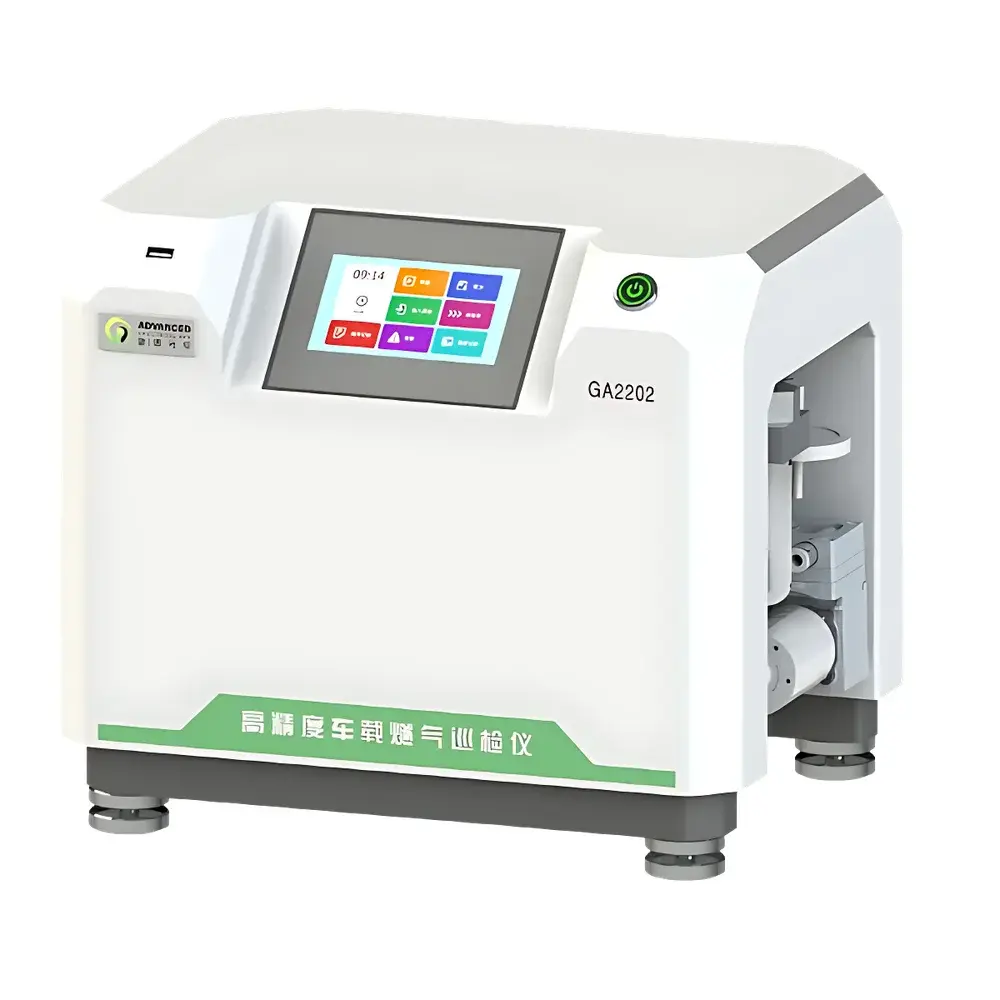

GA2202 High-Precision Methane and Ethane Analyzer by CASP

Overview

The GA2202 High-Precision Methane and Ethane Analyzer is an engineered solution for real-time, field-deployable hydrocarbon gas quantification in environmental and industrial safety applications. It employs a dual-spectral detection architecture combining mid-infrared (MIR) absorption spectroscopy with tunable diode laser absorption spectroscopy (TDLAS) — a configuration specifically optimized for selective, interference-free detection of methane (CH₄) and ethane (C₂H₆). Unlike broad-spectrum NDIR or catalytic bead sensors, this hybrid optical approach leverages distinct vibrational-rotational absorption lines of CH₄ near 3.3 µm and C₂H₆ near 3.4 µm, enabling unambiguous discrimination between natural gas (CH₄-dominant, low C₂H₆/CH₄ ratio) and biogas (elevated C₂H₆ content due to anaerobic digestion byproducts). The instrument is designed for mobile deployment on vehicles, handheld operation during emergency response, or fixed-site perimeter monitoring — supporting regulatory compliance with EPA Method 21, ISO 16000-29, and EU Directive 2010/75/EU (IED) for fugitive emission surveys.

Key Features

• Dual-gas specificity: Simultaneous, independent quantification of CH₄ and C₂H₆ using spectrally resolved MIR + TDLAS channels — eliminating cross-sensitivity from CO₂, H₂O, VOCs, or common background gases.
• Sub-second temporal resolution: Real-time data output at ≤1 Hz sampling rate, enabling high-speed mobile leak detection at vehicle speeds up to 60 km/h without signal averaging artifacts.
• Thermally stabilized optical path: Integrated Peltier-based temperature control maintains detector and cell temperature within ±0.1 °C, reducing drift and ensuring measurement repeatability (<2% RSD over 8 h).
• Wide dynamic range: Configurable linear response from sub-ppb to 10,000 ppm for CH₄ and 0.1–5,000 ppm for C₂H₆ — suitable for ambient air screening, facility fence-line monitoring, and landfill gas plume characterization.
• Robust mechanical architecture: IP65-rated enclosure, shock-mounted optics, and vibration-damped flow path — validated for continuous operation in vehicular mounting and field-portable use cases.
• Fully domestic R&D and production: Designed and manufactured in Anhui Province, China, with full traceability of firmware, calibration algorithms, and hardware supply chain — aligned with national data sovereignty requirements for critical infrastructure monitoring.

Sample Compatibility & Compliance

The GA2202 interfaces directly with ambient air via heated sampling line (optional) or integrated axial fan aspiration. It accommodates variable humidity (0–95% RH, non-condensing) and particulate-laden airstreams through a replaceable hydrophobic membrane filter (0.2 µm pore size). No sample conditioning (e.g., drying or scrubbing) is required under standard operating conditions. The analyzer meets electromagnetic compatibility (EMC) per GB/T 18268.1–2010 (IEC 61326-1) and environmental testing per GB/T 2423.1–2008 (IEC 60068-2-1) for low-temperature storage and operational stability down to –20 °C. While not certified to ATEX or IECEx, it is rated for Zone 2/Class I Division 2 environments when deployed with appropriate intrinsic safety barriers per user-defined system integration.

Software & Data Management

Instrument control, real-time visualization, and georeferenced data logging are managed via the CASP GA-Series Field Manager software (Windows/Linux compatible). Raw spectral data, concentration time-series, GPS coordinates (via optional NMEA 0183 interface), and diagnostic logs are stored in HDF5 format with embedded metadata (timestamp, temperature, pressure, laser current). Audit trails record all parameter changes, calibration events, and user logins — supporting GLP-aligned workflows. Export options include CSV, NetCDF, and KML for GIS integration. Firmware updates and remote diagnostics are supported via secure TLS 1.2 encrypted connection; no cloud dependency is required for core functionality.

Applications

• Fugitive emission surveys along natural gas transmission corridors and distribution networks.
• Differentiation of methane sources: distinguishing thermogenic (high CH₄/C₂H₆ >50) from biogenic emissions (low CH₄/C₂H₆ <10) in landfill, wastewater treatment, and agricultural digesters.
• Emergency response to pipeline ruptures or LNG facility incidents — rapid identification of gas composition to inform hazard zone classification.
• Urban ambient air quality monitoring networks targeting hydrocarbon precursors to ground-level ozone formation.
• Regulatory compliance reporting for oil & gas facilities under China’s “Guideline for Methane Emission Monitoring in Oil & Gas Sector” (MEE Notice No. 23, 2023).

FAQ

Does the GA2202 require daily calibration?

No — factory-calibrated with NIST-traceable CH₄ and C₂H₆ standards; zero/span verification recommended every 7 days in field use or after transport shock.
Can it operate continuously on battery power?

Yes — supports 12 V DC input with internal LiFePO₄ backup (optional); runtime exceeds 4 h at full sampling duty cycle.
Is raw spectral data accessible for third-party analysis?

Yes — HDF5 files contain unprocessed interferograms and wavelength-stamped absorbance spectra, fully exportable without proprietary codec restrictions.
What maintenance is required for long-term field deployment?

Annual optical alignment verification and quarterly replacement of inlet particulate filter and desiccant cartridge (if humid environment option selected).
Does it support Modbus RTU or other industrial protocols?

Yes — optional RS-485 interface with configurable Modbus RTU register map for SCADA integration.
