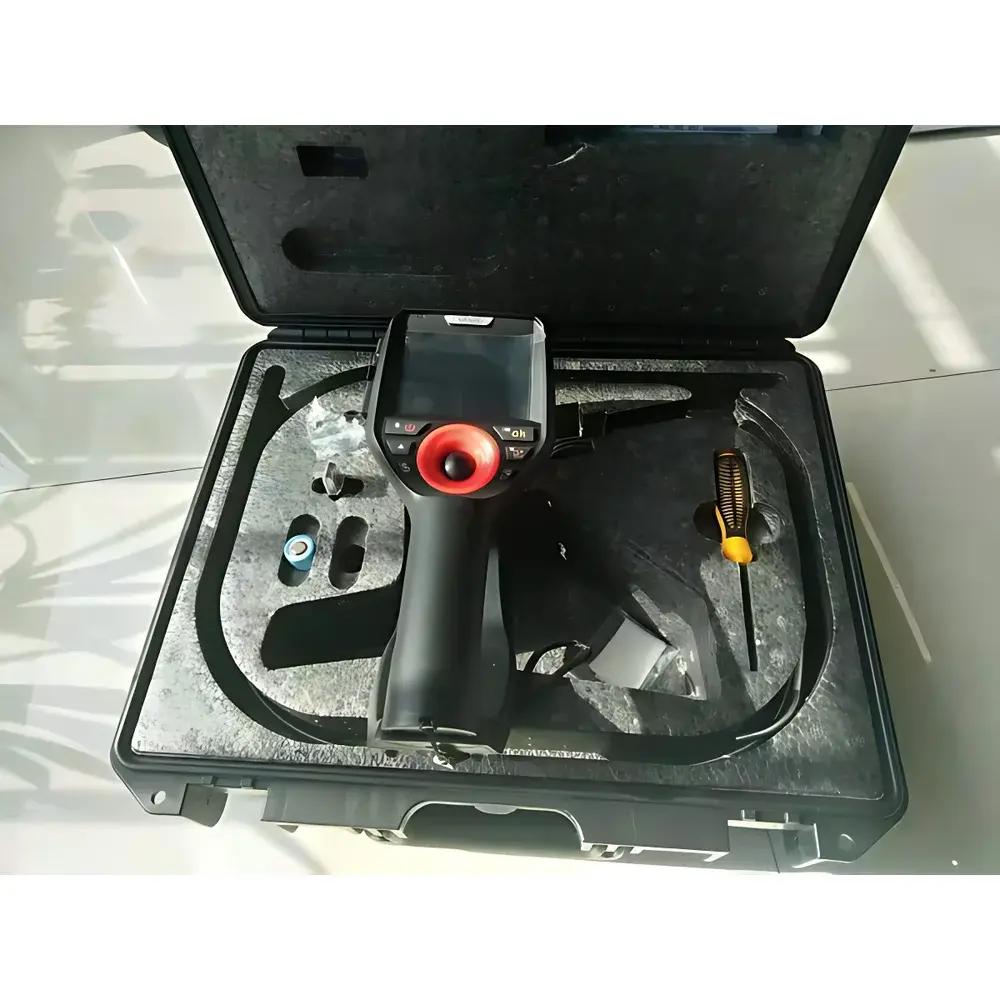

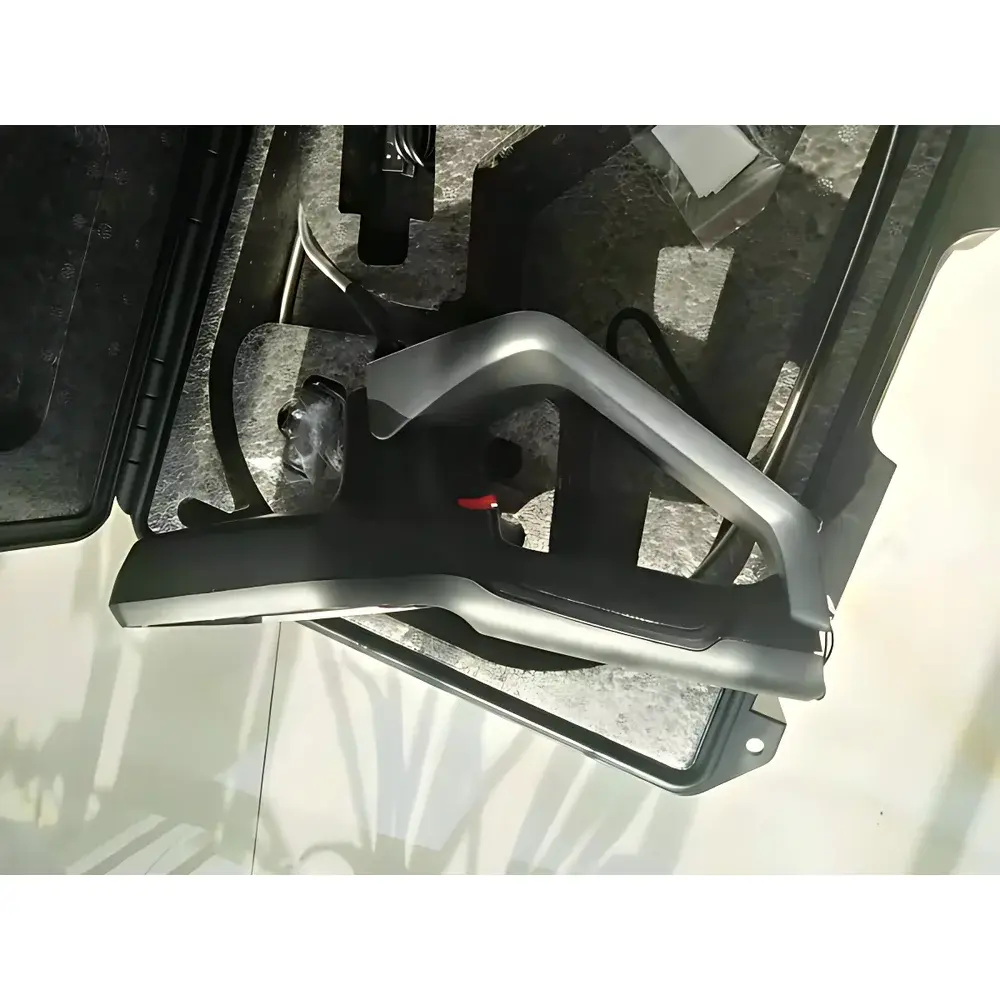

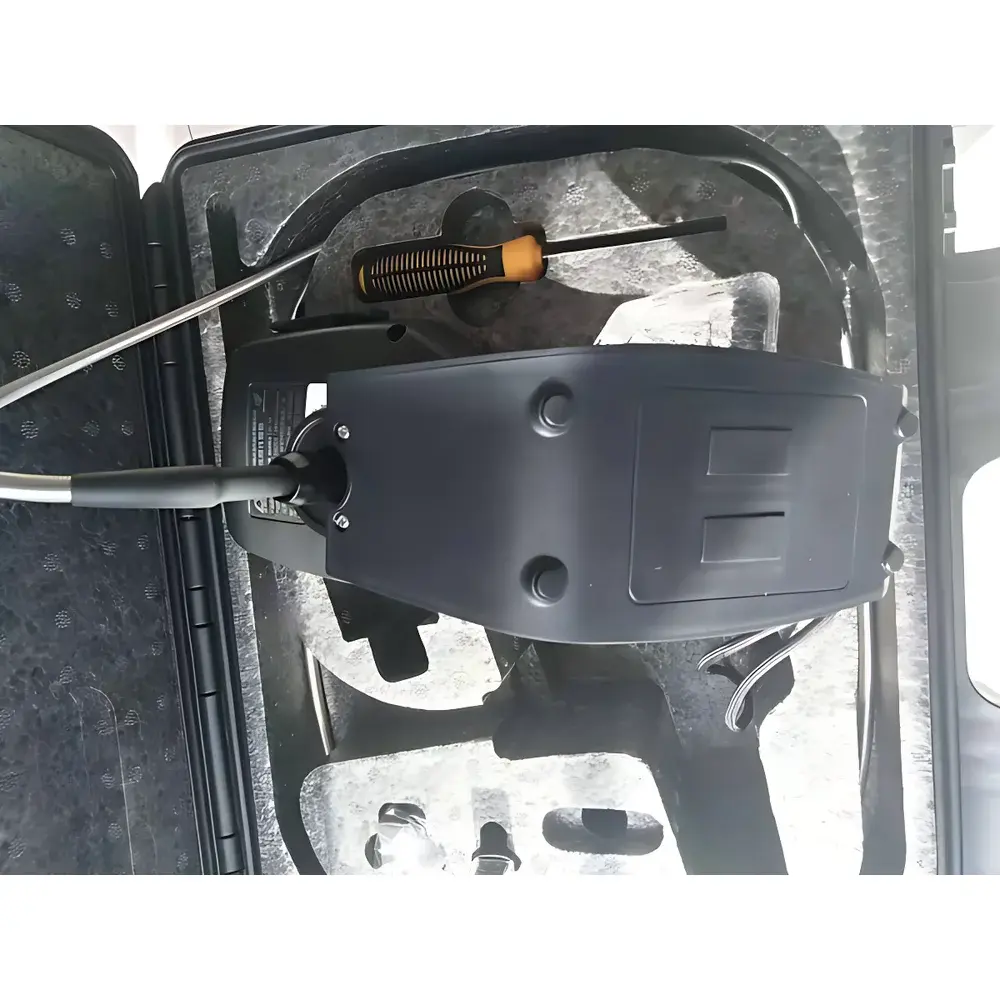

GaoanTai C40-6015TH Industrial Video Endoscope

Overview

The GaoanTai C40-6015TH is a modular, high-resolution industrial video endoscope engineered for precision visual inspection in confined, inaccessible, or hazardous environments. Based on digital image capture via a miniature CMOS sensor and coaxial LED illumination, the system delivers real-time 720p HD video (1280 × 720 at 30 fps) with low-latency transmission over a shielded coaxial cable assembly. Its core architecture follows established NDT (non-destructive testing) principles defined in ASTM E2579 and ISO 17025–accredited practice—emphasizing repeatability of field-of-view registration, geometric fidelity under varying lighting conditions, and traceable optical performance. Designed for integration into preventive maintenance workflows and regulatory-compliant inspection protocols, the C40-6015TH supports documented evidence generation required under ASME BPVC Section V, API RP 570, and EN 1330-10 standards.

Key Features

• Modular insertion tube system enabling rapid interchange (≤20 seconds) of diameters (2.0–6.0 mm), lengths (1–5 m), and depth-of-field configurations—eliminating the need for multiple dedicated units.
• Sunlight-readable 3.5-inch TFT-LCD display with 800 cd/m² brightness and anti-glare coating, ensuring legibility in outdoor, high-ambient-light settings such as refinery perimeters or rail yard inspections.
• Dual-way mechanical articulation (≥120° upward/downward deflection) with tactile feedback and position retention, facilitating precise navigation around bends, weld seams, and turbine blade passages.
• IP67-rated probe assembly with fluoropolymer-jacketed insertion tube—validated for continuous immersion in freshwater, diesel, hydraulic oil, and diluted industrial solvents for up to 30 minutes without degradation.
• Embedded image processing engine supporting real-time 4× digital zoom, 180° image flip (for inverted cavity orientation), and synchronized time-stamped watermarking compliant with audit trail requirements per FDA 21 CFR Part 11 Annex 11.
• On-device file management: thumbnail-based browsing, full-screen playback, metadata editing (filename, notes), selective deletion, and lossless H.264 video export with embedded EXIF data.

Sample Compatibility & Compliance

The C40-6015TH accommodates diverse inspection geometries—from narrow-diameter heat exchanger tubes (≥2.0 mm ID) to large-volume pressure vessel interiors. Its interchangeable probe design meets dimensional constraints specified in ASTM E2339 for borehole inspection tooling. All optical components undergo factory calibration against NIST-traceable targets; calibration certificates—including resolution verification (≥50 lp/mm at working distance), distortion mapping, and color fidelity (ΔE < 5 CIEDE2000)—are provided with each unit. The system conforms to electromagnetic compatibility (EMC) requirements per EN 61326-1 and carries CE marking for use within EU industrial zones. For regulated industries, optional IQ/OQ documentation packages support validation under GMP (ICH Q9) and aerospace AS9100D frameworks.

Software & Data Management

The device operates independently without PC dependency, yet supports USB-C data offload to Windows/macOS/Linux systems. Proprietary GaoanTai Inspector Suite (v3.2+) enables batch annotation, measurement overlay (distance, angle, area via reference scale calibration), report generation (PDF/CSV), and DICOM-compatibility mode for integration with enterprise CMMS platforms (e.g., IBM Maximo, SAP PM). Audit logs record all user actions—including image capture, zoom level changes, and annotation edits—with immutable timestamps and operator ID tagging. Data encryption (AES-256) and password-protected access ensure compliance with ISO/IEC 27001 information security controls.

Applications

• Aerospace: Inspection of turbine compressor blades, fuel manifold integrity, and APU combustion chamber deposits per SAE AIR4769 guidelines.
• Power Generation: Visual assessment of boiler tube pitting, condenser tube sheet corrosion, and nuclear containment vent line cleanliness per EPRI TR-102342.
• Automotive Manufacturing: Validation of casting porosity in aluminum engine blocks, weld seam continuity in EV battery enclosures, and brake caliper piston bore surface finish.
• Rail & Maritime: Examination of locomotive axle ultrasonic test couplant residue, ship hull ballast tank coating adhesion, and propeller shaft keyway wear.
• Pharmaceutical & Biotech: Post-CIP visual verification of stainless-steel piping interior cleanliness per ASME BPE-2022 and EU GMP Annex 15.

FAQ

Is the insertion tube truly interchangeable without tools?
Yes—the quick-lock bayonet coupling requires no tools and maintains optical axis alignment within ±0.3° across all tube variants.
Can the device store inspection records with regulatory-compliant audit trails?
Yes—on-device logging captures operator ID, timestamp, zoom level, articulation angle, and annotation edits in an encrypted binary log file, exportable for third-party review.
What is the maximum operating temperature for the probe tip?
The standard probe is rated for continuous operation from –10 °C to +60 °C; high-temp variant (C40-HT) supports up to +120 °C for furnace inspection applications.
Does the system support remote expert collaboration?
Via optional Wi-Fi dongle (GA-WF1), live streaming to secure cloud portal enables real-time remote viewing and annotation by off-site engineers using TLS 1.2–encrypted connection.
How is measurement accuracy validated for defect sizing?
Each unit ships with a certified calibration target; users perform daily verification using the built-in scale bar function, with deviation limits set per ASTM E2339 Section 7.3.
