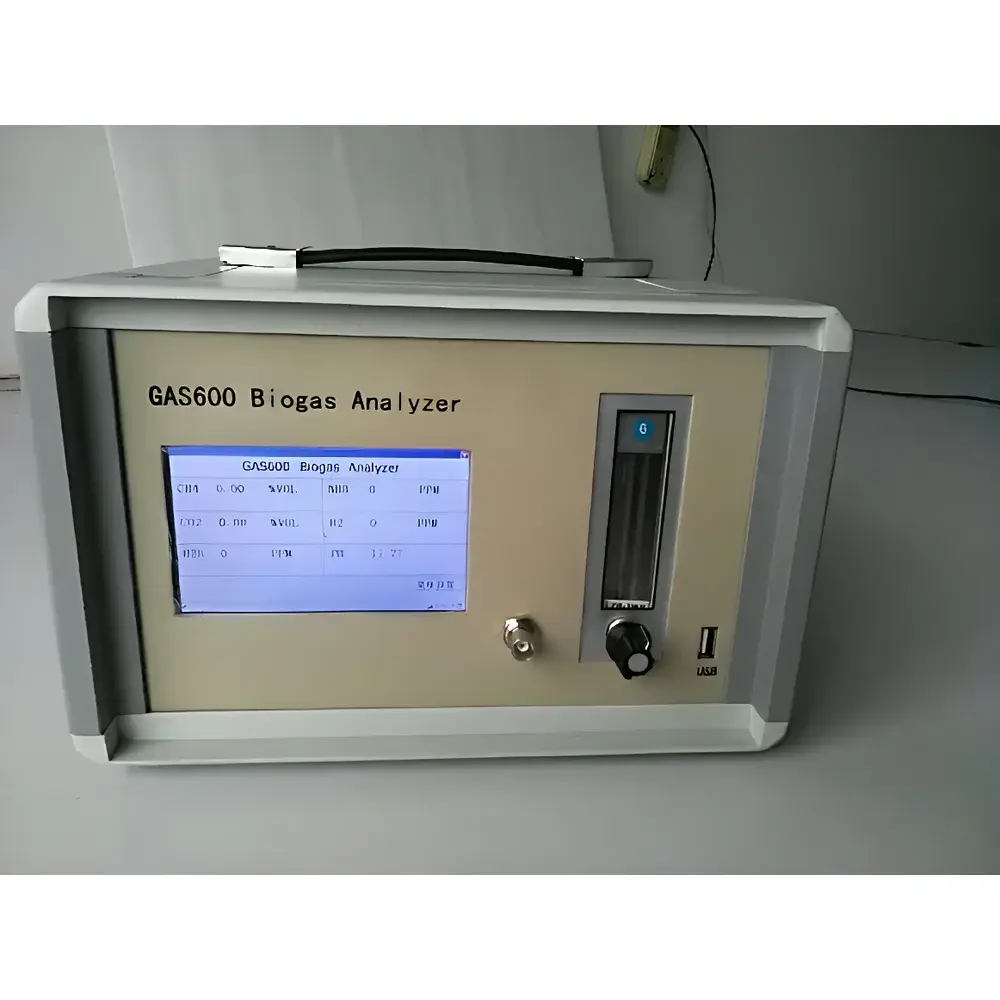

Gas600 Portable Biogas Analyzer

Overview

The Gas600 Portable Biogas Analyzer is an engineered field-deployable gas measurement system designed for real-time, multi-parameter analysis of biogas, landfill gas, syngas, and combustion-related process streams. It operates on a modular sensor architecture integrating electrochemical (EC), non-dispersive infrared (NDIR), thermal conductivity (TCD), and photoionization (PID) detection principles—each selected per gas species to ensure optimal selectivity, stability, and dynamic range. Unlike fixed-installation analyzers, the Gas600 delivers laboratory-grade quantification in a ruggedized handheld form factor, supporting direct sampling via integrated pump and heated sample line (optional). Its core application domain spans anaerobic digestion monitoring, biogas upgrading control, emissions verification per EPA Method 25A or EN 15403, and compliance-driven reporting under ISO 14064-1 and EU Directive 2009/28/EC on renewable energy.

Key Features

• Multi-sensor platform supporting simultaneous detection of up to 12 gases—including CH₄, CO₂, O₂, CO, H₂S, H₂, SO₂, NO, NO₂, SF₆, NH₃, and hydrocarbons—with configurable sensor combinations per site requirements.
• True portable operation: integrated rechargeable Li-ion battery (≥8 h continuous use), IP65-rated enclosure, and ergonomic handheld design suitable for confined-space entry and outdoor deployment.
• Digital output interface compliant with Modbus RTU (RS-485) and 4–20 mA analog channels (isolated, HART-enabled), enabling seamless integration into SCADA, DCS, or PLC-based control systems.
• Onboard relay module (2 × SPDT) for autonomous actuation of ventilation fans, solenoid valves, or alarm sirens based on user-defined concentration thresholds.
• Real-time data logging (≥32,000 records) with timestamping, internal SD card storage, and USB-C export—supporting CSV and XML formats compatible with LIMS and audit-ready reporting workflows.
• Auto-zero and span-check functions with built-in calibration gas ports; optional NIST-traceable calibration kits available for field verification per ISO 6142.

Sample Compatibility & Compliance

The Gas600 accommodates both dry and humid gas matrices with condensate tolerance up to 95% RH (non-condensing). Sample inlet temperature range: –10 °C to +50 °C; operating ambient: –10 °C to +45 °C. It meets IEC 61000-4 electromagnetic compatibility standards and carries CE marking per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). For biogas applications, it aligns with CEN/TS 15439 for methane and carbon dioxide determination and supports GLP-compliant data integrity when used with optional audit trail software extension. All sensor modules comply with ATEX II 2G Ex ib IIC T4 Ga (for intrinsically safe operation in Zone 1 hazardous areas) upon request.

Software & Data Management

The Gas600 ships with PC-based configuration and visualization software (Windows 10/11 compatible) featuring intuitive sensor setup, alarm logic builder, and trend charting with overlay capability. Raw sensor outputs are time-stamped at 1 Hz resolution and stored with metadata including GPS coordinates (via Bluetooth-connected mobile device), operator ID, and environmental conditions (T/P compensation enabled). Exported datasets include full calibration history, zero/span logs, and diagnostic flags—structured to satisfy FDA 21 CFR Part 11 requirements for electronic records when paired with password-protected user roles and digital signature support. Firmware updates are delivered via secure HTTPS OTA protocol with SHA-256 signature verification.

Applications

• Biogas plant performance monitoring: CH₄/CO₂ ratio tracking for digester health assessment and feedstock optimization.
• Landfill gas collection system validation: H₂S and siloxane surrogate monitoring prior to flare or engine injection.
• Combustion efficiency analysis: O₂, CO, and unburnt hydrocarbon quantification for boiler and CHP unit tuning.
• Indoor air quality (IAQ) audits in anaerobic digestion facilities per ASHRAE Standard 62.1.
• Process safety verification: H₂S and CO leak detection during maintenance or startup procedures.
• Renewable natural gas (RNG) certification pre-testing: meeting ASTM D5504 and ISO 8573-5 purity specifications for pipeline injection.

FAQ

What gases can the Gas600 measure simultaneously?
It supports concurrent measurement of up to 12 gases, including CH₄, CO₂, O₂, CO, H₂S, H₂, SO₂, NO, NO₂, SF₆, NH₃, and total hydrocarbons—configurable at time of order.
Is the instrument certified for use in hazardous areas?
Yes—ATEX-certified versions (II 2G Ex ib IIC T4 Ga) are available for Zone 1 classified locations, subject to sensor module selection and factory configuration.
How often does the Gas600 require calibration?
Field calibration is recommended every 30 days for critical applications or after exposure to extreme concentrations; zero checks should be performed daily using ambient air or certified zero gas.
Can the Gas600 interface with existing plant control systems?
Yes—it provides isolated 4–20 mA outputs (per gas channel), Modbus RTU over RS-485, and optional Ethernet/IP support for direct integration with DCS, PLC, or cloud-based IoT platforms.
Does the analyzer support regulatory reporting formats?
Data export includes ISO 14064-aligned GHG calculation templates, EPA Method 25A-compatible report headers, and CSV/XML structures validated for ingestion by EPA’s GHGRP e-GGRT portal and EU ETS MRV systems.
