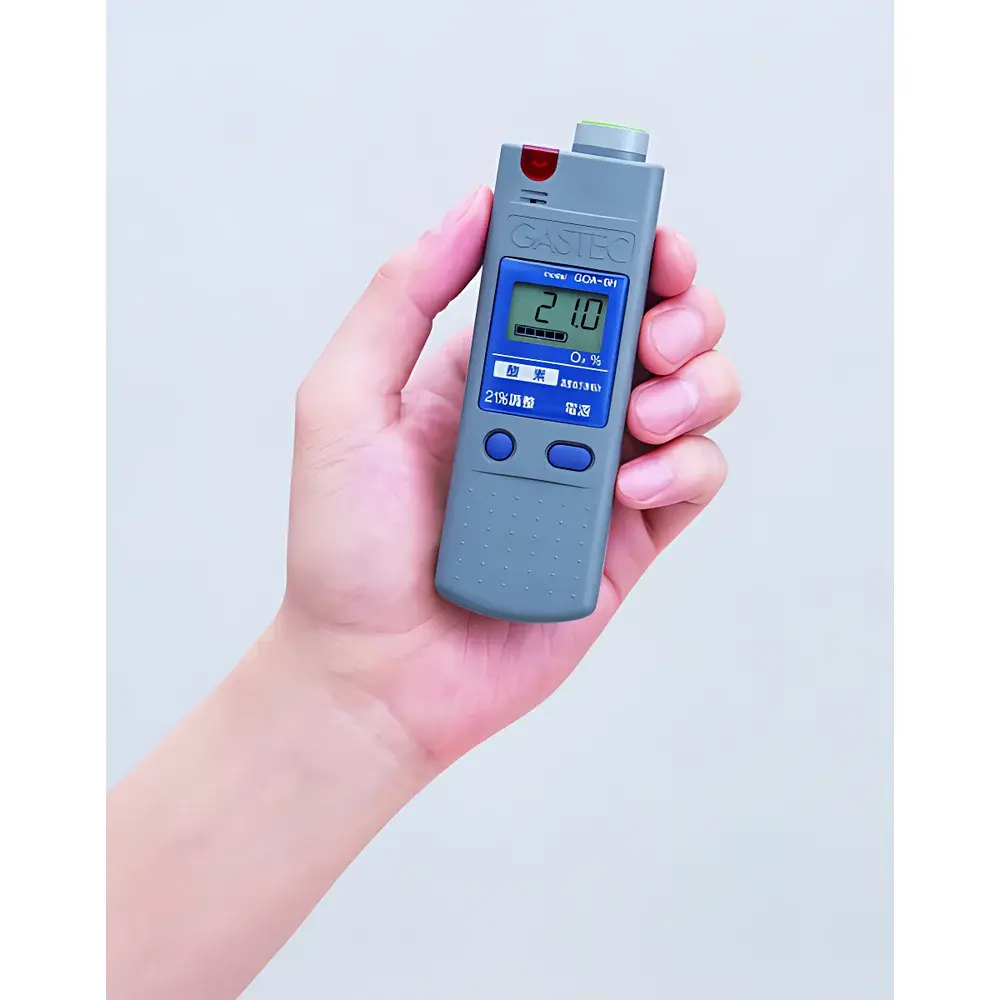

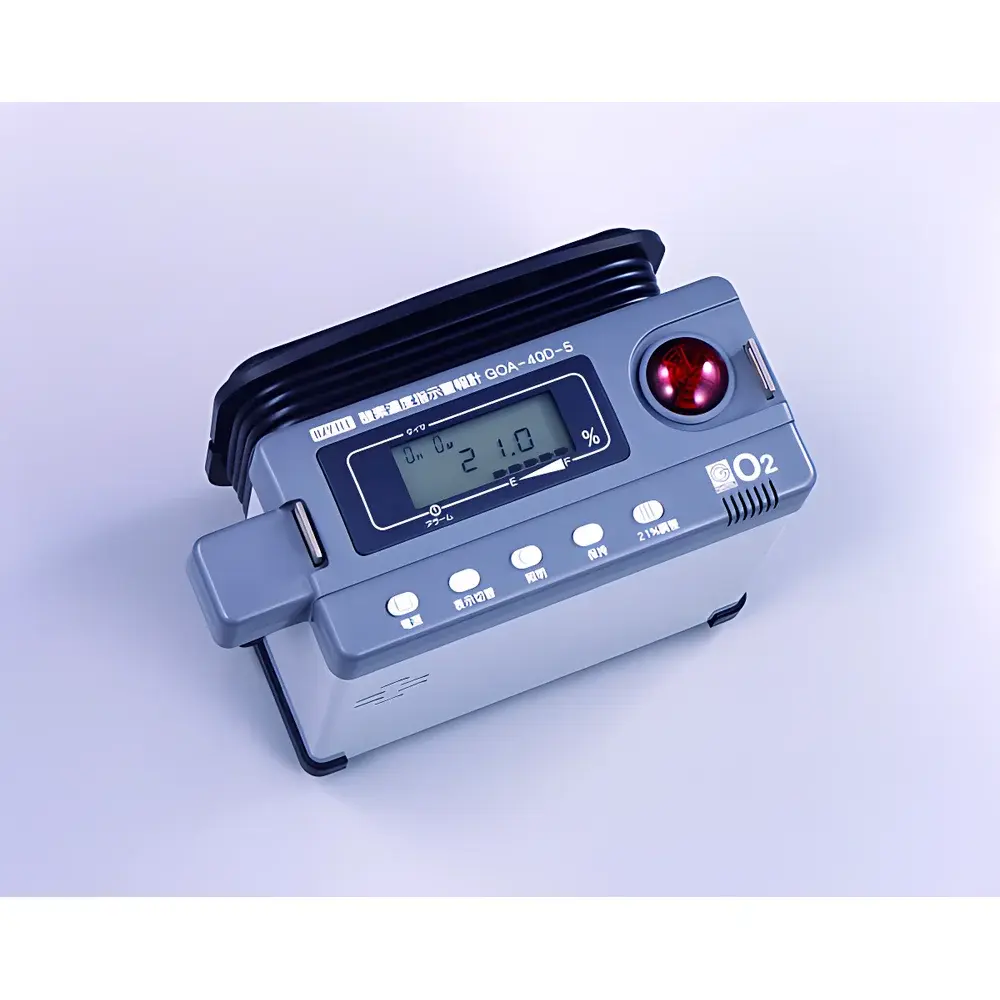

GASTEC Portable Oxygen Gas Detector and Alarm
| Brand | GASTEC |
|---|---|
| Origin | Japan |
| Model | GASTEC Oxygen Detection Alarm (Portable) |
| Detection Principle | Electrochemical Sensor |
| Operating Range | 0–25% vol O₂ |
| Resolution | 0.1% vol |
| Accuracy | ±0.5% vol (within 15–25% range) |
| Response Time (T90) | <30 s |
| Power Supply | Rechargeable Li-ion battery (up to 2,000 hours continuous operation) |
| IP Rating | IP67 |
| Operating Temperature | −10°C to +50°C |
| Compliance | IEC 61508 SIL 2, JIS T 8201, EN 45544-1, ATEX II 2G Ex ib IIC T4 Gb |
Overview
The GASTEC Portable Oxygen Gas Detector and Alarm is an electrochemical gas sensing instrument engineered for real-time, field-deployable monitoring of ambient oxygen concentration in industrial, confined-space, and emergency response environments. Unlike optical or paramagnetic methods, this device employs a temperature-compensated, long-life electrochemical cell optimized for stability in variable humidity and pressure conditions—critical for accurate O₂ measurement across diverse operational settings. With a calibrated detection range of 0–25% volume, it reliably identifies both oxygen deficiency (<19.5% vol, per OSHA and EU Directive 2015/1005) and enrichment (>23.5% vol), enabling proactive hazard mitigation in welding zones, chemical storage areas, tunneling operations, and inerted process vessels. Its compact form factor (120 × 65 × 32 mm) and ergonomic grip allow single-hand operation without compromising sensor accessibility or calibration port visibility.
Key Features
- Electrochemical sensing technology with factory-calibrated zero and span points traceable to NIST-certified reference gases
- Dual-stage audible (≥85 dB at 30 cm) and visual alarm system: yellow LED warning at 19.5% O₂; red flashing LED + pulsating buzzer at 18.0% O₂
- Integrated data logging (up to 32,000 timestamped readings) with USB-C interface and proprietary GASTEC LogView software for trend analysis and report generation
- Auto-zero function activated during power-on and configurable manual zeroing via magnetic wand—eliminating need for external zero gas in routine field use
- Ruggedized polycarbonate housing rated IP67 for dust ingress protection and temporary submersion (1 m for 30 min)
- Battery life indicator with low-power mode activation at ≤10% charge, extending operational window during critical missions
Sample Compatibility & Compliance
This detector is validated for use in ambient air, nitrogen-purged enclosures, CO₂-rich fermentation chambers, and hydrocarbon-processing atmospheres where cross-sensitivity to H₂S, CO, or NO₂ is negligible (cross-sensitivity <±2% full scale per IEC 62913-2). It meets functional safety requirements under IEC 61508 SIL 2 for safety-related systems and complies with EN 45544-1 for workplace atmosphere monitoring. All units ship with CE marking, ATEX certification (II 2G Ex ib IIC T4 Gb), and conformity documentation supporting GLP-compliant recordkeeping. Calibration certificates are provided with each unit, including sensor lot number, date of verification, and uncertainty budget per ISO/IEC 17025.
Software & Data Management
GASTEC LogView v3.2 (Windows/macOS compatible) enables secure configuration of alarm thresholds, data export in CSV/Excel format, and audit-trail generation compliant with FDA 21 CFR Part 11 requirements—including electronic signatures, user access logs, and immutable event timestamps. The software supports batch calibration validation reports aligned with ISO 8573-7 for compressed air quality testing and integrates with enterprise CMMS platforms via OPC UA protocol. Firmware updates are delivered through digitally signed packages verified against GASTEC’s root certificate authority.
Applications
- Confined space entry pre-checks per OSHA 1910.146 and UK HSE Guidance Note GS5
- Monitoring inert gas blanketing in pharmaceutical reactor vessels and solvent recovery systems
- Verification of purge efficacy during pipeline commissioning and tank cleaning operations
- Real-time O₂ tracking in hyperbaric chambers and altitude simulation laboratories
- Emergency response triage in fire-damaged structures where thermal decomposition may deplete local O₂
- Validation of ventilation performance in underground mining shafts and subway maintenance tunnels
FAQ
What is the recommended calibration frequency for this detector?
Per GASTEC Technical Bulletin TB-O₂-2023, bump testing is required before each day’s use; full electrochemical calibration is recommended every 6 months or after exposure to >100 ppm chlorine, SO₂, or high-humidity condensation events.
Can the device be used in explosive atmospheres?
Yes—certified to ATEX II 2G Ex ib IIC T4 Gb and IECEx Ex ib IIC T4 Gb, permitting safe operation in Zone 1 gas hazardous areas containing propane, hydrogen, or acetylene mixtures.
Does the detector support multi-gas configurations?
No—this model is dedicated solely to oxygen measurement. GASTEC offers separate multi-gas variants (e.g., GV-100 series) with interchangeable sensor modules for CO, H₂S, LEL, and O₂ in a single housing.
How is sensor lifetime managed?
The electrochemical cell has a nominal service life of 24 months from date of manufacture, tracked via embedded EEPROM; LogView displays remaining estimated lifespan based on cumulative exposure hours and temperature history.
Is third-party calibration accepted for regulatory audits?
Yes—provided calibration is performed by an ISO/IEC 17025-accredited laboratory using traceable standards and documented in accordance with EN ISO/IEC 17025:2017 Clause 7.8.2.
