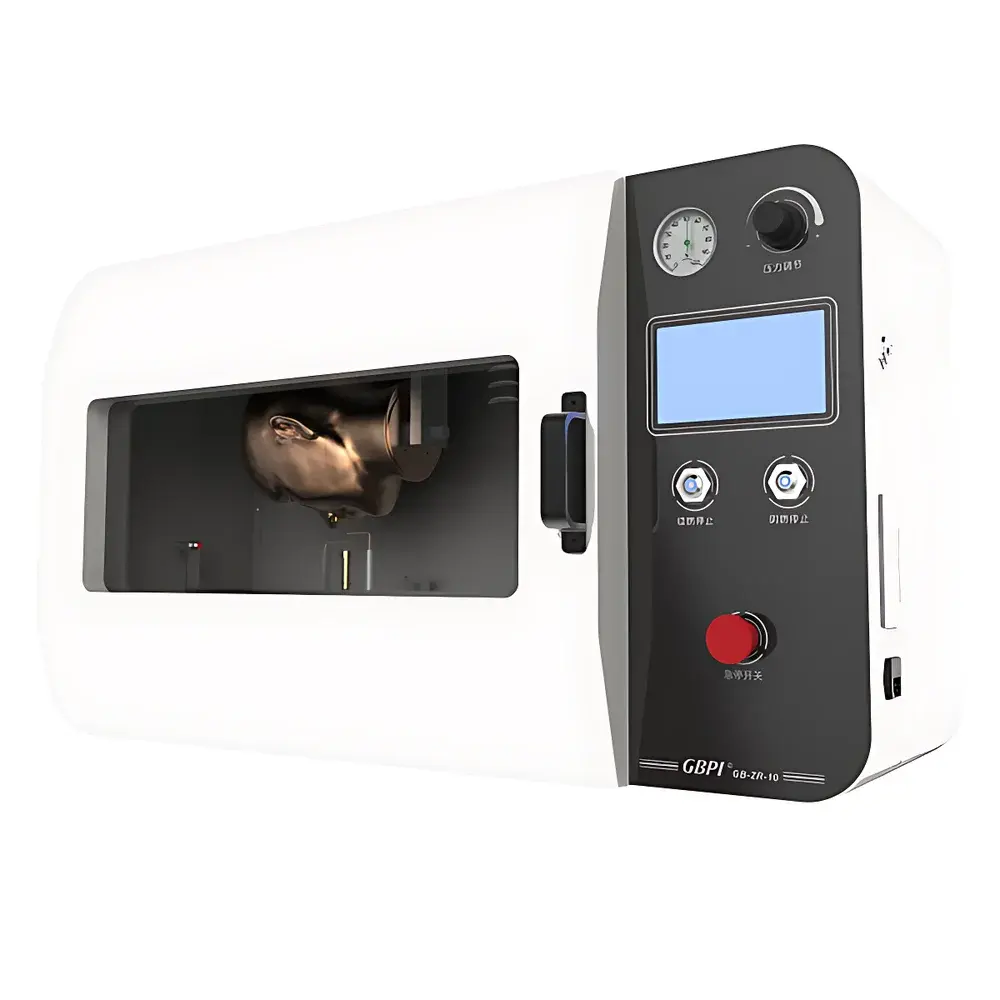

GBPI GB-ZR10 Flame Resistance Tester for Medical Face Masks

Overview

The GBPI GB-ZR10 Flame Resistance Tester is a purpose-built instrument engineered to evaluate the flammability performance of medical face masks and respirators under standardized ignition conditions. It operates on the principle of controlled horizontal flame impingement—where a calibrated propane flame is applied to the mask surface at a defined distance and duration while the specimen is mounted on an anthropometric metallic headform moving at a precise linear velocity. This methodology replicates real-world exposure scenarios where masks may encounter brief flame contact during clinical, industrial, or emergency settings. The system strictly adheres to the thermal and kinematic boundary conditions specified in key regulatory standards, enabling objective assessment of afterflame time (duration of flaming combustion after flame removal) and smolder time (duration of glowing combustion without flame), both critical metrics for respiratory protective equipment compliance.

Key Features

• Intuitive 7-inch capacitive touch-screen interface with embedded control logic for seamless test initiation, parameter configuration, and real-time monitoring.
• Anatomically accurate stainless-steel headform (2–3 mm wall thickness) designed to withstand repeated flame exposure without deformation or thermal degradation—ensuring long-term dimensional stability and test repeatability.
• Motorized, programmable headform translation mechanism delivering consistent linear motion at (60 ± 5) mm/s, traceable via internal encoder feedback.
• Adjustable burner assembly with micrometer-scale vertical positioning (0–30 mm range), enabling precise alignment relative to the mask’s lowest point per standard requirements.
• Integrated thermocouple-based flame temperature verification system, displaying real-time temperature at the reference plane (20 ± 2 mm above burner tip) with ±50 °C accuracy.
• Automated dual-channel timing module capturing afterflame and smolder durations independently, with resolution of ±0.1 s and storage of timestamped results in non-volatile memory.
• Dual gas supply compatibility: standardized LPG (propane) inlet with pressure regulator and leak-tight quick-connect fittings; optional natural gas conversion kit available upon request.
• Self-diagnostic firmware with error logging, calibration status flagging, and audit-trail-enabled operation history—supporting GLP-compliant laboratory workflows.

Sample Compatibility & Compliance

The GB-ZR10 accommodates flat-fold, cup-shaped, and molded disposable/resuable masks—including surgical masks, N95/N99 respirators, and KN95 equivalents—without modification to fixture geometry. Specimens are secured using standardized clamping force (per ISO 18562-2 Annex B guidance) to prevent slippage while preserving natural drape. The instrument fulfills mandatory test conditions for multiple national and international standards, including GB 19083–2010 (Technical Requirements for Medical Protective Masks), YY 0469–2011 (Surgical Masks), GB 2626–2006 (Respiratory Protection—Non-powered Air-purifying Particulate Respirators), and GB 19083–2003 (predecessor edition). While not certified to ASTM F2100 or EN 14683 by default, its mechanical and thermal parameters are fully compatible with those standards’ flame exposure clauses when configured accordingly.

Software & Data Management

The embedded firmware supports local data retention for up to 1,000 test records, each containing full metadata: operator ID, date/time stamp, sample ID, flame temperature reading, headform speed, measured afterflame/smolder times, and pass/fail determination against user-defined thresholds. Export is available via USB 2.0 port in CSV format for integration into LIMS or statistical analysis platforms (e.g., Minitab, JMP). Optional PC-based GBPI LabManager™ software provides extended functionality: multi-instrument fleet monitoring, customizable report templates (PDF/Excel), electronic signature support aligned with FDA 21 CFR Part 11 requirements, and automated backup to network drives. All software modules undergo annual validation per ISO/IEC 17025:2017 Clause 5.9.

Applications

This tester serves quality assurance laboratories in medical device manufacturing, regulatory testing bodies (e.g., CNAS-accredited labs), and R&D departments developing next-generation barrier materials. Typical use cases include pre-market validation of novel nonwoven composites (e.g., meltblown + spunbond laminates), batch release testing for ISO 13485-certified production lines, root-cause analysis of flame propagation anomalies in electrostatically charged filter media, and comparative evaluation of flame-retardant chemical treatments (e.g., phosphorus-based coatings). Its reproducible kinematics and thermal delivery also make it suitable for internal method development aligned with emerging standards such as ISO 20623 (Respiratory protective devices—Flammability test method).

FAQ

Does the GB-ZR10 comply with ISO/IEC 17025 requirements for accredited testing?
Yes—when operated within its validated parameter envelope and supported by documented calibration certificates (traceable to NIM, China), the GB-ZR10 meets measurement uncertainty and procedural control criteria outlined in ISO/IEC 17025:2017 Section 6.4 and 7.7.
Can the instrument be used for testing respirators beyond medical masks?
It is validated for flat-panel and contoured facepiece geometries conforming to GB and YY standards; testing of half-mask elastomeric respirators requires custom fixture adaptation and re-validation per ISO 16900-3.
Is third-party calibration service available?
GBPI offers biannual on-site calibration by CNAS-accredited engineers, including verification of headform speed, flame geometry, thermocouple response, and timer accuracy—with full calibration certificate issued.
What safety interlocks are integrated?
Hardware-enforced flame shutdown upon door opening, overtemperature cutoff (>900 °C), gas flow monitoring with automatic solenoid valve closure, and emergency stop button with hardwired circuit interruption.
How often must the metallic headform be replaced?
Under normal usage (≤5 tests/day), the headform maintains dimensional integrity for ≥3 years; visual inspection for pitting or warping is recommended quarterly per GBPI Maintenance Protocol MP-ZR10-Rev.4.
