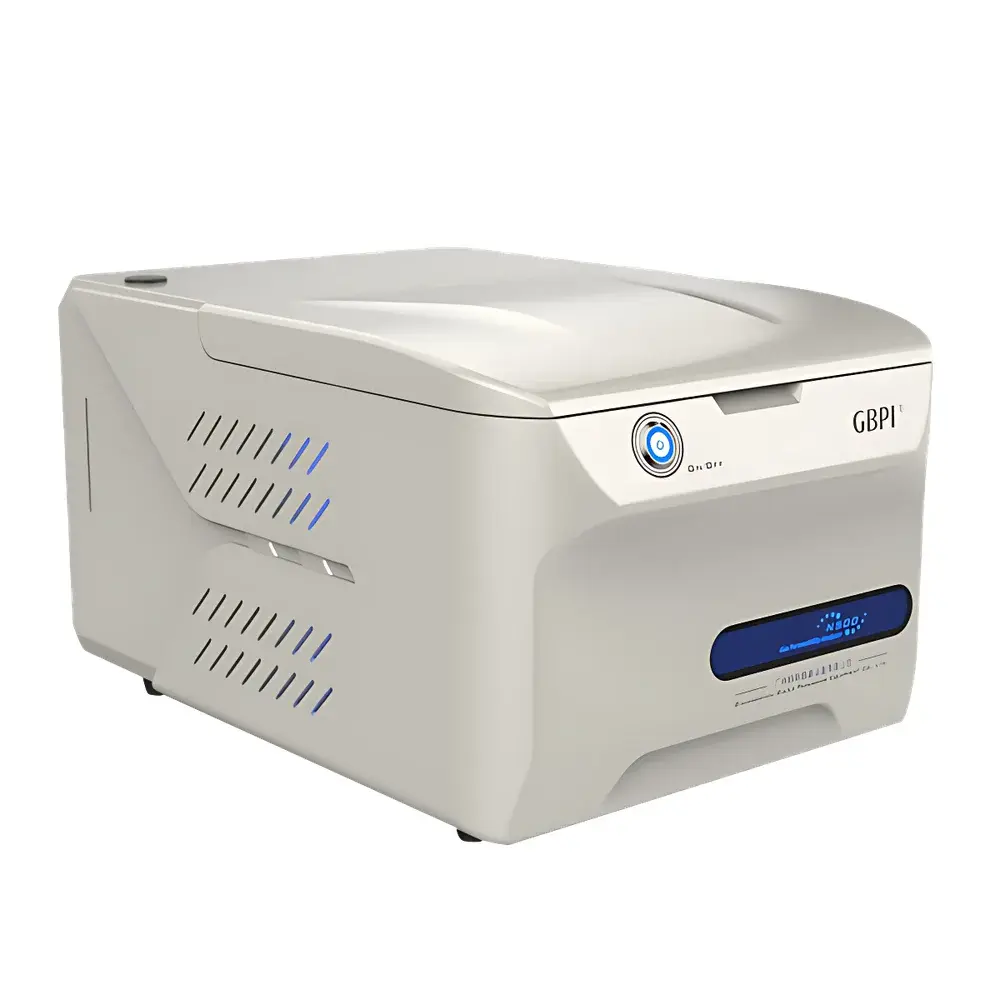

GBPI N500-bb Differential-Pressure Method Gas Permeability Tester

Overview

The GBPI N500-bb Differential-Pressure Method Gas Permeability Tester is an engineered analytical instrument designed for precise, reproducible quantification of gas transmission rates (GTR) through polymeric, laminated, and composite packaging materials. It operates on the well-established differential pressure (manometric) principle defined in ASTM D1434 and ISO 2556: a test specimen is sealed between two isolated chambers; the upstream chamber is pressurized with a pure test gas (e.g., O₂, CO₂, or N₂) at 0.1 MPa while the downstream chamber is continuously evacuated to maintain sub-20 Pa vacuum. The resulting steady-state gas flux—measured via high-resolution pressure transduction (0.01 Pa resolution) in the low-pressure chamber—is converted into standardized gas permeability values expressed in cm³/(m²·24 h·0.1 MPa). This method delivers traceable, gravimetrically referenced performance suitable for regulatory-grade characterization of barrier integrity across pharmaceutical blister foils, food-grade flexible laminates, medical device pouches, and photovoltaic encapsulation films.

Key Features

• Patented auto-differential pressure maintenance system ensures stable, user-adjustable pressure gradient across the specimen throughout testing—eliminating manual intervention and drift-induced error.
• Integrated high-precision vacuum system featuring imported dual-stage rotary vane pump (ultimate vacuum ≤0.1 Pa), enabling rapid evacuation and ultra-low baseline noise for reliable low-permeability measurements.
• Active water-cooled temperature control with calibrated Pt100 sensors (±0.1 °C stability over 15–60 °C range) guarantees thermal equilibrium during extended-duration tests required for ultra-high-barrier films (e.g., SiOₓ-coated PET).
• Five real-time synchronized data streams: permeation rate vs. time, chamber temperature vs. time, upstream pressure vs. time, downstream pressure vs. time, and ΔP vs. time—each fully toggleable in the display interface for diagnostic validation.
• Modular GUI built to ICH GMP Annex 11 and FDA 21 CFR Part 11 requirements: role-based access control, electronic signatures, full audit trail (user actions, parameter changes, test events), and timestamped raw data logging.
• Expandable hardware architecture supports optional accessories for package-level testing—including bottle, pouch, cup, and tube fixtures—enabling direct measurement of complete primary packaging systems per ASTM F2622.

Sample Compatibility & Compliance

The N500-bb accommodates flat specimens up to Φ110 mm and 2 mm thick, including monolayer and multilayer films (e.g., BOPP/CPP, PET/Alu/PE), paperboard composites, metallized foils, biodegradable substrates (PLA, PBAT), pharmaceutical cold-forming foils (PVC/PVDC), and medical-grade nonwovens. Its validated methodology conforms to global regulatory frameworks: ISO 2556 (plastic films), ISO 15105-1 (gas permeability calculation), ASTM D1434 (standard test method for gas transmission rate), JIS K7126-1 (Japanese industrial standard), YBB 00082003 (Chinese pharmacopoeial standard for packaging materials), and GB/T 1038 (national standard for plastic film gas permeability). All instruments are supplied with certified reference standards (GBW(E)130541 & GBW(E)130542) traceable to China’s National Institute of Metrology.

Software & Data Management

The embedded Windows-based software provides full lifecycle data governance. Users configure test protocols—including gas type, temperature setpoint, equilibration duration, and pass/fail criteria—in accordance with internal SOPs or external standards. Raw pressure-time datasets are stored in encrypted binary format with SHA-256 checksum integrity verification. Statistical analysis tools compute mean, SD, RSD, and confidence intervals across replicate runs. Export options include CSV, PDF, and XML formats compliant with LIMS integration (via OPC UA or HL7-compatible API). Electronic signature workflows support 21 CFR Part 11-compliant report generation, including reviewer approval chains and immutable digital seals.

Applications

This instrument serves quality control and R&D laboratories in regulated industries where barrier performance directly impacts product shelf life and safety. Typical use cases include: oxygen transmission rate (OTR) validation of snack food stand-up pouches; CO₂ permeability assessment of carbonated beverage bottles; nitrogen barrier evaluation of vacuum-sealed meat trays; helium leak screening of sterile medical device pouches; and accelerated aging correlation studies for lithium-ion battery packaging films. It is routinely deployed by contract testing labs serving FDA-submitted drug master files (DMFs), EU MDR-certified medical packaging suppliers, and ISO 22000-certified food manufacturers.

FAQ

What gases can be tested with the N500-bb?
O₂, CO₂, N₂, air, and He are fully supported; additional gases may be qualified upon verification of compatibility with internal seals and sensor calibration.
Is the system compliant with 21 CFR Part 11?
Yes—the software includes electronic signature capability, audit trail logging, and role-based permission management as required for regulated environments.
Can it measure whole packages—not just flat films?
Yes, with optional fixture kits (sold separately), the system performs ASTM F2622-compliant gas transmission testing on rigid and semi-rigid containers such as PET bottles, aluminum cans, and thermoformed trays.
How is calibration verified?
Each unit ships with NIST-traceable national standard reference materials (GBW(E)130541/130542) and a Certificate of Calibration valid for 12 months; annual recalibration is recommended.
What infrastructure is required for installation?
Standard laboratory environment (20–25 °C, 40–60% RH), grounded 220 V/50 Hz outlet (10 A), Windows 10 PC with COM port or USB-to-serial adapter, and dry compressed air or high-purity gas supply (99.999% O₂ for OTR validation).
