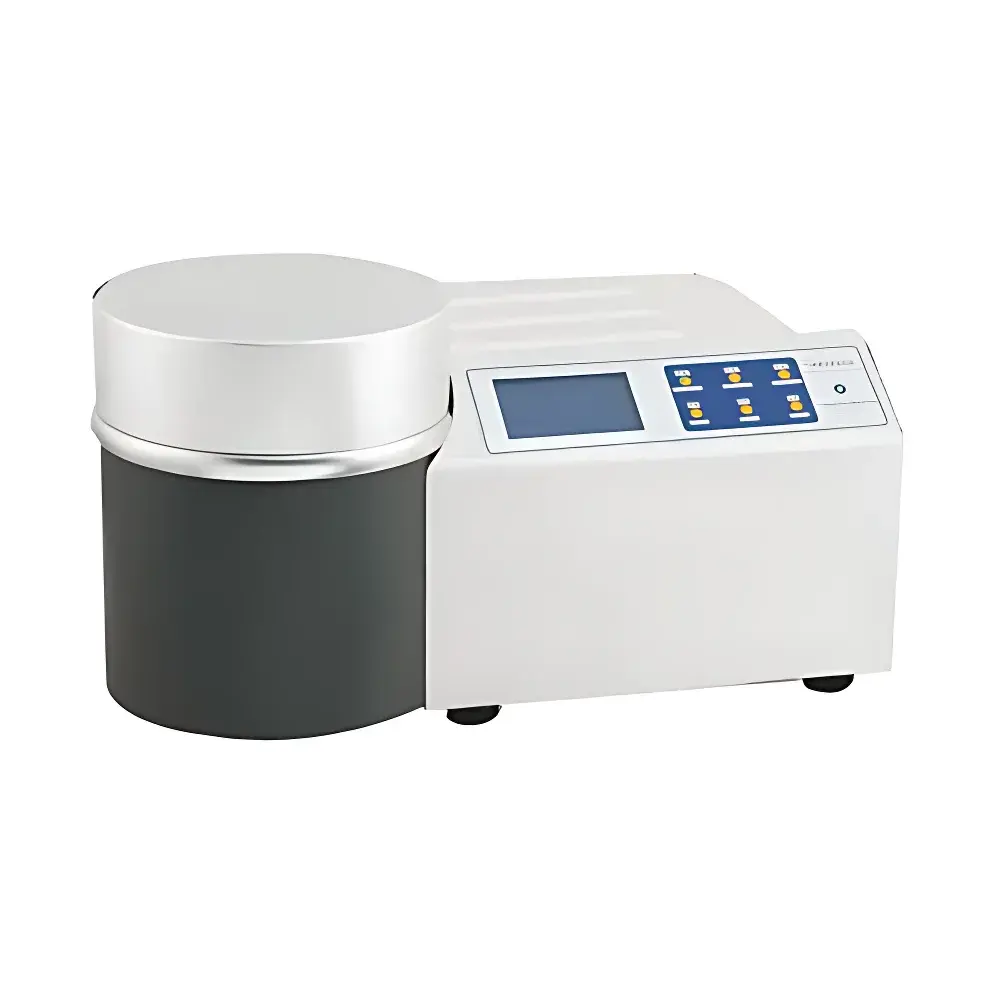

GBPI N500 Gas Permeability Tester

Overview

The GBPI N500 Gas Permeability Tester is a precision-engineered instrument designed for quantitative evaluation of gas transmission rates (GTR) through flexible packaging materials and thin films under controlled temperature and humidity conditions. It operates on the differential pressure (manometric) principle: a conditioned specimen is sealed between two test chambers — a high-pressure upstream chamber and a low-pressure downstream chamber — establishing a constant partial pressure gradient across the sample. As gas molecules permeate through the material, the resulting pressure rise in the downstream chamber is measured continuously using high-stability capacitive pressure sensors. The instrument calculates oxygen transmission rate (OTR), carbon dioxide transmission rate (CO₂TR), or nitrogen transmission rate (NTR) in standardized units (cm³/m²·day·0.1 MPa), fully compliant with ISO 15105-1, ASTM D3985, ASTM F2622, and GB/T 1038. Its modular architecture supports both routine QC testing and R&D-grade barrier characterization across pharmaceutical blister foils, food pouch laminates, medical device pouches, and high-barrier electronics encapsulation films.

Key Features

• High-resolution differential pressure sensing system with real-time acquisition at 100 ms intervals, enabling accurate detection of ultra-low and ultra-high permeation rates (0.02–50,000 cm³/m²·day·0.1 MPa; extendable to 600,000 cm³/m²·day·0.1 MPa via volume calibration)
• Electromagnetic programmable thermal control system delivering ±0.01 °C temperature stability across 5–50 °C, with adjustable ramp rates (0.1–5 °C/min) and minimal thermal drift (<0.02 °C/h)
• Dual-chamber vacuum integrity verified to <20 Pa, supported by 0.1 Pa resolution vacuum monitoring and automatic leak-check routines prior to each test cycle
• Integrated 7-inch color LCD touchscreen interface on the instrument front panel, displaying live curves for permeation rate, chamber pressure, ΔP, and temperature — all synchronized with data logging
• Hardware-level overpressure protection (±0.1 MPa operational range) with fail-safe solenoid isolation valves and pressure-relief venting
• Standardized calibration protocol using certified reference films (e.g., polyethylene, aluminum-coated PET) and traceable pressure transducers per ISO/IEC 17025 guidelines
• Maintenance-free pneumatic design featuring corrosion-resistant stainless-steel manifolds, sapphire-seated valves, and non-lubricated diaphragm pumps

Sample Compatibility & Compliance

The N500 accommodates flat, non-porous specimens up to 2 mm thickness and 80 mm diameter (50.24 cm² effective area), including monolayer polymers (LDPE, PP, PET), coextrusions, metallized films, SiOₓ- or AlOₓ-coated substrates, and pharmaceutical-grade cold-form foil. It supports inert gas purging for O₂-sensitive materials and optional RH control (5–100 %RH, ±2 %RH accuracy) for hygroscopic film evaluation per ASTM F1249. All hardware and firmware comply with CE marking requirements, EMC Directive 2014/30/EU, and Low Voltage Directive 2014/35/EU. Data handling meets GLP and GMP expectations through audit-trail-enabled software (see Software section), and test reports are structured to satisfy FDA 21 CFR Part 11 readiness when deployed with validated network configurations.

Software & Data Management

The proprietary GBPI PermeaSoft v4.2 provides full instrument control, automated method sequencing, and ISO-compliant report generation. It supports user-defined test protocols (e.g., multi-point temperature ramping, stepwise RH conditioning), real-time statistical process monitoring (SPC), and export of raw time-series datasets in CSV and XML formats. Each test record includes metadata (operator ID, calibration status, environmental logs), digital signatures, and version-controlled method files. Audit trails log all parameter changes, report modifications, and user logins with timestamps. Data backups are encrypted and configurable for local NAS or secure cloud repositories. Optional IQ/OQ documentation packages are available for regulated environments requiring validation against USP <1207>, ISO 11607-1, or ICH Q5C.

Applications

• Quality assurance of food packaging laminates for shelf-life prediction under modified atmosphere packaging (MAP) conditions
• Development and qualification of sterile barrier systems (SBS) for Class II/III medical devices per ISO 11607-2
• Comparative assessment of nanocomposite films and bio-based barrier coatings in sustainable packaging R&D
• Stability testing of pharmaceutical blister cavities exposed to accelerated aging (40 °C/75 %RH)
• Validation of vacuum-sealed pouch integrity for aerospace component storage
• Regulatory submission support for FDA 510(k), EU MDR Annex I, and Health Canada Class II device dossiers

FAQ

What gases can be tested with the N500?
The system is configured for O₂, CO₂, and N₂ permeation analysis. Custom gas modules (e.g., He, H₂O vapor) are available upon request and require sensor recalibration.
Is humidity control mandatory for all tests?
No. The base configuration operates at 0 %RH. Optional humidity control (5–100 %RH) is recommended for evaluating moisture-sensitive films such as EVOH or PVOH-based structures.
How often does the instrument require recalibration?
Annual calibration is recommended. However, daily verification using certified standard films and internal pressure checks ensures ongoing measurement traceability without downtime.
Can the N500 integrate with LIMS or MES platforms?
Yes. The instrument supports OPC UA and Modbus TCP protocols for bidirectional communication with laboratory information management systems and manufacturing execution systems.
Does the software support multi-language interfaces?
PermeaSoft v4.2 includes English, Spanish, French, German, and Simplified Chinese language packs, configurable per user profile.
