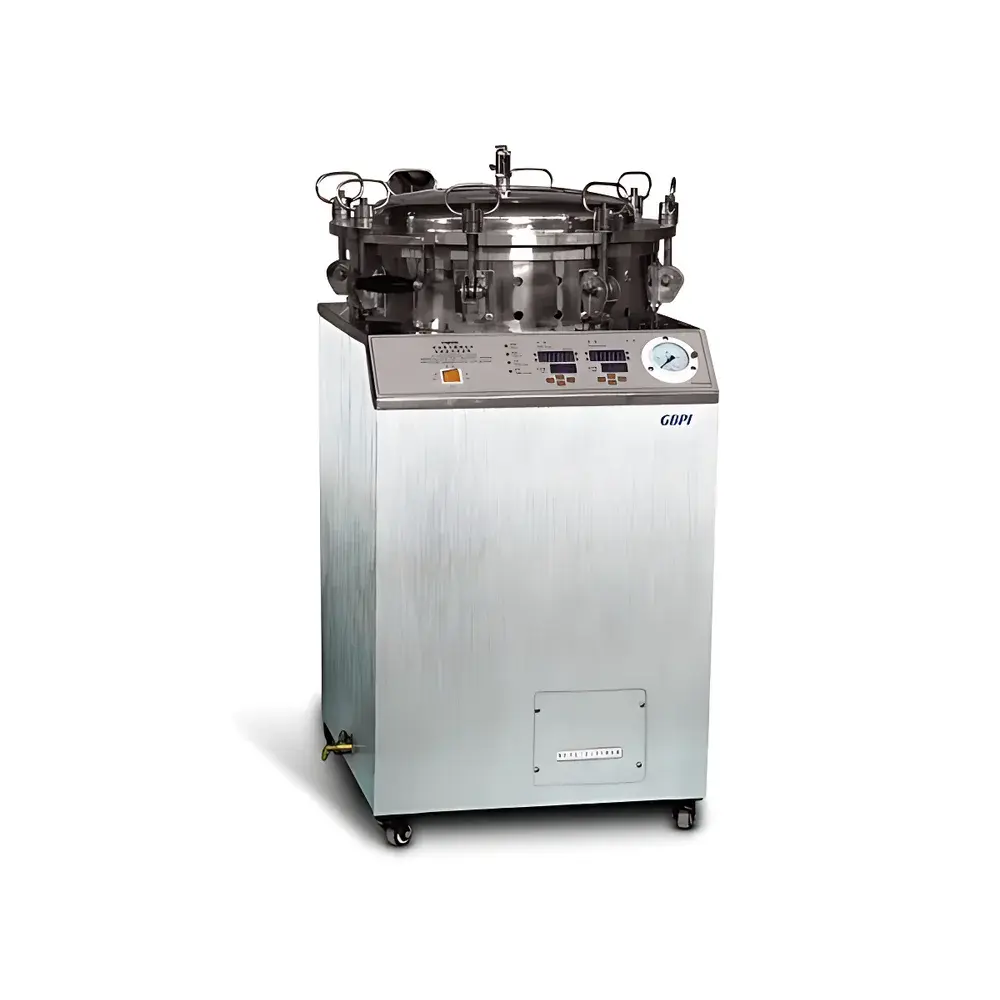

GBPI ZM-100A Vertical Retort Sterilizer with Back-Pressure Control

Overview

The GBPI ZM-100A Vertical Retort Sterilizer with Back-Pressure Control is an engineered solution for precise thermal validation and sterilization of heat-sensitive packaged products under controlled overpressure conditions. Unlike conventional autoclaves, this retort system maintains programmable back-pressure during both heating and cooling phases—critical for preventing package deformation, delamination, or seal failure in flexible packaging (e.g., pouches, laminates, and retortable films). It operates on saturated steam thermodynamics, enabling accurate temperature control from 100 °C to 135 °C at pressures up to 0.22 MPa, while the integrated pressure-regulated cooling system ensures consistent thermal profiles across diverse load configurations. Designed for laboratories requiring regulatory-grade process repeatability, the ZM-100A supports method development and validation per ISO 11134, ASTM F1980, and USP <1211>, particularly in pharmaceutical packaging stability testing and medical device sterilization process qualification.

Key Features

• Full automatic cycle control: sequential, programmable stages for pre-vacuum (optional), steam injection, temperature ramping, dwell time, back-pressure hold, and dual-mode cooling (air-cooling + spray water cooling)
• High-resolution LCD interface displaying real-time chamber temperature, elapsed time, setpoint, and pressure—calibrated traceably to NIST-traceable reference standards
• Dual cooling capability: independent air-cooling circuit for rapid depressurization without condensation; adjustable spray water cooling for uniform thermal dissipation in dense loads
• Structural integrity certified per GB 150.1–2011 (Chinese equivalent of ASME BPVC Section VIII Div. 1): seamless stainless-steel chamber (SUS304), elliptical dished head, and reinforced lid with dual-seal gasket design
• Redundant safety architecture: triple-level overtemperature cutoff, low-water level detection with auto-shutdown, mechanical safety relief valve (set at 0.23 MPa), and interlocked door locking mechanism compliant with GB 4793.4–2001
• Mobile platform with four swivel casters (two with brakes) for flexible lab reconfiguration and ISO 14644-compliant cleanroom compatibility

Sample Compatibility & Compliance

The ZM-100A accommodates a broad range of sample formats—including sealed aluminum trays, glass vials, polymeric pouches, Tyvek-wrapped instruments, and liquid-filled IV bags—within its 50 L sterilization chamber (Ø400 mm × 500 mm). Its back-pressure regulation (0.14–0.165 MPa) prevents bulging or burst failures in low-barrier flexible packaging during thermal processing. The system meets essential regulatory benchmarks for laboratory sterilization equipment: YY 1007–2010 (Chinese standard for medical sterilizers), GB/T 10004–2008 (for retort pouch performance testing), and GB 4793.4–2001 (safety requirements for laboratory equipment). While not FDA 510(k)-cleared as a medical device, its operational parameters and documentation structure support IQ/OQ/PQ protocol execution under GMP/GLP environments.

Software & Data Management

The embedded controller records timestamped temperature, pressure, and cycle phase data at 1-second intervals, storing up to 1,000 complete cycles internally. Export is supported via USB 2.0 to CSV format for post-processing in Excel or statistical software (e.g., JMP, Minitab). Audit trail functionality complies with ALCOA+ principles: each entry includes operator ID, event type, value change, and system timestamp. Though no native 21 CFR Part 11-compliant electronic signature module is included, the system’s deterministic logic and non-erasable memory architecture facilitate integration into validated LIMS or MES platforms where electronic records are managed externally.

Applications

• Accelerated shelf-life testing of retortable food packaging (e.g., ready-to-eat meals, pet food pouches)
• Validation of sterilization parameters for Class II/III medical devices packaged in peel-open pouches or rigid containers
• Thermal resistance profiling of microbial challenge studies using biological indicators (e.g., Geobacillus stearothermophilus spores)
• Process qualification of terminal sterilization for ophthalmic solutions, injectables, and parenteral nutrition formulations
• Adhesion and seal integrity evaluation of multilayer laminates under simulated commercial retort conditions
• QC release testing for pharmaceutical primary packaging per USP <661.2> and ICH Q5C guidelines

FAQ

What is the purpose of back-pressure control in this retort system?

Back-pressure prevents internal pressure differentials that cause package expansion or seal rupture during heating and cooling—essential for evaluating structural integrity of flexible packaging under thermal stress.
Does the ZM-100A support vacuum-assisted air removal prior to sterilization?

No vacuum pump is integrated; however, optional external vacuum modules can be interfaced via auxiliary port for enhanced air removal in validation protocols.
Is calibration documentation provided with the unit?

Yes—a factory calibration certificate (traceable to national metrology institutes) is supplied, covering temperature sensors (±0.5 °C accuracy) and pressure transducers (±1% FS).
Can the unit be connected to a building’s central steam supply?

It is designed for self-contained electric steam generation; direct connection to external steam lines is not supported due to pressure regulation constraints.
What maintenance intervals are recommended for long-term reliability?

Gasket replacement every 12 months or 500 cycles; annual verification of safety valve setpoint and temperature sensor drift against reference standards.
