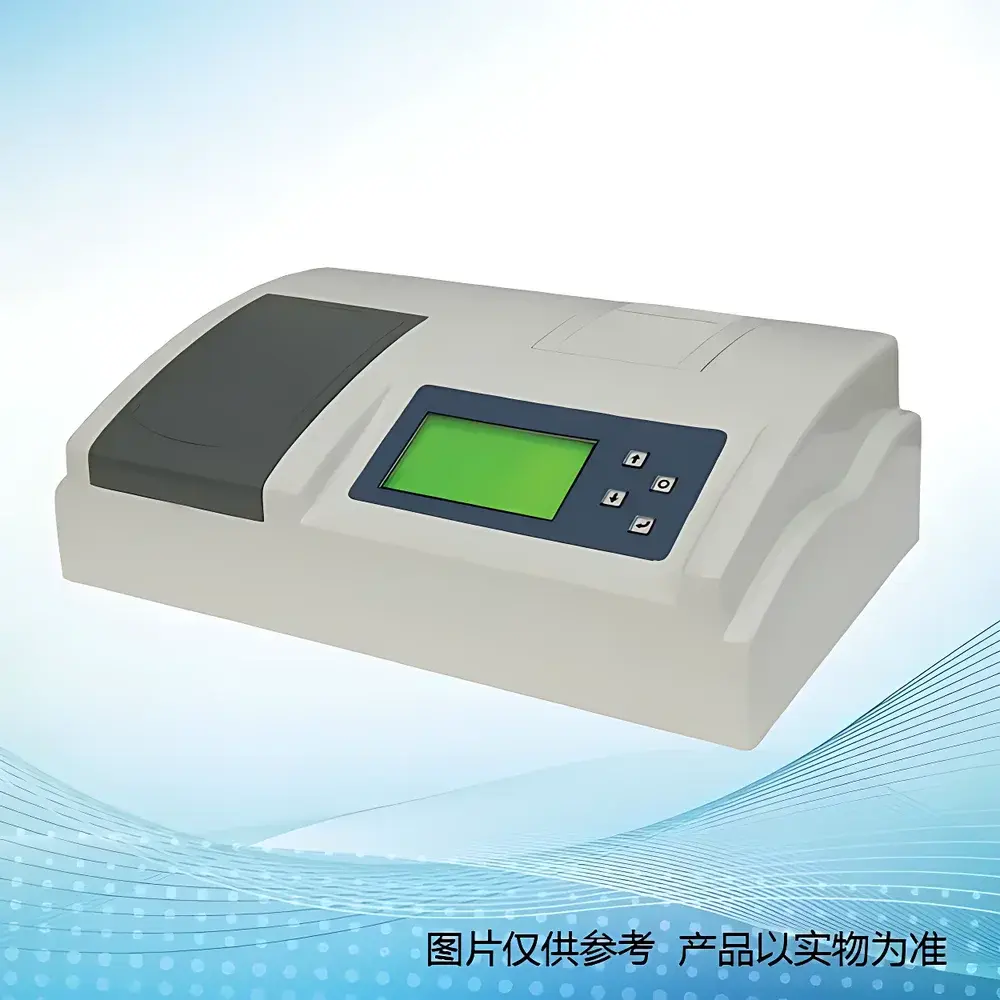

GDYQ-100M Multi-Parameter Food Safety Rapid Analyzer by Jida Xiaotian’e

Overview

The GDYQ-100M Multi-Parameter Food Safety Rapid Analyzer is a benchtop photometric detection platform engineered for precision, portability, and operational efficiency in food quality control laboratories, regulatory inspection units, and on-site field operations. It operates on the principle of visible-light absorbance spectroscopy—specifically, quantitative colorimetric analysis calibrated against standardized reference curves for each target analyte. The system integrates a high-stability LED light source, a fixed-wavelength optical path (400–630 nm), and a precision photodiode detector to deliver reproducible absorbance measurements across a broad spectrum of food safety markers. Designed for compliance-driven environments, the GDYQ-100M supports routine screening and semi-quantitative assessment aligned with widely adopted national and industry-standard methodologies—including GB 5009 series (China National Food Safety Standards), AOAC Official Methods, and ISO/IEC 17025–accredited validation frameworks.

Key Features

• Multi-analyte capability: Simultaneous support for over 30 validated food safety parameters across seven analytical categories—pesticide residues, illegal additives, adulterants, quality indicators, synthetic colorants, heavy metals, and general physicochemical properties.
• Optimized optical architecture: Fixed-wavelength LED illumination (400–630 nm) ensures consistent spectral output without mechanical filter wheels or lamp drift—enhancing long-term measurement stability and reducing calibration frequency.
• Rapid assay workflow: Full sample-to-result cycle completed within 3–20 minutes depending on analyte and matrix; includes built-in reagent dispensing guidance, timed reaction prompts, and automated endpoint detection.
• Robust hardware design: Compact footprint (280 × 220 × 120 mm), low power consumption (<12 W), and integrated rechargeable battery option for mobile deployment in markets, cold chains, or remote inspection stations.
• Standardized reagent compatibility: Pre-formulated, lyophilized, or liquid reagent kits supplied with batch-specific calibration data—traceable to NIM (National Institute of Metrology, China) certified reference materials.

Sample Compatibility & Compliance

The GDYQ-100M accepts homogenized extracts, filtrates, or clarified supernatants from diverse food matrices—including aquatic products, dried vegetables, flour-based goods, condiments, honey, alcoholic beverages, edible oils, dairy derivatives, and cereal grains. Sample preparation follows harmonized protocols outlined in GB/T 5009.x, SN/T 0000 series, and relevant provincial food safety technical guidelines. All detection methods are validated per ISO 13843:2017 (validation of qualitative and quantitative methods) and meet minimum performance criteria for specificity, limit of detection (LOD), and repeatability as required under China’s SAMR (State Administration for Market Regulation) Notice No. 13 [2021]. Instrument firmware and report outputs are structured to support GLP-compliant recordkeeping, including operator ID, timestamp, sample ID, reagent lot number, and raw absorbance values.

Software & Data Management

Embedded firmware provides intuitive touchscreen navigation, method selection by category or analyte, and real-time result visualization. Data export is supported via USB 2.0 to CSV or PDF formats—retaining full audit trail metadata. Optional PC-based software (GDYQ-Link v3.2) enables centralized database management, trend analysis across batches, statistical process control (SPC) charting, and integration with LIMS platforms through HL7 or ASTM E1384-compliant interfaces. Electronic records comply with basic ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and support FDA 21 CFR Part 11 readiness when deployed with user authentication and electronic signature modules.

Applications

• Quality assurance labs in food manufacturing facilities performing incoming raw material verification and finished product release testing.
• Regulatory agencies conducting routine surveillance sampling at wholesale markets, supermarkets, and catering supply chains.
• Third-party testing laboratories offering accredited rapid screening services for clients requiring turnkey compliance documentation.
• University research groups studying food adulteration patterns, developing novel extraction protocols, or benchmarking rapid assay sensitivity against HPLC/GC-MS reference methods.
• Export-oriented producers preparing pre-shipment verification reports aligned with destination-country import requirements (e.g., ASEAN MRLs, EU Commission Regulation (EC) No 396/2005).

FAQ

Does the GDYQ-100M require external calibration standards for daily use?

No—each reagent kit includes a factory-calibrated reference standard strip or solution; instrument self-checks optical baseline prior to each assay.
Can it quantify heavy metals like inorganic arsenic or chromium in complex food matrices?

Yes—via hydride generation (As) or diphenylcarbazide complexation (Cr), with LODs compliant with GB 5009.11–2014 and GB 5009.123–2014.
Is method validation documentation available for regulatory submission?

Yes—full validation reports (including specificity, linearity, precision, recovery, and ruggedness) are provided upon request for each analyte group.
What is the expected service life of the optical module?

LED light source lifetime exceeds 50,000 hours; photodiode response stability is verified annually per internal QA protocol.
Are reagents supplied by third-party vendors compatible with the GDYQ-100M?

Only Jida Xiaotian’e–certified reagent kits ensure traceable calibration, lot-specific curve coefficients, and firmware compatibility.
