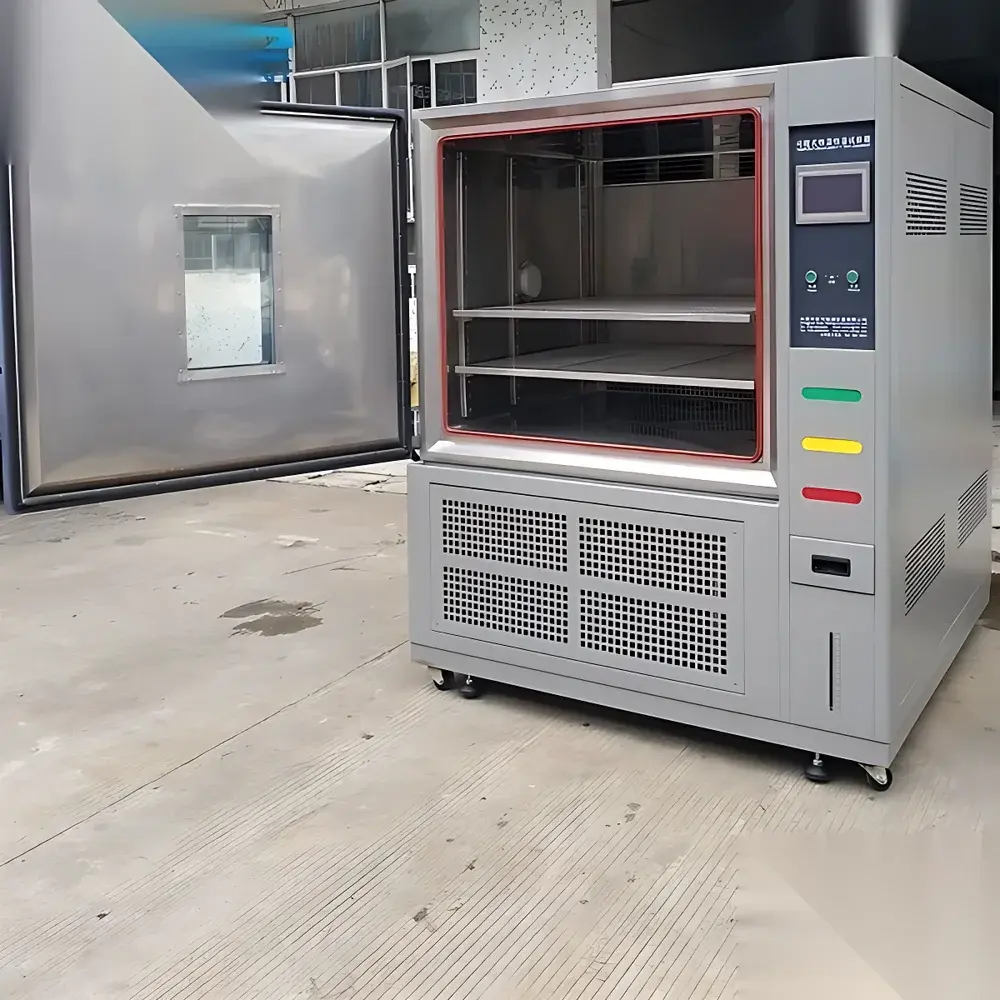

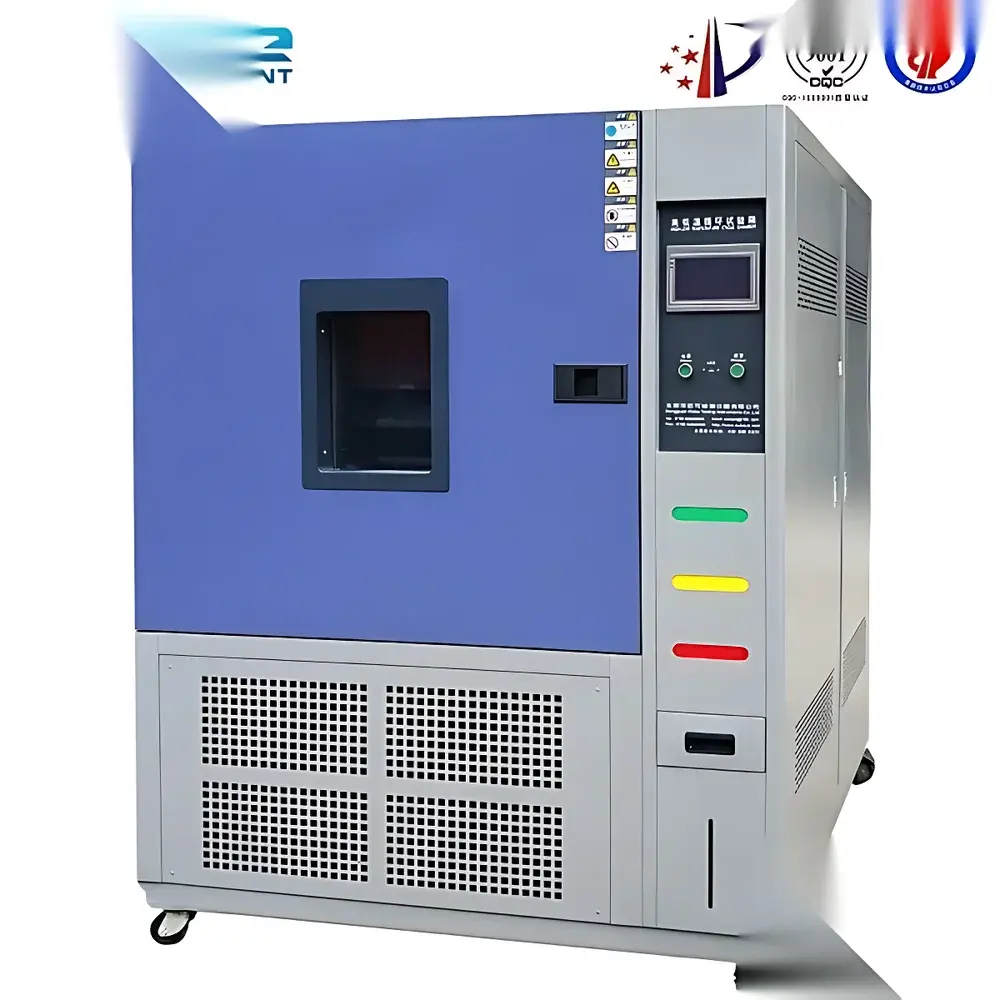

Generic High-Low Temperature Environmental Test Chamber

Overview

The Generic High-Low Temperature Environmental Test Chamber is a precision-engineered climatic simulation system designed to subject electronic components, materials, and finished products to controlled thermal stress profiles in accordance with internationally recognized environmental testing standards. Operating on the principle of forced-air convection with dual-stage refrigeration and PID-controlled electric heating, this chamber delivers stable, uniform temperature distribution across its working volume—critical for replicating real-world thermal exposure conditions during reliability validation. It supports continuous operation within a typical temperature range of –40 °C to +150 °C (configurable per model), with ramp rates optimized for both steady-state conditioning and dynamic thermal cycling protocols. The chamber’s structural integrity and thermal performance comply with core requirements defined in IEC 60068-2-1 (Cold), IEC 60068-2-2 (Dry Heat), MIL-STD-810G Method 502.5, and GB/T 5170.2–2017 (Verification Procedures for Temperature Testing Equipment). Its design prioritizes long-term operational stability, minimal thermal gradient deviation (<±0.5 °C at setpoint), and low acoustic emission—enabling integration into shared laboratory or QC environments without compromising ambient noise budgets.

Key Features

• Smooth, arc-shaped exterior housing with matte-finish surface treatment and ergonomic, non-spring flat-panel door handles for consistent operator interface and reduced mechanical wear.
• Hermetically sealed inner chamber structure with high-efficiency centrifugal circulation fan and low-noise scroll-type compressor assembly, minimizing vibration transmission and audible operational noise (≤62 dB(A) at 1 m).
• Integrated anti-vibration mounting pads compliant with ISO 10816-1 vibration severity thresholds, ensuring mechanical isolation from floor-borne disturbances during sensitive test cycles.
• Load-testing capability: provision of external power feedthroughs (rated up to 250 VAC / 10 A) enabling real-time functional evaluation of powered devices under thermal stress.
• High-transmittance observation window with Philips LED illumination and embedded resistive heating element to prevent condensation or frosting during low-temperature operation—ensuring uninterrupted visual monitoring of test specimens.
• Comprehensive safety architecture including over-temperature cut-off, compressor high-pressure protection, phase failure detection, and door interlock switch—fully documented in the factory-installed safety manual per EN 61000-6-2 and GB 4793.1.

Sample Compatibility & Compliance

This test chamber accommodates standard-sized test specimens up to 500 mm × 500 mm × 500 mm (W×D×H), with optional internal shelf configurations supporting PCB assemblies, automotive ECUs, polymer housings, and medical device enclosures. All thermal control algorithms and sensor calibration procedures adhere to traceable metrology practices aligned with ISO/IEC 17025:2017 requirements. Verification documentation—including temperature uniformity mapping reports, stability verification logs, and uncertainty budgets—is supplied with each unit. The system meets essential regulatory alignment for pre-compliance screening against IPC-9701A (Performance Classes for Thermal Cycling), JEDEC JESD22-A104F (Temperature Cycling), and AEC-Q200 stress test schedules. It is not certified for use in Class I Div 1 hazardous locations unless modified per NEC Article 500.

Software & Data Management

The chamber operates via an embedded 7-inch TFT touchscreen HMI with real-time graphical display of chamber temperature, setpoint, ramp rate, and elapsed cycle time. All test profiles—including multi-step programs with hold, ramp, and soak segments—are stored internally (≥100 user-defined sequences) and exportable via USB 2.0 to CSV format. Optional Ethernet connectivity enables remote supervision through Modbus TCP or OPC UA interfaces, supporting integration into centralized MES or LIMS platforms. Audit trail functionality records operator login/logout events, parameter changes, and alarm triggers—meeting basic data integrity expectations under GLP and ISO 9001:2015 Clause 8.5.2. Full compliance with FDA 21 CFR Part 11 requires implementation of third-party validated electronic signature modules and role-based access control—not included as standard.

Applications

• Qualification testing of consumer electronics per IEC 60950-1 and IEC 62368-1 thermal endurance clauses.
• Accelerated aging studies for adhesives, encapsulants, and conformal coatings under cyclic thermal load.
• Pre-screening of automotive components against ISO 16750-4 (Environmental Conditions and Testing for Electrical and Electronic Equipment).
• Stability assessment of pharmaceutical packaging materials under ICH Q1A(R2) long-term and accelerated storage conditions.
• Reliability validation of battery management systems (BMS) across extreme thermal boundaries prior to UL 2580 or UN 38.3 submission.

FAQ

Is this chamber suitable for humidity-controlled testing?

No—this is a dry-temperature-only chamber. Humidity capability requires a separate combined temperature-humidity test chamber (e.g., TH series) with steam generator and desiccant drying system.
What calibration documentation is provided at shipment?

A factory calibration certificate traceable to NIM (China) or NIST (USA) is included, covering temperature uniformity, stability, and controller accuracy at three points (–20 °C, 25 °C, 85 °C).
Can the chamber be integrated into an existing SCADA network?

Yes—via optional RS485/Modbus RTU or Ethernet/IP interface kits, subject to protocol compatibility verification during pre-installation engineering review.
Does the quoted price include installation, commissioning, or training?

No—the indicated price is ex-works FCA basis. On-site installation, IQ/OQ documentation support, and operator training are available as billable services upon request.
