Generic High-Low Temperature Environmental Test Chamber

Overview

The Generic High-Low Temperature Environmental Test Chamber is a precision-engineered climatic simulation system designed for rigorous thermal stress evaluation of electronic components, automotive parts, aerospace materials, and industrial assemblies under controlled high- and low-temperature conditions. Operating on the principle of forced-air convection with dual-stage refrigeration and PID-controlled electric heating, the chamber delivers stable, uniform temperature profiles across its working volume. It complies with fundamental thermal test methodology standards including IEC 60068-2-1 (Cold), IEC 60068-2-2 (Dry Heat), MIL-STD-810G Method 502.6 (Low Temperature) and Method 501.6 (High Temperature), as well as GB/T 5170.2–2017 (Verification Methods for Temperature Testing Equipment) and GB/T 10592–2008 (Technical Specifications for High/Low Temperature Chambers). Its architecture supports both non-operational thermal cycling and powered-in situ testing—enabling real-time functional assessment of devices under thermal load.

Key Features

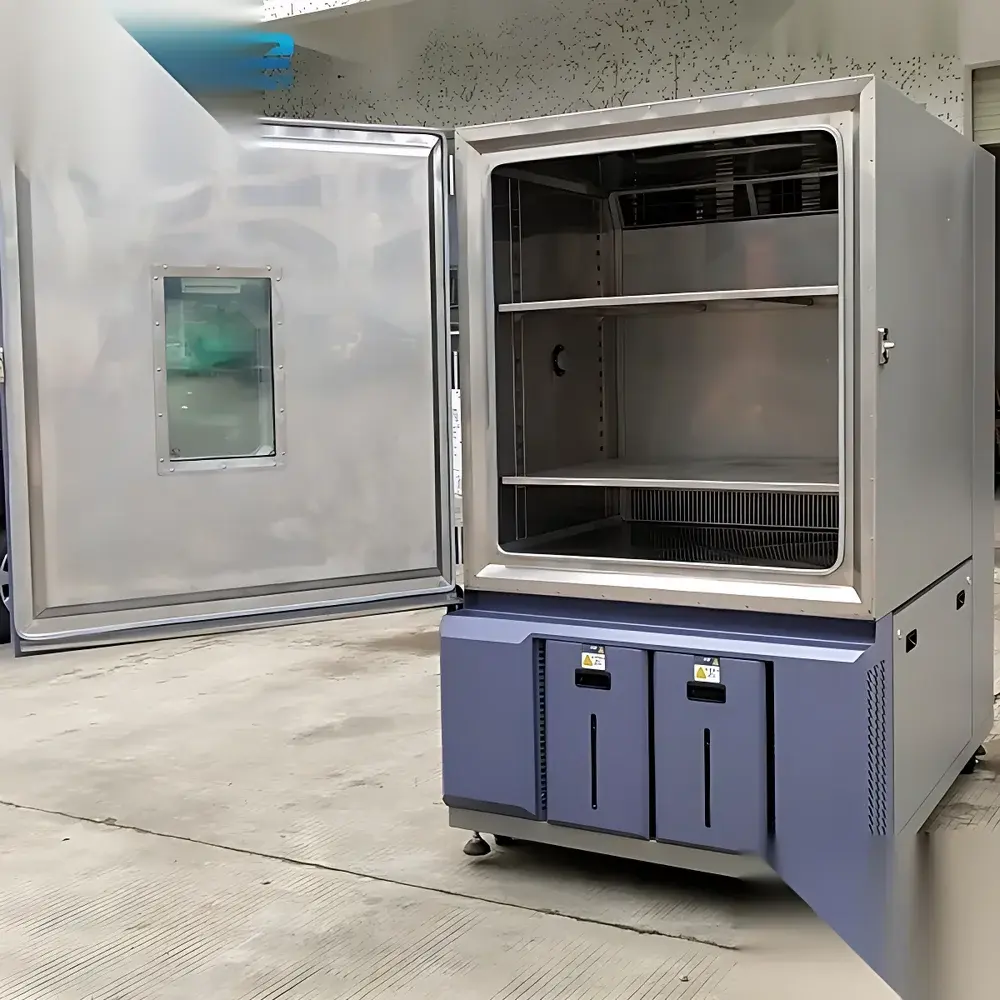

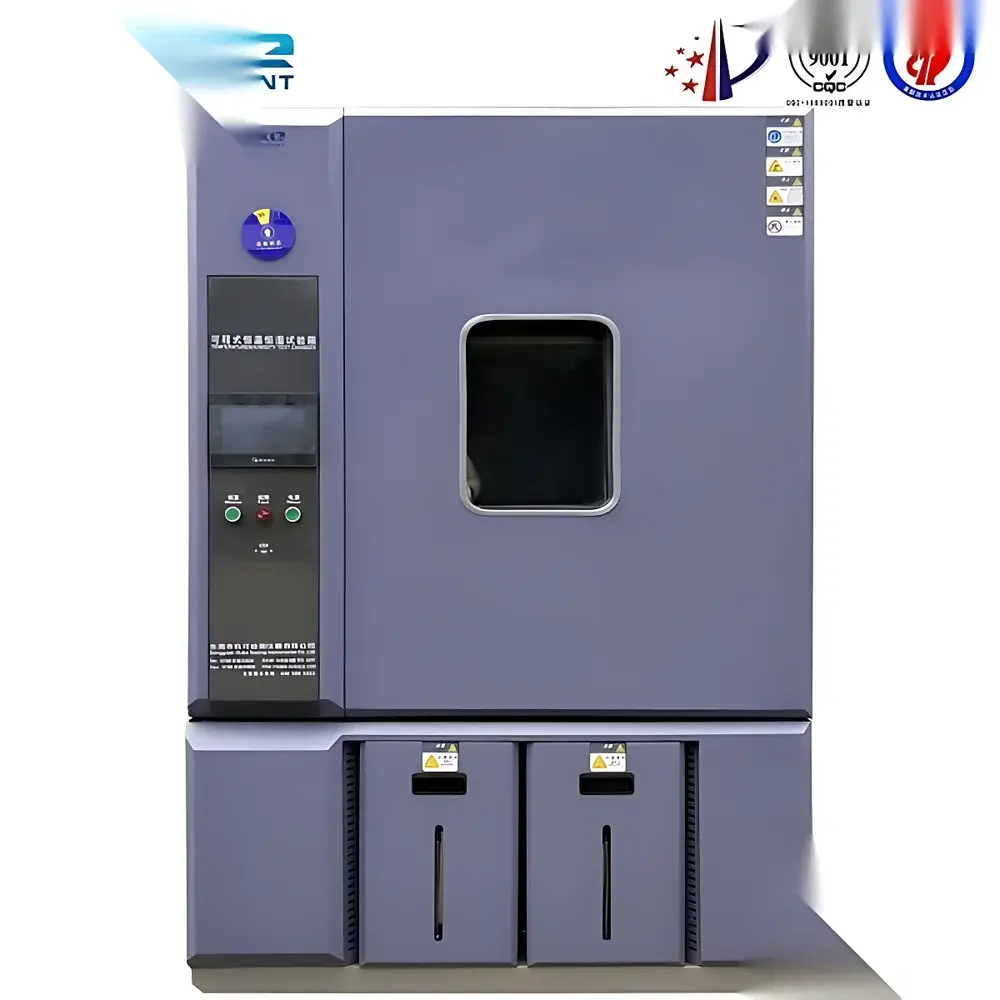

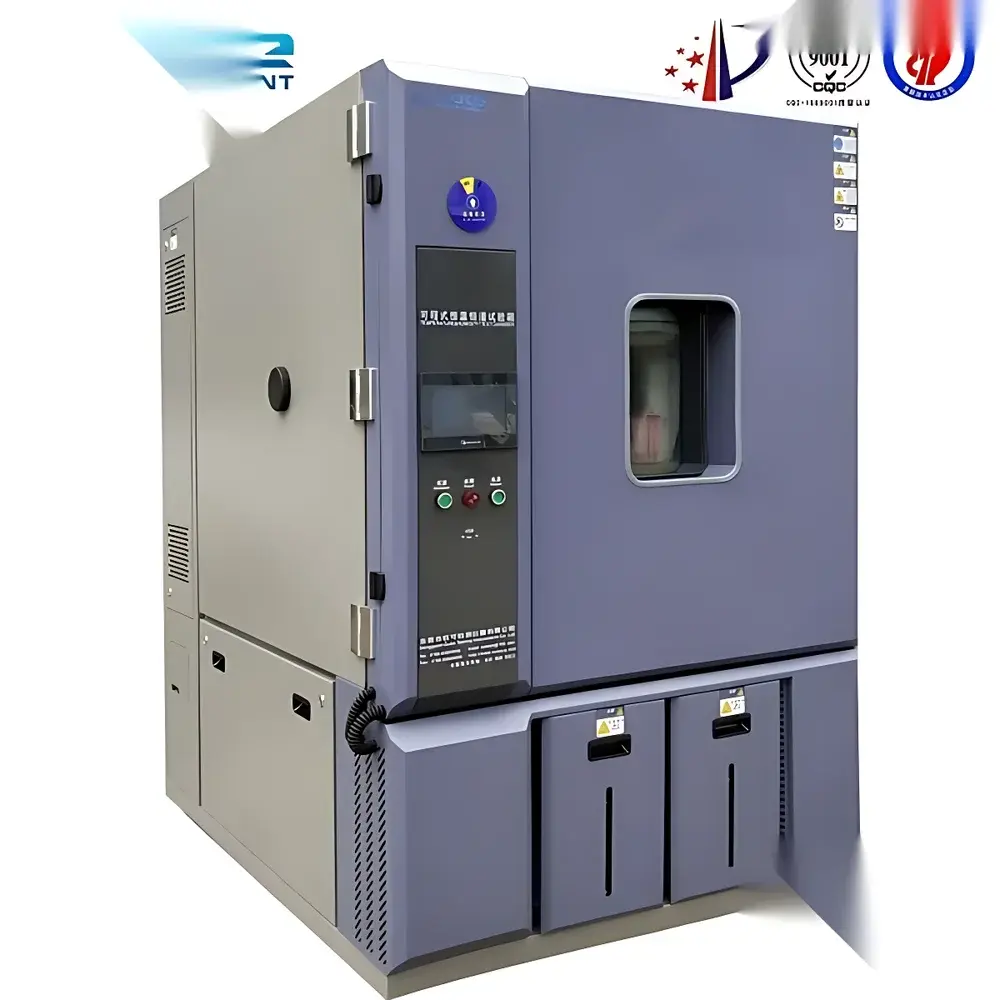

• Smooth, arc-shaped exterior housing with matte-finish surface treatment and ergonomic, flat-profile non-reactive door handles for intuitive operation and enhanced durability
• Fully enclosed insulated chamber structure with high-efficiency axial circulation motor and low-noise cryogenic refrigeration unit (R404A or R507 compliant)
• Integrated anti-vibration mounting pads to minimize mechanical transmission and ensure operational stability during prolonged thermal cycling
• Electrical feedthrough terminals (IP54-rated) enabling live-load testing—devices under test (DUTs) remain powered and monitored throughout temperature exposure
• Philips LED observation window lighting with built-in high-temperature-resistant anti-fogging heater film for unobstructed visual inspection at extreme setpoints
• Comprehensive safety interlock system including over-temperature cut-off, compressor high-pressure protection, phase failure detection, and door-open alarm

Sample Compatibility & Compliance

The chamber accommodates standard test specimens up to 500 mm × 500 mm × 500 mm (W×D×H), with optional custom interior configurations available upon request. It supports static and dynamic thermal profiling per IEC 60068-3-5 (Temperature Change Tests) and meets structural integrity requirements defined in GB/T 10592–2008 for insulation performance, temperature uniformity (±2.0 °C), and temperature fluctuation (±0.5 °C). All control electronics are CE-marked and conform to EN 61000-6-2 (Immunity) and EN 61000-6-4 (Emission). For regulated industries, the system can be configured with audit-ready event logging (optional) compatible with GLP/GMP documentation workflows.

Software & Data Management

The embedded microprocessor controller features a 7-inch TFT LCD touchscreen interface with multilingual support (English, Chinese, Spanish). It provides real-time display of chamber temperature, setpoint, ramp rate, dwell time, and cycle count. Up to 100 programmable test profiles—each supporting up to 99 segments (ramp/soak)—can be stored internally. Optional RS485/Modbus RTU or Ethernet (TCP/IP) connectivity enables integration with SCADA systems or centralized laboratory data acquisition platforms. When equipped with validated firmware, the controller supports 21 CFR Part 11-compliant electronic signatures and audit trail generation for pharmaceutical and medical device validation protocols.

Applications

This environmental test chamber serves critical roles in product development and quality assurance across multiple sectors: accelerated life testing of PCBAs and semiconductors; qualification of battery modules under thermal extremes; validation of polymer sealants and adhesives per ASTM D618; verification of automotive ECUs per ISO 16750-4; and reliability screening of avionics enclosures per DO-160 Section 4. It is routinely deployed in third-party certification labs conducting CB Scheme testing and in internal QA departments performing incoming inspection per AQL sampling plans.

FAQ

Is this chamber suitable for continuous operation at –40 °C or +150 °C?

Yes—the standard configuration achieves a typical operating range of –40 °C to +150 °C with ≤3 °C temperature uniformity across the working volume at steady state.

Can I integrate external sensors for DUT-level temperature monitoring?

Absolutely—two dedicated PT100 sensor input channels are provided for external thermocouple or RTD feedback, configurable via the controller’s auxiliary I/O menu.

Does the quoted price include installation, commissioning, and calibration?

No—the indicative price reflects ex-works cost only. On-site installation, IQ/OQ documentation, and NIST-traceable calibration certificates are available as optional services.

What is the lead time for delivery after order confirmation?

Standard units ship within 4–6 weeks from order receipt; custom configurations (e.g., extended temperature range, explosion-proof variants) require 10–14 weeks.

Is remote monitoring supported out-of-the-box?

Remote status viewing is enabled via optional web server module; full remote control and alarm notification require integration with a compatible building management system (BMS) or cloud-based platform.
