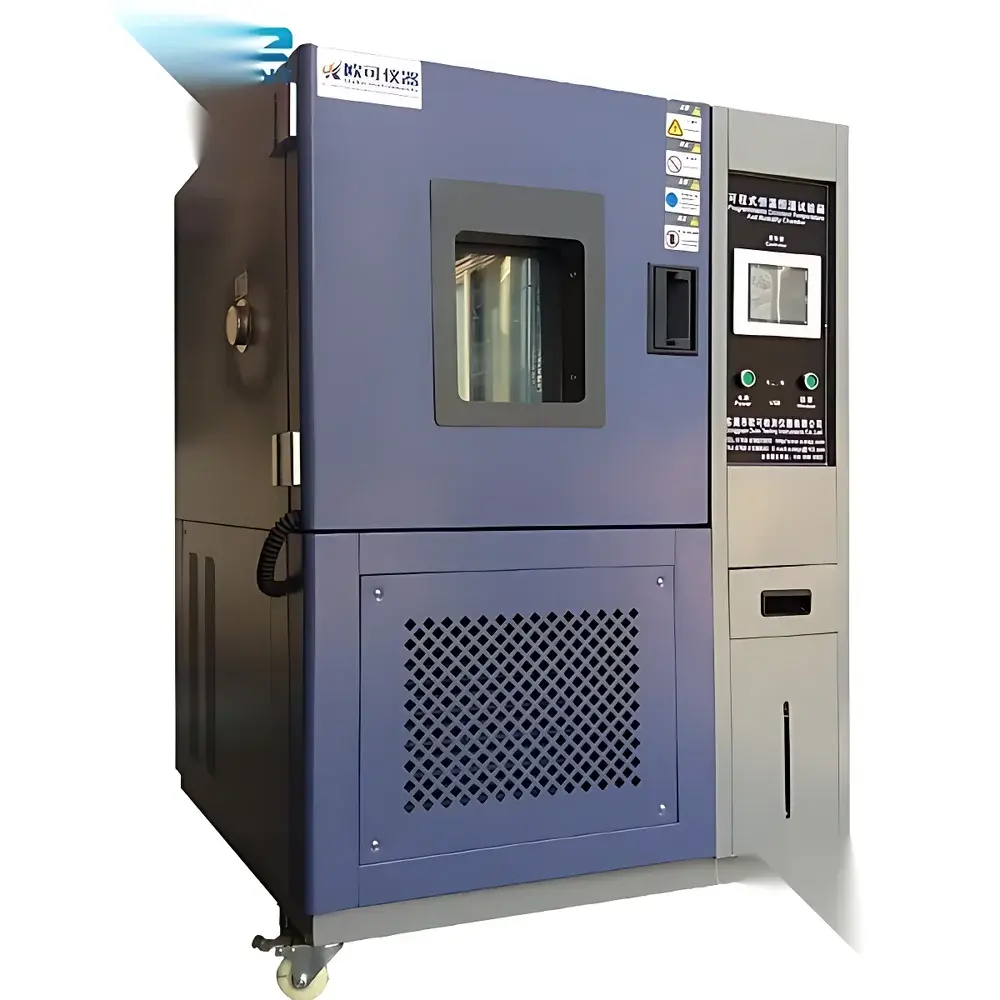

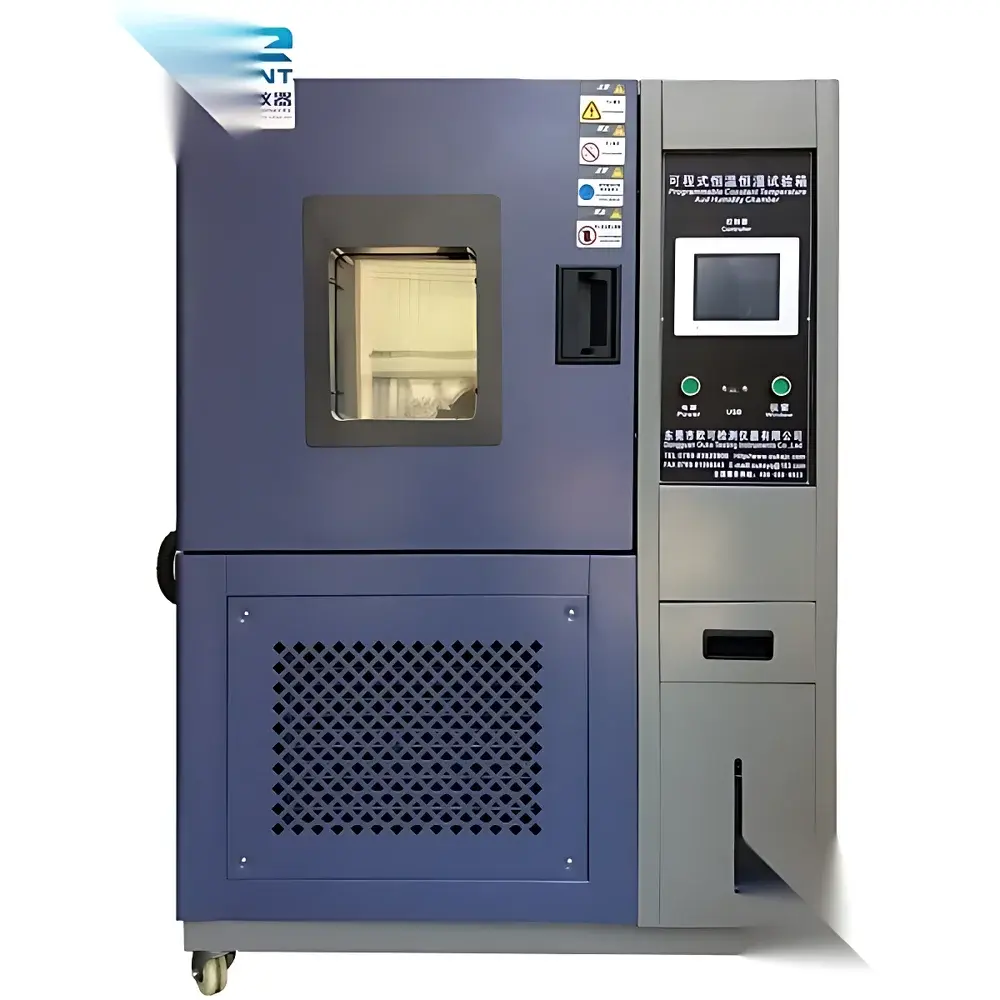

Generic High-Low Temperature Environmental Test Chamber

Overview

The Generic High-Low Temperature Environmental Test Chamber is a precision-engineered climatic simulation system designed to subject electronic components, automotive parts, aerospace materials, and industrial assemblies to controlled thermal stress profiles. Operating on the principle of forced-air convection with dual-stage refrigeration and PID-controlled electric heating, the chamber delivers stable, uniform temperature environments across a typical operational range of –70 °C to +180 °C (configurable per model). Its sealed, double-wall insulated construction—featuring high-density polyurethane foam and vacuum-sealed door gaskets—minimizes thermal leakage and ensures energy-efficient operation. The unit complies with fundamental thermal test architecture requirements defined in IEC 60068-2-1 (Cold), IEC 60068-2-2 (Dry Heat), and MIL-STD-810G Method 502.6, serving as a foundational platform for qualification testing under GLP, ISO/IEC 17025, and internal QA/QC protocols.

Key Features

• Smooth-radius exterior housing with matte-finish stainless steel panels and ergonomic, non-spring-loaded flush-mount handles for safe, repeatable access
• Hermetically sealed inner chamber with seamless welded corners and corrosion-resistant SUS304 interior lining
• Low-noise, high-torque axial circulation fan coupled with optimized baffle design for ±0.5 °C temperature uniformity (per IEC 60068-3-5)
• Integrated anti-vibration mounting pads compliant with ISO 10816-1 vibration severity thresholds for laboratory-grade stability
• Load-testing capability: 3-phase, 380 V/50 Hz power feedthroughs (IP65-rated connectors) enabling real-time electrical performance evaluation under thermal stress
• Double-glazed observation window with Philips LED lighting and built-in resistive defogging heater (12 V DC, 50 W) for uninterrupted visual monitoring
• Comprehensive safety redundancy: independent overtemperature cut-off (mechanical & digital), refrigerant pressure monitoring, door interlock switch, and phase-failure protection

Sample Compatibility & Compliance

The chamber accommodates standard test specimens up to 500 mm × 500 mm × 500 mm (W×D×H) with optional custom volume configurations. It supports both static and powered device-under-test (DUT) configurations, including PCB assemblies, battery modules, sensors, and encapsulated optoelectronic packages. Regulatory alignment includes GB/T 5170.2–2017 (Temperature Test Equipment Verification), GB/T 10589–2008 (Low-Temperature Test Chambers), GB/T 10592–2008 (High/Low-Temperature Chamber Technical Specifications), and cross-referenced international standards such as ASTM E145–22 (Standard Specification for Gravity-Convection and Forced-Ventilation Ovens) and IEC 60068-3-5 (Environmental Testing — Part 3-5: Supporting Documentation and Guidance — Confirmation of the Performance of Temperature Chambers). All units undergo factory calibration traceable to NIST-certified reference thermometers prior to shipment.

Software & Data Management

Equipped with a 7-inch TFT-LCD touchscreen controller running embedded Linux OS, the system provides real-time graphing, programmable ramp-soak profiles (up to 99 segments), and event-triggered data logging at user-defined intervals (1 s to 3600 s resolution). Export formats include CSV and PDF reports with timestamped metadata. Optional Ethernet/Wi-Fi connectivity enables remote monitoring via HTTP/HTTPS and integration into centralized LIMS or MES platforms. Audit trail functionality meets FDA 21 CFR Part 11 requirements when paired with optional user authentication and electronic signature modules. Data integrity safeguards include cyclic redundancy check (CRC) validation and automatic backup to external USB storage.

Applications

This environmental test chamber is routinely deployed in R&D laboratories and production quality assurance departments for thermal cycling validation, burn-in screening, accelerated life testing, and pre-compliance verification. Typical use cases include: evaluating solder joint reliability under thermal shock conditions; verifying thermal expansion coefficient (CTE) mismatch tolerance in multi-material packaging; assessing thermal shutdown behavior of Li-ion battery management systems; validating thermal stability of conformal coatings per IPC-CC-830B; and supporting failure analysis workflows in accordance with JEDEC JESD22-A104 (Temperature Cycling) and JESD22-A108 (Bias Life Test).

FAQ

Is this chamber suitable for HALT or HASS testing?

No—this unit is engineered for qualification-level environmental stress screening per standardized test methods, not for highly accelerated life testing (HALT) or highly accelerated stress screening (HASS), which require wider temperature ranges, faster ramp rates, and integrated vibration subsystems.
Can I integrate third-party data acquisition hardware?

Yes—the chamber provides analog voltage (0–10 V) and RS-485 Modbus RTU outputs for interfacing with external DAQ systems, PLCs, or SCADA platforms.
What is the typical lead time for delivery after order confirmation?

Standard models ship within 4–6 weeks ex-factory; custom configurations (e.g., extended temperature range, explosion-proof variants) require 10–14 weeks.
Does the unit include calibration documentation?

Each chamber ships with a factory calibration certificate (traceable to national metrology institutes) covering chamber uniformity, stability, and sensor accuracy at three temperature points (–40 °C, 25 °C, +85 °C).
Are service contracts and extended warranties available?

Yes—comprehensive 2-year onsite warranty and optional 3–5 year extended service agreements—including preventive maintenance, software updates, and priority technical support—are available upon request.
