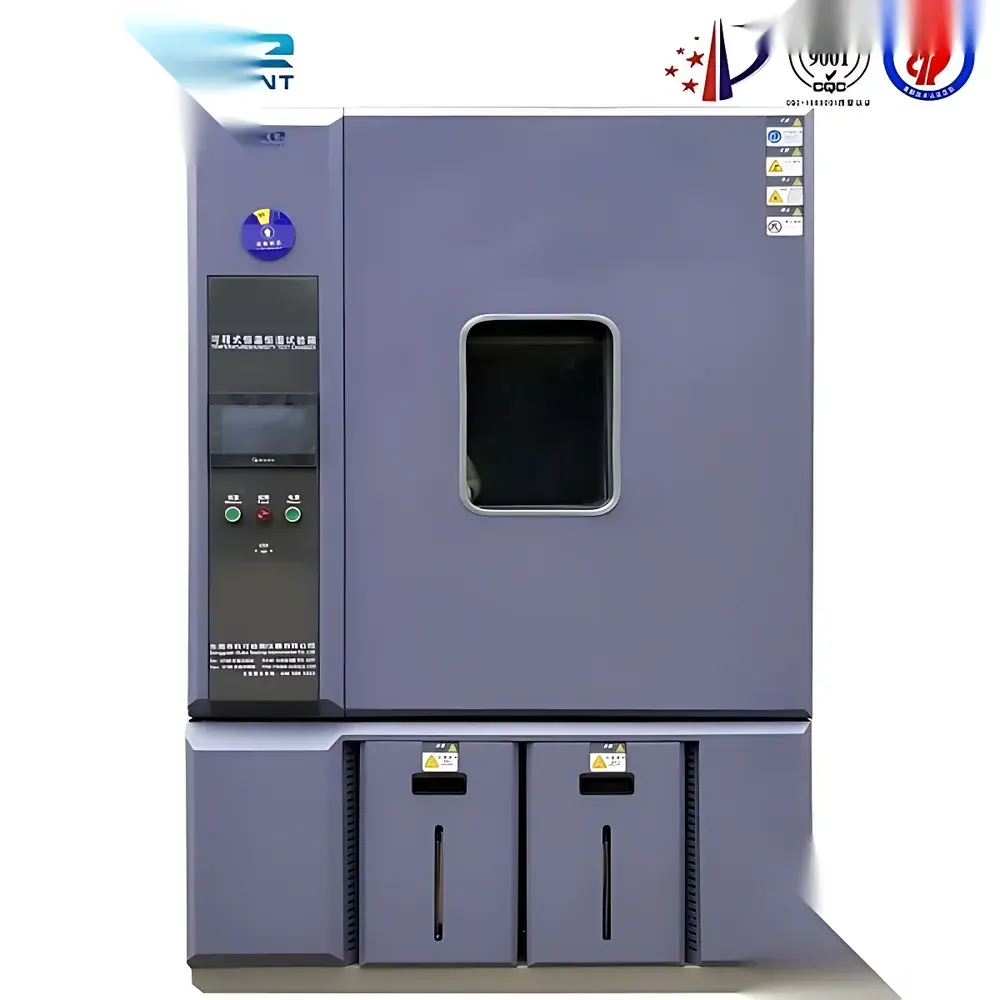

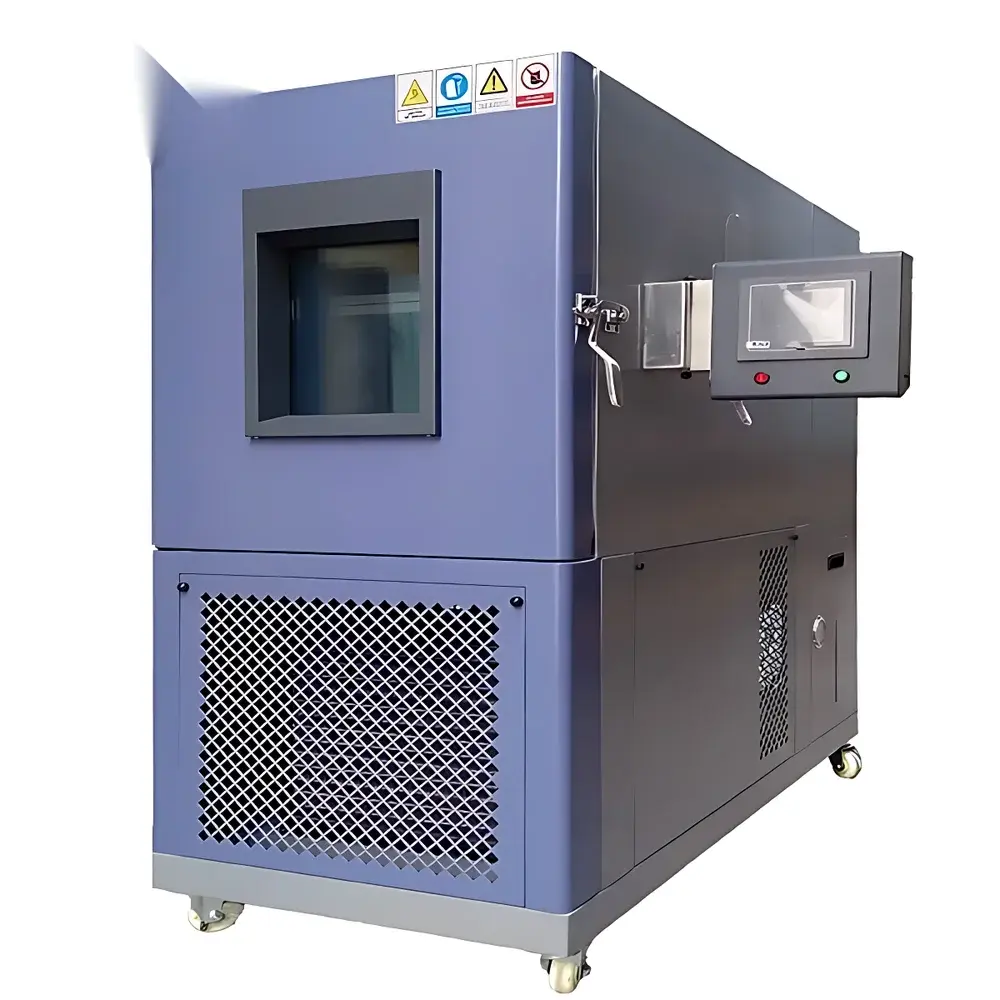

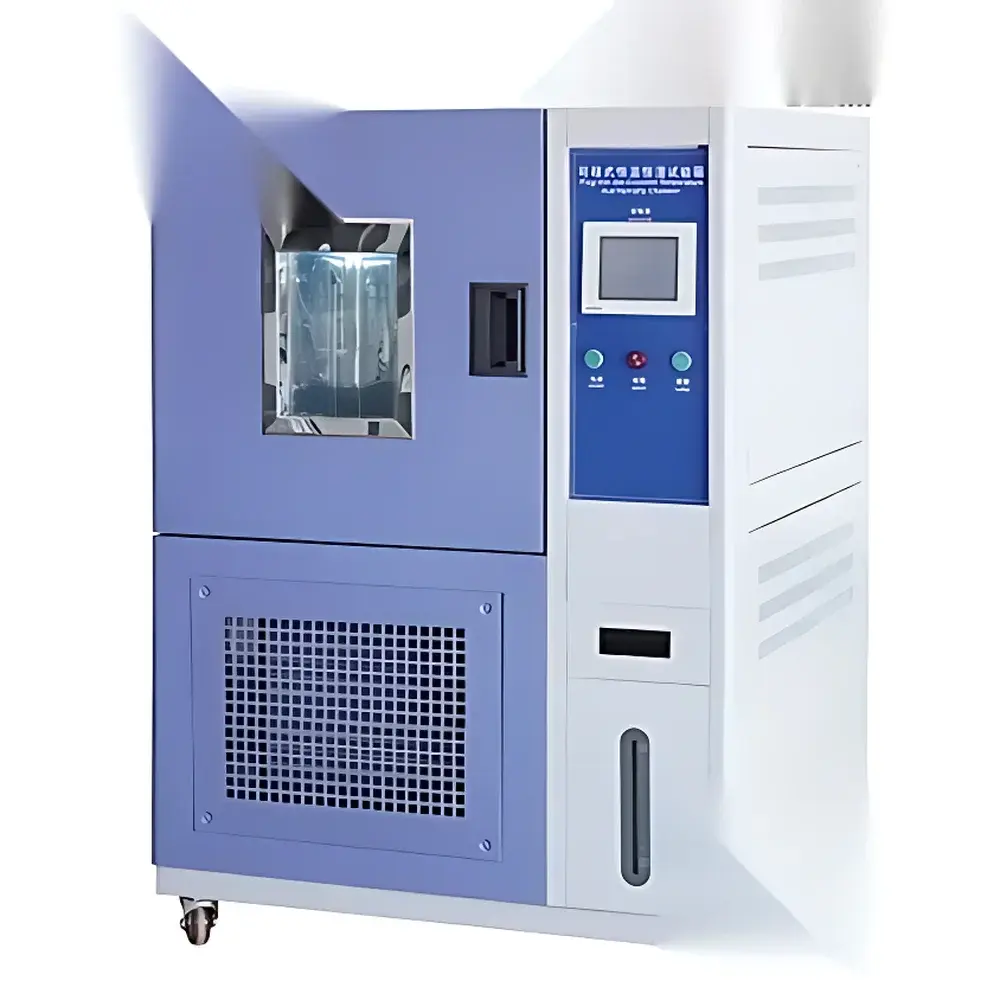

Generic Temperature and Humidity Controlled Environmental Test Chamber

Overview

The Generic Temperature and Humidity Controlled Environmental Test Chamber is an engineered laboratory-grade environmental simulation system designed for precise, repeatable conditioning of materials, components, and electronic assemblies under defined thermal and hygrothermal stress profiles. It operates on the principle of forced-air convection combined with dual-stage vapor-compression refrigeration and resistive steam humidification, enabling stable maintenance of temperature and relative humidity across a wide operational envelope. The chamber complies with fundamental calibration and performance verification protocols outlined in IEC 60068-3-5 and GB/T 5170.2–2017 (equivalent to IEC 60068-3-1), ensuring metrological traceability for qualification testing in R&D, quality assurance, and production validation environments. Its architecture supports both steady-state (constant temperature/humidity) and dynamic (ramp-soak-cycle) test profiles—critical for evaluating long-term reliability, material aging, condensation resistance, and thermal expansion behavior.

Key Features

• Robust dual-layer insulated construction: 100 mm thick composite insulation comprising high-density fiberglass and closed-cell polyurethane foam, minimizing thermal bridging and energy consumption.
• Corrosion-resistant interior chamber fabricated from electropolished SUS304 mirror-finish stainless steel; exterior available in powder-coated cold-rolled steel or optional brushed SUS304 for enhanced durability in cleanroom or high-hygiene applications.
• High-efficiency air circulation system featuring a low-noise centrifugal blower and optimized duct geometry to ensure uniform airflow distribution and minimize spatial gradients.
• Multi-point safety protection suite including over-temperature cutoff, compressor high-pressure/low-pressure interlock, heater dry-run prevention, humidity sensor failure detection, and door-open alarm with automatic power cutoff.
• Integrated observation window with triple-layer laminated tempered glass, conductive ITO film heating layer, and Philips LED illumination—enabling real-time visual monitoring without compromising chamber integrity or introducing thermal leakage.
• Optional load-powering capability (via pass-through terminals rated up to 30 A/250 VAC) permits in-situ functional testing of powered devices during environmental exposure.

Sample Compatibility & Compliance

The chamber accommodates standard industrial test specimens up to 500 L internal volume (custom sizes available). Its design conforms to the mechanical and climatic test requirements specified in multiple international standards, including IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), IEC 60068-2-30 (damp heat, cyclic), and IEC 60068-2-78 (damp heat, steady state). Calibration and performance validation are aligned with GB/T 5170.2–2017 (Temperature), GB/T 5170.5–2017 (Humidity), and ISO/IEC 17025–compliant procedures when used with accredited third-party verification. While not inherently 21 CFR Part 11 compliant, audit-ready data export (CSV, PDF) and full event logging—including operator ID, parameter changes, alarms, and timestamped setpoint transitions—are supported via the TEMI880 controller’s embedded memory and USB interface.

Software & Data Management

The TEMI880 intelligent controller provides a 7-inch TFT color touchscreen interface with intuitive graphical navigation, multilingual support (English/Chinese), and real-time visualization of setpoints versus actual values via dual-axis trend curves. Up to 120 programmable segments per test profile—including ramp, soak, and cycle modes—can be stored internally. All operational events (alarms, manual overrides, power interruptions) are time-stamped and retained in non-volatile memory for ≥30 days. Data export is performed via USB flash drive in industry-standard CSV format compatible with Excel, MATLAB, and LIMS platforms. Optional RS485 Modbus RTU or Ethernet TCP/IP communication enables integration into centralized facility monitoring systems (SCADA/BMS) for remote supervision and automated report generation.

Applications

This environmental test chamber serves critical roles across aerospace component qualification (per DO-160 Section 4 & 5), automotive electronics validation (ISO 16750-4), medical device shelf-life studies (ISO 11607-1), semiconductor packaging reliability (JEDEC JESD22-A104), and polymer aging assessments (ASTM D3045). Typical use cases include accelerated life testing of PCBAs, validation of battery thermal management systems under combined temperature-humidity stress, evaluation of sealant adhesion under cyclic condensation, and stability testing of pharmaceutical excipients per ICH Q1A(R2). Its flexibility in temperature/humidity range and control resolution makes it suitable for both pre-compliance screening and formal certification testing when operated within validated operating envelopes.

FAQ

What is the standard warranty period for this chamber?

Standard warranty covers parts and labor for 12 months from date of commissioning, excluding consumables (e.g., humidifier tanks, filters) and damage caused by improper installation or misuse.

Can the chamber be calibrated to NIST-traceable standards?

Yes—third-party calibration services are available upon request, with certificates issued per ISO/IEC 17025 requirements, including uncertainty budgets for temperature (±0.25 °C) and humidity (±1.8 % RH) at reference points.

Is remote monitoring supported out-of-the-box?

Remote status viewing and basic parameter adjustment are possible via optional Ethernet module; full SCADA integration requires custom configuration and API documentation provided under NDA.

Does the controller support GLP/GMP audit trails?

The TEMI880 logs all user-initiated actions with timestamps and operator identifiers, but full 21 CFR Part 11 compliance (e.g., electronic signatures, role-based access control) requires supplemental software validation and IT infrastructure controls beyond the base unit.

What electrical supply specifications must the installation site meet?

Three-phase five-wire AC 380 V ±10 %, 50 Hz, with dedicated grounding (<4 Ω resistance) and circuit protection rated ≥32 A per phase; voltage stabilization recommended where grid fluctuation exceeds ±5 %.
