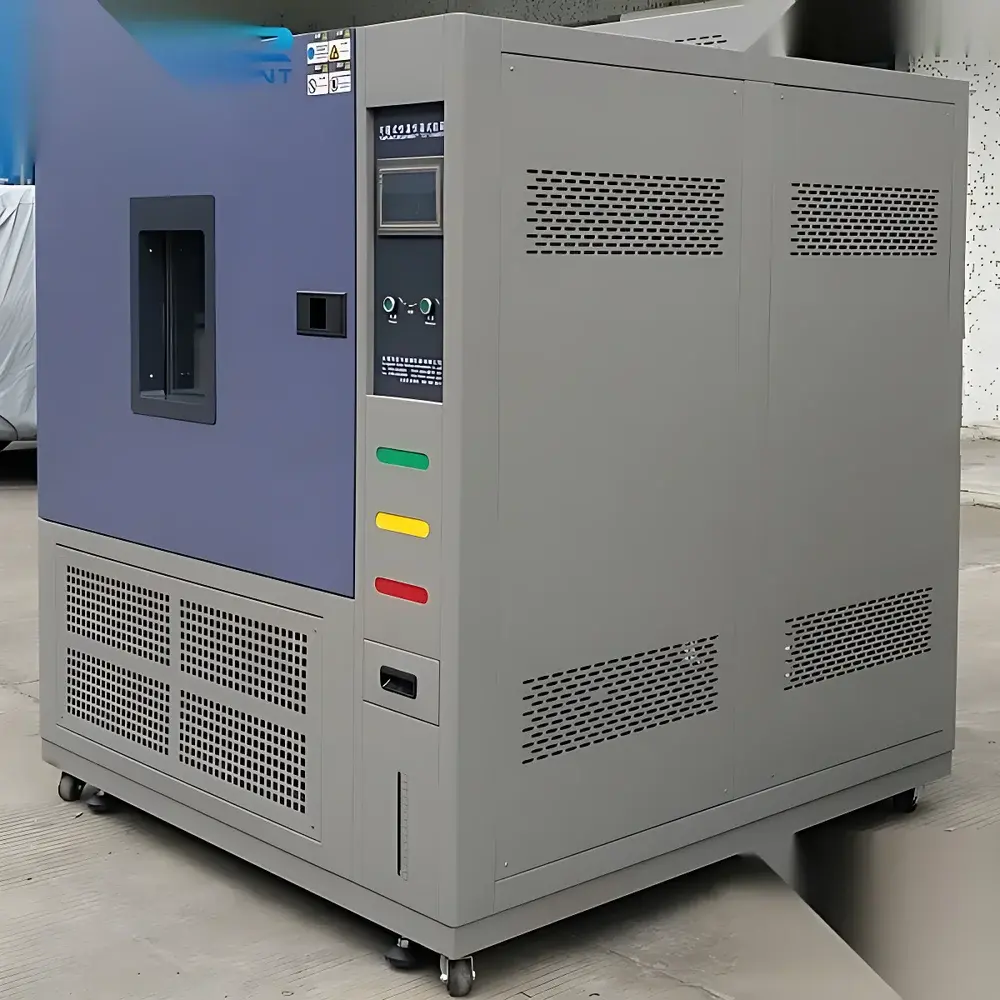

Generic Temperature and Humidity Controlled Environmental Test Chamber

Overview

The Generic Temperature and Humidity Controlled Environmental Test Chamber is a precision-engineered climatic simulation system designed for rigorous reliability validation of electronic components, automotive parts, aerospace materials, and medical devices under controlled thermal and hygrothermal stress conditions. Operating on the principle of forced-air convection with dual-stage mechanical refrigeration and resistive steam humidification, this chamber delivers stable, repeatable environmental profiles across a wide operational envelope—from deep cryogenic temperatures (−65 °C) to high-temperature bake-out (+150 °C), coupled with programmable relative humidity (20–95 % RH). Its design adheres to fundamental thermodynamic and psychrometric principles, ensuring traceable air temperature and moisture content control in accordance with ISO 16750-4, IEC 60068-2-1 (cold), -2 (dry heat), -30 (damp heat cyclic), and -78 (condensation testing) standards. The chamber’s performance is validated under no-load, stabilized conditions per GB/T 5170.2–5–6 and IEC 60068-3-5, providing metrologically sound data for qualification testing and failure mode analysis.

Key Features

• Robust structural architecture: Interior chamber constructed from electropolished SUS304 mirror-finish stainless steel; outer casing fabricated from CNC-machined A3 steel with durable powder-coated finish.
• High-efficiency thermal management: 100 mm thick composite insulation comprising high-density glass fiber and closed-cell polyurethane foam minimizes thermal bridging and energy loss.
• Optimized airflow dynamics: Centrifugal circulation fan with low-noise motor ensures uniform temperature/humidity distribution and eliminates stagnant zones—validated by ±2.0 °C temperature uniformity and ±3.0 % RH humidity uniformity.
• Advanced viewing system: Triple-layer, low-E, heated laminated observation window with conductive film de-fogging and Philips LED interior lighting enables unobstructed real-time monitoring without condensation interference.
• Integrated electrical feedthroughs: Optional load-power terminals (up to 30 A, 3-phase) support in-situ functional testing of powered devices during environmental exposure.
• Comprehensive safety architecture: Dual independent over-temperature/over-humidity cutouts, compressor high-pressure protection, phase-sequence monitoring, and door interlock switches ensure operational integrity and personnel safety.

Sample Compatibility & Compliance

This environmental test chamber accommodates samples up to standard industrial rack dimensions (W×D×H: 600 × 600 × 800 mm internal volume options available), supporting both static and dynamic test configurations. It is routinely deployed for qualification per MIL-STD-810H Method 502.7 (low temperature), Method 501.7 (high temperature), Method 507.6 (humidity), and Method 508.7 (salt fog + humidity cycling). All critical performance parameters—including temperature ramp rates, steady-state stability, and humidity recovery time—are verified against national and international calibration protocols defined in JJG 2057–2019 (China), ASTM E145–22 (Standard Specification for Gravity-Convection and Forced-Ventilation Ovens), and EN 60068-3-5:2018 (Environmental testing — Part 3-5: Supporting documentation and guidance — Confirmation of the performance of temperature chambers). The unit supports GLP-compliant audit trails when paired with optional data logging hardware meeting FDA 21 CFR Part 11 requirements.

Software & Data Management

Equipped with the TEMI880 color touchscreen controller, the chamber provides intuitive graphical programming of complex multi-step temperature/humidity profiles—including ramp-soak cycles, gradient transitions, and dwell sequences—with up to 120 programmable segments. The interface supports dual-language (English/Chinese) operation, real-time curve plotting of setpoint vs. actual values, and 17-level adjustable backlighting for laboratory ambient flexibility. Built-in PID auto-tuning algorithms minimize overshoot and stabilize control loops under varying thermal loads. Data export is enabled via USB 2.0 port (CSV format), while optional RS485/Modbus RTU or Ethernet connectivity allows integration into centralized MES or LIMS platforms. All alarm events—including sensor faults, compressor shutdowns, and door-open interruptions—are timestamped and stored locally for traceability and root-cause investigation.

Applications

• Accelerated life testing of PCB assemblies, connectors, and semiconductor packages under thermal cycling and damp heat conditions.
• Validation of packaging integrity for sterile medical devices per ISO 11607-1:2019 (packaging for terminally sterilized medical devices).
• Material aging studies for polymer composites, adhesives, and elastomers exposed to combined thermal-hygric stress.
• Pre-conditioning of lithium-ion battery cells prior to electrochemical characterization per UN 38.3 Section 38.3.4 (thermal test).
• Environmental screening of avionics modules per DO-160G Section 4 (operational temperature) and Section 8 (humidity).
• Calibration verification of reference sensors and portable environmental monitors against NIST-traceable chamber conditions.

FAQ

What is the standard warranty period for this chamber?

The unit carries a 12-month limited warranty covering parts and labor for manufacturing defects, excluding consumables (e.g., humidifier tanks, filters) and damage from improper installation or misuse.

Can the chamber be configured for water-cooled condensation?

Yes—both air-cooled and water-cooled condenser variants are available; water-cooled models require inlet water at ≤32 °C and ≥3 bar pressure, with flow rate ≥4 L/min.

Is remote monitoring supported out-of-the-box?

Basic remote status readout is possible via Modbus TCP with optional gateway; full SCADA integration requires third-party middleware configuration.

Does the controller support compliance reporting for ISO/IEC 17025 laboratories?

When used with certified external calibration records and enabled audit-log features, the system meets documentation requirements for accredited testing labs—though final accreditation rests with the laboratory’s quality management system.

What maintenance intervals are recommended?

Compressor oil inspection every 2,000 operating hours; humidifier tank cleaning weekly; condenser coil vacuuming quarterly; full calibration verification annually per ISO/IEC 17025 Clause 6.5.
