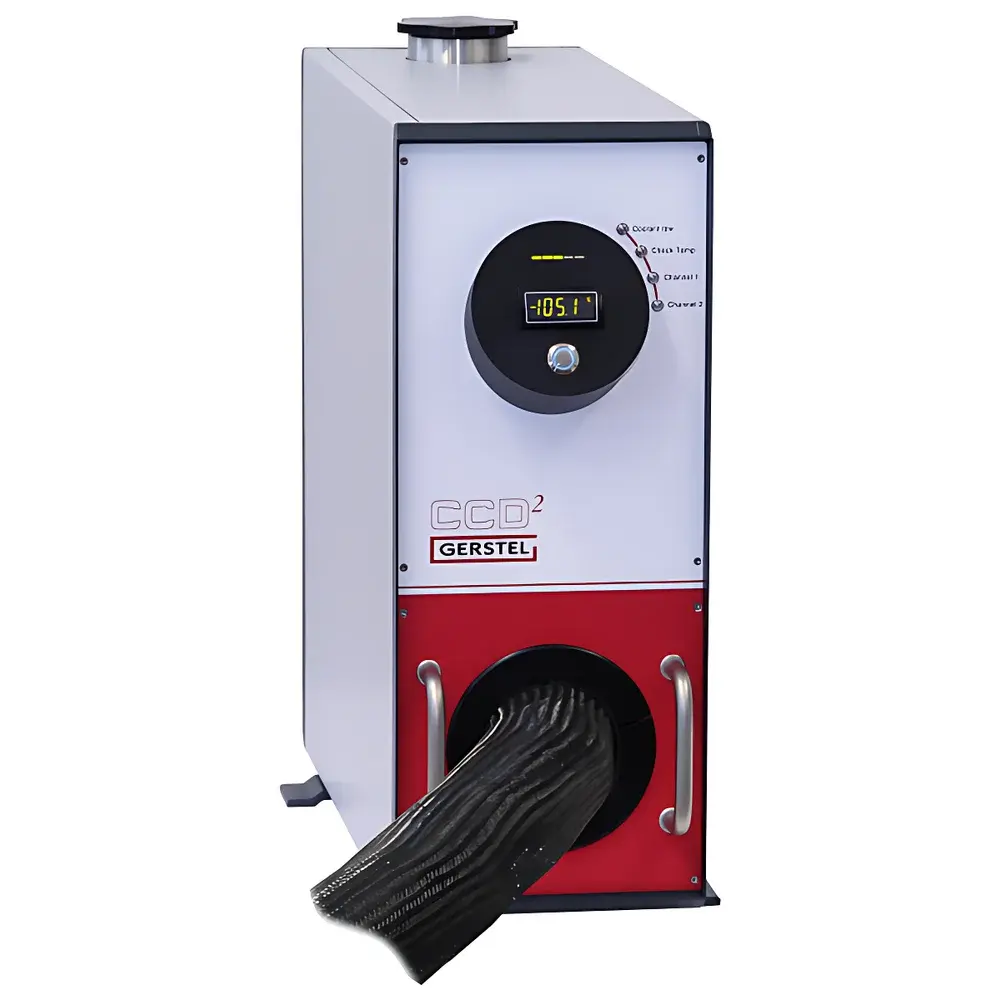

Gerstel CCD2 Cryo Cooling Device

Overview

The Gerstel CCD2 Cryo Cooling Device is a precision-engineered cryogenic cooling module designed for seamless integration with gas chromatography–mass spectrometry (GC–MS) systems, particularly in conjunction with Gerstel’s MultiPurpose Sampler (MPS) and thermal desorption units. Operating on the principle of closed-cycle helium refrigeration, the CCD2 delivers stable, programmable low-temperature control—typically down to –150 °C—to enable efficient cryo-focusing of volatile and semi-volatile analytes prior to GC injection. This thermal trapping mechanism significantly enhances sensitivity, improves peak shape, reduces breakthrough, and minimizes matrix interference—critical for trace-level analysis in environmental, food safety, forensic, and clinical toxicology applications. Unlike liquid nitrogen–dependent systems, the CCD2 eliminates consumables, offers continuous operation, and supports automated, unattended method sequences within regulated laboratory environments.

Key Features

• Closed-cycle helium refrigeration system with no liquid cryogens required—ensures operational continuity and reduced logistical overhead.
• Programmable temperature range from ambient to –150 °C with ±0.5 °C stability over extended hold periods.
• Integrated digital temperature control via Gerstel MAESTRO software, enabling precise ramping, isothermal holds, and synchronized timing with MPS robot actions.
• Modular design optimized for direct mounting onto Gerstel MPS platforms or standalone integration into custom GC–MS inlet configurations.
• Robust stainless-steel cold trap assembly with inert, low-bleed surface finish compatible with EPA Method 8260D, ISO 16000-6, and ASTM D7717 workflows.
• Compliant with IEC 61000-6-2/6-4 for electromagnetic compatibility and CE-marked for use in EU-based GLP and ISO/IEC 17025-accredited laboratories.

Sample Compatibility & Compliance

The CCD2 accommodates a broad spectrum of sample matrices—including air, water (via purge-and-trap), soil headspace, polymer off-gas, and biological fluids—when coupled with appropriate sampling interfaces (e.g., Sorbent Tube Desorption, Dynamic Headspace, or Solid-Phase Microextraction). Its cryo-focusing capability is validated for compounds ranging from C2 hydrocarbons (e.g., ethylene, acetylene) to C18 aldehydes and halogenated aromatics. The device meets functional requirements outlined in US EPA Methods 8260D (Volatile Organic Compounds by GC–MS), 8270E (Semi-Volatile Organic Compounds), and ISO 16000-6 (Indoor Air—Determination of Volatile Organic Compounds). It supports audit-ready data integrity through hardware-level temperature logging and time-stamped event records aligned with FDA 21 CFR Part 11 and EU Annex 11 expectations.

Software & Data Management

Control and monitoring are fully embedded within Gerstel MAESTRO v2.5+ software—a platform compliant with GLP/GMP documentation standards. MAESTRO provides full method scripting for cryo-cooling cycles (pre-cool, trap, dry-purge, desorb, bake-out), real-time temperature telemetry, and automatic fault detection (e.g., compressor anomaly, thermal sensor drift). All temperature profiles, setpoints, and system status logs are stored in encrypted SQLite databases with immutable timestamps. Export options include CSV and XML formats suitable for LIMS ingestion. Audit trails are retained for ≥36 months and support electronic signatures per ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate).

Applications

• Ultra-trace VOC analysis in ambient and indoor air monitoring programs.
• Odor profiling and off-gassing studies in automotive interiors, packaging materials, and building products.
• Residual solvent quantification in pharmaceutical excipients per ICH Q3C guidelines.
• Forensic toxicology screening for volatile drugs of abuse (e.g., ethanol, acetone, chloroform) in blood headspace.
• Food aroma compound characterization using dynamic headspace–CCD2–GC–MS workflows.
• Method development for high-resolution, low-noise detection of polar volatiles prone to column degradation without cryo-focusing.

FAQ

Is the CCD2 compatible with non-Gerstel GC or MS instruments?
Yes—the CCD2 features standardized mechanical mounting interfaces and RS-232/Ethernet communication protocols; integration with Agilent, Thermo Fisher, and Shimadzu GC systems is supported via MAESTRO’s OEM interface modules.
What maintenance is required for long-term reliability?
Annual verification of refrigerant pressure, condenser coil cleaning, and calibration of the Pt100 temperature sensor using NIST-traceable reference baths is recommended.
Does the CCD2 support multi-step cryo-trapping protocols?
Yes—MAESTRO enables up to five independently defined temperature zones per method, including dual-stage focusing (e.g., primary trap at –30 °C, secondary at –150 °C) for complex matrix separation.
Can temperature data be exported for regulatory submissions?
Yes—raw temperature logs, method parameters, and system event history are exportable as PDF reports with digital signatures and cryptographic hash verification.
Is remote monitoring available?
Yes—via MAESTRO WebServer (HTTPS-enabled), allowing secure browser-based access to real-time status, alarms, and historical trend plots from any networked workstation.
