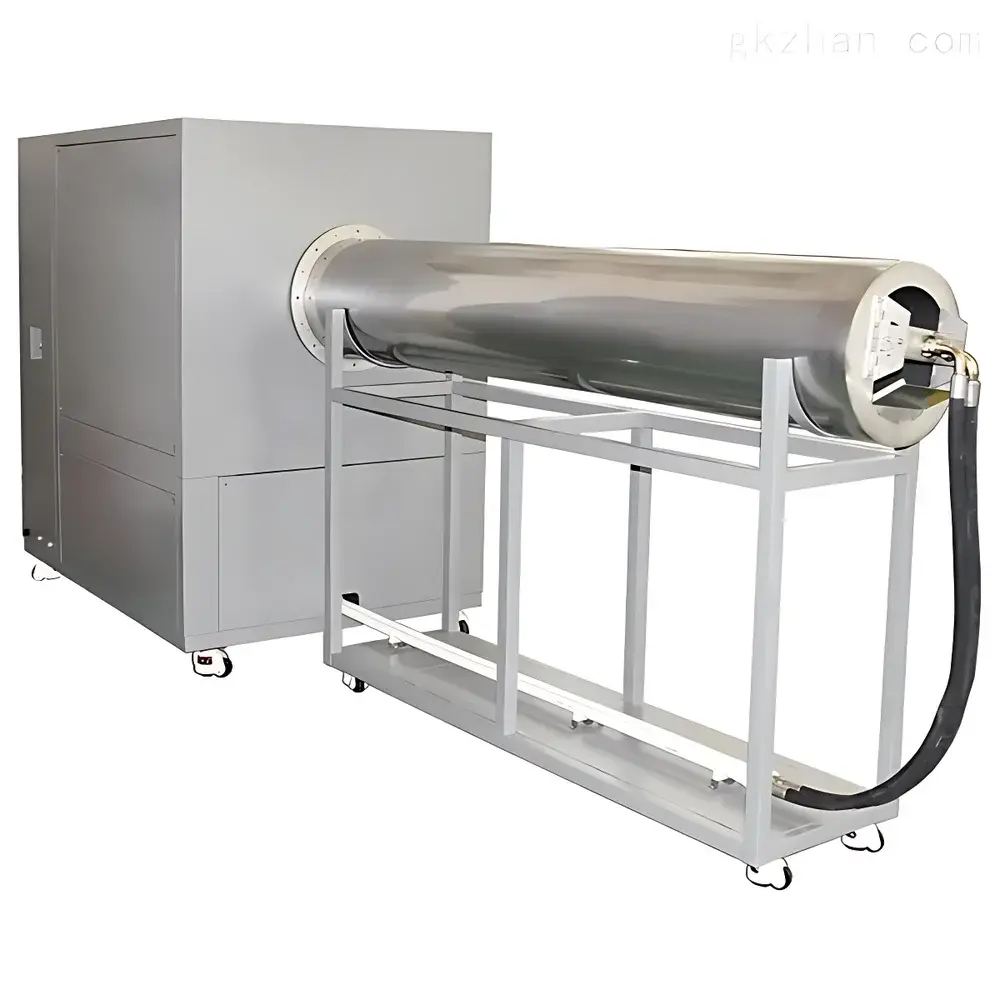

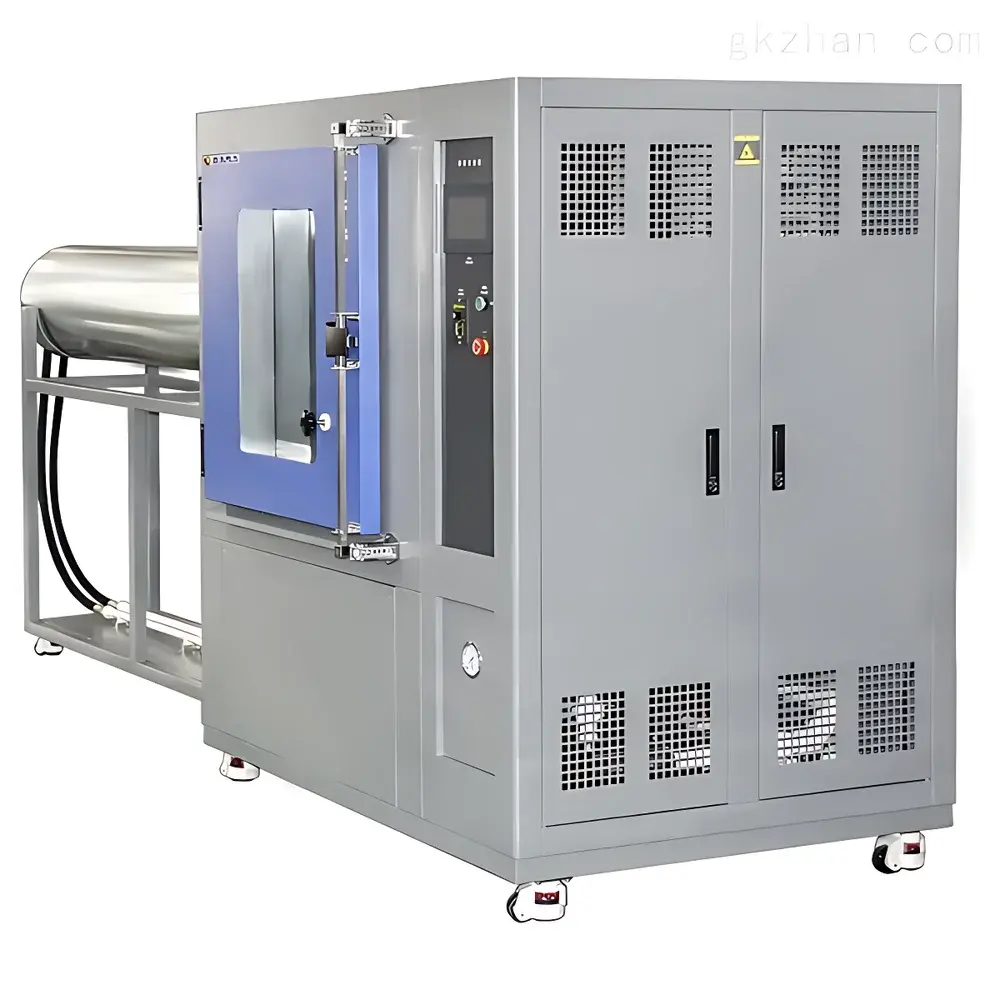

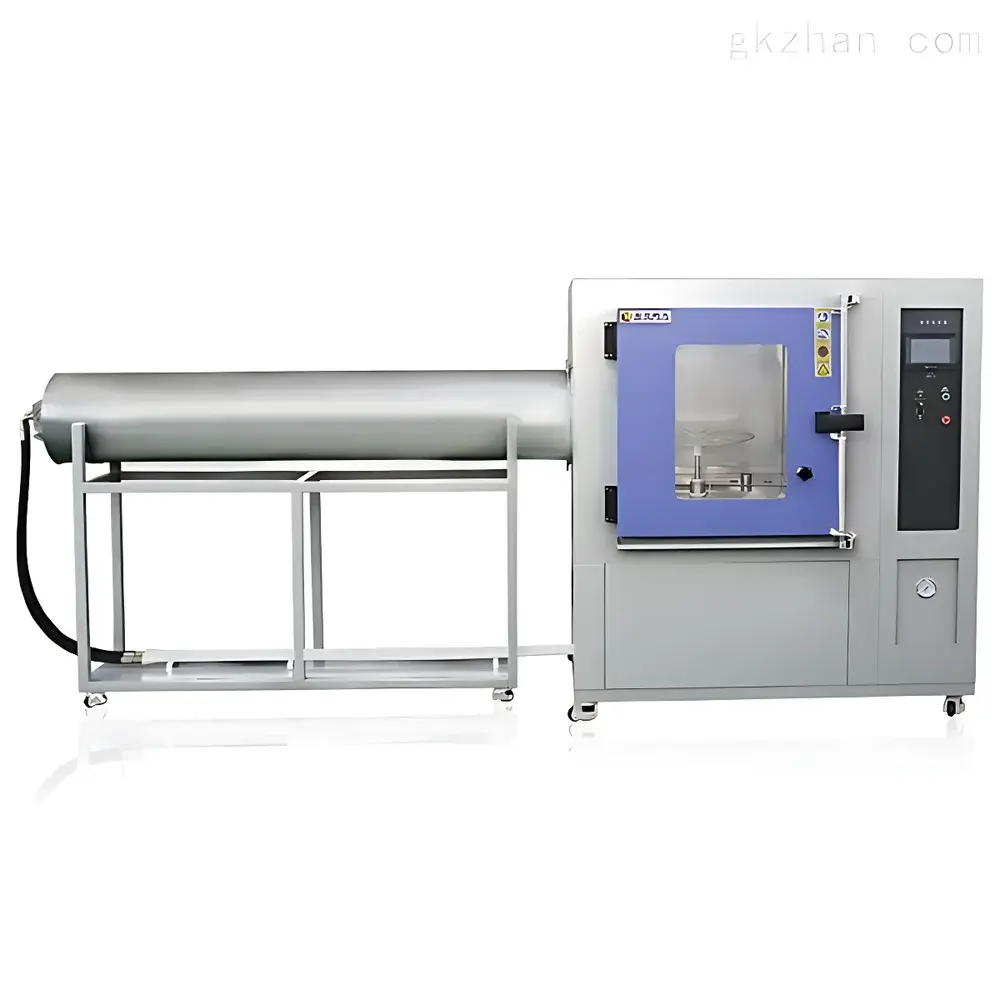

GHT HT-IPX34 Variable-Frequency Side-Mounted Rain Test Chamber

Overview

The GHT HT-IPX34 Variable-Frequency Side-Mounted Rain Test Chamber is an engineered environmental simulation system designed to replicate controlled rainfall exposure under standardized conditions for evaluating the ingress protection (IP) performance of enclosures, components, and assemblies. It operates on two primary test configurations—oscillating pipe (IPX3/IPX4 swing tube method) and continuous 360° rotary spray (IPX4 RDP-500 compliant)—in accordance with IEC 60529, GB/T 10485-2007, GB 4208-2008 (equivalent to IPX3 and IPX4), and GB 4942. The chamber integrates variable-frequency drive technology to enable precise, stepless regulation of oscillation speed and rotary motion, ensuring reproducible water impact dynamics across diverse test specimens. Unlike static drip or vertical rain simulators, the HT-IPX34 delivers directional, side-incident water exposure at defined angles (including 45° tilt and full lateral sweep), making it especially suitable for automotive lighting systems, avionics housings, navigation units, and defense-grade electro-mechanical assemblies where asymmetric water loading is a critical failure mode.

Key Features

• Side-mounted dual-mode spray architecture: supports both oscillating arm (0° to ±180°, adjustable amplitude and frequency) and 360° continuous rotary spray (RDP-500 configuration)
• Variable-frequency motor control enables stable, low-jitter motion profiles across the full operational range—critical for maintaining consistent droplet kinetic energy and impact angle repeatability
• Interchangeable nozzle sets: 0.4 mm and 0.8 mm orifices allow calibration to specific flow rate requirements (0.07 L/min or 0.6 L/min per nozzle), while 1.2 mm nozzles are used in rotary mode per GB/T 10485
• Stainless steel (SUS304) inner chamber and copper/stainless wetted components ensure long-term corrosion resistance and compliance with ISO 8502-3 surface cleanliness protocols
• Integrated wind simulation: adjustable air velocity from 5 to 18 m/s enables combined rain–wind testing per MIL-STD-810H Method 512.6 and automotive OEM specifications (e.g., VW TL 82235)
• Temperature-controlled test environment: chamber ambient temperature maintained between RT+10 °C and 55 °C to support thermal–hydraulic coupling assessments during prolonged exposure

Sample Compatibility & Compliance

The HT-IPX34 accommodates specimens up to 1.5 m in height and 1.2 m in depth, including vehicle headlamps, instrument clusters, radar domes, missile guidance housings, and industrial control cabinets. Its mechanical design conforms to the physical constraints defined in IEC 60529 Annex B and GB 4208-2008 Clause 13.2 for IPX3 (oscillating 60° arc, 4 min per side) and IPX4 (360° rotation, 10 min minimum). All water delivery parameters—including calibrated rainfall intensity (10–20 cm/h), droplet size distribution (0.5–4.5 mm median diameter), and impact pressure—are traceable to NIST-referenced flow meters and calibrated pressure transducers. The system meets structural and operational requirements for GLP-compliant test laboratories conducting third-party certification per UL 50E, CSA C22.2 No. 94, and EN 60529 validation protocols.

Software & Data Management

The HT-IPX34 is equipped with an embedded programmable logic controller (PLC) interface supporting pre-defined test sequences aligned with IPX3, IPX4, and custom multi-stage profiles. Real-time logging captures elapsed time, water pressure, flow rate, oscillation angle, rotary speed, chamber temperature, and wind velocity at 1-second intervals. Exportable CSV data files include timestamped metadata for audit-ready traceability. Optional Ethernet connectivity enables integration into centralized LIMS environments and supports FDA 21 CFR Part 11–compliant electronic signatures when paired with validated user authentication modules. Calibration records, maintenance logs, and test reports are stored locally with SHA-256 hash integrity verification.

Applications

• Automotive: Headlamp and taillamp waterproofing validation per SAE J175 and ISO 16750-4
• Aerospace & Defense: Radar dome hydrophobicity assessment, seeker window sealing verification, and flight-critical enclosure IP rating confirmation
• Industrial Electronics: Enclosure ingress resistance testing for PLCs, HMIs, and motor drives operating in outdoor or washdown environments
• Rail & Marine: Waterproof integrity evaluation of onboard navigation displays, signaling interfaces, and propulsion control panels
• Consumer Electronics: Pre-certification screening of ruggedized tablets, handheld radios, and outdoor IoT sensor housings

FAQ

Does the HT-IPX34 comply with IEC 60529 IPX3 and IPX4 test requirements?
Yes—the oscillating arm configuration satisfies IPX3 (60° swing, 4 min/side), and the RDP-500 rotary mode fulfills IPX4 (360° rotation, ≥10 min), both verified via independent calibration against GB/T 10485-2007.
Can the system simulate wind-driven rain conditions?
Yes—integrated axial fans deliver controllable airflow from 5 to 18 m/s, enabling combined rain–wind testing per MIL-STD-810H Method 512.6 and automotive OEM specifications.
What materials contact water during operation?
All wetted surfaces—including nozzles, pipes, rotary arms, and water reservoirs—are constructed from SUS304 stainless steel or oxygen-free copper to prevent contamination and ensure long-term chemical compatibility with deionized or tap water.
Is temperature control integrated into the rain exposure cycle?
Yes—the chamber maintains ambient temperature between RT+10 °C and 55 °C throughout testing, allowing thermal–hydraulic stress evaluation without external climate chamber dependency.
How is test repeatability ensured across multiple runs?
Through factory-calibrated flow sensors, closed-loop VFD motion control, and automated sequence execution—each parameter is logged with millisecond timestamp resolution and exportable for statistical process control (SPC) analysis.
