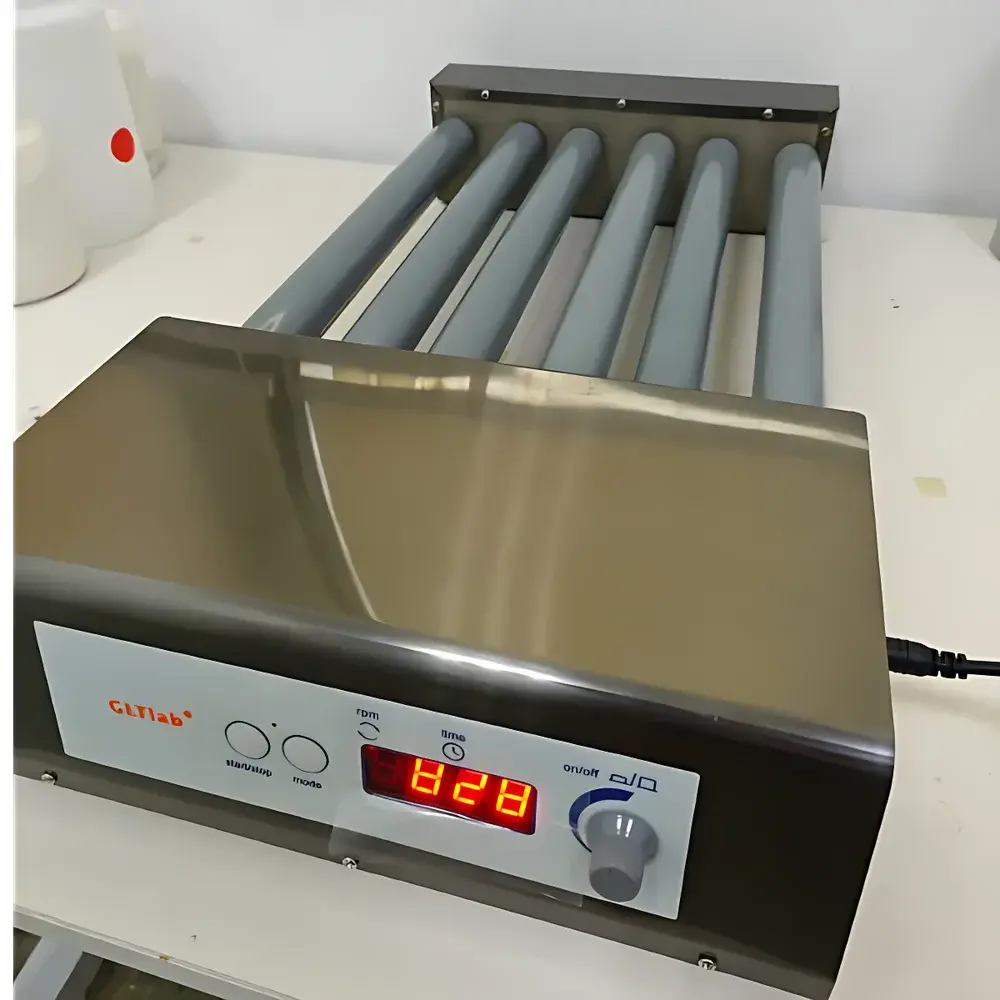

GLTLab TR-6H Stainless Steel Roller Mixer

Overview

The GLTLab TR-6H Stainless Steel Roller Mixer is an industrial-grade, bidirectional rotational mixing system engineered for high-reproducibility homogenization of viscous, heterogeneous, and shear-sensitive materials. Operating on the principle of controlled orbital rolling—where cylindrical vessels rotate continuously along a fixed horizontal axis—the TR-6H generates gentle yet effective laminar motion ideal for solid–solid, solid–liquid, and high-viscosity liquid–liquid blending. Unlike vortex or shaker-based mixers, roller mixers avoid turbulent agitation and excessive foaming, preserving particle integrity and minimizing air entrapment—critical in battery slurry formulation and pharmaceutical excipient blending. The TR-6H is purpose-built for environments demanding long-term stability under chemical exposure, thermal cycling, and mechanical vibration, making it suitable for R&D laboratories, pilot-scale production lines, and quality control facilities engaged in advanced material synthesis.

Key Features

• Full 304 stainless steel chassis and structural components—engineered to resist corrosion from acidic vapors, alkaline residues, solvents, and high-humidity conditions typical in battery electrode manufacturing and fine chemical processing.
• Six independently aligned rollers with precision-ground 340 × 30 mm cylindrical surfaces—ensuring uniform torque distribution and minimal eccentric runout across all load configurations (10 kg / 20 kg / 30 kg).
• Wide-speed digital drive (5–1000 rpm) with programmable direction reversal—enabling optimized mixing kinetics for diverse rheological profiles, including pseudoplastic cathode slurries (e.g., NMC/LFP with PVDF binder in NMP) and thixotropic ceramic pastes.
• Microprocessor-controlled timer with 1-second resolution and up to 100-hour continuous operation—supporting unattended overnight or multi-shift processing cycles without drift or reset.
• Low-noise brushless DC motor with integrated thermal protection and dynamic current regulation—delivering consistent rotational output while minimizing electromagnetic interference in adjacent instrumentation zones.
• Modular mounting interface compatible with standard 15–50 mL glass vials, 100–500 mL HDPE bottles, and custom-designed roller-compatible containers used in magnetic bead-based extraction workflows.

Sample Compatibility & Compliance

The TR-6H accommodates a broad spectrum of container types and sample matrices without requiring adapters or clamps: sealed centrifuge tubes, screw-cap glass vials, flexible polymer pouches, and rigid stainless-steel canisters. It supports mixing protocols aligned with ASTM D7928 (standard practice for dispersion of carbon nanotubes), ISO 13320 (laser diffraction particle size analysis sample prep), and USP <701> (uniformity of dosage units). While not certified as medical device hardware, its stainless steel construction and non-porous surface meet baseline requirements for GLP-compliant sample preparation areas and support audit readiness under FDA 21 CFR Part 11 when paired with validated electronic lab notebook (ELN) integration.

Software & Data Management

The TR-6H operates via a dedicated front-panel digital interface with real-time RPM display, elapsed time counter, and directional status indicator. No proprietary software is required for basic operation; however, optional RS-485 serial output enables integration into centralized lab automation systems (e.g., LabVantage, Thermo Fisher SampleManager) for timestamped parameter logging, remote start/stop commands, and automated batch record generation. Audit trails—including speed setpoint changes, timer resets, and power cycle events—are retained in non-volatile memory for traceability during internal QA reviews or regulatory inspections.

Applications

• Battery Materials Development: Homogenization of cathode/anode slurries (e.g., LiCoO₂ + conductive carbon + CMC/SBR binder in aqueous or NMP media) prior to coating, ensuring uniform particle suspension and minimizing sedimentation-induced viscosity gradients.
• Advanced Ceramics & Composites: Blending of alumina/zirconia powders with organic binders and plasticizers for tape-casting slurries, where shear-thinning behavior demands low-turbulence mixing.
• Biopolymer Processing: Rehydration and dispersion of freeze-dried chitosan, hyaluronic acid, or collagen scaffolds without denaturation or chain scission.
• Magnetic Bead-Based Extraction: Facilitating friction-driven adsorption of functionalized beads onto tube walls during rolling—commonly applied in nucleic acid isolation, immunoaffinity capture, and circulating tumor cell enrichment workflows.
• Quality Assurance Labs: Standardized preparation of reference suspensions for particle size analyzer calibration (e.g., polystyrene latex standards) and viscosity reference fluids per ASTM D2196.

FAQ

Is the TR-6H suitable for use in cleanroom environments?
Yes—the fully sealed stainless steel housing, absence of painted surfaces or exposed fasteners, and smooth-radius corners meet ISO Class 7 (10,000) particulate control requirements when operated with appropriate gowning and airflow protocols.
Can the unit be integrated into a LIMS or MES system?
Via optional RS-485 communication module (part number TR-6H-RS485-KIT), enabling bi-directional command transmission and event logging compliant with ISA-88 and ISA-95 data models.
What maintenance is required for long-term reliability?
No routine lubrication is needed—the brushless motor and sealed roller bearings are lifetime-rated. Wipe-down with isopropyl alcohol and lint-free cloth is recommended after exposure to corrosive agents; annual verification of speed accuracy using a calibrated tachometer is advised for GMP-aligned operations.
Does the TR-6H support variable-angle rolling or only horizontal rotation?
The TR-6H provides fixed-axis horizontal rolling only. For angled or tumbling motion, consider the TR-20 variant (20-roller configuration) with configurable tilt options available under separate model designation.
Is firmware upgrade capability supported?
Firmware updates are performed via USB-C service port using GLTLab’s certified diagnostic utility; version history and release notes are published quarterly on the official support portal.
