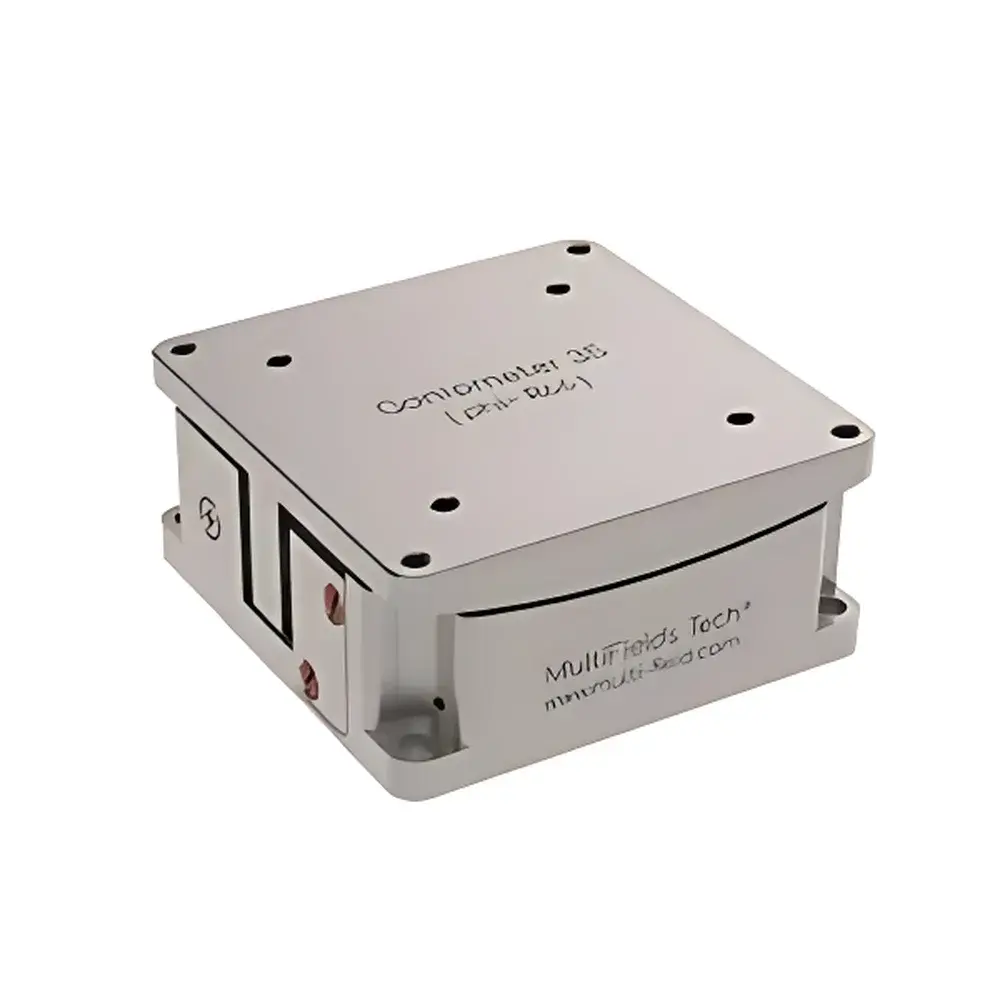

Goniometer35-phi Closed-Loop Piezoelectric Tilting Stage

Overview

The ZOLIX Goniometer35-phi is a high-precision, closed-loop piezoelectric tilting stage engineered for extreme experimental environments—specifically ultra-low temperatures, ultra-high vacuum (UHV), and high magnetic fields. Unlike conventional stepper- or servo-driven goniometers, the Goniometer35-phi employs a monolithic flexure-based design actuated by low-voltage piezoelectric elements, eliminating mechanical backlash, hysteresis-prone gears, and ferromagnetic components. Its core function is to deliver sub-millidegree angular positioning repeatability over a ±5° range (10° total stroke) while maintaining structural integrity under cryogenic thermal contraction and Lorentz forces. The device operates on the principle of electrostrictive displacement amplification via leveraged flexure hinges, enabling nanoradian-level angular control without moving cables or sliding contacts—critical for quantum transport, synchrotron beamline optics alignment, and scanning tunneling microscopy (STM) tip positioning in dilution refrigerator inserts.

Key Features

• Compact footprint: 35 × 35 × 16 mm with only 70 g mass—optimized for space-constrained cryostat cold stages and multi-axis nanopositioning stacks.
• Full non-magnetic construction: Body machined from pure titanium (Grade 2); flexures, electrodes, and sensor elements fabricated from beryllium copper (BeCu)—certified compatible with static magnetic fields up to 18 Tesla.
• Multi-environment rated variants: Standard (HV), Ultra-Low-Temperature (ULT) for <30 mK operation in He-3 or dilution refrigerators, and Ultra-High-Vacuum (UHV) versions qualified to 2×10⁻¹¹ mbar base pressure per ISO 3529-3.
• Closed-loop feedback: Integrated resistive position transducer with 12° full-scale range and 0.5 millidegree (0.0005°) resolution—enabling real-time error correction and traceable angular calibration per ISO 230-2 Annex D.
• Thermomechanically stable architecture: Coefficient of thermal expansion (CTE)-matched materials minimize misalignment drift between 1.4 K and 400 K; validated through thermal cycling tests per ASTM E2266.
• Low-outgassing cabling: 20 cm twisted-pair phosphor bronze leads with glass-fiber-reinforced PEEK insulation—compliant with ESA SCC 2299 and NASA SP-R-0022A outgassing specifications.

Sample Compatibility & Compliance

The Goniometer35-phi is designed for integration into regulated scientific infrastructure requiring long-term stability and auditability. Its material selection and surface finishing meet ISO 14644-1 Class 5 cleanroom handling protocols. All metallic components are vacuum-baked and passivated per ASTM A967 for oxide-layer consistency. Electrical interfaces conform to IEC 61000-4-2 (ESD immunity) and IEC 61326-1 (laboratory EMC). When operated in closed-loop mode with calibrated sensor output, positional data satisfies GLP-compliant instrument qualification requirements (IQ/OQ/PQ) under FDA 21 CFR Part 11 when paired with compliant data acquisition software. The UHV variant undergoes helium leak testing to ≤1×10⁻¹² mbar·L/s and is certified for use in fusion diagnostics and atomic physics beamlines governed by ITER Technical Specifications TS-001-VC-002.

Software & Data Management

ZOLIX provides native SDK support for LabVIEW™, Python (PyVISA), and MATLAB® via USB-to-TTL or analog voltage interfaces. The stage supports both open-loop voltage sweep and closed-loop position setpoint modes. Sensor output is ratiometric (0–10 V over 12°), enabling direct digitization with 24-bit DAQ systems (e.g., National Instruments PXIe-4309). Firmware includes built-in linearization compensation for piezo hysteresis across temperature bands, accessible via ASCII command protocol (SCPI-like syntax). Audit trails—including timestamped position commands, sensor readbacks, and thermal status flags—are exportable as CSV or HDF5 for traceability in ISO/IEC 17025-accredited labs. Optional integration with ZOLIX’s “CryoControl Suite” enables synchronized multi-axis sequencing with temperature ramp profiles from Lakeshore 372/350 controllers.

Applications

• Precision alignment of X-ray optical elements (e.g., Kirkpatrick–Baez mirrors, multilayer monochromators) in synchrotron endstations operating at <10 K and <10⁻¹⁰ mbar.
• Angle-resolved photoemission spectroscopy (ARPES) sample manipulators requiring sub-0.001° reproducibility during in-situ cleaving and band mapping.
• Quantum bit (qubit) characterization platforms where microwave antenna tilt must be adjusted without introducing magnetic contamination or thermal load.
• In-situ TEM specimen holders for crystallographic orientation control during electron diffraction under variable temperature/magnetic field conditions.
• Calibration reference stages for laser interferometric angle metrology systems accredited to ISO 10012 standards.

FAQ

What is the maximum allowable cable resistance for drive signals?

The drive circuitry is optimized for total loop resistance below 50 Ω. Higher resistance may reduce effective bandwidth and increase settling time; consult ZOLIX Application Note AN-G35-PHI-02 for impedance-matching guidelines.
Can the Goniometer35-phi be used in liquid helium flow environments?

Yes—the ULT variant is explicitly qualified for direct immersion in pumped He-4 and He-3 circuits, provided thermal anchoring is performed via indium or silver epoxy to minimize conductive heating.
Is sensor linearity validated across the full temperature range?

Linearity deviation remains ≤±0.15% of full scale from 4 K to 300 K, verified using autocollimator-based metrology traceable to NIST SRM 2089a.
Does the UHV version include bake-out certification?

All UHV units ship with a certificate of vacuum compatibility, including 24-hour 150°C bake-out validation and residual gas analysis (RGA) report showing hydrocarbon partial pressures <5×10⁻¹³ mbar.
How is angular zero defined and maintained after thermal cycling?

The mechanical zero is established via kinematic mounting features (dual dowel pins + clamping flange); closed-loop sensor offset is auto-nullable via software command, preserving absolute angle reference across thermal transitions.
