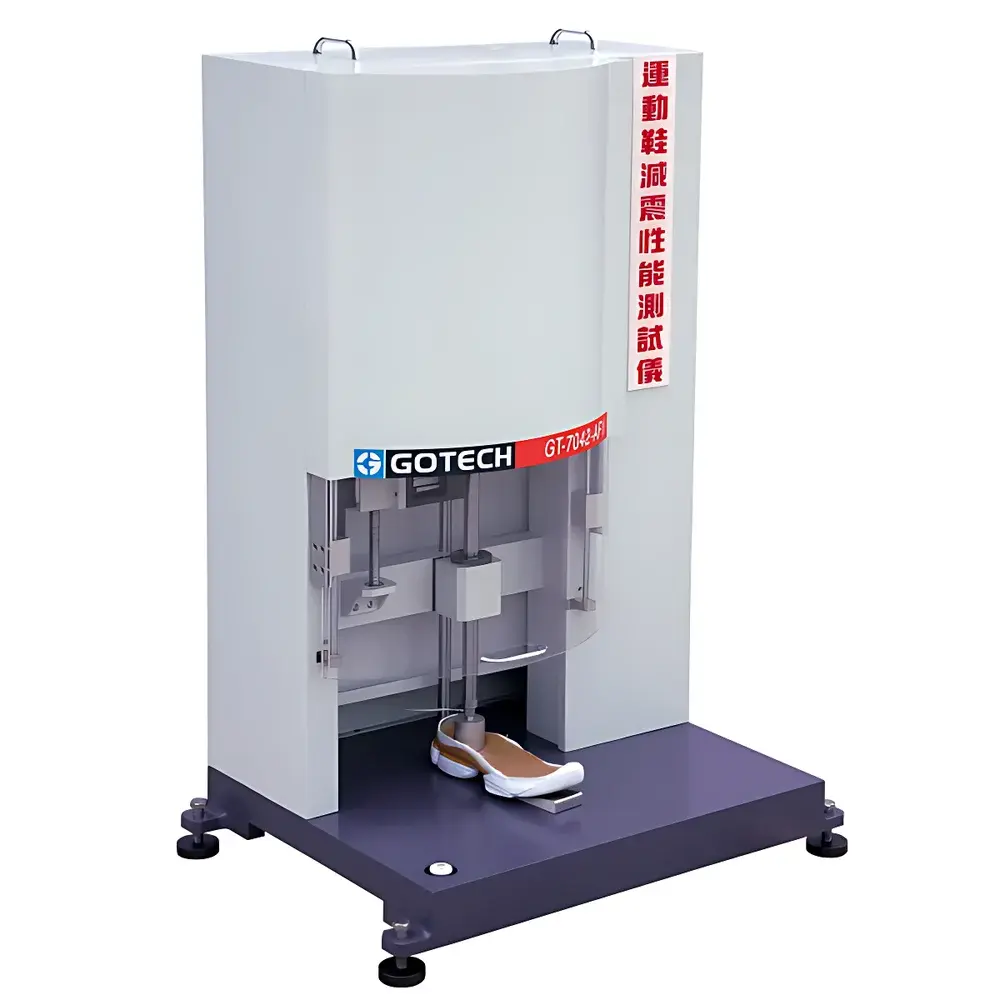

GOTECH GT-7042-AF1 Athletic Footwear Shock Absorption Tester
| Brand | GOTECH TESTING MACHINES CO., LTD. |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | GT-7042-AF1 |
| Pricing | Upon Request |
Overview
The GOTECH GT-7042-AF1 Athletic Footwear Shock Absorption Tester is a precision-engineered impact testing system designed to quantify the dynamic shock absorption performance of midsole materials used in competitive running footwear. It operates on the principle of controlled free-fall impact under standardized kinematic conditions, simulating the heel-strike phase of bipedal gait. The instrument delivers repeatable, high-fidelity force–displacement profiles by dropping a calibrated mass onto a mounted shoe specimen from a programmable height, capturing real-time mechanical response via synchronized load and displacement transducers. This methodology aligns with biomechanical testing paradigms established in ASTM F1637 (Standard Practice for Safe Walking Surfaces) and ISO 20344:2021 (Personal protective equipment — Test methods for footwear), particularly Sections 6.4 (Energy absorption at heel region) and Annex D (Impact testing protocols). The system is engineered for laboratories requiring traceable, GLP-compliant data acquisition in quality assurance, R&D validation, and third-party certification workflows.
Key Features
- Programmable drop-height control via servo-motor-driven ball screw and pneumatic release mechanism, enabling precise adjustment from 20 mm to 100 mm in 1 mm increments
- Dual-sensor synchronized acquisition: high-frequency piezoelectric load cell (±0.5% FS accuracy) and linear variable differential transformer (LVDT) displacement sensor (±1 µm resolution)
- Automated 30-cycle impact sequence with selective data retention—final five impacts are automatically flagged for statistical analysis per ISO 20344 compliance
- U70 proprietary control software (Windows-based) supporting real-time waveform visualization, peak force/dynamic compression calculation, and hysteresis loop generation
- Modular base platform accommodating full-size athletic footwear (EU 36–48) with adjustable clamping fixtures and orthogonal alignment guides
- Robust structural frame with vibration-damped granite base and guided vertical drop column ensuring minimal parasitic motion and high test-to-test reproducibility (CV ≤ 1.8% across 10 replicates)
Sample Compatibility & Compliance
The GT-7042-AF1 accommodates intact athletic shoes, cut midsole specimens (minimum 50 × 50 mm), and foam billets per ASTM D3574 requirements. Its mechanical interface supports both bare-footbed mounting and in-shoe configuration with anatomically referenced heel positioning. All test procedures conform to international regulatory expectations for footwear safety evaluation: ISO 20344:2021 (Clause 6.4), EN ISO 20345:2022 (Safety footwear), and GB/T 20991–2007 (Chinese standard for protective footwear). Data audit trails comply with FDA 21 CFR Part 11 requirements when U70 software is configured with user authentication, electronic signatures, and immutable raw-data archiving.
Software & Data Management
The U70 control suite provides ISO/IEC 17025-aligned data integrity features including automatic timestamping, operator ID logging, calibration certificate linkage, and version-controlled test method templates. Export formats include CSV (for statistical packages), PDF test reports (with embedded force–displacement curves), and XML (for LIMS integration). Raw sensor streams are stored in binary format with metadata headers containing environmental conditions (ambient temperature/humidity), calibration IDs, and hardware configuration fingerprints. Optional add-ons include automated pass/fail decision logic based on user-defined thresholds (e.g., max peak force ≤ 25 kN, energy return ≥ 65%) and multi-sample comparative analytics dashboards.
Applications
- Midsole material qualification for EVA, PU, TPU, Pebax®, and novel elastomeric foams
- Comparative evaluation of cushioning technologies (e.g., air pods, gel inserts, carbon-fiber plates)
- Batch consistency verification in production QA environments
- Regulatory submission support for CE marking, CCC certification, and NFPA 1971 compliance
- Academic research into viscoelastic recovery kinetics and strain-rate-dependent damping behavior
- Third-party arbitration testing for contract manufacturing disputes and retailer compliance audits
FAQ
What standards does the GT-7042-AF1 directly support?
It implements test sequences aligned with ISO 20344:2021 Section 6.4, ASTM F1637 Annex A3, and GB/T 20991–2007 Clause 7.2.
Can the system test individual midsole layers instead of whole shoes?
Yes—specimens as small as 50 × 50 × 30 mm can be mounted using optional compression platens with pneumatic clamping.
Is calibration traceable to national metrology institutes?
Load cells are supplied with NIST-traceable calibration certificates; displacement sensors are validated against laser interferometry standards.
Does the U70 software support 21 CFR Part 11 compliance?
Yes—when deployed on domain-joined Windows systems with role-based access control and electronic signature modules enabled.
What maintenance intervals are recommended?
Biannual verification of drop-height repeatability and sensor linearity; annual full recalibration with certified reference masses and displacement artifacts.
