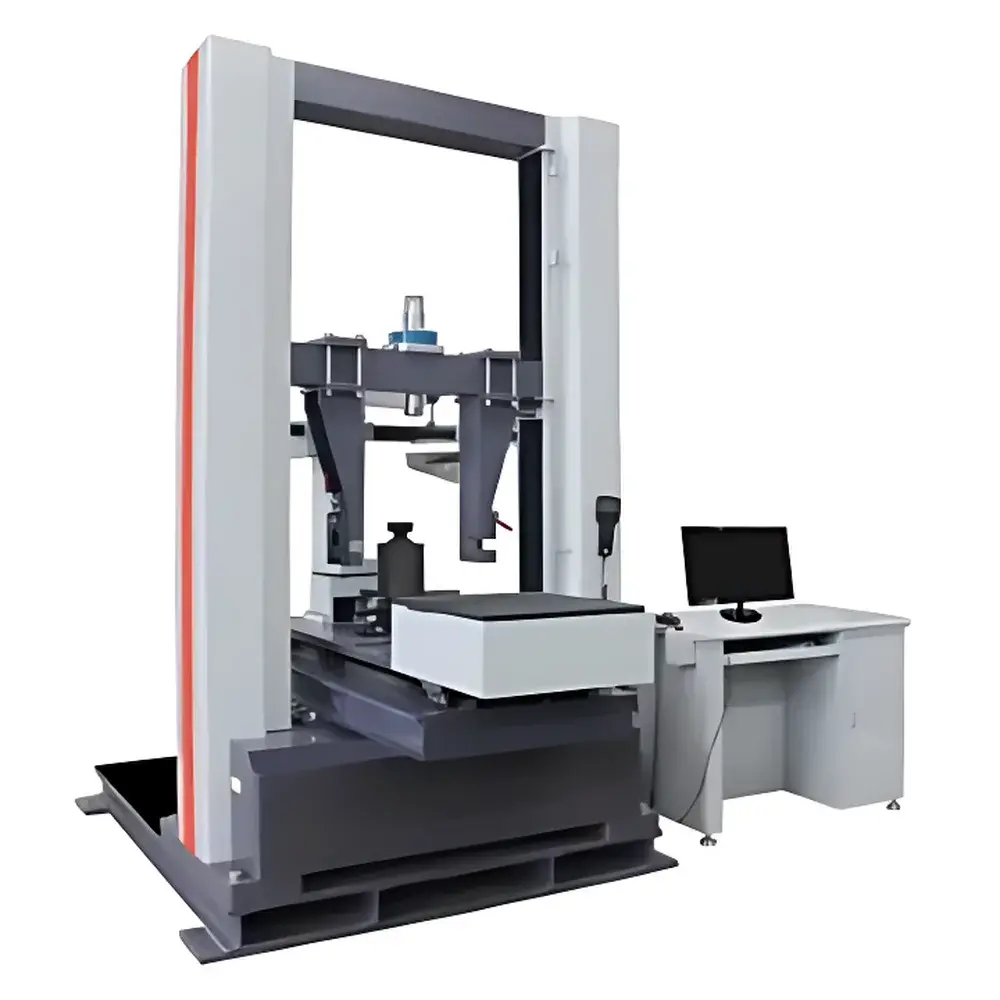

GOTECH LT-3000 Tire Comprehensive Strength Testing System

Overview

The GOTECH LT-3000 Tire Comprehensive Strength Testing System is an engineered platform designed for standardized mechanical characterization of pneumatic tires under controlled static and quasi-static loading conditions. It operates on principles derived from structural mechanics and contact pressure metrology, enabling simultaneous evaluation of three critical performance parameters: puncture energy absorption (per ASTM F1895 and ISO 4223-1), vertical stiffness (force–deflection response per ISO 8767 and SAE J170), and ground contact patch geometry—including footprint area, pressure distribution uniformity, and edge load concentration—via integrated high-resolution pressure-sensitive film or optical displacement mapping (depending on configuration). The system employs a closed-loop servo-hydraulic or servo-electric actuation architecture, ensuring precise displacement control within ±0.01 mm repeatability and force resolution down to 0.5 N over its full 0–30 kN dynamic range. Its modular frame design accommodates passenger car, light truck, and commercial radial tires (up to 32-inch diameter and 150 mm section width), with programmable load profiles supporting ramp, dwell, and cyclic test protocols.

Key Features

• Integrated multi-modal testing capability: single-platform execution of puncture resistance, vertical stiffness, and contact patch analysis—eliminating inter-system calibration drift and specimen repositioning errors.
• High-fidelity sensor suite: dual-axis load cell (±0.1% FS accuracy) and linear variable differential transformer (LVDT) displacement transducer (±0.005 mm linearity) synchronized at ≥1 kHz sampling rate.
• Real-time data acquisition and processing engine: embedded FPGA-based signal conditioning with onboard buffering, enabling lossless capture of transient peak events during puncture initiation.
• Modular test fixture interface: quick-change mounting plates compliant with ISO 4223-2 wheel hub adapters and adjustable axle-height positioning for radial, bias-ply, and run-flat tire geometries.
• Human-centered HMI: 15.6″ industrial touchscreen with intuitive workflow navigation, preloaded test method templates (ASTM, ISO, GB/T), and password-protected user role management (Operator, Technician, Administrator).

Sample Compatibility & Compliance

The LT-3000 supports tires conforming to ISO 4000-1 (tire designation), ETRTO TRC (European Tyre and Rim Technical Organisation), and GB/T 2977 (Chinese national standard for passenger car tires). It satisfies functional requirements for laboratory accreditation under ISO/IEC 17025:2017, with documented traceability to NIM (National Institute of Metrology, China) standards for force and displacement. Test reports generated include mandatory metadata fields required by automotive OEM supplier quality manuals (e.g., Ford Q1, GM BIQS, VW Formel Q), such as operator ID, environmental temperature/humidity logs, calibration certificate IDs, and raw data signature hashes. Optional audit-trail module enables compliance with FDA 21 CFR Part 11 for regulated R&D environments.

Software & Data Management

Control and analysis are executed via GOTECH TMS v4.2 (Tire Measurement Suite), a Windows-based application developed in accordance with IEC 62304 Class B software safety requirements. The software provides automated calculation of puncture energy (J), secant stiffness (kN/mm), footprint asymmetry index (%), and maximum contact pressure (MPa), with export formats including CSV, PDF/A-2b, and XML (ASTM E2936-compliant). All test sequences are stored with immutable timestamps and SHA-256 checksums; revision-controlled method files support version rollback and electronic signature workflows. Networked deployment allows centralized database archiving via SQL Server or Oracle backends, with configurable retention policies aligned with GLP documentation standards.

Applications

• Tire compound development: correlation of tread rubber hysteresis with puncture energy thresholds and contact pressure gradients.
• OEM validation testing: verification of tire–rim interaction stability under cornering load simulations (via lateral offset mounting kits).
• Quality assurance in manufacturing: 100% inline screening of cured tire uniformity using statistical process control (SPC) charts embedded in TMS.
• Regulatory submission support: generation of test evidence packages for UN Regulation No. 30 (ECE R30) and China CCC certification.
• Academic research: biomechanical modeling of tire–road interface dynamics using spatially resolved contact pressure datasets.

FAQ

What tire sizes can the LT-3000 accommodate?
The system supports tires with diameters from 380 mm to 810 mm (15–32 inches) and section widths up to 380 mm, with optional extended-height columns available for off-highway tires.
Is third-party calibration certification included?
Yes—each unit ships with a factory calibration certificate traceable to NIM, and optional UKAS-accredited calibration services are available upon request.
Can the system integrate with existing MES or PLM platforms?
Via RESTful API and OPC UA server modules, the LT-3000 supports bidirectional data exchange with Siemens Opcenter, PTC Windchill, and SAP QM modules.
Does the software support multi-language UI?
TMS v4.2 includes English, Chinese, Japanese, German, and Spanish language packs, all accessible without rebooting.
What maintenance intervals are recommended?
Preventive maintenance is scheduled every 1,000 operational hours or annually—whichever occurs first—with documented procedures covering servo amplifier diagnostics, sensor zero-drift verification, and mechanical guide rail lubrication.
