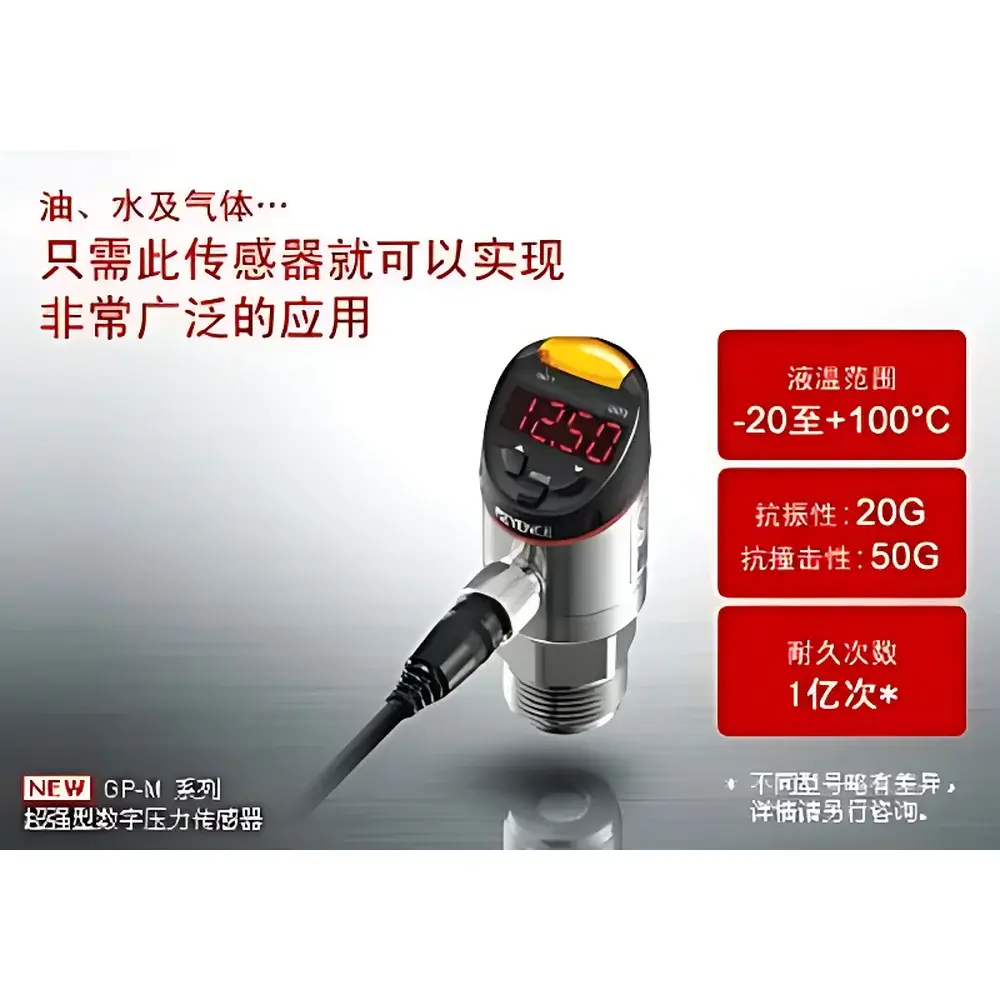

GP-M Series High-Performance Digital Pressure Sensor
| Brand | KEYENCE |
|---|---|
| Origin | Japan |
| Manufacturer | KEYENCE Corporation |
| Product Type | Imported Industrial Pressure Sensor |
| Model | GP-M Series |
| Pricing | Available Upon Request |
Overview
The KEYENCE GP-M Series High-Performance Digital Pressure Sensor is an industrial-grade, microprocessor-based transducer engineered for precise, stable, and repeatable pressure measurement across liquid (oil, water), gaseous, and mixed-phase process media. Utilizing a high-stability silicon piezoresistive sensing element with temperature-compensated signal conditioning, the GP-M Series delivers real-time digital output via RS-485 (Modbus RTU) or analog 4–20 mA / 0–10 V interfaces. Designed for integration into automated production lines and quality-critical control loops, it operates reliably under fluctuating ambient temperatures (−10 to +55 °C), mechanical vibration, and electromagnetic interference typical in automotive metal stamping, injection molding, food & pharmaceutical filling systems, semiconductor wafer handling, and electrical component assembly environments.
Key Features
- Universal Media Compatibility: Sealed stainless steel (SUS316L) wetted parts and chemically resistant diaphragm enable direct contact with oils, deionized water, compressed air, nitrogen, and inert process gases without degradation or clogging.
- Optimized Human-Machine Interface: Large, dual-axis LED display with 180° viewing angle ensures legibility from multiple operator positions; intuitive push-button navigation supports zero calibration, unit switching (kPa, MPa, psi, bar), and damping adjustment without external tools.
- Tool-Free Maintenance Design: Modular housing allows rapid sensor head disassembly for periodic cleaning or inspection—no specialized wrenches or torque calibration required—reducing mean time to repair (MTTR) in continuous operation settings.
- Ruggedized Industrial Construction: IP67-rated enclosure with reinforced cable gland and shock-resistant mounting flange withstands washdown cycles, mechanical impact (IK08 rating), and long-term exposure to factory-floor contaminants.
- Configurable Output & Diagnostics: Field-selectable output modes (analog + digital simultaneous), built-in self-diagnostics (sensor drift alert, open-circuit detection), and configurable alarm thresholds support predictive maintenance and IEC 61508-aligned functional safety workflows.
Sample Compatibility & Compliance
The GP-M Series is validated for use with non-corrosive and mildly aggressive fluids and gases commonly encountered in regulated manufacturing. It complies with CE marking requirements (EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU), meets RoHS 2011/65/EU substance restrictions, and conforms to JIS B 7552 (Japanese Industrial Standard for pressure transducers). While not certified for SIL-rated applications out-of-the-box, its deterministic response time (<10 ms), low hysteresis (<0.1% FS), and traceable calibration certificate (NIST-traceable reference standard) support validation under ISO 9001, ISO 13485, and FDA 21 CFR Part 11-compliant data integrity frameworks when integrated with compliant SCADA or MES platforms.
Software & Data Management
KEYENCE’s proprietary OPM-Sensor Configuration Tool (Windows-based, USB interface) enables offline parameter setup, firmware updates, and real-time waveform logging. The tool exports timestamped CSV datasets with metadata (sensor ID, calibration date, environmental conditions), supporting audit-ready documentation for GLP/GMP environments. For enterprise integration, native Modbus RTU mapping allows seamless connectivity to Siemens SIMATIC, Rockwell Logix, and Mitsubishi MELSEC PLCs. Optional OPC UA server add-on provides secure, platform-agnostic data publishing to cloud historians (e.g., Ignition Edge, Azure IoT Hub) with TLS 1.2 encryption and role-based access control.
Applications
- Automotive: Real-time monitoring of hydraulic clamping force in robotic welding fixtures and die-casting mold cavity pressure profiling.
- Plastics & Resins: Closed-loop feedback control of melt pressure during extrusion and injection molding to prevent flash, short shots, or material degradation.
- Foods & Pharmaceuticals: Verification of sterile barrier integrity in CIP/SIP systems, fill-level consistency in volumetric dosing, and vacuum integrity in blister packaging lines.
- Semiconductors: Precise backside gas pressure regulation in wafer chucks and electrostatic chuck (ESC) cooling circuits.
- Electrical Manufacturing: Detection of coolant pressure loss in high-power transformer test rigs and battery module thermal management systems.
FAQ
What pressure ranges are available in the GP-M Series?
Standard configurations span 0–0.5 MPa to 0–35 MPa full scale; custom ranges up to 70 MPa are available upon engineering review.
Is the GP-M Series suitable for sanitary applications?
It is not EHEDG or 3-A certified; for hygienic processing, KEYENCE recommends the separate FD-X series with tri-clamp fittings and electropolished surfaces.
Can the sensor be calibrated on-site?
Yes—zero calibration is supported via front-panel button sequence; span calibration requires connection to a NIST-traceable deadweight tester and OPM-Sensor Tool.
Does the GP-M Series support HART protocol?
No—only RS-485 (Modbus RTU) and analog 4–20 mA / 0–10 V outputs are implemented.
What is the warranty period and service support structure?
KEYENCE provides a 36-month limited warranty; global technical support includes remote diagnostics, application engineering consultation, and regional calibration lab access.
