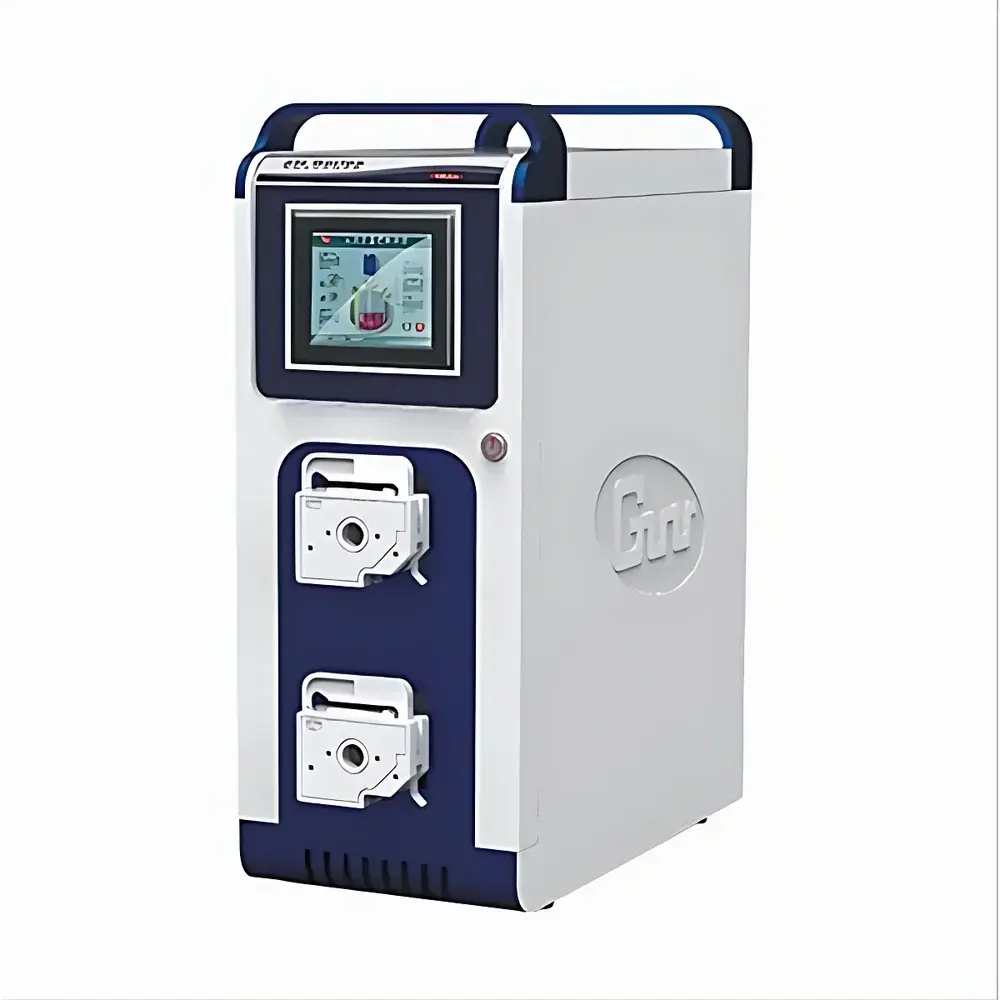

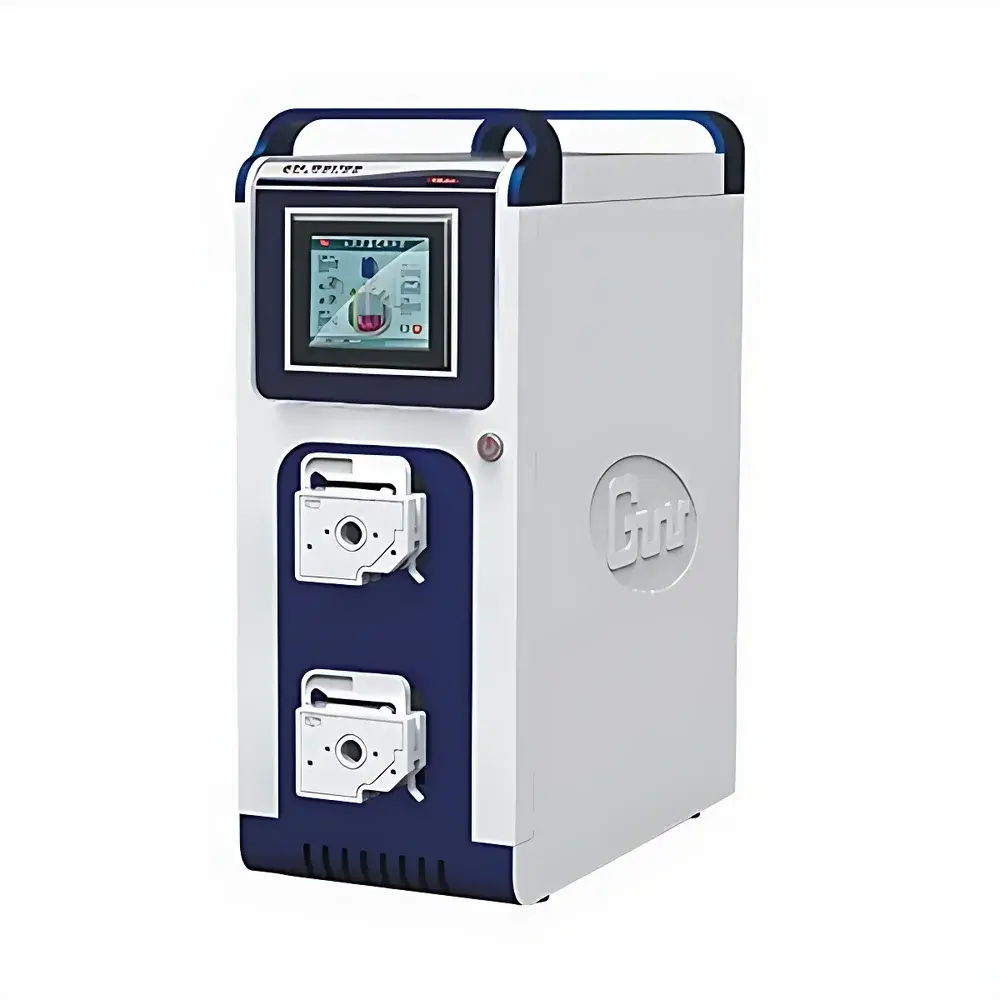

The Great Wall ZN-3000 Intelligent Biochemical Reaction Control System

Overview

The Great Wall ZN-3000 Intelligent Biochemical Reaction Control System is an integrated process automation platform engineered for precise, reproducible control of laboratory-scale biochemical and chemical reactions under ambient pressure or vacuum conditions. It operates on a closed-loop feedback architecture, synchronizing real-time monitoring of critical process variables—including temperature, pH, torque (as a proxy for viscosity and reaction progress), and agitation speed—with automated reagent dosing and programmable sequence logic. Unlike standalone controllers, the ZN-3000 functions as a central orchestration unit, interfacing directly with external jacketed reactors, magnetic or mechanical stirrers, pH electrodes, peristaltic dosing pumps, and optional external cooling/heating circulators. Its design adheres to fundamental principles of process analytical technology (PAT), supporting Quality-by-Design (QbD) workflows in R&D and pilot-scale development environments.

Key Features

• Multi-parameter closed-loop control: Simultaneous regulation of temperature (−50 °C to 300 °C), pH (0–14), stirring speed (10–300 rpm), and dosing pump actuation (0–100 rpm) with independent setpoint tuning and hysteresis management.
• 50-segment programmable logic controller (PLC)-style sequencing: Enables time- and event-triggered transitions between operational phases—e.g., ramp-hold-cool cycles, pH-stat titration profiles, or multi-stage addition protocols—without manual intervention.
• Torque-based viscosity inference: Integrated load cell and motor current sensing provide continuous torque readout (0–10 N·m), enabling indirect assessment of solution rheology changes during polymerization, enzymatic hydrolysis, or crystallization.
• Automated acid/base dispensing: Dual-channel peristaltic pump interface with adjustable speed and duration control (0–9999 min), supporting precise neutralization, pH-stat, or feed-forward addition strategies compliant with ASTM E2656 and ISO 17025 documentation requirements.
• Remote operation & audit-ready data handling: Ethernet/RS485 connectivity enables integration with SCADA systems or LabVIEW-based acquisition; all parameter logs include timestamped values, operator ID (if authenticated), and system status flags—facilitating 21 CFR Part 11-compliant electronic records when deployed with validated software.

Sample Compatibility & Compliance

The ZN-3000 is compatible with standard glass and stainless-steel reactor vessels (0.5–10 L capacity) equipped with PT100 temperature probes, ISFET or glass-body pH electrodes, and torque-sensing stirrer motors. It supports inert atmosphere operation via Schlenk-line or glovebox integration and accommodates solvent systems ranging from aqueous buffers to high-boiling-point organics (e.g., DMF, ethylene glycol). While not certified to IEC 61000-6-2/6-4 or ATEX standards out-of-the-box, its electrical architecture complies with GB/T 18268.1–2010 (equivalent to IEC 61326-1) for laboratory measurement equipment. For GMP-aligned use, validation packages—including IQ/OQ documentation templates and calibration traceability to NIM (National Institute of Metrology, China)—are available upon request.

Software & Data Management

The system ships with WallControl™ PC software (Windows 10/11, 64-bit), offering real-time dashboard visualization, configurable alarm thresholds (e.g., pH drift >±0.3 pH over 30 s), and export of CSV/Excel-formatted datasets with metadata headers. Raw data streams include synchronized timestamps at 100 ms resolution, supporting kinetic modeling in MATLAB, Python (Pandas/SciPy), or commercial tools like OriginLab. Audit trails record all parameter modifications, start/stop events, and calibration actions with user attribution and IP logging. Optional OPC UA server module enables seamless integration into enterprise LIMS or MES platforms for centralized batch record management.

Applications

• Enzyme kinetics studies requiring pH-stat-controlled substrate feeding under thermostated conditions.
• Polymer synthesis (e.g., polycondensation, RAFT) where viscosity tracking via torque correlates with molecular weight build-up.
• Biohydrogenation or chiral reduction processes demanding strict oxygen exclusion and dual-reagent addition timing.
• Crystallization screening with controlled anti-solvent addition and supersaturation profiling.
• Cell-free protein expression optimization involving sequential inducer and nutrient delivery.

FAQ

Can the ZN-3000 control multiple reactors simultaneously?
No—it is designed as a single-reactor control station. Multi-reactor coordination requires external PLC integration or deployment of multiple ZN-3000 units with synchronized network triggers.
Is third-party pH electrode calibration supported?
Yes—the system accepts standard mV input and supports two-point (4.01/7.00/10.01 pH) or three-point calibration routines with slope and offset diagnostics.
What safety interlocks are built into the hardware?
Hardware-level thermal cutoff at 320 °C, motor stall detection, and open-circuit alerts for pH/torque sensors prevent uncontrolled operation; no mechanical pressure relief is included—external reactor safety features must be independently verified.
Does the system support GLP-compliant electronic signatures?
WallControl™ software includes role-based access control and digital signature prompts for critical actions (e.g., method activation, calibration approval), meeting ALCOA+ data integrity criteria when configured with time-stamped, immutable log archiving.
Are spare parts and service available outside mainland China?
Yes—The Great Wall maintains authorized service partners in Germany, India, and the United States; lead times for sensor modules and pump heads average 4–6 weeks ex-warehouse Zhengzhou.
