GreenPrima PM8200P Online pH/ORP Monitor

Overview

The GreenPrima PM8200P Online pH/ORP Monitor is a high-integrity, CE-certified industrial process analyzer engineered for continuous, real-time measurement of hydrogen ion activity (pH) and oxidation-reduction potential (ORP) in aqueous process streams. Based on potentiometric principle using glass electrode technology, the PM8200P delivers traceable, stable readings under dynamic flow conditions across demanding environments—from wastewater treatment basins to pharmaceutical bioreactors and steam-sterilized fermentation vessels. Its dual-channel capability supports simultaneous pH and ORP monitoring without hardware duplication, while its modular architecture allows seamless integration into existing DCS, SCADA, or PLC systems via industry-standard MODBUS RTU over RS485. Designed and manufactured in Switzerland, the instrument complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions), ensuring electromagnetic robustness in electrically noisy plant settings.

Key Features

• High-resolution potentiometric measurement: pH range −2.00 to 16.00 (0.01 pH resolution, ±0.01 pH accuracy); ORP range −2000 to +2000 mV (1 mV resolution, ±1 mV accuracy)
• Intelligent temperature compensation with support for NTC10k and PT1000 sensors (−10 to 130 °C, auto or manual mode)
• Dual isolated 4–20 mA analog outputs (0.1% full-scale linearity, max. 500 Ω loop load), individually assignable to pH, ORP, temperature, or derived parameters
• Two user-configurable SPDT relays with fully adjustable setpoints and hysteresis—suitable for pump control, alarm signaling, or batch-triggered cleaning cycles
• Onboard data logging capacity of 600,000 timestamped records (pH, ORP, temperature, relay status, calibration events), retained during power loss
• Backlit dot-matrix LCD display with multilingual UI (English/Chinese), intuitive navigation, and real-time error diagnostics (e.g., electrode fault, cable break, temperature out-of-range)
• Programmable automatic electrode cleaning function: cleaning interval (0.1–1000 hours) and duration (1–1000 seconds) configurable per application requirement
• IP65-rated polycarbonate enclosure rated for wall-mount, panel-mount, or pole-mount installation; operating ambient temperature range: 0–70 °C

Sample Compatibility & Compliance

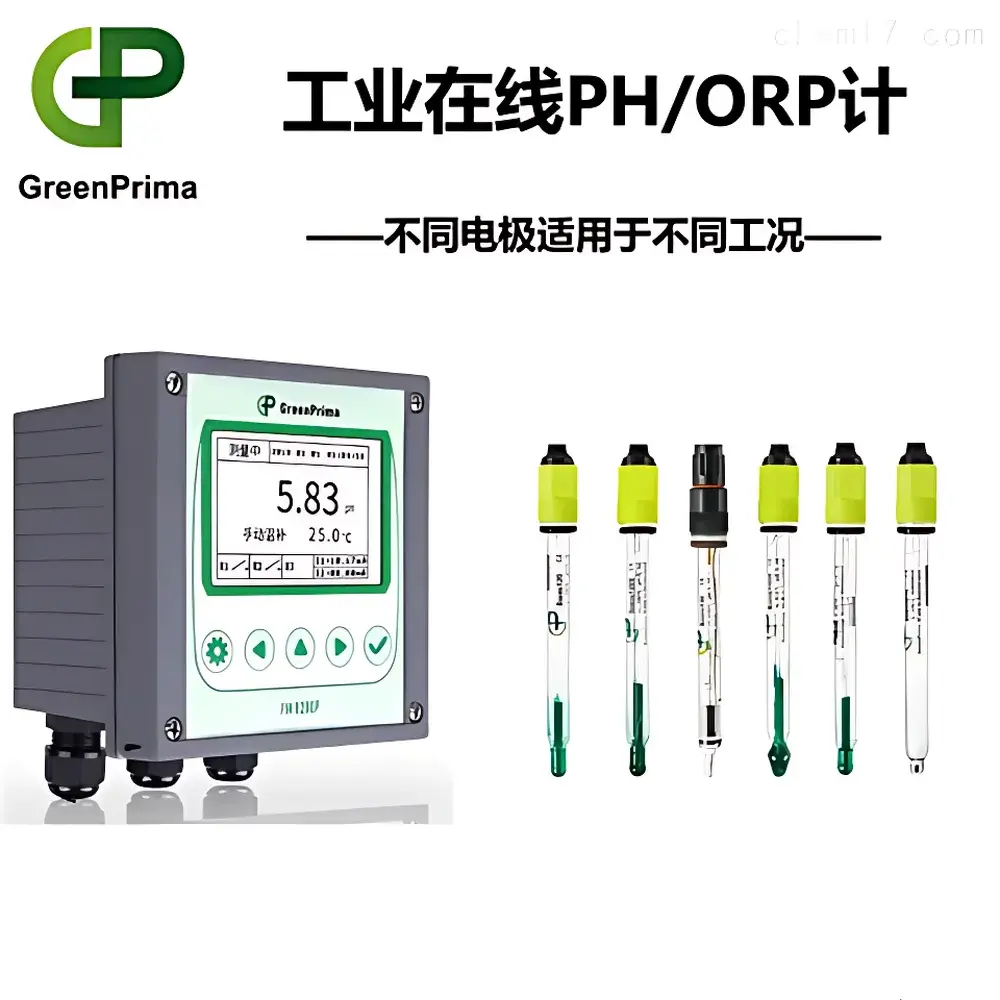

The PM8200P is compatible with a broad portfolio of GreenPrima’s application-optimized pH/ORP electrodes—including Bsens110 (general-purpose wastewater), Bsens210 (ORP-specific Pt reference), Bsens120 (high-temp sterilizable up to 105 °C), Bsens130 (steam-in-place capable, 10 bar/135 °C), Bsens140 (low-conductivity ultrapure water), and Bsens150 (HF-resistant for fluorinated media). All electrodes feature rugged Ryton or borosilicate glass bodies, PG13.5 or 3/4″ NPT threaded fittings, and S8 plug options for field-replaceable cabling. The system meets requirements for routine use in ISO 9001-certified manufacturing, USP <797> environmental monitoring, and EPA-compliant effluent discharge reporting. While not intrinsically safe, it may be deployed in Zone 2/Class I Div 2 areas when installed per IEC 60079-14 guidelines.

Software & Data Management

Data retrieval and configuration are supported via local keypad or remote serial interface. The embedded MODBUS RTU protocol enables bidirectional communication for reading live values, accessing historical logs, triggering manual calibrations, and updating relay logic—all without proprietary software. Logged data export is possible via MODBUS register polling into historian platforms such as Siemens Desigo CC, Emerson DeltaV, or Ignition SCADA. Audit trails include timestamped calibration entries (including buffer IDs, slope/mV/pH offset), relay activation logs, and sensor diagnostic flags—supporting GLP/GMP traceability where required. Firmware updates are performed via secure UART interface with checksum validation.

Applications

• Wastewater treatment: influent/effluent pH control, neutralization basin dosing, sludge digestion monitoring
• Power generation: condensate polishing, boiler feedwater alkalinity control, cooling tower corrosion management
• Pharmaceutical & biotech: fermenter pH feedback loops, CIP/SIP cycle verification, purified water (PW) and WFI distribution system surveillance
• Food & beverage: acidification of dairy products, enzymatic reaction control, cleaning-in-place (CIP) chemical concentration tracking
• Chemical processing: batch reactor endpoint detection, catalyst stability assessment, scrubber liquor monitoring
• Municipal water: chlorine disinfection optimization, coagulant dosing, corrosion inhibitor efficacy evaluation

FAQ

Does the PM8200P support automatic two-point calibration?
Yes—it supports both manual and automated two-point calibration using standard NIST-traceable buffers (e.g., pH 4.01, 7.00, 10.01). Calibration coefficients are stored non-volatilely and applied in real time.
Can the device operate on 24 VDC?
Yes—24 VDC is an optional power configuration available at order time; default supply is 90–260 VAC, 50/60 Hz.
Is MODBUS RTU configuration password-protected?
No—MODBUS registers are open-access per standard implementation, but write access to critical parameters (e.g., calibration, relay logic) requires confirmation via local keypad or authorized host command sequence.
What is the maximum recommended cable length between transmitter and electrode?
For optimal noise immunity and signal integrity, GreenPrima recommends ≤15 m for shielded coaxial cable; longer runs require signal conditioning or remote preamplifier modules (e.g., Bsens-RX series).
How does the system handle electrode drift in high-solids or viscous media?
The PM8200P includes adaptive slope monitoring and configurable drift alarms; combined with scheduled automatic cleaning cycles, it maintains measurement confidence without requiring frequent manual intervention.
