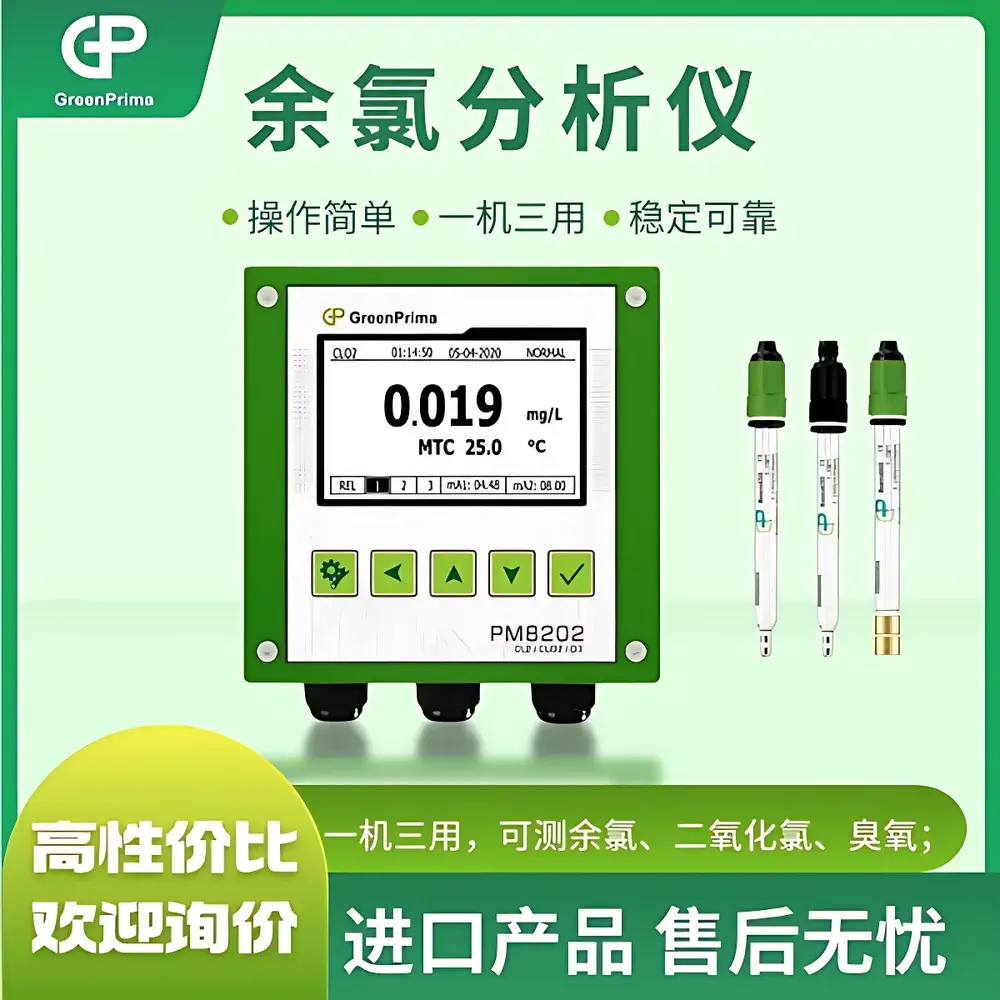

GreenPrima PM8202CL Residual Chlorine and Chlorine Dioxide Analyzer

Overview

The GreenPrima PM8202CL is an online amperometric residual chlorine and chlorine dioxide analyzer engineered for continuous, real-time monitoring of disinfectant residuals in potable water, wastewater, and industrial process streams. It operates on the constant-voltage amperometric principle—applying a stable polarization potential across a dual-platinum or gold working electrode (Bsens650 or Bsens660 sensor) immersed in flowing sample water within the BAF615 flow cell. This electrochemical method enables selective, reagent-free detection of free chlorine, total chlorine, chlorine dioxide, and ozone without chemical derivatization or colorimetric interference. Unlike photometric or DPD-based systems, the PM8202CL eliminates dependency on reagents, membranes, and electrolyte refills—reducing operational cost, maintenance frequency, and calibration drift over extended deployment periods. Its integrated temperature compensation (via NTC10K or PT1000 probe) ensures measurement stability across wide thermal gradients—from cold distribution networks to thermally active hospital effluent lines.

Key Features

• Reagent-free, membrane-free amperometric sensing using dual-platinum or gold electrodes for high selectivity and long-term signal stability
• Triple-analyte capability: simultaneous configuration for residual chlorine (free/total), chlorine dioxide, and ozone via software-selectable sensor modes
• Integrated BAF615 constant-flow cell maintains laminar, pulse-free sample delivery—critical for reproducible electrochemical response
• No sample pre-treatment required: direct measurement of raw, filtered, or clarified water with minimal particulate interference
• Dual isolated 4–20 mA analog outputs configurable for primary analyte and temperature; RS485 Modbus RTU interface for SCADA/HMI integration
• Two independent relay outputs with user-defined hysteresis for alarm actuation, pump control, or dosing system interlock
• Programmable auto-cleaning cycle with adjustable frequency (0.1–1000 hours) and duration (1–1000 seconds) to mitigate biofilm or scaling accumulation
• Secure operation with password-protected parameter editing and configuration lockout—supports audit-ready access control
• Backlit graphic LCD with bilingual (English/Chinese) UI, intuitive navigation, and real-time trend display
• Robust IP65-rated enclosure suitable for wall-mount, panel-mount, or inline pipe installation in humid or splash-prone environments

Sample Compatibility & Compliance

The PM8202CL is validated for use in municipal drinking water distribution systems, hospital sterilization effluent streams, secondary water supply tanks, food & beverage process loops, and pharmaceutical purified water (PW) circuits. It meets functional requirements aligned with ISO 9001-certified manufacturing practices and supports compliance with regulatory frameworks including EPA Method 334.0 (amperometric chlorine), ASTM D1253 (residual chlorine determination), and WHO Guidelines for Drinking-water Quality (4th ed.). While not intrinsically certified for hazardous locations, its electrical isolation and low-power design facilitate safe deployment in Class I, Division 2 zones when installed per NEC Article 500. The instrument’s data logging (600,000 points) and timestamped event history support GLP/GMP documentation needs where traceability is mandated.

Software & Data Management

The embedded firmware provides full local configuration via front-panel keypad and LCD. Remote commissioning and diagnostics are enabled through Modbus RTU—allowing integration into central SCADA platforms (e.g., Ignition, Siemens Desigo, or Schneider EcoStruxure). All calibration events, alarm triggers, cleaning cycles, and parameter changes are time-stamped and stored in non-volatile memory. Data export is supported via USB or serial dump for CSV-compatible analysis in Excel or LIMS environments. Optional PC-based configuration utility (GreenPrima ConfigTool v2.1) enables batch setup, firmware updates, and trend report generation—including overlay of chlorine concentration vs. temperature and flow rate correlation.

Applications

• Municipal water treatment plants: continuous monitoring at chlorination contact tanks, clearwells, and distribution network entry points
• Hospital central sterile supply departments (CSSD): verification of chlorine dioxide sterilant concentration in washer-disinfectors and endoscope reprocessors
• Food & beverage production: validation of sanitizing rinse concentrations on CIP lines and filler nozzles
• Pharmaceutical water systems: PW and WFI loop monitoring per USP and EU Annex 1 expectations for bioburden control
• Swimming pool and spa management: automated feedback control of chlorine dosing pumps based on real-time residual readings
• Industrial cooling towers: corrosion-inhibiting oxidant level assurance without reagent consumption or waste generation

FAQ

What electrochemical principle does the PM8202CL employ?
It uses constant-potential amperometry—applying a fixed voltage between working and reference electrodes to drive reduction of oxidants (Cl₂, ClO₂, O₃) at the catalytic surface, generating a current proportional to concentration.
Can the same sensor measure chlorine, chlorine dioxide, and ozone interchangeably?
Yes—sensor selection (Bsens650 for chlorine/ozone, Bsens660 for chlorine dioxide) and firmware configuration determine analyte specificity; hardware remains identical across applications.
Is temperature compensation automatic or manual?
Both options are available: automatic compensation using integrated NTC10K or PT1000 probes, or manual offset input when external temperature data is unavailable.
How often does the sensor require recalibration?
Typical field recalibration interval is 30–90 days depending on matrix fouling risk; zero-point verification can be performed daily using deionized water, while span checks use NIST-traceable standard solutions.
Does the analyzer support FDA 21 CFR Part 11 compliance?
While the base unit lacks electronic signature or audit trail encryption, its logged event history (with timestamps and operator IDs via password roles) forms the foundational data layer for Part 11-compliant validation when deployed within validated IT infrastructure.
