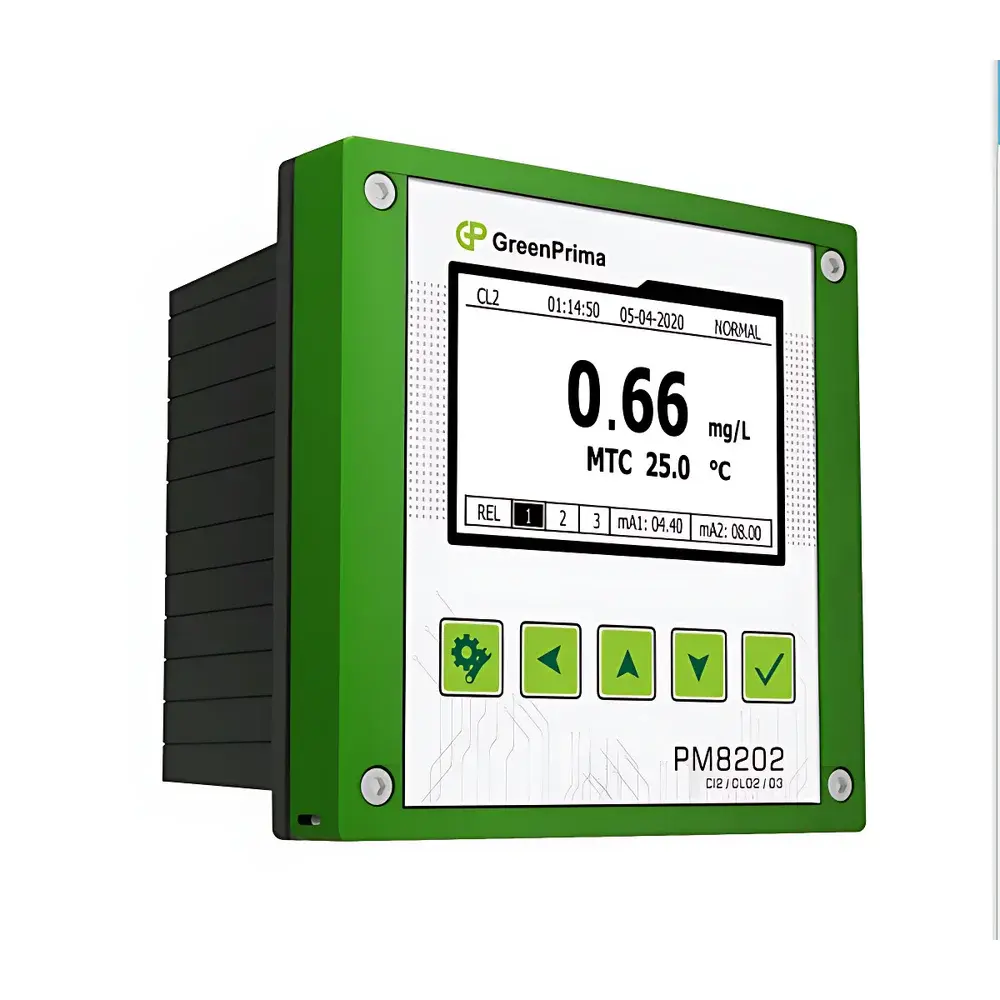

GreenPrima PM8202CL Residual Chlorine and Chlorine Dioxide Analyzer
| Brand | GreenPrima |
|---|---|
| Origin | Imported |
| Manufacturer Type | Manufacturer |
| Model | PM 820 2CL |
| Instrument Type | Online Analyzer |
| Measurement Principle | Electrochemical Amperometric Sensor (Constant Voltage Method) |
| Measured Parameters | Free Chlorine, Combined Chlorine, Chlorine Dioxide, Ozone |
| Range | 0–2 ppm / 0–20 ppm (switchable) |
| Accuracy | ±2% of Full Scale |
| Repeatability | ±2% of Full Scale |
| Resolution | 0.001 ppm / 0.01 ppm (selectable) |
| Detection Limit | 0.001 ppm / 0.01 ppm (selectable) |
| pH Compensation | Built-in |
| Output | Dual 4–20 mA, RS485 Modbus RTU |
| Data Logging | Internal memory with timestamped records |
| Flow Cell | BAF615 integrated flow-through cell |
| Electrode Options | Bsens650 Pt-based (free chlorine), Bsens660 Au-based (ClO₂/O₃) |
| Installation | Wall-mount or panel-mount |
Overview
The GreenPrima PM8202CL is a high-reliability online residual chlorine and chlorine dioxide analyzer engineered for continuous, real-time monitoring in demanding water treatment and process environments. It employs a constant-voltage amperometric electrochemical sensing principle—distinct from colorimetric or membrane-based methods—to deliver stable, reagent-free measurement of free chlorine (hypochlorous acid/hypochlorite), combined chlorine (chloramines), chlorine dioxide, and ozone in aqueous matrices. Unlike conventional membrane-clad sensors prone to fouling in turbid or organic-rich streams (e.g., hospital wastewater or pharmaceutical effluent), the PM8202CL utilizes solid-state, grounded noble-metal electrodes—specifically the Swiss-manufactured Bsens650 platinum sensor for free chlorine and Bsens660 gold sensor for ClO₂ and O₃—ensuring long-term stability, low drift, and minimal maintenance. Its design addresses critical regulatory requirements for disinfectant residual control under WHO Guidelines for Drinking-water Quality, US EPA Method 334.0, and ISO 7393-2, supporting compliance in potable water distribution, pharmaceutical water systems (PW/WFI), food & beverage process lines, and healthcare facility effluent management.
Key Features
- Triple-parameter capability: Configurable for simultaneous or selective measurement of free chlorine, chlorine dioxide, or ozone—no hardware change required.
- Constant-voltage amperometry: Eliminates need for membranes, electrolyte refills, or chemical reagents—reducing total cost of ownership and operational downtime.
- Integrated pH compensation: Real-time correction for pH-dependent chlorine speciation (HOCl vs. OCl⁻), improving accuracy across pH 4.0–8.5 without external pH transmitter dependency.
- BAF615 precision flow cell: Ensures laminar, pressure-stabilized sample delivery; minimizes velocity-induced signal noise and bubble interference.
- Dual isolated 4–20 mA analog outputs: Programmable per parameter (e.g., mA1 = free chlorine, mA2 = ClO₂); supports HART-compatible control systems.
- RS485 Modbus RTU interface: Enables seamless integration into SCADA, DCS, or LIMS platforms for centralized data acquisition and alarm management.
- Onboard data logging: Stores up to 100,000 timestamped readings (user-configurable interval), compliant with GLP audit trail requirements.
- Flexible mounting: IP65-rated enclosure supports wall-mount, panel-mount, or DIN-rail installation in control rooms or wet utility areas.
Sample Compatibility & Compliance
The PM8202CL is validated for use in diverse aqueous matrices including municipal drinking water, secondary-treated wastewater, pharmaceutical purified water (USP ), clean-in-place (CIP) rinse water, and hospital sterilization effluent. Its electrode architecture tolerates suspended solids ≤50 mg/L, turbidity ≤100 NTU, and moderate organic loading—making it suitable where membrane-based analyzers fail. The system meets CE marking requirements per EN 61326-1 (EMC) and EN 61010-1 (safety). Firmware supports configurable alarm thresholds, event logging, and user-access levels aligned with FDA 21 CFR Part 11 principles for electronic records and signatures. Calibration verification protocols align with ASTM D1253 and ISO 8539 for residual oxidant quantification.
Software & Data Management
Configuration and diagnostics are performed via the GreenPrima PC Utility (Windows-based), which provides guided calibration workflows, electrode health diagnostics, and firmware update capability. All configuration changes—including range selection, output scaling, and pH compensation coefficients—are digitally signed and logged with operator ID and timestamp. Data export supports CSV and XML formats for traceability. When deployed with optional cloud gateway modules, historical trends and alarm events can be synchronized to secure AWS IoT Core endpoints—enabling remote fleet monitoring and predictive maintenance scheduling based on electrode polarization resistance trends.
Applications
- Municipal water utilities: Continuous monitoring at chlorination contact tanks and distribution system entry points per AWWA C651 standards.
- Hospital central sterile supply departments (CSSD): Real-time verification of chlorine residual in washer-disinfector final rinse cycles.
- Pharmaceutical manufacturing: In-line verification of sanitizing agent concentration in purified water loops and component cleaning validation.
- Food & beverage production: Control of chlorine dosing in CIP systems for dairy, brewery, and bottling lines (FSMA §117.130 compliance).
- Swimming pool & spa management: Automated feedback control of chlorine generators to maintain 1–3 ppm free chlorine within ANSI/APSP-11 limits.
- On-site chlorine dioxide generation systems: Closed-loop control of precursor feed rates using real-time ClO₂ output feedback.
FAQ
Does the PM8202CL require daily maintenance or reagent replacement?
No. As a reagent-free, membraneless electrochemical analyzer, it requires only quarterly zero/span verification and annual electrode inspection—significantly reducing labor and consumables versus colorimetric or Clark-cell systems.
Can the same instrument measure both free chlorine and chlorine dioxide?
Yes. Using software-selectable electrode modes and calibrated response curves, the PM8202CL switches between free chlorine (Bsens650), chlorine dioxide (Bsens660), and ozone—without hardware modification.
Is pH compensation mandatory for accurate free chlorine measurement?
Yes. Because hypochlorous acid (HOCl) and hypochlorite ion (OCl⁻) exhibit different oxidation potentials, uncorrected measurements deviate significantly above pH 7.0. The built-in pH compensation algorithm applies Nernst-based correction using either integrated pH input or fixed-pH assumption.
What is the recommended calibration frequency?
Initial factory calibration is traceable to NIST-certified standard solutions. Field calibration is recommended every 7–30 days depending on matrix fouling risk; automated calibration verification routines reduce manual intervention.
How does the BAF615 flow cell improve measurement stability?
It maintains constant linear flow velocity (0.3–1.2 m/s) and eliminates air entrapment via vented chamber geometry—preventing signal spikes caused by transient flow conditions or microbubbles common in gravity-fed or variable-speed pump applications.
