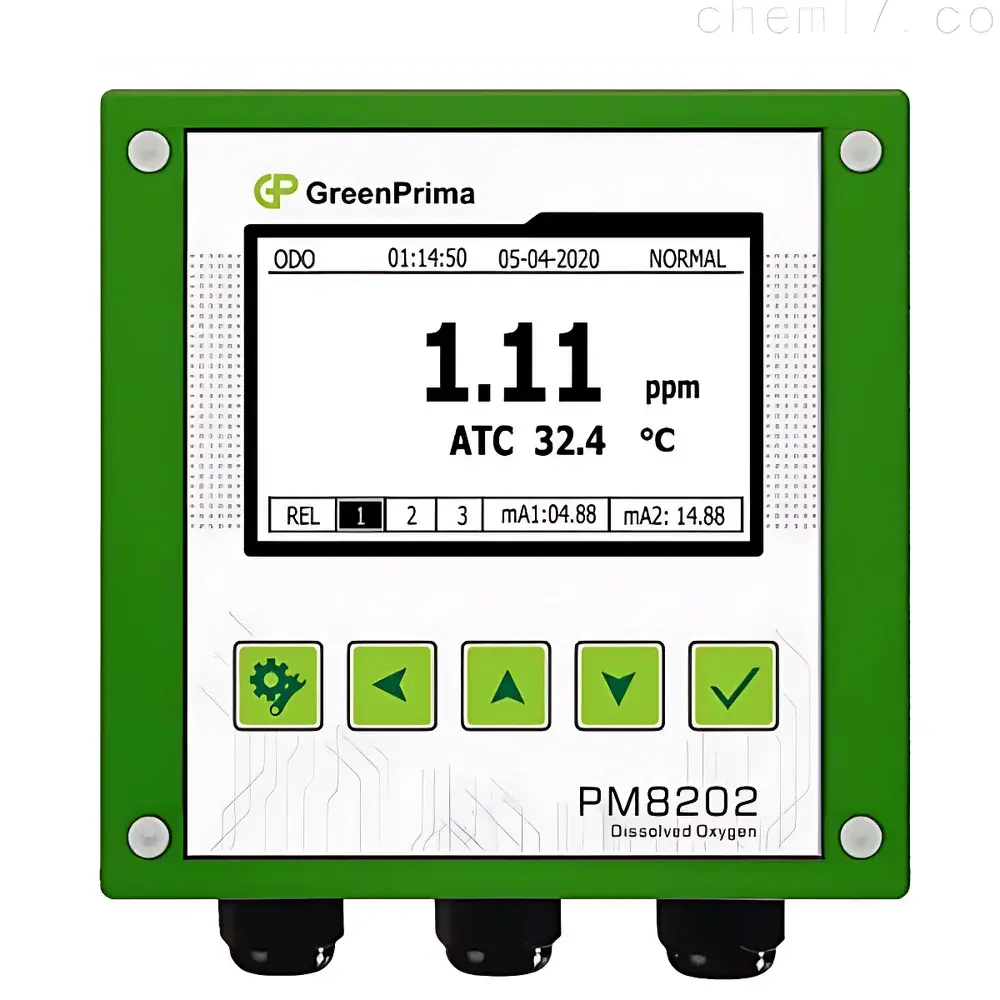

GreenPrima PM8202D Online Polarographic Dissolved Oxygen Analyzer

Overview

The GreenPrima PM8202D Online Polarographic Dissolved Oxygen Analyzer is a robust, field-deployable instrument engineered for continuous, real-time measurement of dissolved oxygen (DO) concentration in potable water distribution systems and industrial process streams. It operates on the classical Clark-type polarographic principle: molecular oxygen diffuses through a gas-permeable membrane into an electrolyte-filled electrochemical cell, where it undergoes reduction at a cathode (typically gold or platinum) held at a fixed polarizing voltage (−0.6 to −0.8 V vs. Ag/AgCl). The resulting diffusion-limited current is linearly proportional to the partial pressure of oxygen in the sample, enabling precise quantification of DO in aqueous media. Designed specifically for municipal drinking water monitoring, the PM8202D meets the operational demands of high-reliability, low-maintenance deployment in chlorinated, low-conductivity environments—where membrane fouling, drift, and calibration stability are critical performance constraints.

Key Features

• True polarographic sensor architecture with replaceable Clark-type electrodes (compatible with Bsens420, Bsens430, and Bsens440 series), each optimized for specific flow regimes, pressure ratings, and fouling resistance
• IP65-rated hermetically sealed enclosure—resistant to dust ingress, condensation, and intermittent water exposure—suitable for indoor and outdoor mounting in pump stations, clearwells, and booster facilities
• Backlit high-contrast dot-matrix LCD display showing real-time DO (ppm/ppb), temperature (°C), system time, relay status, and diagnostic indicators
• Dual isolated 4–20 mA analog outputs (0.1 % FS accuracy, max. loop resistance 500 Ω), configurable for DO concentration and/or temperature signals
• RS485 Modbus RTU interface supporting standard register mapping for integration with SCADA, DCS, and PLC systems (e.g., Siemens S7, Rockwell ControlLogix, Schneider EcoStruxure)
• User-configurable cleaning cycle (interval: 0.1–1000 h; duration: 1–1000 s) to maintain membrane integrity in variable-turbidity applications
• Two independent programmable alarm relays (5 A / 250 VAC / 30 VDC) with adjustable hysteresis, supporting fail-safe shutdown or alarm annunciation protocols
• Full password protection (three-tier access: operator, engineer, administrator) to prevent unauthorized configuration changes—aligned with IEC 62443-3-3 requirements for secure device management

Sample Compatibility & Compliance

The PM8202D is validated for use in low-ionic-strength, chlorinated potable water (conductivity: 50–1500 µS/cm; pH: 6.5–8.5; free chlorine ≤ 2 mg/L). Its polarographic membrane design provides stable response in non-agitated or low-flow conditions typical of distribution network monitoring points. Electrode selection (Bsens420 for general-purpose wall-mount, Bsens430 for insertion-style pipe tapping, Bsens440 for high-pressure or steam-sterilizable applications) ensures mechanical and chemical compatibility across diverse installation scenarios. The analyzer complies with EN ISO 5814:2012 (water quality — determination of dissolved oxygen — electrochemical probe method) and supports audit-ready operation under GLP and GMP frameworks via timestamped data logging and change-tracking of calibration events.

Software & Data Management

Internal non-volatile memory stores up to 600,000 timestamped records (DO, temperature, relay status, alarm flags) with millisecond-level resolution. Data export is supported via Modbus polling or optional USB-to-serial adapter (not included). Firmware updates are performed via secure UART bootloading. All configuration parameters—including calibration coefficients, temperature compensation mode (NTC10K or PT1000), and Modbus slave ID—are retained during power loss. Optional PC-based configuration utility (GreenPrima ConfigTool v3.x) enables batch setup, trend visualization, and CSV report generation—fully compatible with FDA 21 CFR Part 11 requirements when deployed with electronic signature and audit trail modules.

Applications

• Municipal drinking water treatment: continuous DO monitoring in clearwells, reservoirs, and post-chlorination contact tanks to verify oxidative stability and prevent biofilm regrowth
• Pharmaceutical purified water (PW) and water-for-injection (WFI) loops—compliant with USP <1231> and EU Annex 1 guidance on microbial control
• Power plant condensate and feedwater systems, where sub-ppb DO levels must be maintained to mitigate flow-accelerated corrosion (FAC) in carbon steel piping
• Biopharmaceutical fermentation and cell culture bioreactors requiring precise DO setpoint control within ±0.02 ppm tolerance
• Food & beverage process water lines, especially where ozone or UV disinfection is employed and residual oxidant interference must be minimized

FAQ

What polarographic electrode models are supported?
The PM8202D controller is compatible with GreenPrima’s Bsens420 (standard immersion), Bsens430 (insertion-type, ½” NPT), and Bsens440 (high-pressure, autoclavable) electrodes—all featuring Teflon-coated PTFE membranes and integrated temperature sensors.
Is manual calibration required, and how often?
Yes. A two-point calibration (zero-O₂ and saturated-air) is recommended every 7–14 days depending on water quality and flow velocity. Electrolyte replenishment and membrane replacement are required every 3–6 months under continuous operation.
Can the instrument operate without temperature compensation?
No. Temperature compensation is mandatory for accurate DO measurement due to strong solubility dependence on thermal state. The unit supports both automatic (via built-in NTC10K or external PT1000) and manual input modes.
Does the PM8202D meet drinking water safety standards for materials contact?
All wetted parts—including membrane housing, O-rings, and sensor body—are constructed from FDA-compliant, NSF/ANSI 61-certified materials (e.g., PVDF, EPDM, 316L SS) suitable for direct contact with potable water.
What is the maximum allowable pressure for pipe-mounted installations?
When used with Bsens430 or Bsens440 electrodes, the system supports static pressures up to 10 bar (145 psi) at 25 °C, with derating above 60 °C per manufacturer’s pressure-temperature rating chart.
