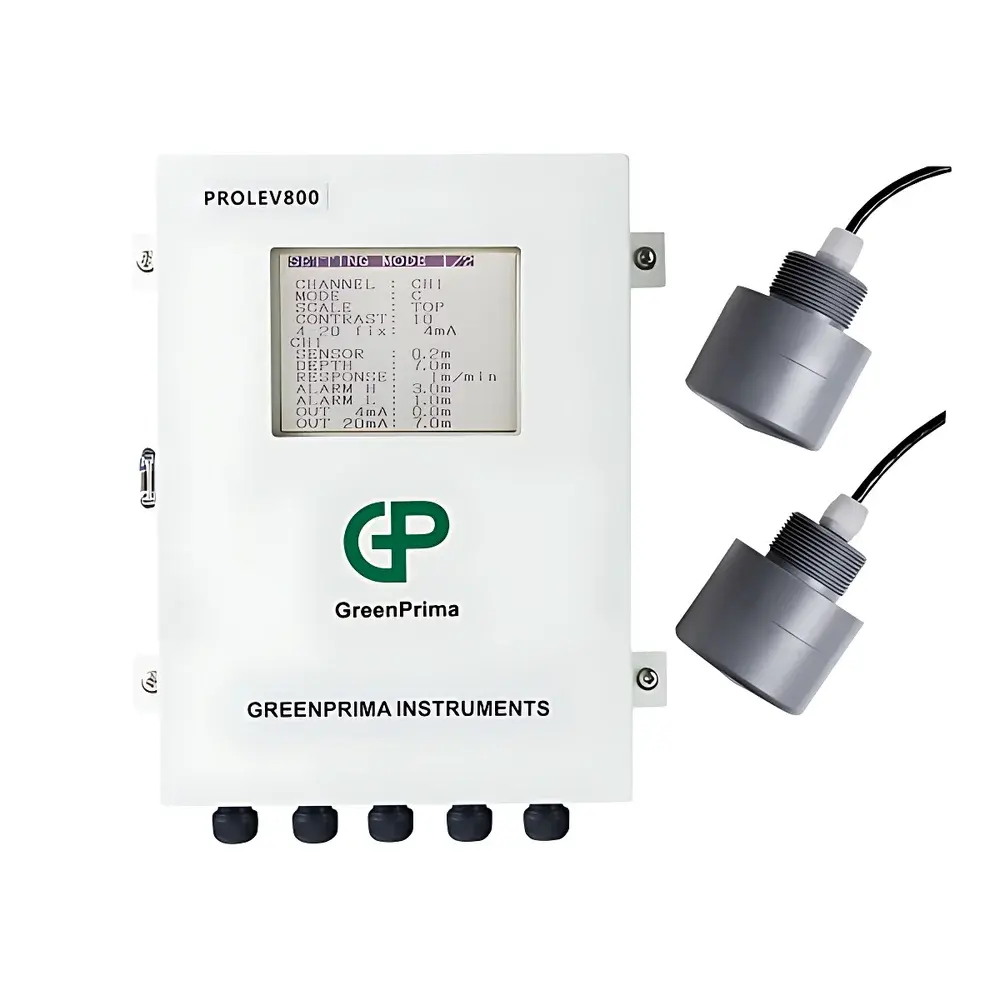

GreenPrima ProLev800 Ultrasonic Sludge Interface Gauge

Overview

The GreenPrima ProLev800 Ultrasonic Sludge Interface Gauge is an industrial-grade, non-contact level measurement instrument engineered for continuous, high-reliability monitoring of the sludge–water interface in primary and secondary clarifiers, thickeners, and pre-concentration basins. Based on time-of-flight ultrasonic sensing technology, the ProLev800 emits low-frequency acoustic pulses (typically 20–50 kHz) from a submersible transducer mounted at the basin bottom or suspended from the surface. The system precisely calculates the distance to the interface by measuring the transit time between the emitted pulse and the strongest reflected echo—corresponding to the acoustic impedance discontinuity between settled sludge and overlying supernatant. This principle enables robust discrimination of the sludge blanket without interference from floating scum, surface turbulence, or variable suspended solids concentration. Designed specifically for harsh wastewater environments—including steel mill effluent treatment systems—the ProLev800 delivers stable performance under fluctuating hydraulic loads, high TSS content, and abrasive particulate conditions common in metallurgical and coal-washing applications.

Key Features

• Graphical backlit LCD display with simultaneous numeric height readout, real-time ultrasonic echo waveform visualization, and configurable trend plots (5 minutes to 48 hours)
• Dual-sensor capability: single transmitter unit supports two independent ultrasonic probes—enabling cross-verification or multi-zone profiling in large-diameter tanks
• Embedded microprocessor with adaptive signal processing algorithms that suppress false echoes from tank walls, baffles, or aerator interference
• No moving parts or mechanical wear components—ensuring long-term stability and minimal maintenance intervals
• Adjustable display brightness and user-friendly menu navigation for field parameter configuration (e.g., damping, alarm thresholds, averaging window)
• Isolated 4–20 mA analog output with HART-compatible protocol support (optional firmware upgrade)
• Two programmable relay outputs for high/low interface alarms—configurable for process control interlocks (e.g., sludge pump activation/deactivation)
• IP68-rated transducer housing with stainless steel 316L wetted parts and EPDM diaphragm—validated for continuous submersion in aggressive industrial effluents

Sample Compatibility & Compliance

The ProLev800 is validated for use in municipal and industrial wastewater streams containing suspended solids up to 50,000 mg/L, oil content <100 ppm, and pH range 4–11. It operates reliably in viscous sludge blankets with apparent viscosities up to 5,000 mPa·s and densities ranging from 1,020 to 1,250 kg/m³. The device complies with EN 61326-1:2013 (EMC for industrial environments), EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions). Its electrical safety design conforms to EN 61010-1:2010 for measurement/control laboratory equipment. While not certified for SIL-rated safety loops, it is routinely deployed in systems aligned with ISO 9001:2015 and ISO 14001:2015 environmental management frameworks. Data logging and configuration records meet basic audit-trail requirements for GLP-aligned operations; optional CSV export via RS232 supports integration into SCADA or LIMS platforms compliant with FDA 21 CFR Part 11 (when paired with validated host software).

Software & Data Management

Configuration and diagnostics are performed via ASCII command set over RS232 serial interface using standard terminal emulation software (e.g., PuTTY, Tera Term). The transmitter stores up to 72 hours of 1-minute interval height data internally. Raw echo waveform snapshots and trend logs can be exported for post-processing in MATLAB, Python (Pandas), or Excel. GreenPrima provides a free Windows utility (ProLevConfig v3.2) supporting firmware updates, calibration offset adjustment, and alarm log review. No cloud connectivity or proprietary drivers are required. All settings are retained during power loss thanks to non-volatile EEPROM memory. For enterprise integration, Modbus RTU gateway modules (third-party) may be deployed to map 4–20 mA outputs and digital alarms into DCS architectures.

Applications

The ProLev800 is widely deployed across water-intensive industrial sectors where precise sludge blanket control directly impacts process efficiency and regulatory compliance. Primary use cases include: optimization of return activated sludge (RAS) flow in biological nutrient removal (BNR) trains; real-time supervision of gravity thickeners in coal preparation plants; interface tracking in iron/steel mill settling ponds handling scale-laden runoff; level monitoring in ash slurry thickeners within thermal power stations; and operational feedback for automatic scraper bridge speed control in large-diameter circular clarifiers. Its immunity to foam, temperature stratification, and conductivity variation makes it particularly suitable for intermittently loaded basins subject to diurnal flow surges or seasonal organic load shifts.

FAQ

What is the maximum recommended sludge blanket thickness for reliable detection?
The ProLev800 is optimized for interface detection within 0.4–10 m range; optimal resolution is achieved when the sludge layer exceeds 15 cm in depth. Thinner blankets (<5 cm) may require site-specific echo gain tuning.
Can the instrument distinguish between multiple layers (e.g., scum–water–sludge)?
No—it identifies the dominant acoustic impedance boundary, typically the densest sludge–supernatant interface. Multi-layer analysis requires complementary techniques such as gamma densitometry or multi-frequency sonar.
Is calibration required after installation?
Factory calibration is traceable to NPL (UK) standards. Field zero-point verification is recommended using a calibrated tape measure or laser distance meter at known still-water level; span check is unnecessary due to time-of-flight physics.
How does the system handle air bubbles or entrained gas in the sludge?
Gas pockets attenuate ultrasonic energy; however, the adaptive echo processing algorithm prioritizes the strongest consistent reflection over consecutive pulses, minimizing false readings caused by transient bubble clouds.
Does the 20 m cable include the transducer housing?
Yes—the 20 m integral cable terminates in an IP68-mated connector at the transmitter end and includes strain relief at the transducer base. Custom lengths up to 100 m are available with signal repeater modules.
