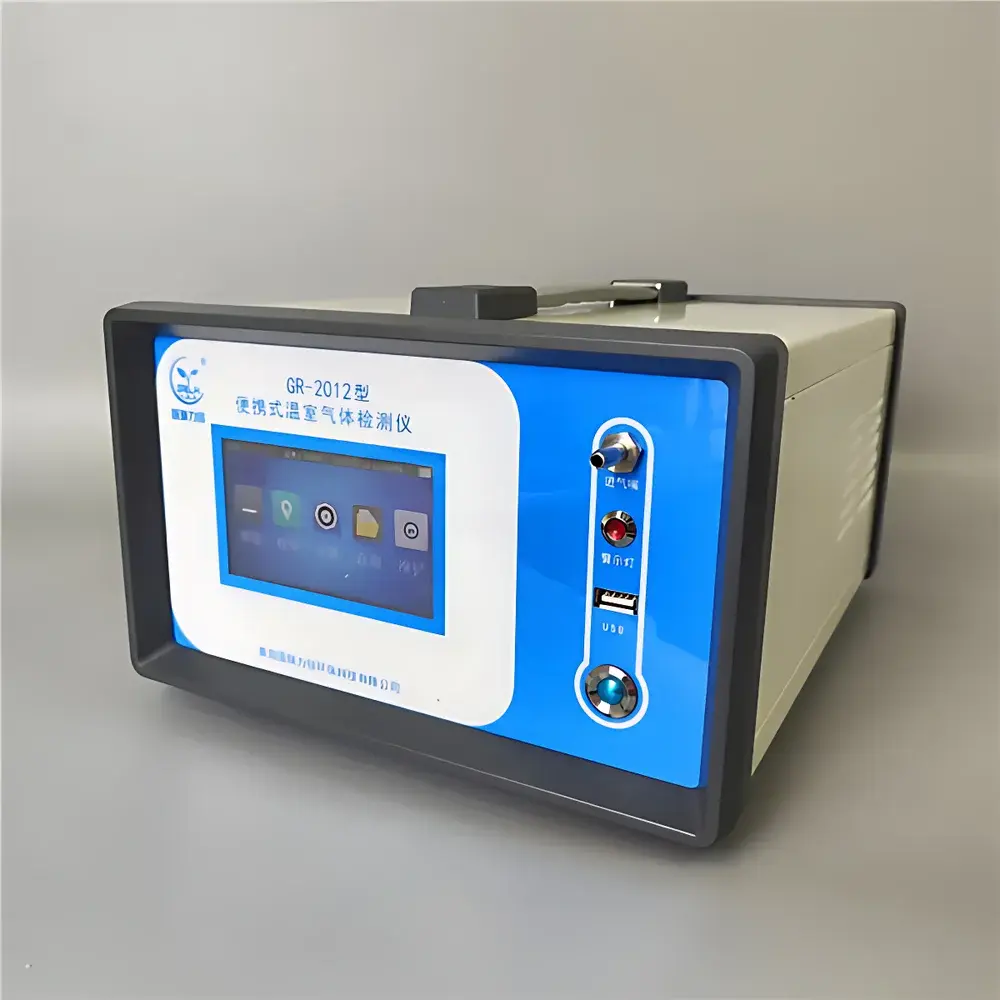

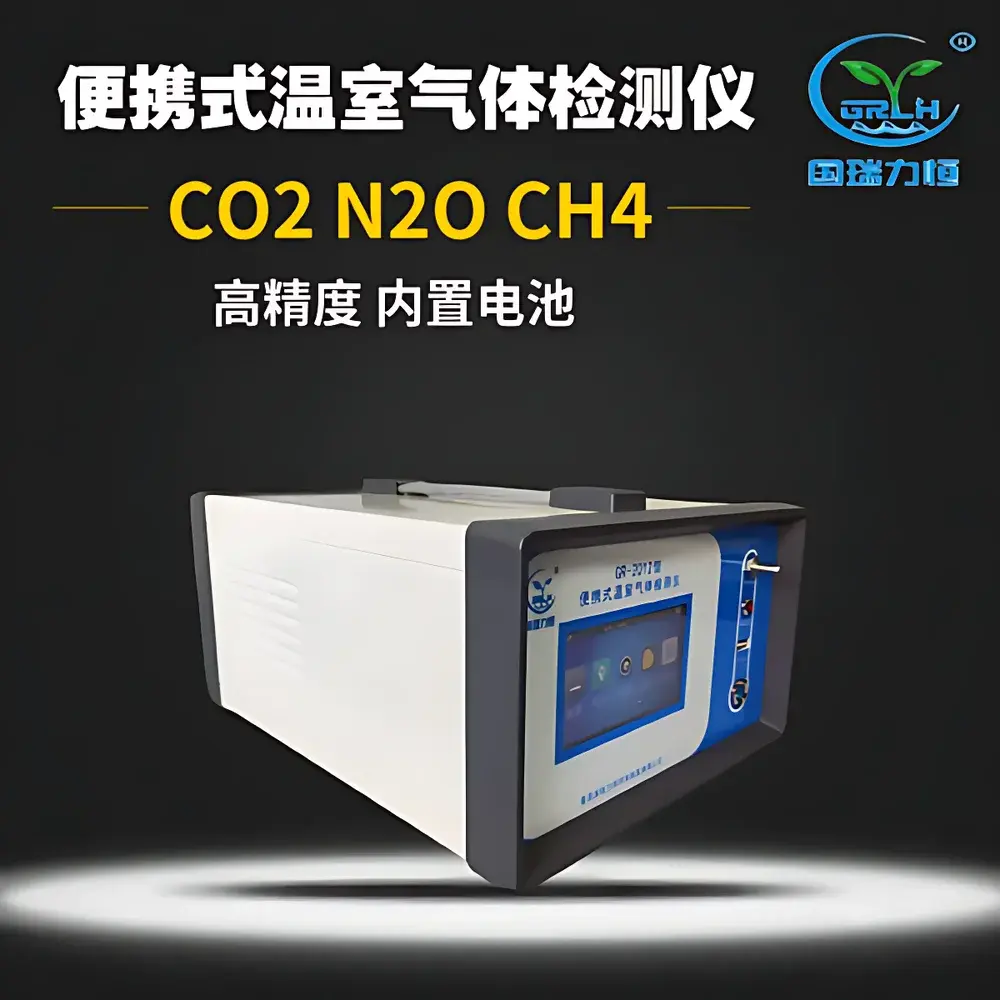

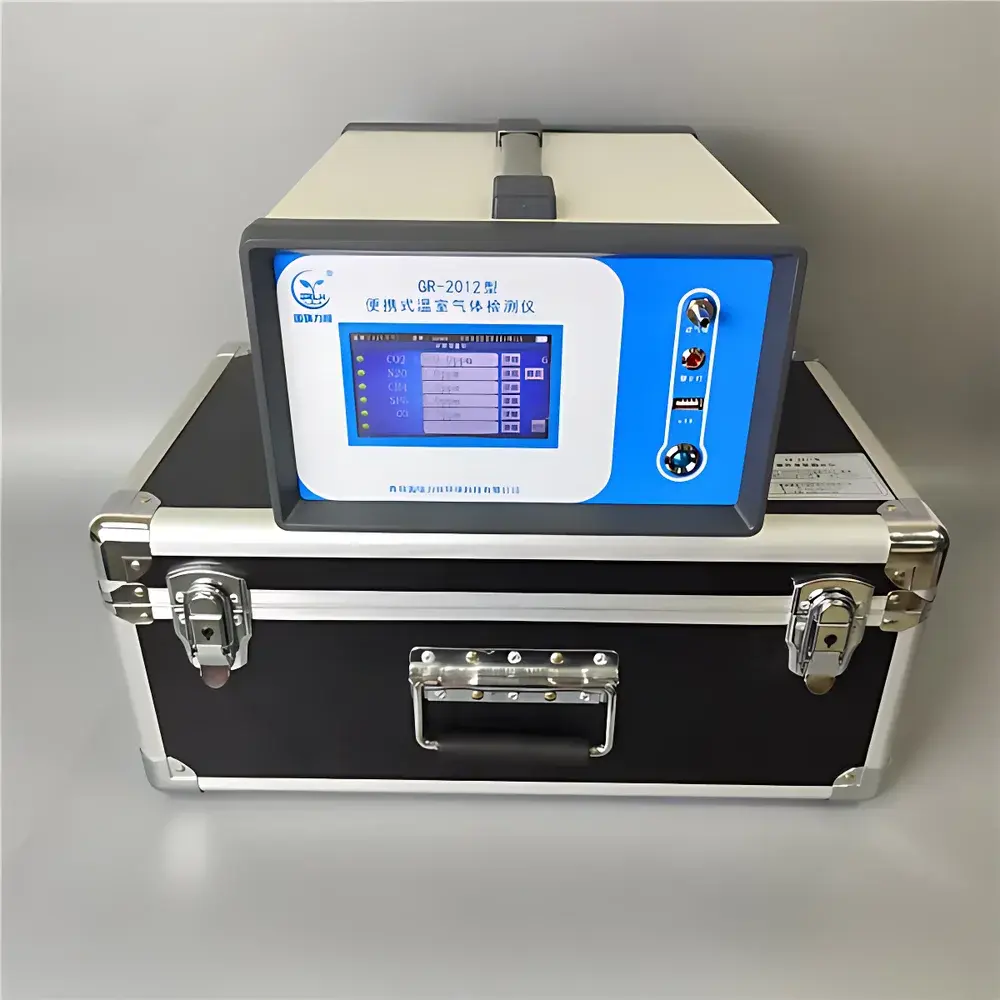

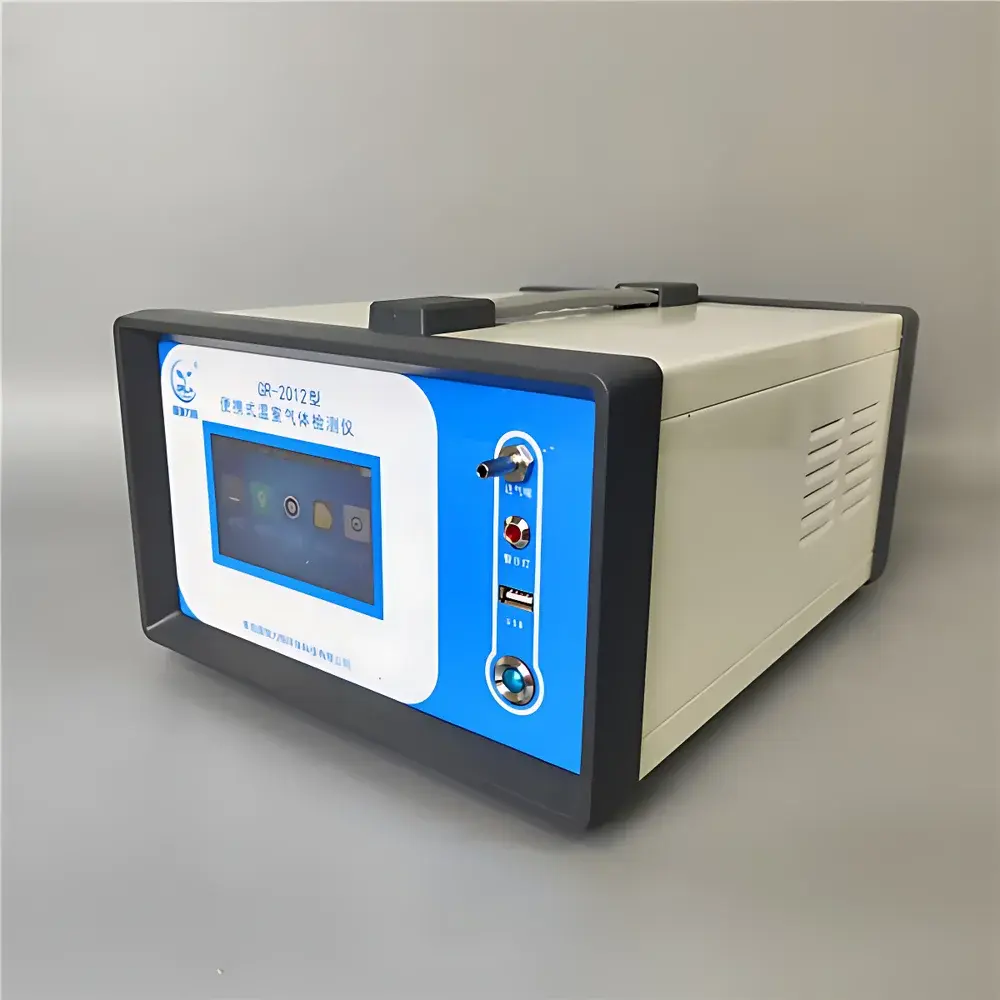

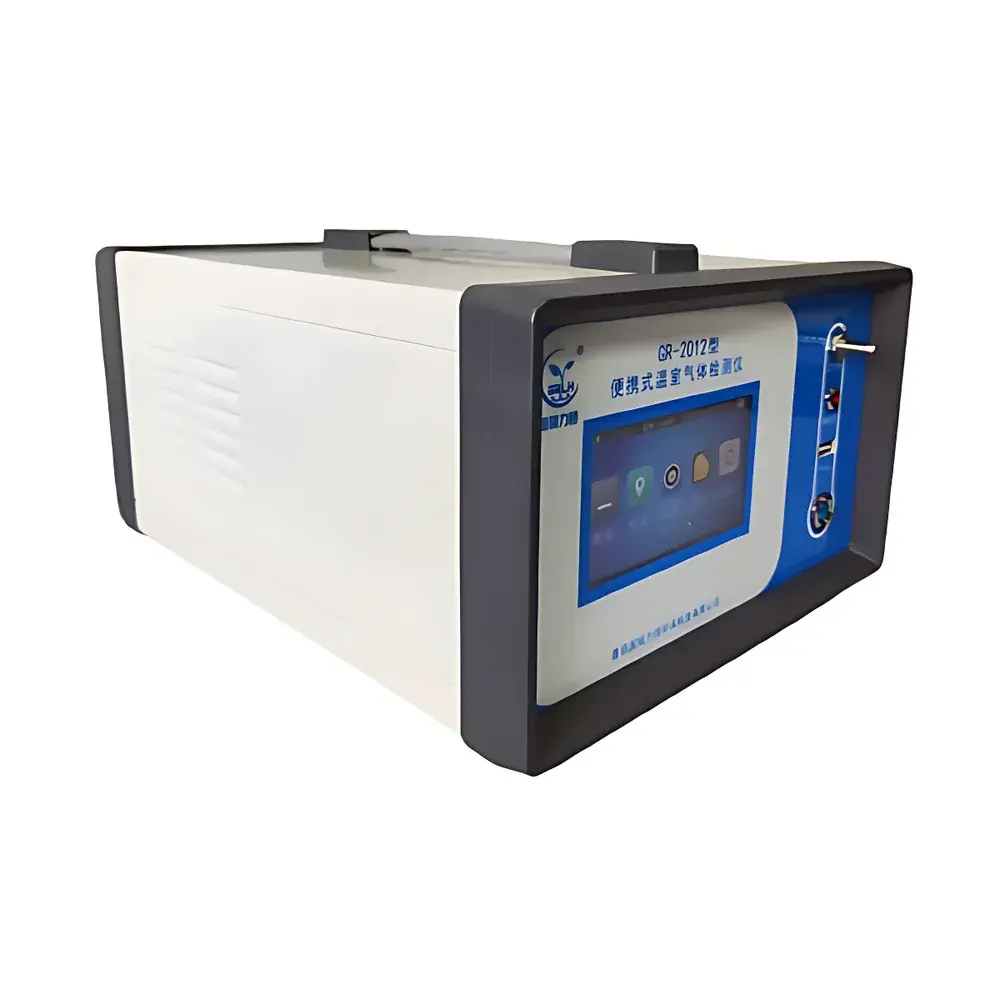

Guo Ruili Heng GR-2012 Portable Multicomponent Greenhouse Gas Analyzer

Overview

The Guo Ruili Heng GR-2012 Portable Multicomponent Greenhouse Gas Analyzer is an engineered field-deployable instrument designed for real-time, on-site quantification of key anthropogenic greenhouse gases and co-emitted air pollutants. It integrates multiple spectroscopic and electrochemical detection principles—including Non-Dispersive Infrared (NDIR) for carbon dioxide (CO₂) and methane (CH₄), Ultraviolet Differential Optical Absorption Spectroscopy (UV-DOAS) for ozone (O₃) and nitric oxide (NO), electrochemical cells for sulfur dioxide (SO₂) and carbon monoxide (CO), and capacitive humidity sensing for water vapor (H₂O)—within a single compact chassis. This multimodal architecture enables simultaneous, independent measurement of up to eight gas species without cross-spectral interference, supporting regulatory-grade monitoring in compliance with ISO 14064-3 verification protocols and EPA Method TO-15 adjunct requirements for mobile source and fugitive emission screening.

Key Features

• Field-optimized portable design with ergonomic carry handle and IP54-rated enclosure for dust and splash resistance during outdoor deployment
• High-stability NDIR optical path with dual-wavelength referencing and thermal drift compensation, delivering ±1.5% full-scale repeatability across CO₂ (0–5000 ppm) and CH₄ (0–1000 ppm) ranges
• UV-DOAS module featuring pulsed deuterium lamp source and high-resolution spectrometer (0.3 nm resolution), enabling sub-ppb detection limits for O₃ and NO under ambient conditions
• Integrated temperature (±0.3°C) and relative humidity (±2% RH) sensors feeding into a proprietary real-time compensation algorithm that corrects gas concentration outputs per ISO 4677:2021 environmental influence guidelines
• Industrial-grade sampling system with brushless diaphragm pump (2.0 L/min max flow, ≥10,000 h MTBF) and heated sample line option (up to 60°C) to prevent condensation in high-humidity environments
• Rechargeable lithium-ion battery pack providing ≥4 hours of continuous operation at 1.5 L/min flow; supports hot-swappable operation via external DC input (12–24 V)
• 7-inch color TFT capacitive touchscreen with intuitive icon-driven UI, multilingual support (English, Spanish, French), and context-sensitive help overlays

Sample Compatibility & Compliance

The GR-2012 is validated for direct analysis of ambient air, stack effluent (diluted), landfill headspace gas, and biogas samples within the temperature range of −10°C to +45°C and relative humidity ≤95% non-condensing. Its multi-principle detection architecture ensures minimal interferences: NDIR channels incorporate spectral filtering to reject H₂O and CO spectral overlap; UV-DOAS leverages wavelength-specific absorption cross-sections to isolate O₃ and NO in presence of NO₂; electrochemical sensors feature selective catalytic membranes. The analyzer meets CE marking requirements per EN 61326-1 (EMC) and EN 61010-1 (safety), and its data integrity framework aligns with GLP-compliant workflows—supporting audit-trail-enabled timestamped logging, user-access levels (admin/operator), and tamper-evident file export via USB mass storage.

Software & Data Management

Embedded firmware v3.2 includes onboard data management with 5000-record circular buffer, each entry containing gas concentrations, T/RH values, GPS coordinates (when paired with external GNSS module), pump status, and battery voltage. Data exports as CSV or Excel-compatible .xlsx files with embedded metadata headers compliant with ISO/IEC 17025 reporting templates. Optional PC software (GR-DataLink v2.1) provides time-series visualization, calibration history tracking, drift correction modeling, and automated report generation per IPCC Tier 2 inventory guidelines. All communication interfaces—USB-C, RS232 (3-wire TTL), and Bluetooth 5.0—support secure, encrypted pairing and firmware over-the-air (FOTA) updates traceable to SHA-256 checksums.

Applications

• Mobile emissions monitoring along roadways, ports, and industrial perimeters per EPA’s Mobile Source Emission Inventory Protocol
• Fugitive methane leak detection and quantification at natural gas infrastructure (wellheads, compressor stations, distribution mains) per OGMP 2.0 methodology
• Landfill gas composition profiling (CH₄/CO₂ ratio, O₂ depletion, H₂S surrogate estimation) for LFG energy project validation
• Urban air quality mapping campaigns targeting co-located GHG and criteria pollutant trends (e.g., NO–O₃ photochemical coupling)
• Verification of carbon capture unit performance by measuring pre- and post-scrubber CO₂ and trace impurities (SO₂, NOₓ)
• Academic field studies requiring portable, multi-gas capability with metrological traceability to NIST SRMs

FAQ

What calibration standards are required for field use?
The GR-2012 supports span calibration using certified gas mixtures traceable to NIST or equivalent national metrology institutes; zero calibration employs synthetic air (O₂/N₂ balance) with <10 ppb hydrocarbon content.
Can the instrument operate in rain or high-humidity conditions?
Yes—the IP54-rated housing and heated sampling line option (available as accessory) mitigate condensation risk; internal humidity compensation maintains accuracy up to 95% RH non-condensing.
Is the data output compatible with third-party environmental data platforms?
Yes—CSV exports include ISO 8601 timestamps, WGS84 coordinates (if GNSS enabled), and SI-unit-conforming headers, enabling direct ingestion into EPA’s AirNow, EEA’s AQ e-Reporting, or custom cloud-based dashboards via REST API integration kit.
How is measurement uncertainty quantified per gas channel?
Uncertainty budgets follow GUM (JCGM 100:2008) methodology and are documented in the Certificate of Conformance shipped with each unit, including contributions from sensor noise, temperature drift, pressure variation, and calibration standard uncertainty.
Does the device meet FDA 21 CFR Part 11 requirements for electronic records?
While not classified as a medical device, the GR-2012’s audit trail, electronic signature support, and role-based access control satisfy core ALCOA+ principles for regulated environmental monitoring under EPA and EU ETS QA/QC frameworks.
