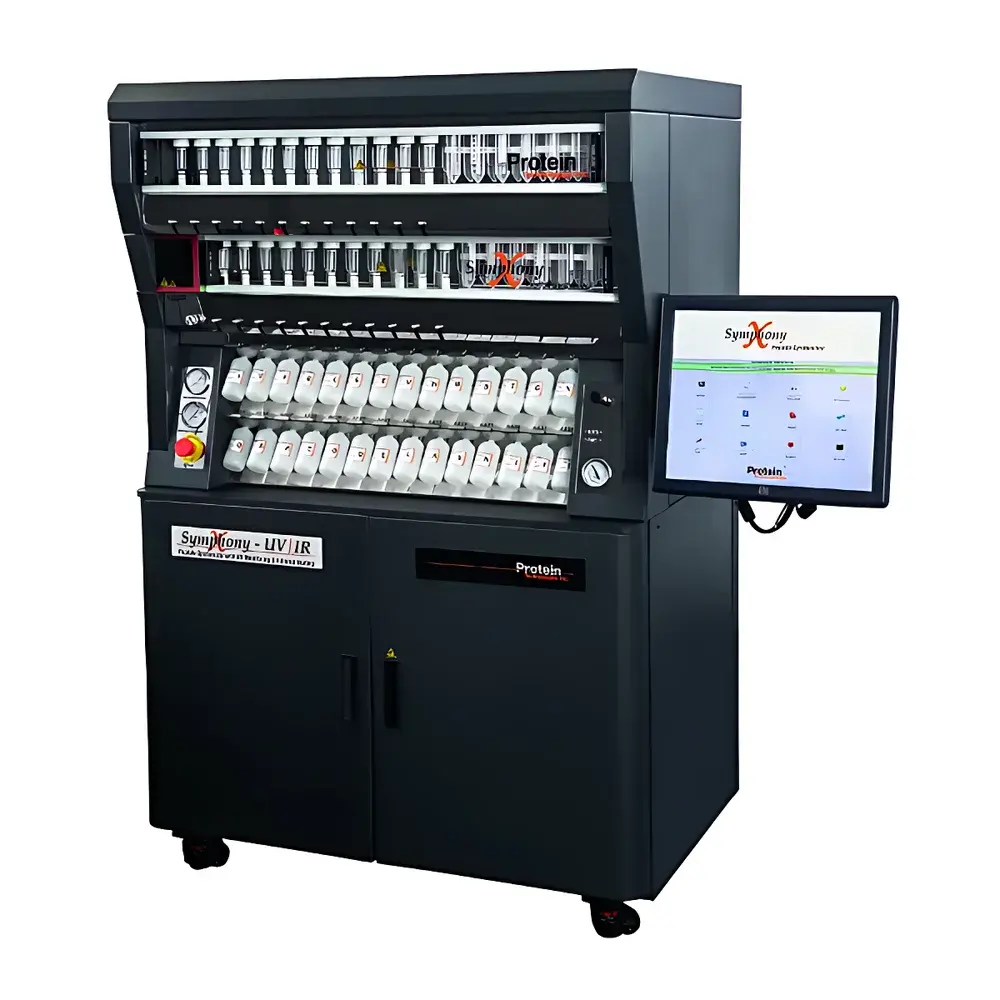

Gyros Protein Technologies Symphony® X 24-Channel Fully Automated Peptide Synthesizer
| Brand | Gyros Protein Technologies |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | Symphony® X 24-Channel Fully Automated Peptide Synthesizer |
| Amino Acid Delivery | Automated |
| Reagent Delivery | Automated |
| Synthesis Scale per Reactor | 5 µmol – 1.0 mmol |
| Total Maximum Capacity | 24 mmol |
| Number of Reactors | 24 |
| Reactor Volumes | Disposable Plastic Vessels – 10 mL, 45 mL |
Overview
The Gyros Protein Technologies Symphony® X 24-Channel Fully Automated Peptide Synthesizer is an industrial-grade solid-phase peptide synthesis (SPPS) platform engineered for high-throughput, parallel, and fully independent synthesis under research, process development, and cGMP-compliant manufacturing conditions. Based on Fmoc- or Boc-based SPPS chemistry, the instrument employs precise gravimetric and volumetric reagent delivery coupled with real-time reaction monitoring capabilities to ensure reproducible coupling efficiency, deprotection completeness, and minimal deletion sequence formation. Its architecture supports both small-scale exploratory synthesis (down to 5 µmol) and robust millimole-scale production—enabling seamless transition from hit identification through clinical-grade material generation.
Key Features
- True independent-channel asynchronous synthesis: All 24 reactors operate autonomously—each with programmable temperature control, agitation profile, solvent exchange timing, and coupling/deprotection cycle parameters.
- Infrared (IR) heating system: Uniform, contactless thermal management across all reactor positions; eliminates hot-spot formation and enables direct scalability to kilogram-scale manufacturing without method re-optimization.
- PurePep Pathway™ fluidic architecture: Dedicated, non-shared reagent lines per channel minimize carryover risk and cross-contamination; validated to achieve <0.01% inter-sequence contamination in multi-parallel syntheses.
- Single-Shot™ reagent dispensing technology: Delivers specialty amino acids (e.g., phospho-Ser, N-methylated residues, D-amino acids) without line priming, rinsing, or manual intervention—reducing solvent consumption by up to 35% versus conventional manifold-based systems.
- Integrated gravimetric feedback loop: Real-time mass sensing during amino acid addition ensures stoichiometric accuracy and compensates for humidity- or temperature-induced reagent density variation.
- cGMP-ready hardware and firmware: Pre-configured audit trail logging, electronic signatures, role-based access control, and 21 CFR Part 11–compliant software architecture.
Sample Compatibility & Compliance
The Symphony® X accommodates standard resin types—including Wang, Rink amide, 2-chlorotrityl, and Sieber resins—across a broad range of particle sizes (100–300 µm) and loading capacities (0.2–1.6 mmol/g). It supports both low- and high-swelling solvents (DMF, NMP, DCM, THF), including anhydrous-grade handling via integrated nitrogen purging. The system meets ISO 9001:2015 quality management requirements and includes full IQ/OQ documentation packages. All firmware updates are version-controlled and traceable; raw synthesis logs—including time-stamped valve actuation, temperature setpoints, mass deltas, and alarm events—are retained for ≥30 years per internal retention policy aligned with FDA guidance on electronic records.
Software & Data Management
Controlled via the Symphony Control Suite v5.x, the system provides a secure, browser-based interface compatible with Windows and macOS environments. The software enforces method locking, change control workflows, and automated report generation (PDF/CSV) compliant with ALCOA+ principles. Each synthesis run generates a unique digital fingerprint containing hash-verified metadata (user ID, timestamp, instrument serial number, method revision ID). Audit trails are immutable and exportable in encrypted format for regulatory submission. Optional integration with LIMS platforms (e.g., LabVantage, Thermo Fisher SampleManager) via RESTful API enables end-to-end sample tracking from synthesis to purification and QC release.
Applications
- Accelerated lead optimization in peptide therapeutics discovery programs
- Parallel synthesis of SAR libraries (up to 24 sequences per batch) for structure–activity relationship analysis
- Process validation and DOE studies for critical quality attributes (CQAs) such as diastereomeric purity and residual solvent levels
- Manufacturing of reference standards, conjugation handles (e.g., maleimide-, NHS-ester-functionalized peptides), and GMP-grade intermediates for ADC development
- Automated synthesis of modified peptides for epitope mapping, vaccine development, and diagnostic assay calibration
FAQ
Does the Symphony® X support both Fmoc and Boc chemistries?
Yes—the system is fully configurable for either strategy, including acid-labile resin cleavage protocols and orthogonal protecting group management.
Can reactor vessels be swapped mid-synthesis?
No—vessels are loaded prior to run initiation; however, individual reactors may be paused, resumed, or terminated without affecting others.
Is remote monitoring supported?
Yes—real-time status dashboards, email/SMS alerting for critical events (e.g., low reagent, pressure fault), and secure VPN-enabled diagnostics are available via optional Symphony Connect subscription.
What validation documentation is included?
Factory-verified IQ/OQ protocols, 21 CFR Part 11 readiness assessment report, and installation qualification checklist are provided with every system shipment.
How is maintenance tracked and scheduled?
The onboard service scheduler logs consumable usage (filters, valves, tubing), calculates remaining operational life, and auto-generates PM work orders aligned with ISO/IEC 17025 preventive maintenance guidelines.
