HAIDA HD-A535 Simulated Clamp-and-Hug Testing System (Computer-Controlled)

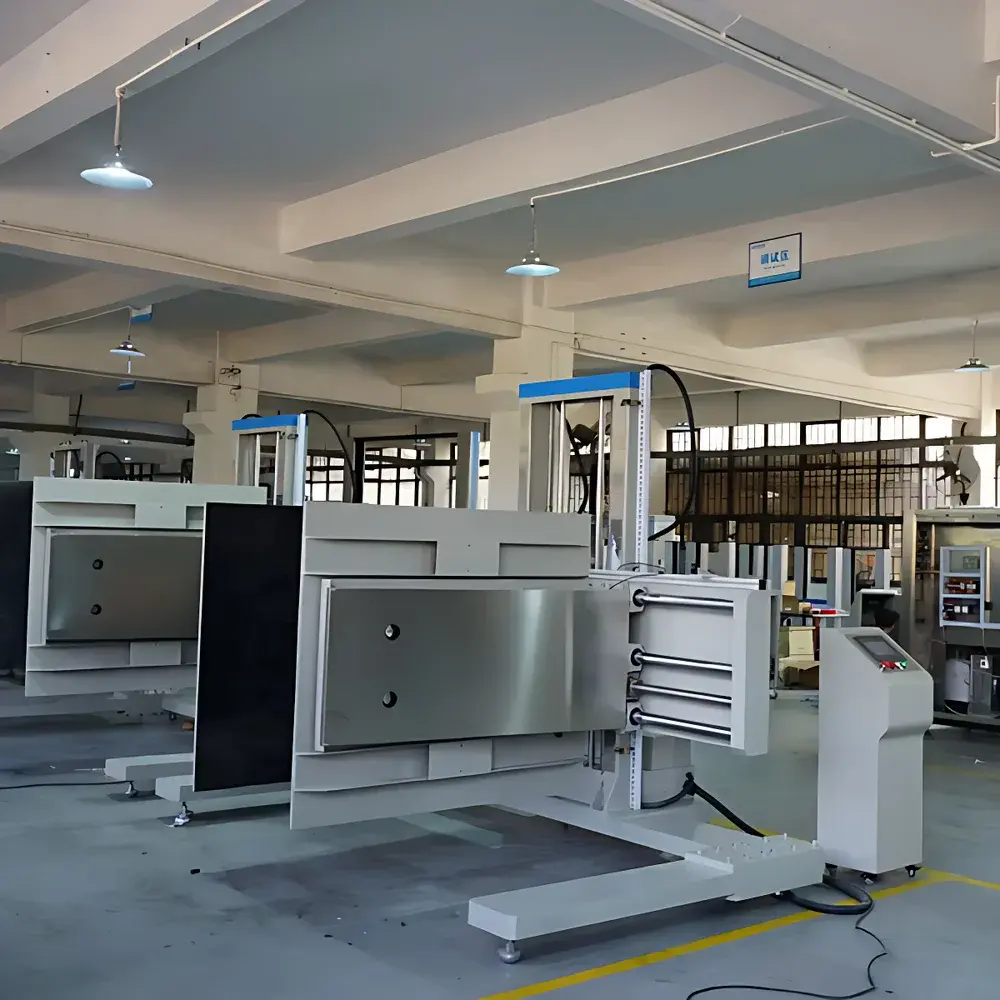

Overview

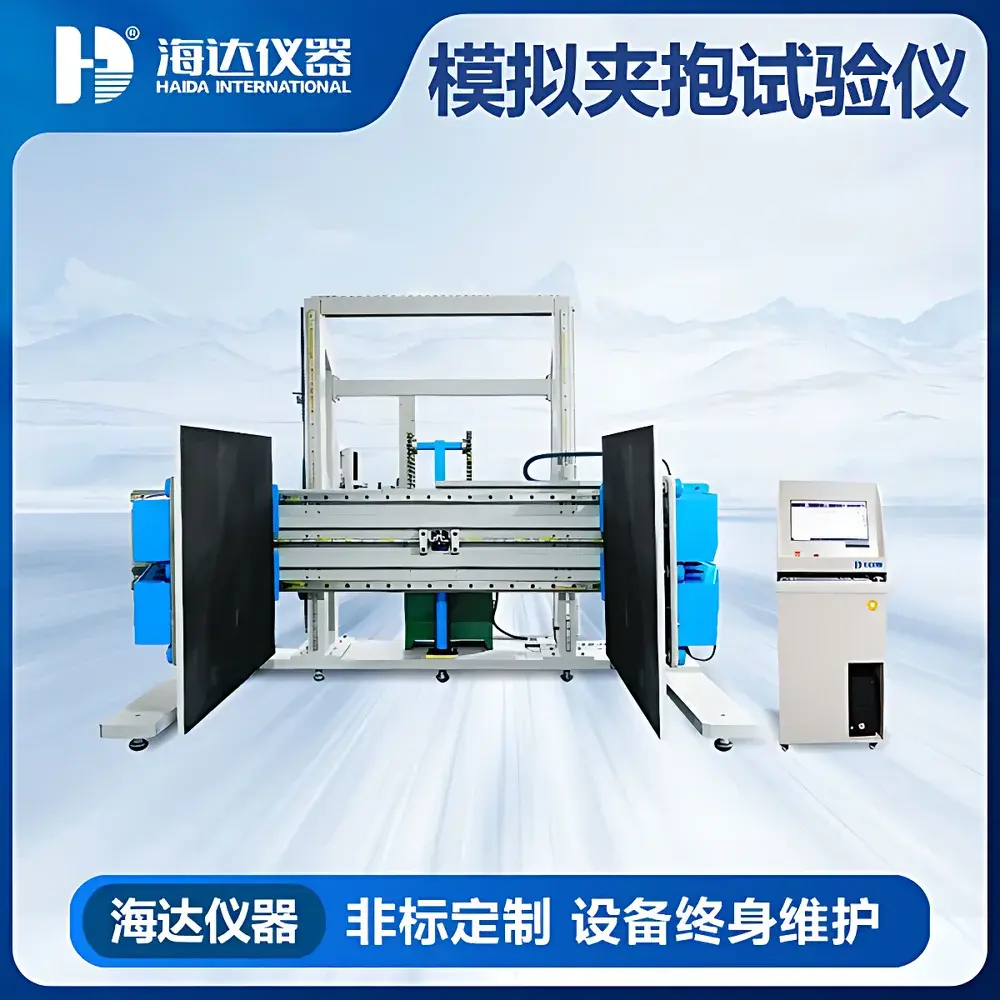

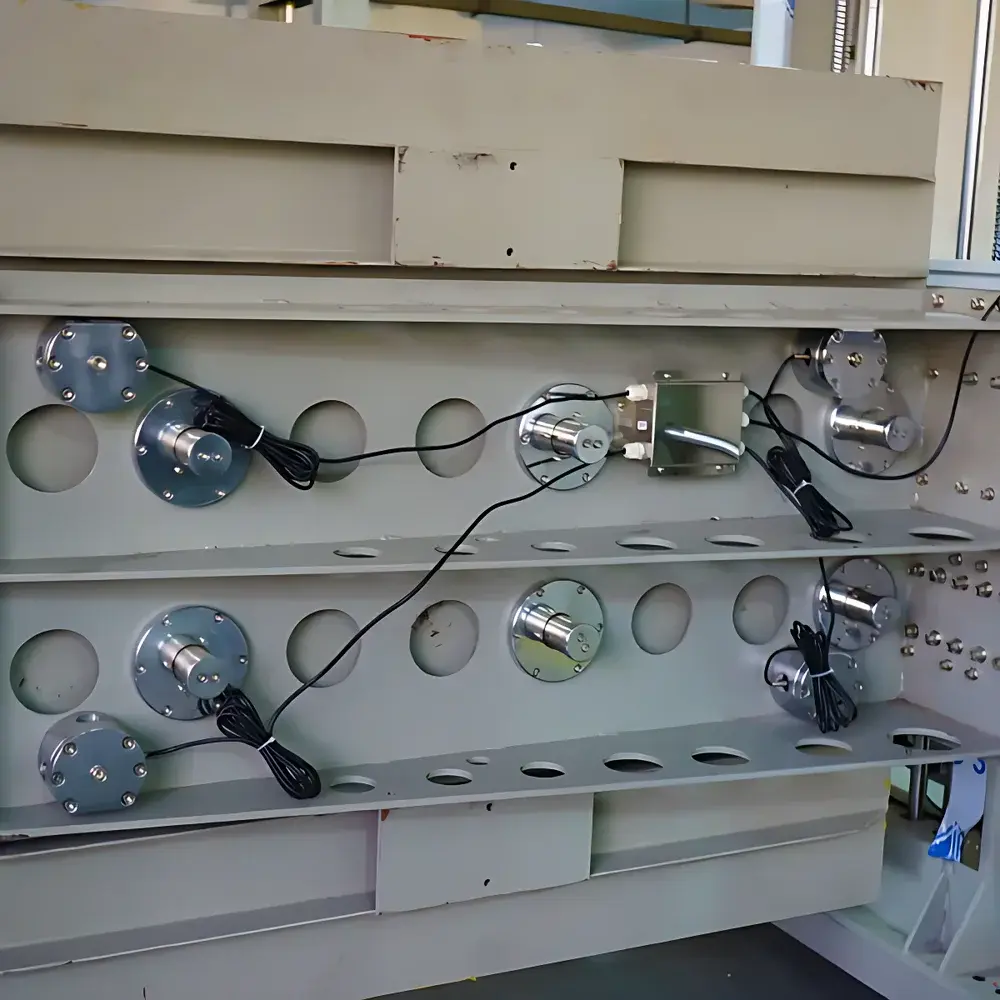

The HAIDA HD-A535 Simulated Clamp-and-Hug Testing System is an industrial-grade, computer-controlled mechanical tester engineered for quantitative evaluation of package integrity under simulated handling stresses—specifically clamping and lateral compression forces encountered during automated palletizing, robotic picking, warehouse conveyance, and retail shelf stocking. Unlike generic compression testers, the HD-A535 replicates the dynamic bilateral force application characteristic of robotic end-effectors and clamp-style material handlers, making it indispensable for validation against retailer-specific packaging protocols—including those mandated by Sears Holdings Corporation and Walmart’s SAMSCLUB division. The system operates on a dual-actuation principle: synchronized hydraulic cylinders provide vertical lift and positioning, while a high-fidelity servo-motor-driven lead-screw mechanism delivers precise, programmable horizontal clamping motion. Force measurement is performed via four calibrated 1 kN load cells with 1/250,000 internal resolution and traceable accuracy of ≤ ±0.5% full scale, ensuring metrological rigor required for audit-ready test documentation.

Key Features

• Robust structural frame fabricated from reinforced square tubing, channel steel, and solid carbon steel components—engineered to minimize deflection and maintain alignment under repeated 18 kN loading cycles;
• Electrophoretic primer + polyester powder-coated enclosure offering superior corrosion resistance and long-term surface integrity in industrial lab environments;
• Real-time displacement monitoring via industrial-grade draw-wire rotary encoders, enabling synchronized force–displacement curve generation with sub-millimeter positional fidelity;
• Panasonic digital AC servo drive system delivering speed stability within ±0.5% across the full 5–500 mm/min clamping range, with rapid acceleration/deceleration profiles suitable for transient stress simulation;

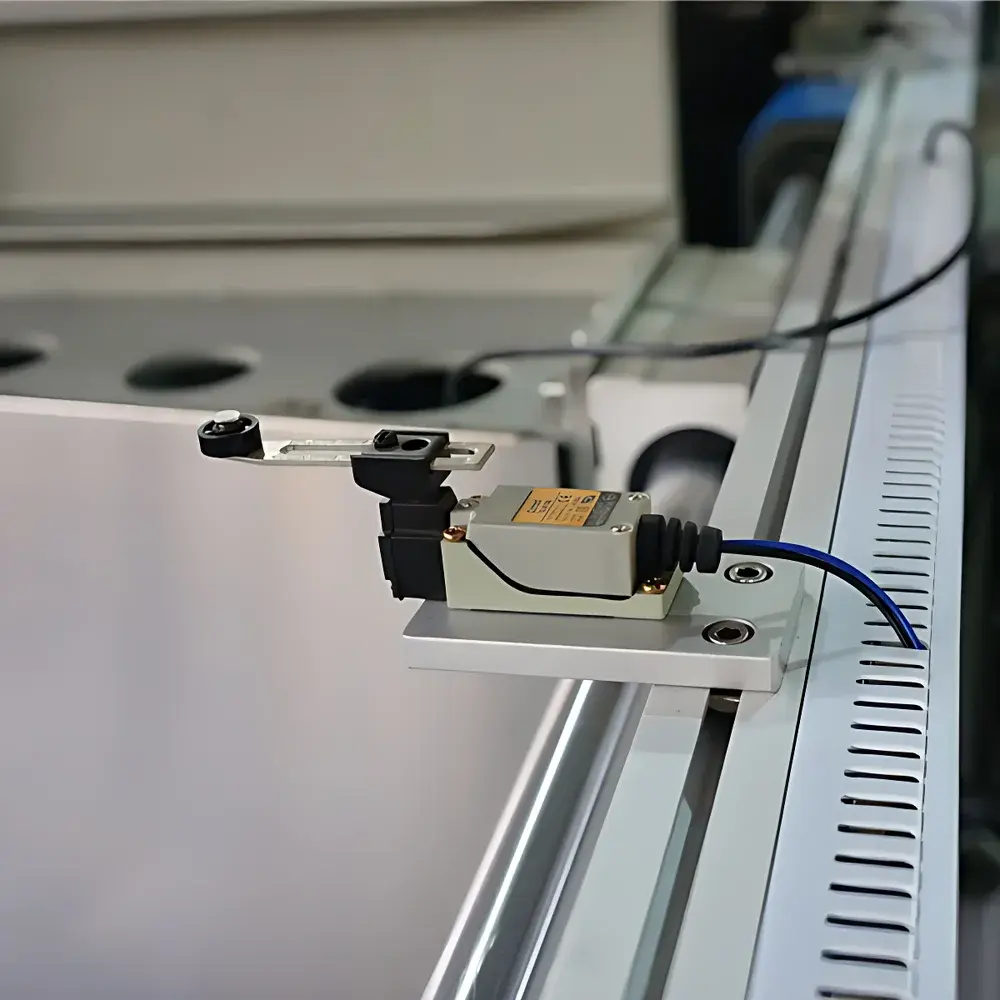

• Integrated safety architecture including hardware-based stroke limit switches, Class I earth-leakage circuit breakers, and software-enforced operational interlocks—fully compliant with IEC 61800-5-1 functional safety requirements for drive systems;

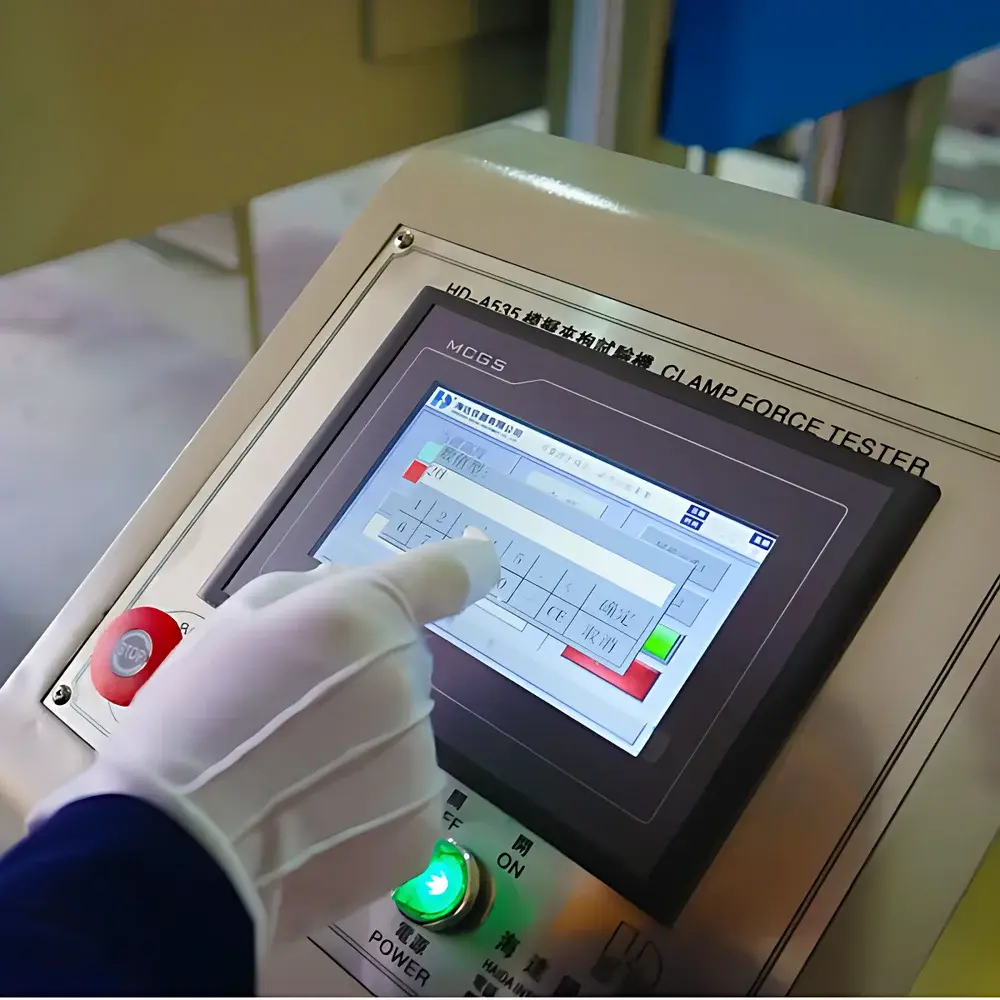

• Dual-mode control interface: embedded microcontroller handles low-level motion sequencing and sensor acquisition, while Windows-based host software manages test definition, parameter logging, and report export.

Sample Compatibility & Compliance

The HD-A535 accommodates finished packaged goods up to 2000 mm in length and 500 kg in mass—including assembled furniture, major appliances, cookware sets, and juvenile products—within its fully adjustable 1220 mm × 1220 mm clamp aperture. Its configurable clamping space (50–2000 mm depth) supports both shallow cartons and deep unitized loads. The system is explicitly validated for conformance to ASTM D6055 “Standard Test Methods for Mechanical Handling of Unitized Loads and Large Shipping Cases,” ISTA 6-SAMSCLUB “Packaging Testing Protocol for Sam’s Club Distribution Centers,” and the proprietary Sears Packaging Performance Specification for Clamp Resistance (Revision 2022). All test sequences are structured to satisfy GLP/GMP data integrity requirements: electronic signatures, audit trails, and 21 CFR Part 11–compliant user access controls are supported through optional software licensing.

Software & Data Management

Control and analysis are executed via HAIDA’s proprietary Windows-native application, built on .NET Framework 4.8 and compatible with Windows 10/11 (64-bit). The GUI provides intuitive test setup wizards, real-time force–time and force–displacement plots, and multi-channel synchronized data capture (load, position, speed, status flags). Raw datasets export natively to CSV and Excel-compatible XLSX formats; PDF reports include embedded metadata (operator ID, calibration certificate ID, environmental conditions, equipment serial number) and support custom branding. Data archiving complies with ISO/IEC 17025 Clause 7.5.2: all measurements retain unalterable timestamps, versioned firmware logs, and cryptographic hash verification for forensic traceability. Optional network deployment enables centralized database integration via ODBC or REST API endpoints.

Applications

• Validation of corrugated RSC/FOL case design against robotic clamp-induced corner crush and sidewall buckling;
• Performance benchmarking of shrink-wrapped pallet unitization under lateral shear loading;
• Pre-shipment qualification of e-commerce fulfillment packaging per retailer-specific clamp tolerance thresholds;
• Root-cause analysis of field failures linked to automated warehouse handling damage;
• Design verification of interior dunnage, void-fill systems, and edge protectors under asymmetric compressive loading;
• Supporting technical documentation for ISO 9001:2015 clause 8.5.1 (control of production and service provision) and ISO 14001:2015 environmental packaging claims.

FAQ

What standards does the HD-A535 directly support out-of-the-box?
ASTM D6055, ISTA 6-SAMSCLUB, and the Sears Corporate Packaging Clamp Resistance Specification—including preconfigured test templates and pass/fail logic engines.
Is the system suitable for GMP-regulated environments?
Yes—when equipped with the optional 21 CFR Part 11 Compliance Module, it provides electronic signatures, role-based permissions, and immutable audit trails meeting FDA and EMA expectations.
Can the HD-A535 perform cyclic or dwell-loading tests?
Yes—the servo-hydraulic architecture supports programmable ramp-hold-relax sequences, dwell periods at target load, and multi-step profile execution via script-based test definitions.
What maintenance intervals are recommended for the hydraulic system?
Oil analysis and filter replacement every 1,500 operating hours; full reservoir flush and seal inspection every 5,000 hours—documented in the included Maintenance Logbook and aligned with ISO 4406:2022 cleanliness codes.
Is third-party calibration certification available?
Yes—HAIDA offers UKAS-accredited calibration services (ISO/IEC 17025) traceable to NIST and PTB standards, with certificates delivered digitally and physically upon request.
