HAIDA HD-B602-S Desktop Tensile Testing Machine
| Brand | HAIDA INTERNATIONAL |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | HAIDA HD-B602-S Desktop Tensile Testing Machine |
| Instrument Type | Electromechanical Tensile Tester |
| Max Test Load | 2 kN |
| Force Measurement Range | 0.1 N to 2 kN |
| Force Accuracy | ≤ ±0.5% FS |
| Test Stroke | 900 mm (excluding fixtures) |
| Load Resolution | 1/250,000 |
| Speed Range | 1–300 mm/min |
| Effective Depth | 60 mm (from center of coupling to dust cover) |
| Dimensions (L×W×H) | ≈ 450 × 450 × 1330 mm |
| Weight | ≈ 60 kg |
| Power Supply | 1∮ AC 220 V |
| Power Consumption | ≈ 500 W |
| Control Mode | Dual-mode (Windows PC + 7-inch TFT touchscreen) |
| Data Output | USB, Windows-compatible export (Excel/PDF), thermal printer with real-time curve plotting |
| Units Supported | gf, kgf, N, kN, lbf, tonf |
| Compliance Standards | GB/T 16491-2008, JJG 475-2018, GB/T 16825.1-2008, GB/T 228.1-2010, GB/T 1040-2006, ASTM D4833-2007, ISO 527, ISO 178, ISO 1133 |
Overview
The HAIDA HD-B602-S Desktop Tensile Testing Machine is an electromechanical universal testing system engineered for precision mechanical property characterization of materials in R&D laboratories, QC/QA departments, and contract testing facilities. Based on the fundamental principle of uniaxial force application under controlled displacement or load rate, it delivers repeatable, traceable measurements of tensile strength, yield point, elongation at break, modulus of elasticity, compressive resistance, peel adhesion, tear propagation, puncture force, and low-speed unwind torque. Its compact benchtop footprint integrates a high-rigidity dual-guide column frame, preloaded滚珠丝杆 (ball screw) transmission, and a 400 W servo motor with closed-loop position and force feedback—enabling stable operation across the full speed range (1–300 mm/min) while maintaining ≤ ±0.5% full-scale force accuracy per GB/T 16491-2008 and ISO 7500-1 Class 1 requirements.
Key Features
- High-resolution force measurement system with 1/250,000 internal resolution and dual-range calibration support (50 N / 100 N / 500 N / 1 kN / 2 kN transducers available as options)
- Dual-control architecture: synchronized operation via Windows-based software (HAIDA TestMaster v4.x) and integrated 7-inch resistive touchscreen interface with bilingual (English/Chinese) UI
- Robust mechanical design featuring dual linear guide rails and a precision-ground SFU02510-4-L1052 ball screw assembly for minimal axial play and long-term repeatability
- Multi-mode control capability: constant rate of crosshead displacement (CRD), constant rate of force application (CRF), constant strain rate, constant stress rate, and programmed step-load sequences
- Comprehensive safety architecture including mechanical stroke limit switches, electronic overload protection (adjustable threshold), emergency stop circuitry compliant with IEC 60204-1
- Real-time data acquisition at ≥100 Hz sampling rate, with simultaneous display of load–displacement, stress–strain, and time–force curves on both PC and touchscreen
Sample Compatibility & Compliance
The HD-B602-S accommodates specimens ranging from thin polymer films (≥10 µm) to rigid metallic coupons (up to 15 mm thickness), elastomeric strips, composite laminates, adhesive tapes, packaging seals, medical tubing, and wood veneers. Standardized test configurations include tensile bars (ASTM D638, ISO 527), flexural beams (ASTM D790, ISO 178), 90°/180° peel substrates (ASTM D903, GB/T 2792), trouser tear specimens (ISO 34-1), and puncture probes (ASTM F1306). The system supports full traceability per GLP and GMP environments: audit trails record user login, method selection, calibration events, test execution, and data export actions; all raw data files are timestamped and digitally signed to meet FDA 21 CFR Part 11 requirements when configured with optional electronic signature modules.
Software & Data Management
HAIDA TestMaster software provides ISO/IEC 17025-aligned test method templates for over 30 material categories—including plastics, metals, elastomers, textiles, paperboard, and biomedical polymers—with auto-calculation of ISO 527-defined parameters (tensile strength, yield stress,断裂伸长率, Young’s modulus). Raw data exports comply with ASTM E1447 and ISO/IEC 17025 Annex A.3: CSV, XLSX, PDF reports include metadata (operator ID, environmental conditions, calibration certificate IDs), statistical summaries (mean, SD, CV%), and comparative overlays for up to 12 specimen groups. Thermal printer output includes real-time load–displacement plots with embedded calibration verification stamps and pass/fail indicators against user-defined specification limits.
Applications
- Quality conformance testing of incoming raw materials (e.g., polyethylene film tensile strength per ASTM D882)
- Process validation of extrusion, calendering, and lamination operations
- Adhesive bond strength evaluation for automotive trim assembly (peel and shear per SAE J2243)
- Mechanical screening of biodegradable packaging films under variable humidity conditions
- Regulatory submission support for ISO 10993-12 cytotoxicity sample preparation force profiling
- Educational use in materials science curricula for stress–strain curve derivation and ductile/brittle transition analysis
FAQ
What standards does the HD-B602-S comply with for force calibration and verification?
It meets GB/T 16491-2008 (equivalent to ISO 7500-1 Class 1), JJG 475-2018 (national metrological verification regulation), and supports third-party certification to ISO/IEC 17025.
Can the system perform cyclic loading or fatigue tests?
No—the HD-B602-S is designed for static and quasi-static monotonic tests only; fatigue-capable models (e.g., HAIDA HD-F1000 series) require separate configuration.
Is the thermal printer included in standard delivery?

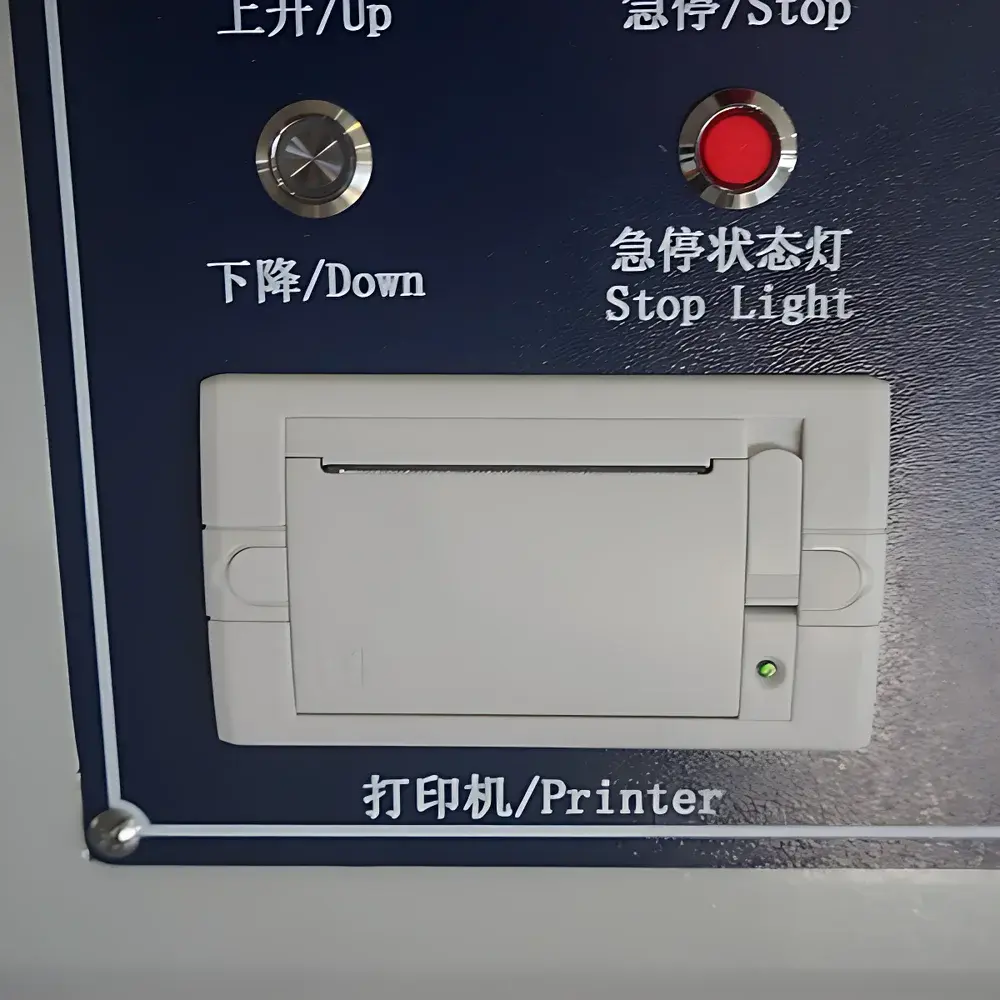

Yes—a built-in E31KR901-00A00BT0GA-D62 thermal printer with real-time curve plotting is supplied as standard equipment.
How is data integrity ensured during regulatory audits?
All test sessions generate immutable .hdt binary files containing raw sensor readings, timestamps, operator credentials, and method parameters; export logs are retained for ≥10 years and support hash-based verification.
What customization options exist for specialized夹具?
HAIDA offers OEM-designed grips for ASTM D3330 (pressure-sensitive tape peel), ISO 11337 (medical device suture pullout), and custom pneumatic jaw actuation for high-throughput textile testing.
