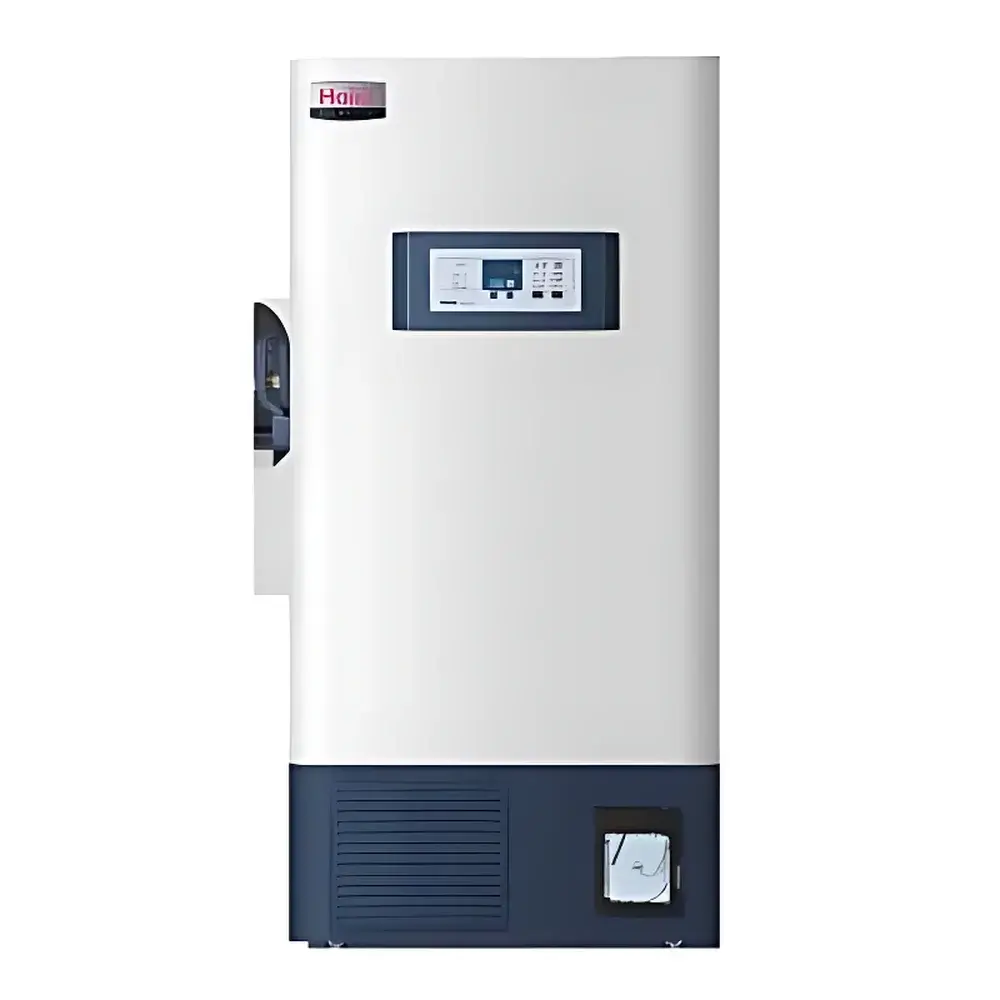

Haier Biomedical DW-86L626 Ultra Low Temperature Freezer (-86°C)

Overview

The Haier Biomedical DW-86L626 Ultra Low Temperature Freezer is a vertically oriented, dual-compressor laboratory freezer engineered for long-term cryopreservation of sensitive biological specimens—including primary cells, stem cell lines, plasma, tissue samples, and genomic materials—at sustained temperatures down to –86 °C. Designed in accordance with ISO 13485 quality management principles for medical device manufacturing, the unit employs direct-cooling thermodynamics with an optimized refrigerant circuit architecture to achieve stable thermal performance under ambient conditions up to 32 °C. Its temperature uniformity of ±6 °C across the entire 626 L internal volume ensures reproducible storage conditions critical for biobanking integrity, clinical trial sample archiving, and GLP-compliant preclinical research workflows.

Key Features

• Dual hermetic reciprocating compressors (927 W each) provide redundancy and enhanced cooling capacity, minimizing downtime risk during compressor maintenance or transient load events.
• Four independent inner foam-insulated doors enable selective access—opening one compartment does not significantly disturb temperature stability in adjacent zones, reducing cold loss by up to 35% compared to single-door configurations.
• Vacuum Insulation Panel (VIP) technology combined with zero-ozone-depletion-potential (zero-ODP) polyurethane foam delivers superior thermal resistance, contributing to energy efficiency and reduced operational carbon footprint.
• Microprocessor-based digital temperature controller with high-resolution LED display supports precise setpoint adjustment (0.1 °C increments), real-time monitoring, and password-protected parameter modification.
• Comprehensive alarm architecture includes 10 distinct fault-detection channels—covering door status, sensor integrity, power anomalies, ambient exceedance, filter clogging, and battery health—with both local visual/audio alerts and remote dry-contact outputs for integration into facility-wide monitoring systems.
• Ergonomic design incorporates locking swivel casters, adjustable leveling feet, and a single-point external access port for calibration probe insertion or continuous data logging via optional USB-enabled chart recorder.

Sample Compatibility & Compliance

The DW-86L626 accommodates standard cryogenic storage formats including 2-inch and 3-inch cryovials (up to 400 vials at 2″ format or 240 at 3″), rack-based specimen organization, and modular冻存盒 (freeze boxes) with label-insert slots. Its interior chamber—constructed from electrogalvanized steel with color-coated finish—resists corrosion from repeated ethanol or isopropanol decontamination cycles. As a registered Class II medical device under China’s NMPA (National Medical Products Administration), the unit meets GB/T 20154–2014 technical requirements for ultra-low temperature freezers and supports audit readiness for ISO 20387 (Biobanking), ISO 17025 (Testing Laboratories), and FDA 21 CFR Part 11 when paired with validated electronic record systems.

Software & Data Management

While the base configuration features standalone microcontroller operation, optional accessories include a USB-compatible temperature data logger with time-stamped CSV export capability and configurable sampling intervals (1–60 min). The unit’s dry-contact alarm outputs are compatible with third-party Building Management Systems (BMS) and Laboratory Information Management Systems (LIMS), enabling centralized alerting and event logging. All alarm events—including timestamps, duration, and recovery status—are retained in non-volatile memory for post-event forensic review. For institutions requiring full 21 CFR Part 11 compliance, Haier Biomedical provides documentation packages supporting validation protocols (IQ/OQ/PQ) and change control procedures aligned with GxP environments.

Applications

• Cryopreservation of human and animal-derived primary cells, induced pluripotent stem cells (iPSCs), and embryonic stem cell lines.
• Long-term archival storage of clinical biospecimens in biorepositories accredited to ISBER Best Practices or CAP Biorepository standards.
• Stabilization of heat-labile reagents, monoclonal antibodies, and mRNA-based therapeutics prior to formulation or distribution.
• Supporting regulatory submissions requiring documented cold chain continuity—from sample collection through analytical testing—per ICH-GCP and WHO TRS Annex 9 guidelines.
• Backup cold storage for liquid nitrogen (LN₂) or CO₂-dependent systems, with optional LN₂ or CO₂ standby interface kits available upon request.

FAQ

What is the minimum ambient temperature at which the DW-86L626 achieves and maintains –86 °C?
The unit is rated for stable operation at ambient temperatures up to 32 °C; it achieves –86 °C setpoint under standard test conditions defined in GB/T 20154–2014 (25 °C ambient, 60% RH).

Does the freezer support remote monitoring via Ethernet or Wi-Fi?
No native network interface is included; however, the dry-contact alarm outputs and optional USB data logger allow integration with external networked monitoring platforms via relay modules or serial-to-Ethernet converters.

Is the unit suitable for storing infectious agents requiring BSL-2 or BSL-3 containment?
The DW-86L626 itself is not a containment device. It may be installed within certified BSL-2 or BSL-3 laboratories provided that all applicable biosafety cabinet workflows, PPE protocols, and facility engineering controls are maintained independently.

Can the temperature uniformity specification (±6 °C) be verified during installation qualification?
Yes—temperature mapping per ISO 14644-3 or ASTM F2697 is recommended during IQ/OQ. Haier Biomedical supplies a validation support package including probe placement diagrams, acceptance criteria templates, and uncertainty budget guidance for metrological traceability.

Are spare parts and service support available outside mainland China?
Authorized service partners operate in over 30 countries across Asia-Pacific, Latin America, and the Middle East. Technical documentation, firmware updates, and OEM-certified component kits (compressors, controllers, sensors) are distributed globally through Haier Biomedical’s regional logistics hubs.
