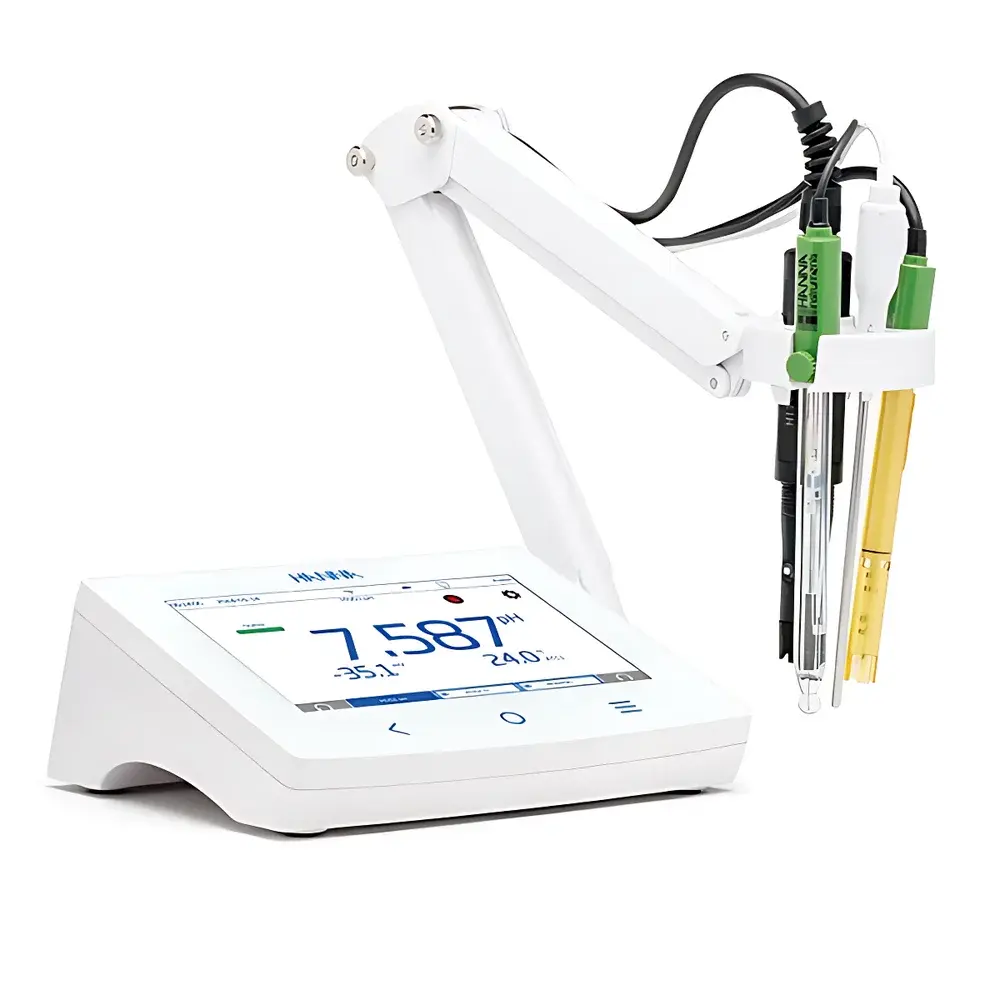

HANNA HI6000 Modular Benchtop Multiparameter Analyzer

Overview

The HANNA HI6000 Modular Benchtop Multiparameter Analyzer is a precision-engineered laboratory platform designed for rigorous quality control, environmental monitoring, pharmaceutical QC, and academic research applications requiring traceable, multi-analyte measurement capability. Unlike fixed-function benchtop meters, the HI6000 implements a true modular architecture grounded in electrochemical sensor interface standards—supporting simultaneous operation of up to three interchangeable measurement modules within a single chassis. Its core measurement principles adhere to internationally recognized electrochemical methodologies: potentiometric detection for pH and ORP (per ISO 3696 and ASTM D1193), ion-selective electrode (ISE) response governed by the Nernst equation, conductivity determination via four-electrode AC excitation (IEC 60746-3), and optical dissolved oxygen measurement using luminescence quenching (ISO 5814). The system’s hardware and firmware are developed under HANNA’s internal quality management system aligned with ISO 9001, ensuring consistency across production batches and long-term measurement stability.

Key Features

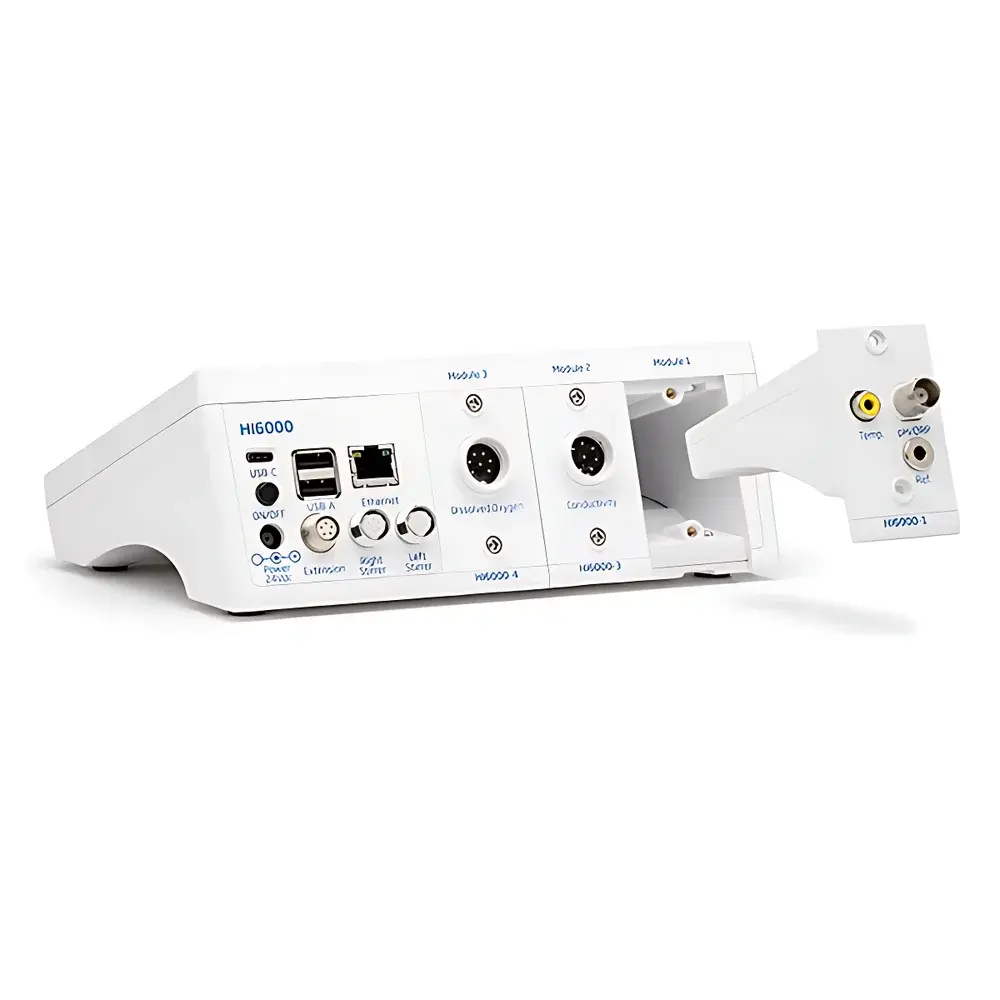

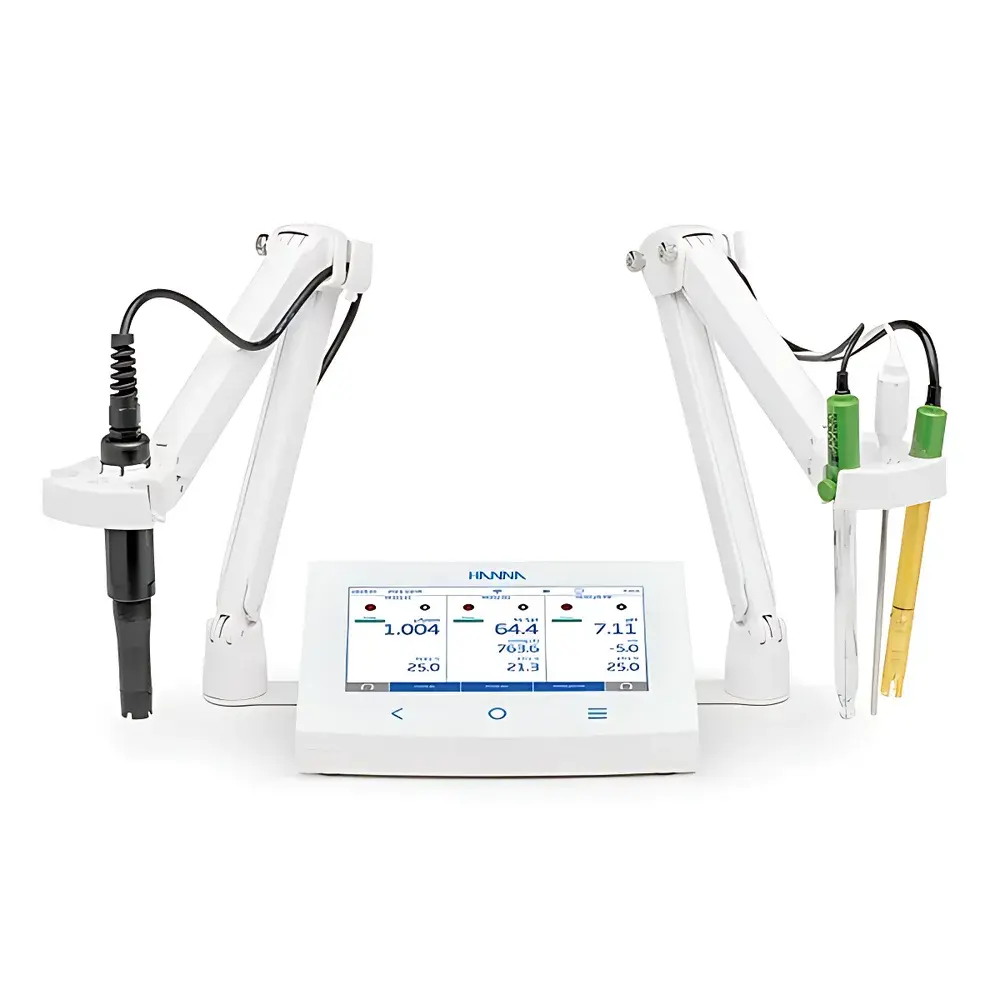

• Modular scalability: Accepts any combination of up to three of the four available modules—HI6000-1 (pH/ORP), HI6000-2 (pH/ORP/ISE), HI6000-3 (Conductivity), and HI6000-4 (Dissolved Oxygen)—enabling lab-specific configuration without hardware replacement.

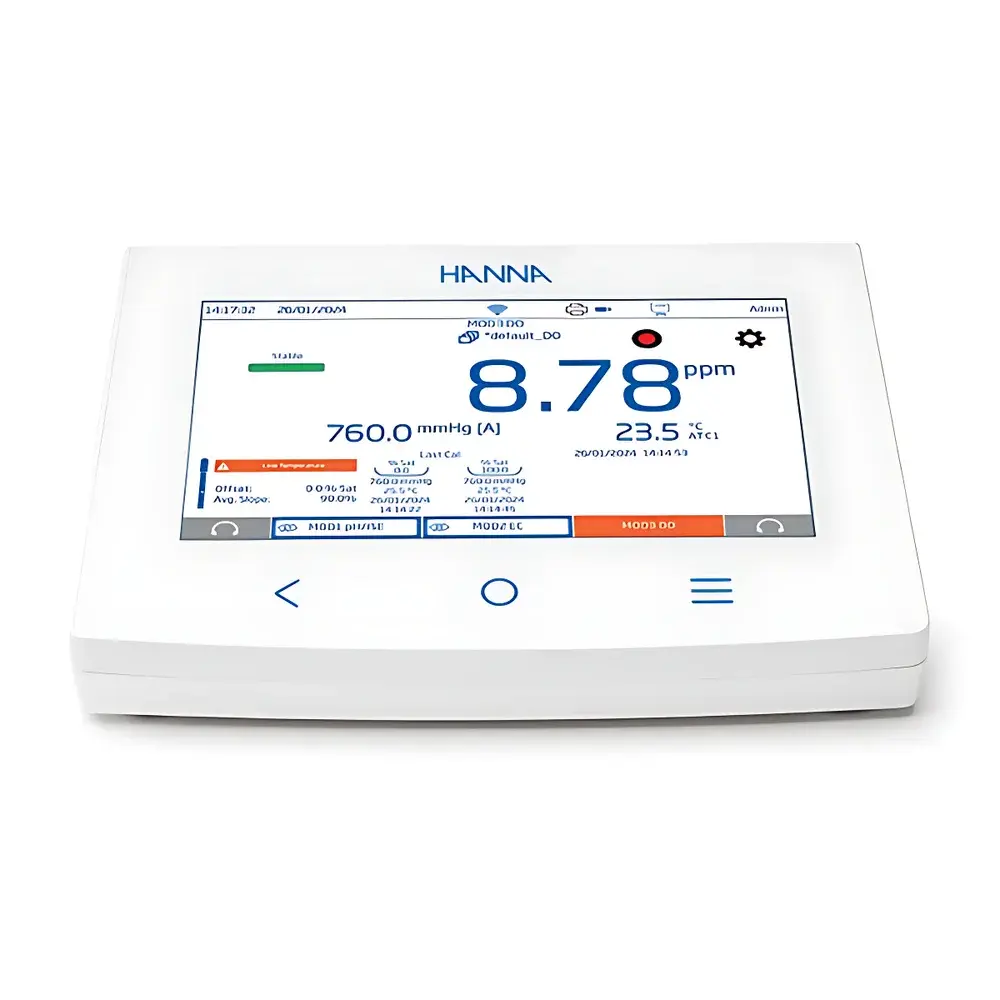

• High-fidelity 7-inch capacitive touchscreen with multi-touch gesture support, integrated tactile navigation keys (Home, Back, Menu), and five configurable display modes—including full GLP view with electrode diagnostics, real-time trend charts, and tabular logging with timestamps and annotations.
• Advanced calibration architecture: Supports up to 5-point calibration sequences for pH, ISE, and EC measurements; auto-buffer recognition from eight preloaded standard buffers and five user-defined solutions; calibration certificate integration for post-measurement correction application.
• Comprehensive data integrity framework: 1,000,000-point internal logging with date/time stamping, manual/auto/triggered logging modes, sample ID tagging (manual or auto-increment), and GLP-compliant metadata capture (operator ID, calibration history, sensor serial numbers).
• Dual USB connectivity (Type-A for flash drives, printers, keyboards; Type-C for PC synchronization and firmware updates), plus Ethernet and Wi-Fi interfaces enabling secure FTP, SMTP-based report delivery, and browser-accessible embedded web server for remote log retrieval.

Sample Compatibility & Compliance

The HI6000 is validated for aqueous liquid samples across industrial, regulatory, and research environments—including purified water (USP <1231>), wastewater (EPA Method 150.1, 150.2), nutrient solutions (AOAC 973.41), and bioprocess media. Its modular sensor interface complies with DIN 19263 and EN ISO 15839 for conductivity probes, and with ISO 5814 for optical DO sensors. All calibration routines generate GLP-compliant records suitable for FDA 21 CFR Part 11–aligned environments when paired with controlled user access and electronic signature protocols. Traceability is maintained through unique module and sensor serialization, automatic calibration certificate import, and time-stamped audit logs covering all configuration changes and measurement events.

Software & Data Management

Data export follows open-standard formats: .CSV files contain raw values, units, timestamps, calibration coefficients, and sensor status flags—ensuring interoperability with LIMS, ELN, and statistical process control (SPC) platforms. The embedded web server provides HTTPS-secured access to logged datasets, calibration reports, and system diagnostics without third-party software. On-device HELP functionality delivers context-sensitive text guidance and embedded video tutorials—covering module installation, calibration validation, troubleshooting error codes, and GLP report generation. Ten user profiles store method parameters, display preferences, and calibration templates, reducing setup time between shifts or analysts while maintaining procedural consistency.

Applications

The HI6000 serves critical roles in drinking water treatment (pH, conductivity, residual chlorine via ORP), pharmaceutical manufacturing (conductivity of Water for Injection per USP <645>, buffer pH verification), aquaculture (DO and salinity monitoring), food & beverage QC (titratable acidity via pH, brine EC), and university teaching labs (multi-parameter kinetics experiments). Its modularity supports method development workflows—e.g., sequential pH-ISE analysis for fluoride in groundwater, or concurrent EC-DO profiling during bioreactor optimization—without instrument reconfiguration delays.

FAQ

Can the HI6000 operate with only one module installed?

Yes—the system functions with any single module (e.g., HI6000-1 for pH-only work) and dynamically adjusts UI elements and calibration options accordingly.
Is sensor calibration data stored per module or per instrument?

Calibration records are bound to both the specific module and the connected sensor’s unique ID, enabling cross-chassis calibration portability and sensor lifecycle tracking.
Does the HI6000 support external temperature compensation for conductivity measurements?

Yes—it accepts input from integrated or external Pt1000 temperature probes, applying automatic linear or non-linear (e.g., CaCl₂) compensation per IEC 60746-3 Annex B.
How is data security managed during Wi-Fi transmission?

All wireless data transfers use TLS 1.2 encryption; FTP and email exports require authenticated credentials; local USB exports are unencrypted but support password-protected drives.
Are firmware updates provided free of charge?

HANNA offers lifetime firmware updates at no cost via their official support portal, including enhancements to compliance features, new calibration algorithms, and expanded sensor compatibility.
