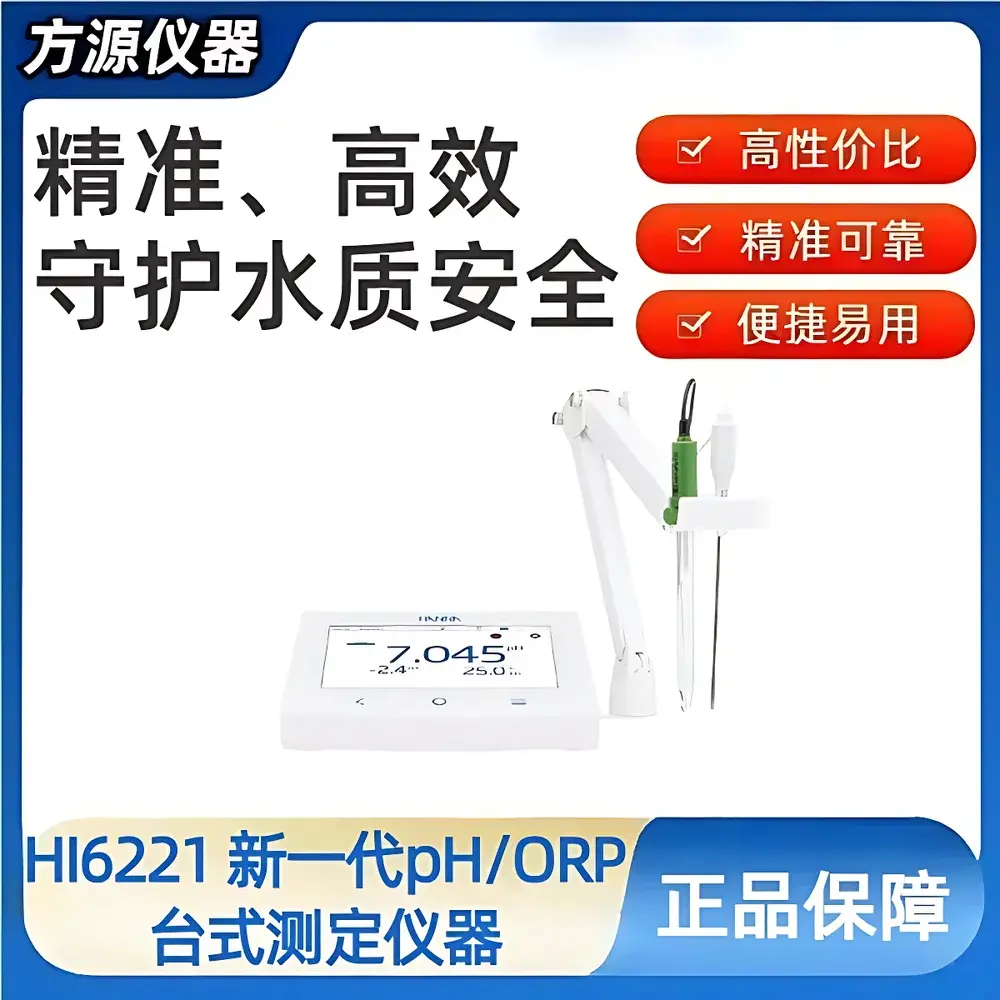

Hanna HI6221 Advanced Benchtop pH/ORP Meter

Overview

The Hanna HI6221 Advanced Benchtop pH/ORP Meter is an engineered solution for high-precision electrochemical analysis in regulated laboratory, quality control, and environmental monitoring environments. Built upon a dual-sensor potentiometric architecture, the instrument measures hydrogen ion activity (pH) and redox potential (ORP) via standardized glass electrode and noble metal (platinum or gold) reference systems. Its core design integrates a low-noise analog front-end, real-time temperature compensation (ATC) using integrated Pt1000 or NTC sensors, and adaptive electrode diagnostics that continuously monitor slope, offset, and response time—ensuring traceable, repeatable measurements per ISO 17025 and ASTM D1293 guidelines. The 7.0-inch full-color TFT touchscreen provides intuitive navigation while supporting multi-language UI (English, German, French, Spanish, Italian, Chinese), making it suitable for multinational laboratories operating under harmonized quality management systems.

Key Features

• High-resolution 7.0-inch capacitive touchscreen with glare-resistant optical bonding and glove-compatible operation
• Intelligent electrode recognition and diagnostics: automatic detection of electrode type, age estimation, and real-time slope/offset validation during calibration
• Five-point pH calibration with auto-buffer recognition across NIST, DIN, and USA standard buffer sets; optional custom buffer definition
• Dual-channel measurement capability: simultaneous display of pH and ORP with independent temperature compensation
• Robust IP54-rated housing with chemical-resistant ABS/PC casing and sealed front-panel membrane switches
• Integrated data integrity tools: GLP-compliant audit trail, user-defined operator IDs, and tamper-evident calibration logs
• Extended battery life: rechargeable Li-ion pack supports >200 hours of continuous operation—ideal for mobile labs or field-deployed QC stations

Sample Compatibility & Compliance

The HI6221 is validated for aqueous and mildly aggressive matrices including drinking water, wastewater effluents, process streams in food & beverage production, pharmaceutical rinse solutions, and electroplating baths. It accommodates standard BNC pH electrodes (e.g., HI1131B, HI1296B) and ORP probes (e.g., HI3230B, HI3630B) with integrated temperature sensors via mini-DIN interface. All measurement protocols align with ISO 10523 (water pH), ASTM E70 (pH of aqueous solutions), and USP (pH measurement in pharmaceutical preparations). The device firmware supports 21 CFR Part 11-compliant electronic signatures when paired with Hanna’s LabManager Pro software and network authentication infrastructure.

Software & Data Management

Data export and remote configuration are enabled through Hanna’s LabManager Pro PC software (Windows/macOS), which provides secure database synchronization, customizable report generation (PDF/CSV/XLSX), and automated backup to network drives or cloud storage (AWS S3, Microsoft OneDrive). Measurement records include timestamp, operator ID, electrode serial number, calibration parameters, temperature reading, and raw mV output—supporting full traceability for internal audits and regulatory inspections. Optional Bluetooth 5.0 connectivity (via HI7698280 module) enables wireless data streaming to mobile devices running Hanna’s HI Connect app, facilitating real-time trend visualization and collaborative troubleshooting across distributed lab sites.

Applications

• Environmental testing labs performing EPA Method 150.1 and ISO 5667-3 compliance checks on surface and groundwater samples
• Pharmaceutical manufacturing units conducting pH verification of purified water (PW) and water-for-injection (WFI) per EU GMP Annex 1 and USP
• Food processing facilities monitoring acidification steps in dairy fermentation, meat curing, and beverage carbonation processes
• Academic research groups studying redox kinetics in catalytic reactions or corrosion inhibition mechanisms
• Water treatment plants validating disinfection efficacy via ORP thresholds for chlorine, ozone, and UV-based oxidation systems

FAQ

Does the HI6221 support automatic temperature compensation (ATC)?

Yes—the instrument accepts signals from integrated Pt1000, NTC20k, or thermistor-equipped electrodes and applies real-time ATC using the Nernst equation with configurable temperature coefficient settings.
Can calibration data be exported for audit purposes?

All calibration events—including date/time, buffer IDs, measured mV/pH values, slope (%), offset (mV), and operator signature—are stored locally and exportable in CSV format with cryptographic hash verification.
Is the HI6221 compatible with non-Hanna electrodes?

It accepts any BNC-output pH electrode and mini-DIN temperature probe meeting IEC 60746-1 electrical interface specifications; however, advanced diagnostics (e.g., electrode health scoring) require Hanna’s Smart Electrode protocol.
What power options are available for uninterrupted operation?

The unit operates continuously on AC power (100–240 VAC, 50/60 Hz) or switches seamlessly to its internal Li-ion battery—rated for ≥200 hours at typical lab usage (10 min active use/hour).
How does the HI6221 ensure data integrity in regulated environments?

Through built-in audit trail logging, role-based user access control, electronic signature capture, and encrypted local storage—all configurable to meet ALCOA+ principles and FDA 21 CFR Part 11 requirements when deployed with LabManager Pro.
