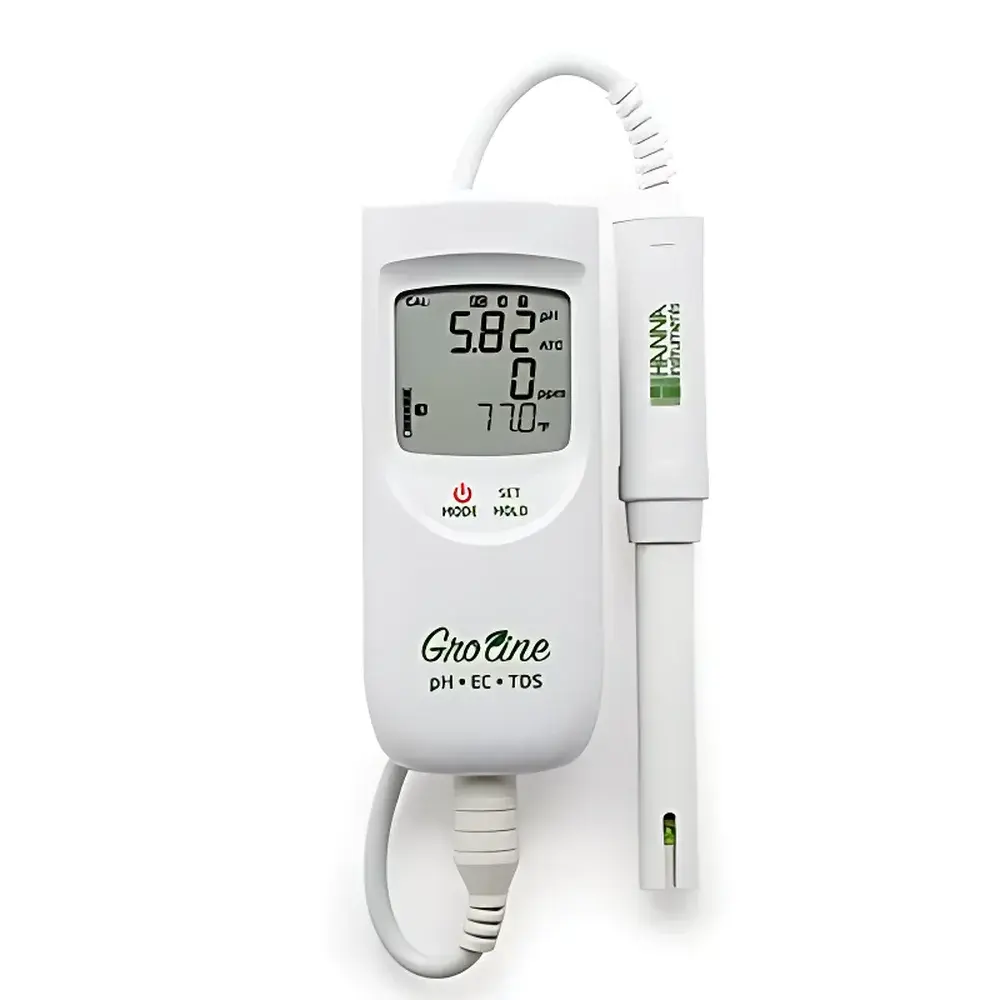

Hanna HI9814 Waterproof Portable pH-EC-TDS-°C Meter

Overview

The Hanna HI9814 is a rugged, multiparameter portable meter engineered for field-deployable and routine laboratory use in environmental monitoring, aquaculture, hydroponics, wastewater treatment, and agricultural soil analysis. It simultaneously measures pH, electrical conductivity (EC), total dissolved solids (TDS), and temperature using a single integrated sensor probe—HI1285-7—featuring a conical glass pH sensing element, dual-ring amperometric EC/TDS transducer, and embedded Pt1000 temperature sensor. The instrument operates on potentiometric (pH) and conductometric (EC/TDS) principles, with automatic temperature compensation (ATC) applied per the β = 1.9 %/°C coefficient, ensuring traceable accuracy across variable thermal conditions. Designed to meet the operational demands of outdoor and industrial environments, the HI9814 complies with IP67 ingress protection standards and delivers laboratory-grade repeatability without requiring benchtop infrastructure.

Key Features

• True multiparameter capability: simultaneous real-time display of pH (or EC/TDS) and temperature on a dual-line LCD with intuitive icon-based prompts
• Integrated HI1285-7 probe with built-in signal amplification, eliminating external junction noise and improving low-conductivity measurement stability
• Sensor Check™ diagnostic function enables on-demand verification of pH electrode status—including glass membrane integrity, reference junction functionality, and internal resistance—supporting GLP-compliant recordkeeping
• DIN-style waterproof quick-connect interface ensures secure, repeatable probe attachment with tactile feedback and corrosion-resistant nickel-plated contacts
• Rubberized cable jacket provides mechanical strain relief, torsion resistance, and hermetic sealing at the probe-to-cable junction
• BEPS (Battery Error Prevention System) continuously monitors battery voltage and flashes the battery icon when remaining capacity drops below 5%, preventing erroneous readings due to low power
• Three programmable auto-off intervals (8 min, 60 min, or disabled) optimize battery longevity while maintaining operational flexibility
• Polypropylene probe body resists chemical degradation from fertilizers, chlorine, acids, and alkaline solutions commonly encountered in irrigation and effluent testing

Sample Compatibility & Compliance

The HI9814 is validated for aqueous samples within pH 0–14 and EC 0–6 mS/cm, including freshwater, nutrient solutions, runoff water, and diluted process streams. Its EC/TDS measurement algorithm supports two fixed conversion factors (0.5 for 500 ppm NaCl equivalence and 0.7 for 700 ppm KCl equivalence), enabling consistent reporting aligned with ASTM D1125 and ISO 7888 conventions. The device meets CE marking requirements under the EU Electromagnetic Compatibility Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. While not certified for GMP or FDA 21 CFR Part 11 compliance out-of-the-box, its audit-ready features—including timestamped calibration logs, Sensor Check™ diagnostics, and manual HOLD functionality—facilitate integration into GLP-aligned workflows where electronic records are manually transcribed.

Software & Data Management

The HI9814 operates as a standalone instrument with no onboard data logging or Bluetooth connectivity. All measurements are displayed in real time and intended for immediate manual recording. Calibration events—including date, standard used, offset/slope values, and Sensor Check™ status—are retained in non-volatile memory and accessible via on-screen navigation. The included quick-reference multilingual manual (English/Chinese) documents full traceability procedures for calibration verification, electrode maintenance, and uncertainty estimation per ISO/IEC 17025 Annex A.3 guidelines. For laboratories requiring digital archiving, third-party USB serial adapters (e.g., FTDI TTL-232R-3V3) may be used with terminal emulation software to capture ASCII-formatted output, though this configuration falls outside Hanna’s warranty scope.

Applications

• Aquaculture and hatchery management: monitoring pH buffering capacity and salinity-driven EC shifts in recirculating systems
• Hydroponic nutrient solution control: verifying acid addition efficacy and detecting ionic imbalance via concurrent pH/EC trends
• Soil leachate and irrigation water screening: assessing alkalinity risk (pH > 8.2) and osmotic stress potential (EC > 2.0 mS/cm)
• Wastewater pre-treatment verification: rapid checks of influent acidity and dissolved ion load prior to biological treatment stages
• Educational field labs: introducing students to fundamental electrochemical concepts—including Nernst equation application, conductivity cell geometry, and temperature-dependent ion mobility—using a single calibrated platform

FAQ

What calibration standards are required for daily operation?
For pH, Hanna recommends HI50036 (pH 4.01 and 7.01 buffer set); for EC, HI7031 (1.41 mS/cm) or HI7030 (12.88 mS/cm) are factory-matched to the HI1285-7 probe’s cell constant.
Can the HI9814 measure seawater or high-salinity brines?
No. Its 6.00 mS/cm upper EC limit corresponds to ~3.5% NaCl (≈35 ppt), well below typical seawater (~53 mS/cm). Use HI9833 or HI98304 for marine applications.
How often should the HI1285-7 probe’s dialysis membrane be adjusted?
Inspect visually every 2–4 weeks in continuous use; extend service life by retracting the membrane 1–2 mm when response lag exceeds 15 seconds during calibration.
Is temperature compensation applied to both pH and EC measurements?
Yes. ATC is active for all parameters: pH uses NIST-traceable RTD input; EC employs linear β-compensation referenced to 25°C.
Does the meter support custom TDS conversion factors?
No. Only 0.5 and 0.7 are programmable, corresponding to industry-standard NaCl and KCl equivalency models per EPA Method 120.1.
