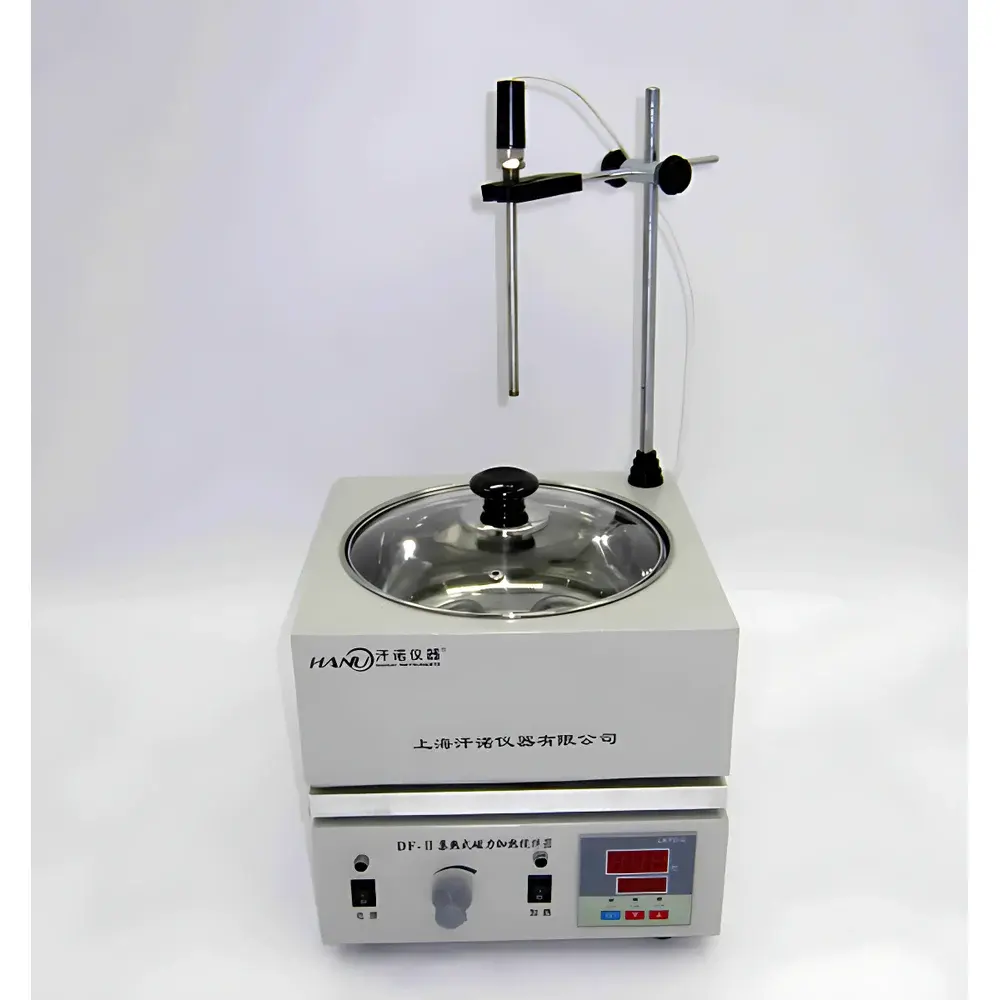

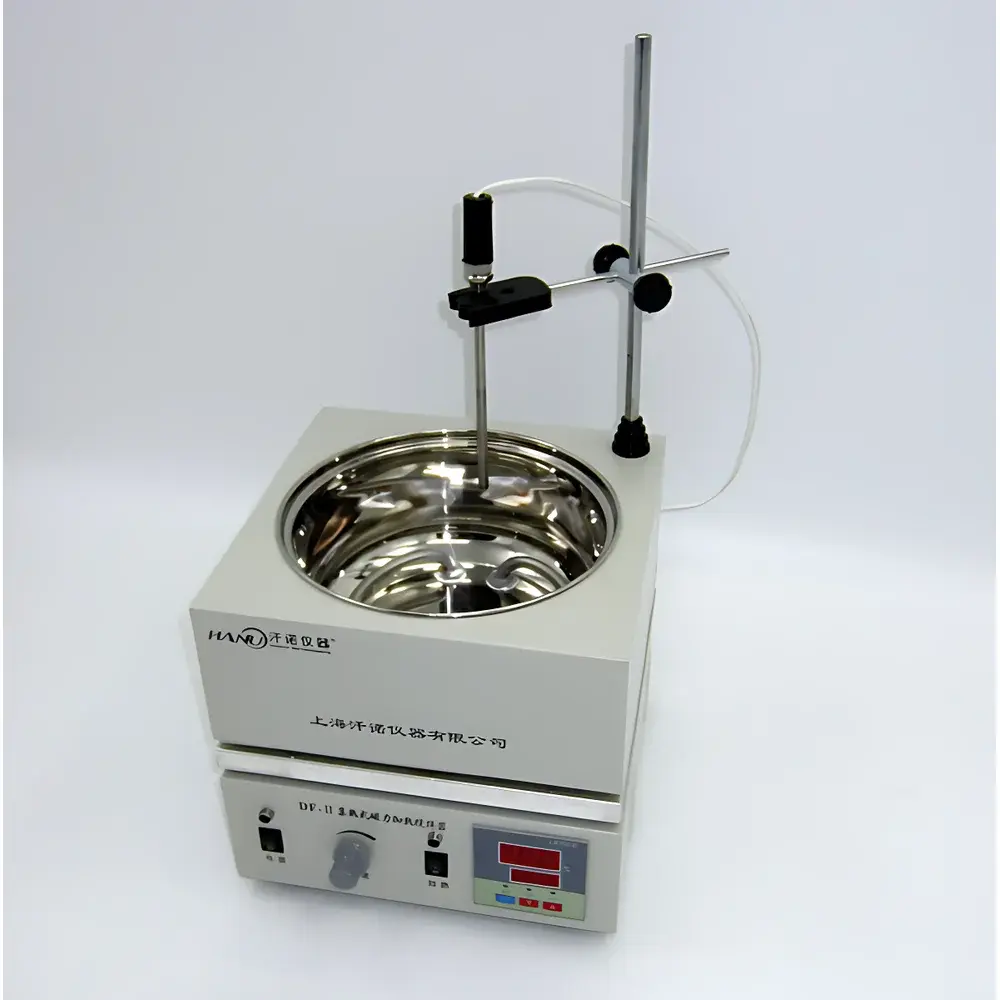

Hanuo DF-11 Integrated Heating Magnetic Stirrer

Overview

The Hanuo DF-11 Integrated Heating Magnetic Stirrer is an engineered laboratory instrument designed for precise, simultaneous temperature control and mechanical agitation of liquid and low-viscosity heterogeneous samples. It operates on the principle of rotating magnetic field coupling: a high-strength permanent magnet array beneath the aluminum heating plate generates a controlled rotating magnetic field, which couples with a PTFE- or glass-coated magnetic stir bar immersed in the sample vessel. This induces continuous orbital motion of the stir bar, generating laminar-to-moderate turbulent flow—ideal for homogeneous mixing, dissolution, reaction initiation, and thermal equilibration. Unlike overhead mechanical stirrers, the DF-11 eliminates shaft seals, contamination risks, and mechanical wear, making it particularly suitable for sealed-vessel applications, small-to-medium scale synthesis, and routine QC procedures in chemistry, pharmaceutical development, and materials science laboratories.

Key Features

• Integrated dual-function design: simultaneous digital temperature regulation and variable-speed magnetic stirring in a single compact unit
• High-power 600 W aluminum heating plate with rapid thermal response and uniform surface temperature distribution (±2 °C at 200 °C, typical)
• Digital LED interface enabling independent setting and real-time monitoring of both speed (0–2600 rpm) and plate temperature (ambient to 300 °C)
• Brushless DC motor drive ensuring long service life, low electromagnetic interference, and consistent torque delivery across the full speed range
• Robust aluminum alloy housing with heat-resistant silicone feet and reinforced base geometry for stable operation under load
• Multi-mode heating compatibility: validated for use with water baths (up to 100 °C), silicone oil baths (up to 300 °C), and direct dry-heating of glass or metal containers

Sample Compatibility & Compliance

The DF-11 supports standard laboratory glassware including beakers (50 mL–10 L), Erlenmeyer flasks, round-bottom flasks, and jacketed reactors. Its maximum effective stirring volume of 10 L assumes use of appropriately sized stir bars (e.g., 40–60 mm length, ≥8 mm diameter) and low-to-moderate viscosity media (<500 mPa·s at 25 °C). The unit complies with IEC 61010-1:2010 safety standards for electrical equipment used in laboratory environments. While not certified for hazardous area (ATEX/IECEx) use, its sealed electronics and non-sparking motor meet general-purpose lab requirements under ISO/IEC 17025-accredited quality systems. No built-in audit trail or electronic signature functionality; manual logbook documentation satisfies basic GLP traceability needs.

Software & Data Management

The DF-11 operates as a standalone analog-digital hybrid instrument with no embedded microprocessor-based data logging or PC connectivity. All operational parameters are set and read locally via the front-panel LED display. For regulated environments requiring electronic records, external USB or RS-232 data loggers may be interfaced using optional analog output modules (0–5 V or 4–20 mA, sold separately). The device does not implement FDA 21 CFR Part 11 compliance features such as user authentication, electronic signatures, or immutable audit trails. Users performing validation per ASTM E2500 or USP should establish calibration intervals (recommended annually) and maintain traceable records of temperature and speed verification using NIST-traceable reference standards.

Applications

• Controlled-temperature dissolution testing of APIs and excipients in pharmaceutical formulation development
• Homogenization of catalyst suspensions and nanoparticle dispersions in materials synthesis
• Buffer preparation and reagent mixing in molecular biology and clinical diagnostics workflows
• Heating and stirring during titration, reflux, and extraction protocols in organic and analytical chemistry labs
• Pre-conditioning of polymer melts and thermoplastic resins prior to rheological or DSC analysis
• Supporting ASTM D2196 (viscosity of paints), ISO 787-19 (dispersion stability), and USP (dissolution apparatus qualification) test methods

FAQ

What is the maximum recommended viscosity for reliable stirring with the DF-11?
For consistent vortex formation and full-volume homogenization, the DF-11 is optimized for liquids and suspensions with dynamic viscosity ≤500 mPa·s at operating temperature. Higher viscosities require larger stir bars and reduced speed settings.
Can the DF-11 be used with closed vessels or pressure-rated reactors?
Yes—provided the vessel is non-magnetic and the stir bar is correctly sized and centered, the DF-11 functions effectively under atmospheric or slight positive pressure in sealed glass or stainless-steel reactors.
Is the heating plate surface temperature calibrated against internal sensor readings?
The unit displays plate surface temperature derived from a Pt100 RTD embedded beneath the aluminum plate. Calibration drift is typically <±1.5 °C over 12 months; users should verify accuracy annually using a traceable surface probe thermometer.
Does the DF-11 support programmable ramp-hold temperature profiles?
No—the DF-11 provides only static setpoint control. For multi-step thermal protocols, external programmable controllers or integrated reactor systems are required.
What maintenance is required to ensure long-term performance?
Routine cleaning of the aluminum plate with isopropyl alcohol, periodic inspection of stir bar coating integrity, and annual verification of speed/torque consistency using a handheld tachometer and calibrated load cell are recommended.
