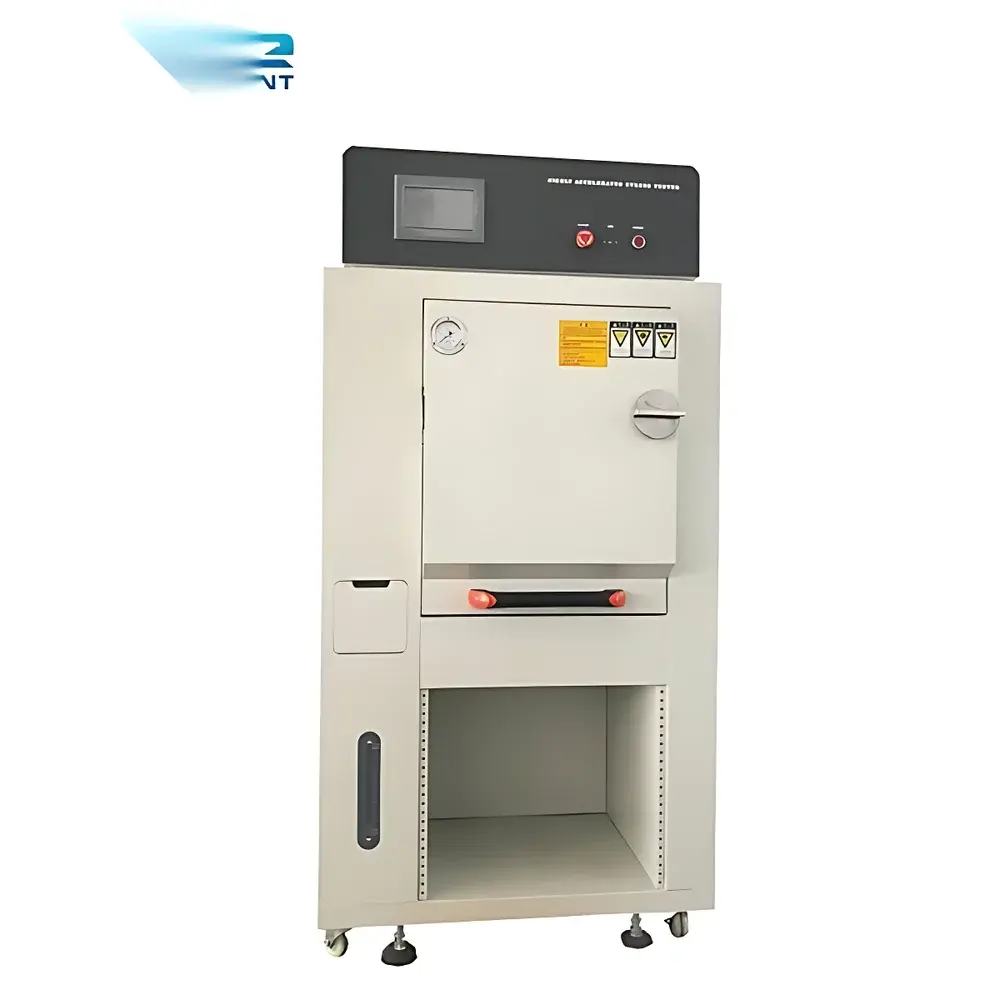

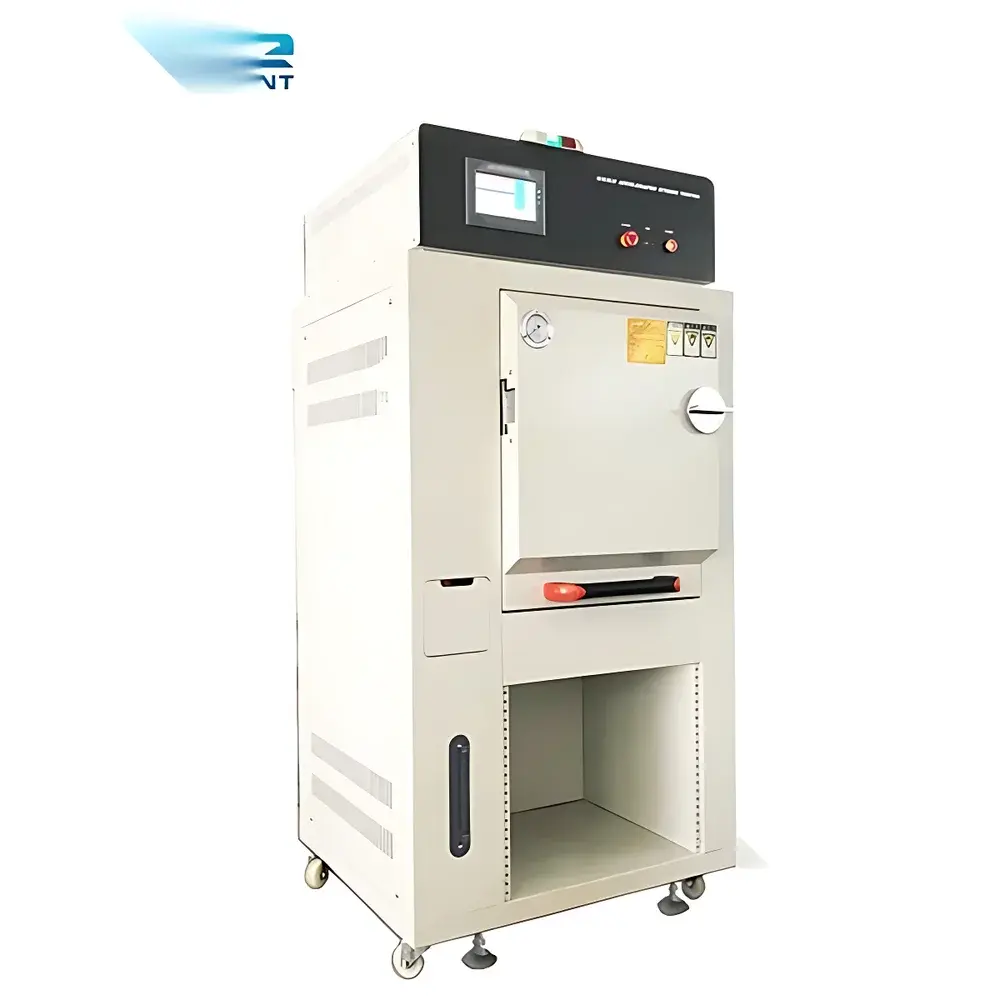

HAST High-Accelerated Stress Test Chamber

Overview

The HAST High-Accelerated Stress Test Chamber is an engineered environmental stress screening system designed to replicate and accelerate moisture-induced failure mechanisms in electronic components, printed circuit boards (PCBs), semiconductor packages, and hermetic seals under elevated temperature, pressure, and humidity conditions. Unlike conventional damp heat testing (e.g., 85°C/85% RH), the HAST chamber operates above atmospheric pressure—typically at saturated steam conditions between +100°C and +132°C—enabling rapid diffusion of water vapor into micro-defects such as delaminations, voids, and interfacial weaknesses. This acceleration mechanism is grounded in the Arrhenius–Eyring model for moisture permeation kinetics, where a 10°C rise in temperature approximately doubles the reaction rate, and increased partial pressure of water vapor further enhances ingress velocity. The chamber’s sealed stainless steel construction, precise PID-controlled thermal regulation, and integrated saturation control ensure thermodynamic stability essential for repeatable, standards-compliant qualification testing.

Key Features

• Microprocessor-based PID temperature controller with LED digital display and membrane keypad interface—supports single-point setpoint control with multi-stage PID tuning capability for optimal overshoot suppression and steady-state stability.
• Pt100 platinum resistance thermometer (±0.15°C accuracy) embedded in chamber air stream for high-fidelity temperature feedback and closed-loop regulation.
• Stainless steel finned heating elements with ceramic insulation and dielectric withstand rating (>2 kV), ensuring safe, uniform thermal distribution without hot-spot formation.
• Electric surface-evaporation humidification system with dedicated drain port for routine maintenance and residue removal—minimizes mineral deposit accumulation and ensures long-term RH reproducibility.
• Magnetic-coupled axial fan assembly driving natural convection circulation of saturated steam; eliminates mechanical seals and lubricants incompatible with high-humidity environments.
• Double-wall chamber architecture: interior mirror-finish SUS#304 stainless steel (electropolished, non-porous) and exterior electrostatically powder-coated SUS#304—providing corrosion resistance, structural rigidity, and compliance with cleanroom-compatible surface requirements.
• Comprehensive safety suite including fuseless overload protection, compressor overcurrent cutoff, independent overtemperature cut-off relay, real-time low-water level detection, dry-run prevention for heater/humidifier, and fast-acting thermal fuses rated per IEC 60335-1.

Sample Compatibility & Compliance

The HAST chamber accommodates standard JEDEC trays (JEDEC J-STD-020, JESD22-A110), 200 mm wafer carriers, QFN/QFP packages, BGA assemblies, and MEMS sensors mounted on test boards. Its internal volume (Ø250 × 400 mm) supports up to 48 IC units per cycle under full saturation. All operational parameters—including ramp rates, dwell times, pressure profiles, and recovery sequences—are configurable to meet test plans defined in industry-recognized standards. The system is validated for conformance to ASTM B809 (moisture resistance of metallic coatings), IEC 60068-2-66 (damp heat, accelerated, high-pressure), JIS C 60068-2-66, MIL-STD-202 Method 103 (humidity resistance), UL 746E (polymeric materials), NACE TM0177 (sulfide stress cracking), and ISO 9001:2015 Clause 7.1.5 (monitoring and measuring resources). Optional calibration certificates traceable to NIST or PTB are available upon request.

Software & Data Management

While the base configuration features standalone microcontroller operation, optional RS-485/Modbus RTU or Ethernet TCP/IP interfaces enable integration into centralized test management platforms (e.g., LabVIEW, TestStand, or custom MES systems). Real-time logging of temperature, pressure, and relative humidity is supported at user-defined intervals (1–60 s resolution), with data export in CSV or XML format. Audit trail functionality—including operator ID, parameter changes, alarm events, and calibration history—meets GLP/GMP documentation requirements and aligns with FDA 21 CFR Part 11 electronic record provisions when paired with appropriate access controls and digital signature modules.

Applications

• Qualification testing of automotive-grade semiconductors per AEC-Q100 stress test conditions (HAST, Unbiased HAST, UHAST).
• Reliability validation of consumer electronics PCBAs exposed to tropical or coastal environments.
• Failure analysis root cause determination for popcorning, wire bond lift-off, and mold compound blistering.
• Process development support for conformal coating, underfill, and encapsulation material selection.
• Accelerated life testing of medical device connectors and implantable housing seals per ISO 10993-12.
• Material compatibility screening of adhesives, laminates, and solder mask formulations under saturated steam exposure.

FAQ

What is the maximum allowable test duration per cycle in HAST mode?

Standard qualification cycles range from 96 h to 168 h; extended runs up to 500 h are feasible with periodic water replenishment and system health verification.
Can the chamber operate at sub-saturated conditions (e.g., 110°C / 85% RH)?

No—this unit is optimized for saturated steam operation only; non-saturated profiles require dedicated climate chambers with independent humidity control.
Is third-party IQ/OQ/PQ validation support available?

Yes—comprehensive installation, operational, and performance qualification protocols compliant with ISO/IEC 17025 and GAMP5 are provided by authorized service partners.
Does the system include pressure relief certification per PED 2014/68/EU?

The chamber is equipped with dual redundant pressure relief valves certified to ASME BPVC Section VIII Div. 1 and PED Annex I Essential Safety Requirements.
What maintenance intervals are recommended for long-term reliability?

Quarterly inspection of water quality, heater insulation resistance, fan coupling integrity, and sensor calibration drift; annual replacement of humidifier evaporator plates and gasket seals.
