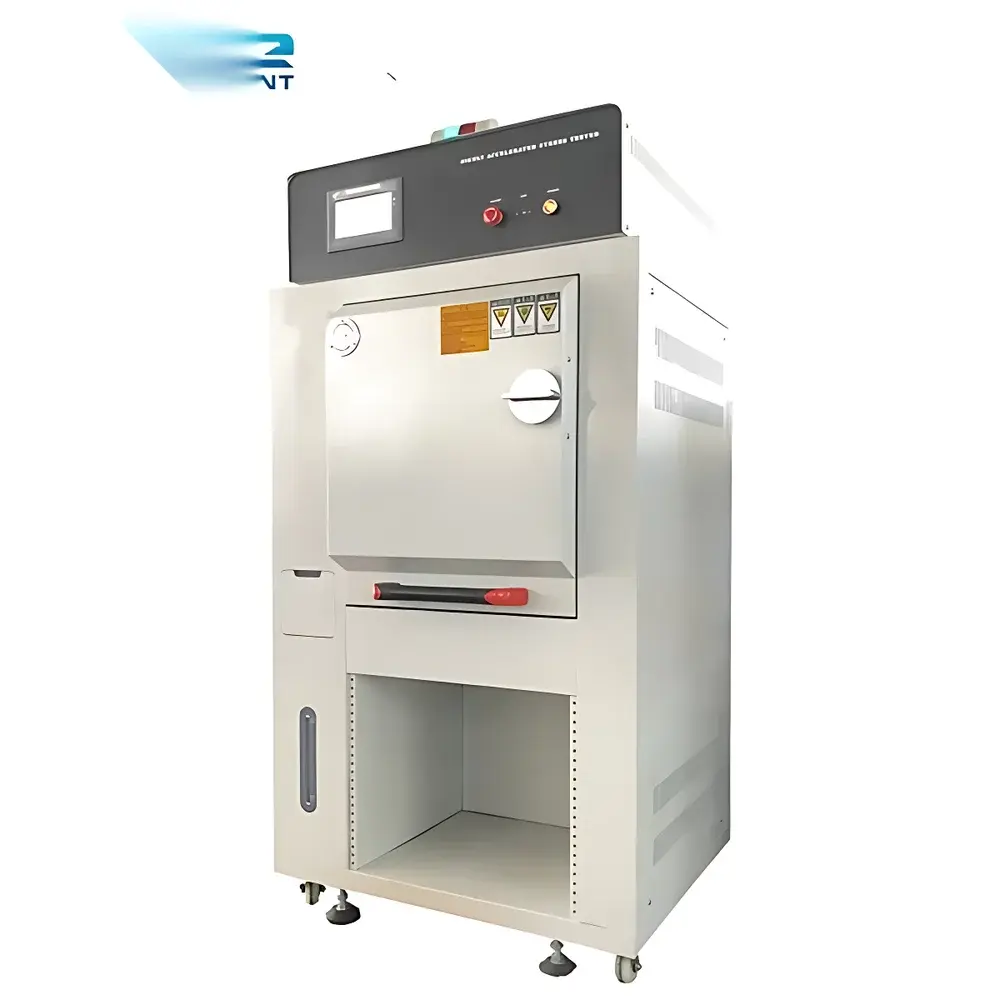

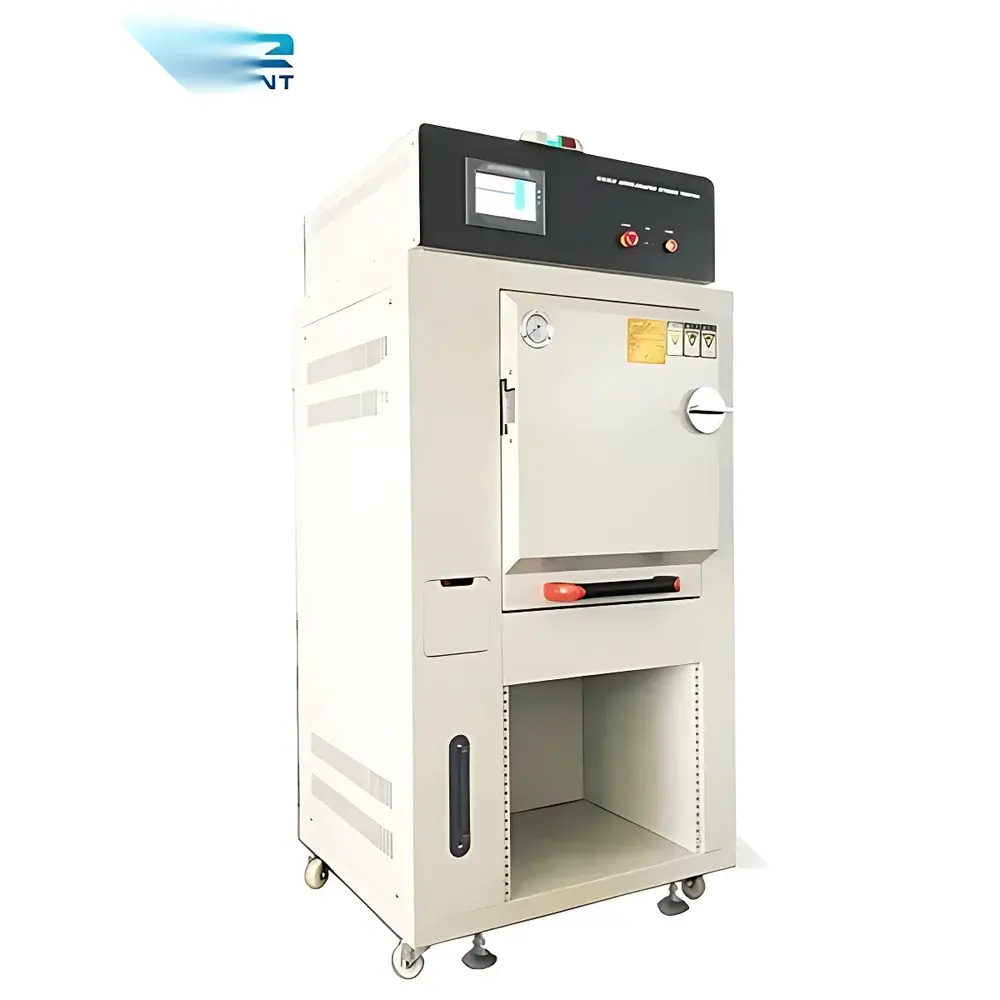

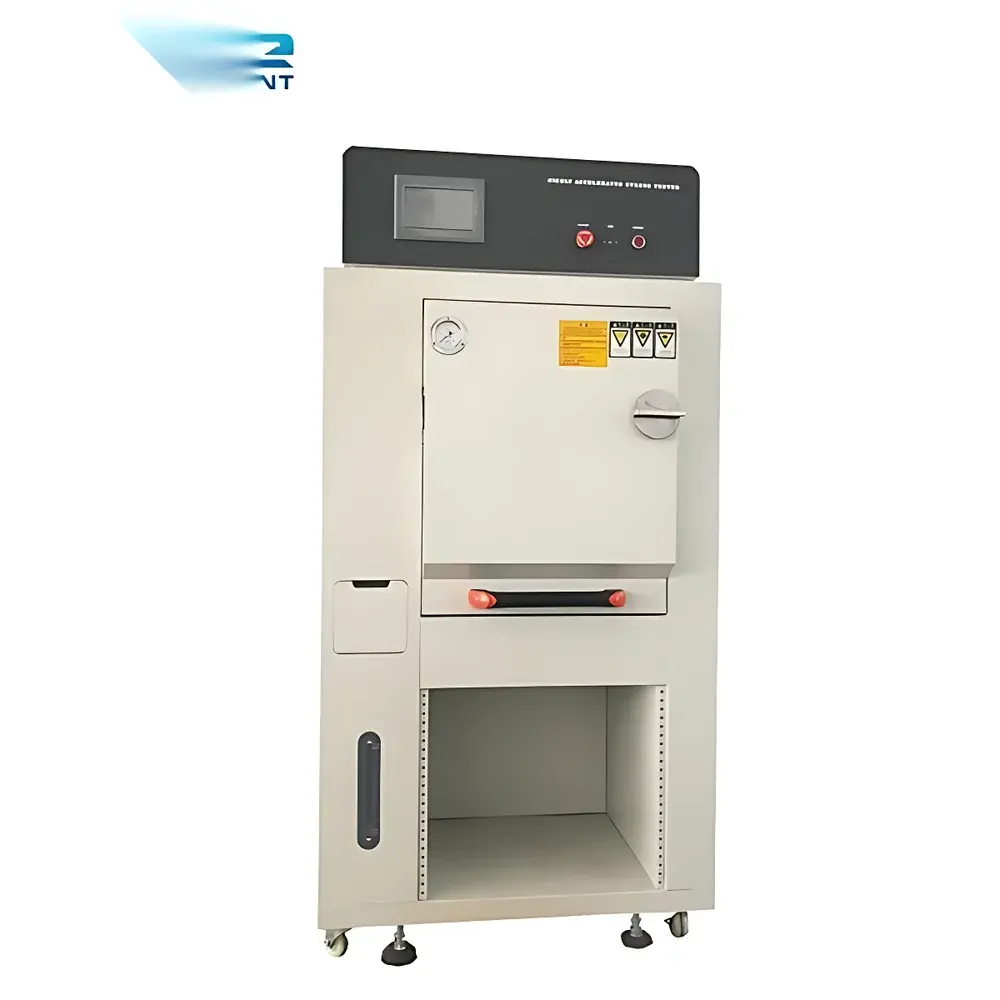

OK-HAST Series High-Accelerated Stress Test Chamber (HAST) – Compliant with IEC 60068-2-66, JIS C 60068-2-66, and ISO 16750-4 Standards

Overview

The OK-HAST Series High-Accelerated Stress Test Chamber is an engineered environmental test system designed for reliability validation of semiconductor devices, PCB assemblies, passive components, and hermetically sealed packages under high-pressure saturated steam conditions. It implements the Highly Accelerated Stress Test (HAST) methodology—defined in IEC 60068-2-66—as a physically rigorous alternative to traditional Temperature-Humidity-Bias (THB) testing. Unlike conventional damp heat tests, HAST operates at elevated temperature (up to +132 °C) and pressure (up to 2.0 kg/cm² above ambient), enabling saturation vapor conditions that dramatically accelerate moisture diffusion through packaging interfaces and dielectric layers. This acceleration factor—typically 10× to 20× faster than THB at 85 °C/85 % RH—allows failure mechanisms such as corrosion, intermetallic growth, and delamination to manifest within hours or days rather than weeks or months. The chamber’s thermodynamic architecture ensures stable, reproducible saturated vapor environments without liquid water ingress, preserving test validity per international reliability standards.

Key Features

• Four scalable chamber configurations (OK-HAST-30 to OK-HAST-60) optimized for lab-scale qualification and production-line screening
• Microprocessor-based PID control system with independent real-time monitoring of saturated steam temperature, absolute pressure, and elapsed test time
• High-stability platinum resistance thermometer (PT-100 Ω) with 0.1 °C resolution and ±0.5 °C control accuracy across full operating range
• Safety-certified pressure vessel design rated to 3.5 kg/cm², incorporating redundant mechanical pressure relief valves and electronic overpressure cut-off
• Natural convection circulation of saturated steam—eliminating forced airflow that could disturb thermal equilibrium or induce condensation artifacts
• Integrated thermal insulation and low-thermal-mass heating elements ensure rapid, repeatable ramp profiles: ≤35 minutes from ambient to 132 °C; ≤40 minutes to reach 2.0 kg/cm² pressure setpoint
• Compliance-ready firmware with audit trail logging, user-access levels, and configurable alarm thresholds aligned with GLP/GMP documentation requirements

Sample Compatibility & Compliance

The OK-HAST chamber accommodates a broad spectrum of electronic and microelectromechanical specimens—including QFN, BGA, WLP, CSP, and molded plastic ICs—as well as automotive-grade sensors and power modules requiring AEC-Q200 or ISO 16750-4 validation. Its operational envelope satisfies the mandatory test conditions specified in IEC 60068-2-66 (Test Db: Damp Heat, High Pressure), JIS C 60068-2-66, and ISO 16750-4 Annex D. It further supports derivative protocols referenced in MIL-STD-202 Method 103, ASTM B809-95 (for metallic corrosion evaluation), UL 746E (polymeric material endurance), and NACE TM0177 (sulfide stress cracking). All units undergo factory calibration traceable to NIST standards, and configuration files may be exported for regulatory submission under FDA 21 CFR Part 11-compliant data integrity frameworks.

Software & Data Management

The embedded controller provides local interface for parameter setup, real-time graphing, and event-triggered data capture. Optional Ethernet or RS-485 connectivity enables integration with centralized laboratory information management systems (LIMS) or MES platforms. Test logs—including timestamped temperature, pressure, and duration values—are stored internally with non-volatile memory retention (>10 years). Export formats include CSV and XML, supporting automated parsing for Weibull analysis, failure rate modeling (e.g., Arrhenius-derived activation energy), and statistical process control (SPC) charting. Audit trails record operator ID, parameter changes, alarm activations, and manual interventions—fully compliant with ISO/IEC 17025 clause 7.7 and GLP Principle 5 requirements for data integrity and traceability.

Applications

• Qualification of wafer-level chip-scale packages (WLCSP) and fan-out wafer-level packaging (FOWLP) against moisture-induced popcorning and lid lift
• Screening of solder mask adhesion and underfill cure integrity in advanced SiP and 2.5D/3D IC stacks
• Accelerated lifetime assessment of automotive radar modules exposed to humid tropical climates (ISO 16750-4 Class 4)
• Failure mode identification in MEMS oscillators and RF front-end modules subjected to thermal-mechanical stress gradients
• Process capability verification for conformal coating materials (e.g., parylene, acrylic, silicone) under aggressive condensing vapor exposure
• Root cause analysis of field returns linked to latent interfacial degradation in high-k dielectrics and copper redistribution layers

FAQ

What distinguishes HAST from standard THB testing?

HAST replaces ambient-pressure humid air with saturated steam at elevated temperature and pressure—eliminating the need for prolonged exposure while intensifying moisture-driven failure mechanisms via Fickian diffusion enhancement.

Is the OK-HAST chamber suitable for testing non-hermetic packages?

Yes—its controlled saturation environment enables accelerated evaluation of moisture barrier performance in epoxy-molded, glob-top, and encapsulated assemblies without introducing uncontrolled condensation risks.

Does the system support dual-temperature or multi-step profile programming?

No—the OK-HAST series is optimized for single-point saturated steam operation per IEC 60068-2-66; multi-zone or ramp-hold profiles require separate THB or ESS chambers.

How is pressure calibrated and verified during routine maintenance?

Each unit ships with a certified pressure transducer calibrated against deadweight testers; annual recalibration is recommended using NIST-traceable portable pressure standards per ISO/IEC 17025.

Can test data be exported for Weibull reliability analysis?

Yes—CSV exports include all primary sensor readings and timestamps, compatible with industry-standard reliability software including JMP, Weibull++ and ReliaSoft BlockSim.
